Product Details
This kit includes 3 components, each built and powder-coated in-house.
| Make | Model | Submodel | Years |
|---|---|---|---|
| Toyota | 4Runner | 1996–2002 |
Vehicle Fitment: Toyota 4Runner 96-02 – Delivers total control over axle positioning, suspension geometry, and pinion angle adjustments for lifted and off-road setups.
CORE Advantage: Reduces driveline vibration, improves axle centering, and enhances articulation, ensuring superior ride quality and suspension control on any terrain.
Adjustability: Accommodates 0 to 6 inches of lift with left- and right-hand threaded adjusters, allowing for on-vehicle fine-tuning of pinion angle, alignment, and rear axle positioning.

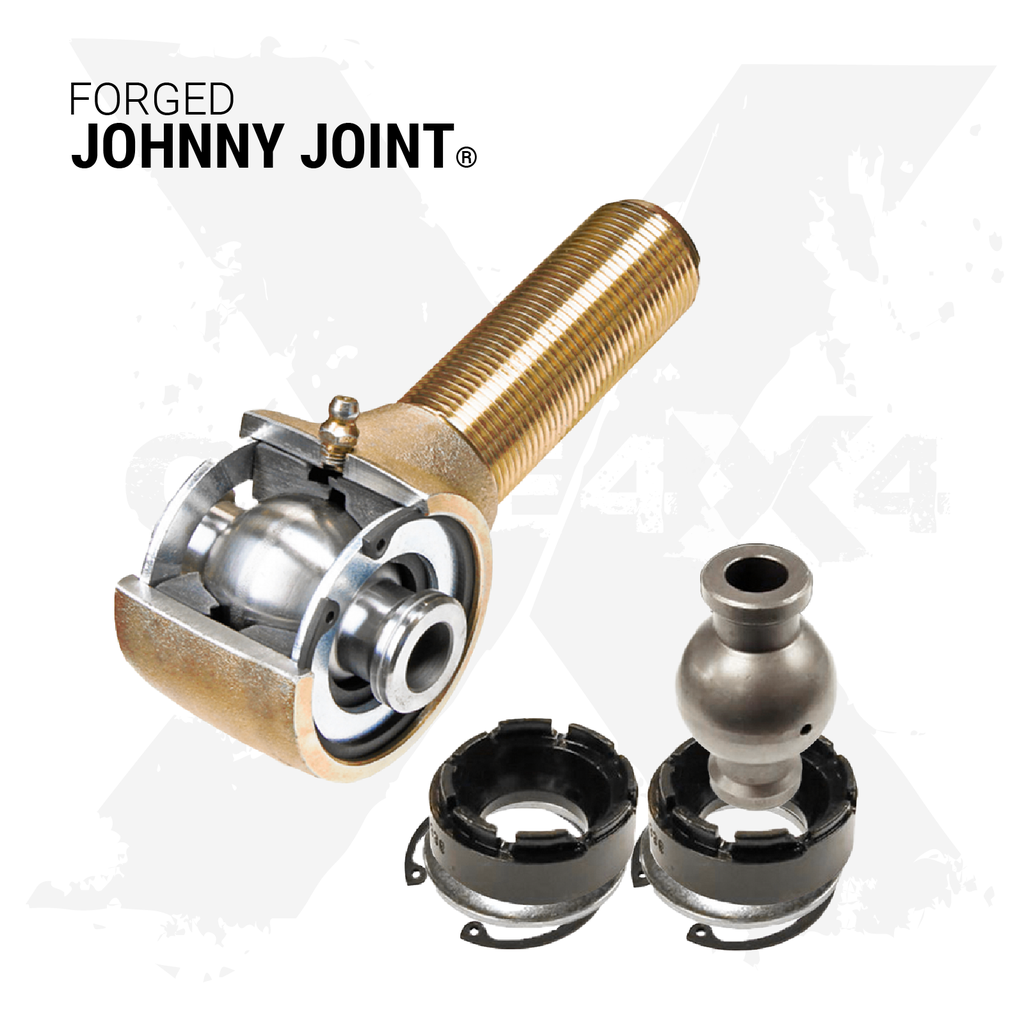

Construction: Heavy-duty 5/16” wall DOM tubing, combined with Johnny Joints at both ends of all components, providing maximum articulation, strength, and vibration dampening.
Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.
Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.
Built With
Rear Lower Control Arms Built With 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Rear Upper Control Arms Built With 1.5” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1” x 14 TPI - 2.32” long threads.
Rear Track Bar Built With 1.5” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1” x 14 TPI - 2.32” long threads.
Construction & Materials
Rear Lower control arms built with 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Rear Upper control arms built with 1.5” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1” x 14 TPI - 2.32” long threads.
Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1” x 14 TPI - 2.32” long threads.
| Vehicle | Toyota 4Runner (96-02) |
| Brand | CORE 4X4 |
| Color | Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed. |

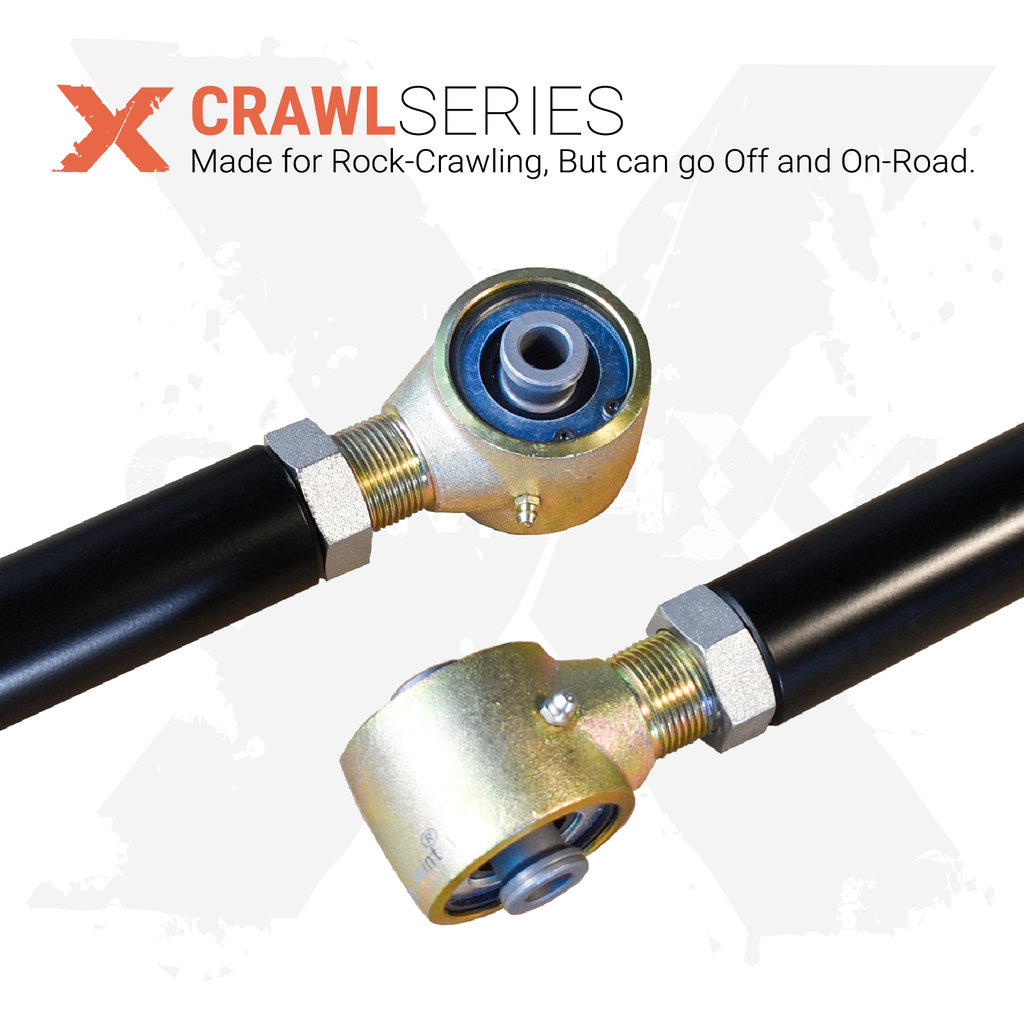

| Series | Crawl Series |
| Hardware | No Hardware or Complete Kit |
| Lift Size | 0" — 6" or 6"+ |
| Placement on Vehicle | Rear Upper, Rear Lower, Rear |
| Mounting Style | Bolt-On |
Unmatched Off-Road Flexibility On-Road Stability

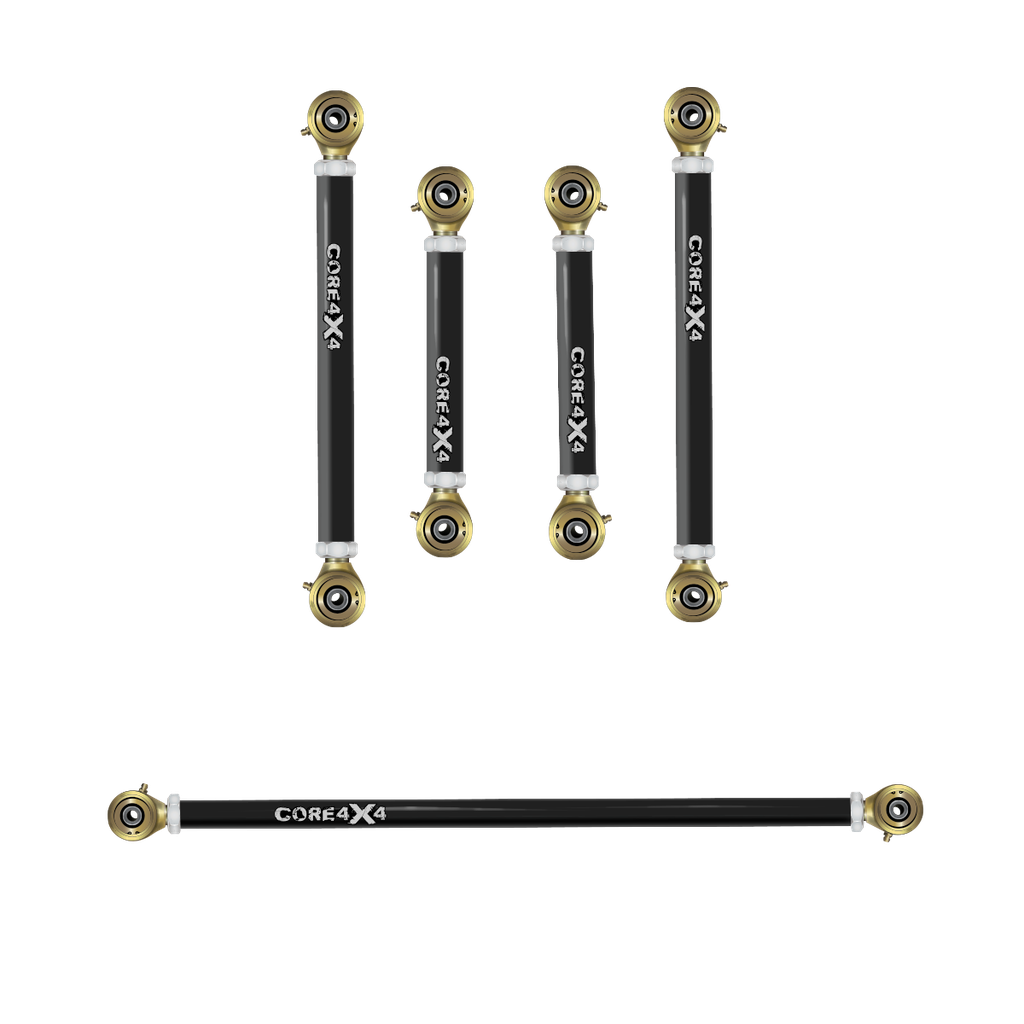

Take your Toyota 4Runner (1996-2002) to the next level with the Crawl Series Rear Control Arm and Track Bar Kit. This complete rear-end solution provides total control over axle centering, suspension geometry, and pinion angle adjustments, ensuring maximum performance and durability. Whether you're tackling extreme off-road terrain or maintaining smooth highway manners, this kit delivers the perfect balance of strength, stability, and adjustability.
Key Features and Benefits
- Heavy-duty DOM tubing construction – Built from 5/16” wall DOM tubing, these control arms and track bar provide maximum durability and strength, far surpassing factory and aftermarket alternatives.
- Johnny Joints for maximum flexibility – Equipped with Johnny Joints at both ends, these components allow unparalleled articulation, reducing binding and improving off-road performance.
- Left- and right-hand threaded adjustability – All components are left- and right-hand threaded, allowing for on-vehicle adjustments to fine-tune suspension geometry and alignment without removal.
- Fully adjustable for lifted vehicles – Designed to accommodate 0 to 6 inches of lift, allowing for precise axle centering and pinion angle adjustments. For lifts beyond 6 inches, contact us for custom solutions.
Two-Stage Powder Coating for Maximum Protection
All components undergo a two-stage powder coating process for long-lasting durability and corrosion resistance. A zinc primer base coat prevents rust and enhances longevity, followed by a durable top coat available in 10 custom colors for added protection and personalization.
Proudly Made in the USA
Manufactured in Orem, UT, the Crawl Series Rear Control Arm and Track Bar Kit is built to the highest standards of American craftsmanship. By choosing CORE 4X4, you’re supporting locally made, high-quality products that are designed to withstand the most demanding conditions.
Optional Hardware Upgrade
Designed for easy installation using factory hardware. For those dealing with rusted or stubborn bolts, optional Grade 8 hardware kits are available separately for a hassle-free setup.
Each rebuild kit includes all necessary components to replace and restore wearable parts.
Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.
Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.
You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
