This kit includes 2 components, each built and powder-coated in-house.
Unmatched Off-Road Flexibility On-Road Stability
Upgrade your Toyota 4Runner (1996-2002) with the Crawl Series Rear Control Arms Set, designed for superior articulation, strength, and precision axle alignment. Whether you're tackling rocky trails or daily driving, this complete set provides the ultimate balance of durability, adjustability, and control to outperform stock and aftermarket alternatives.
Key Features and Benefits
- Heavy-Duty DOM Tubing Construction – Built from 5/16” wall DOM Tubing, these control arms provide exceptional strength and longevity, far surpassing factory components.

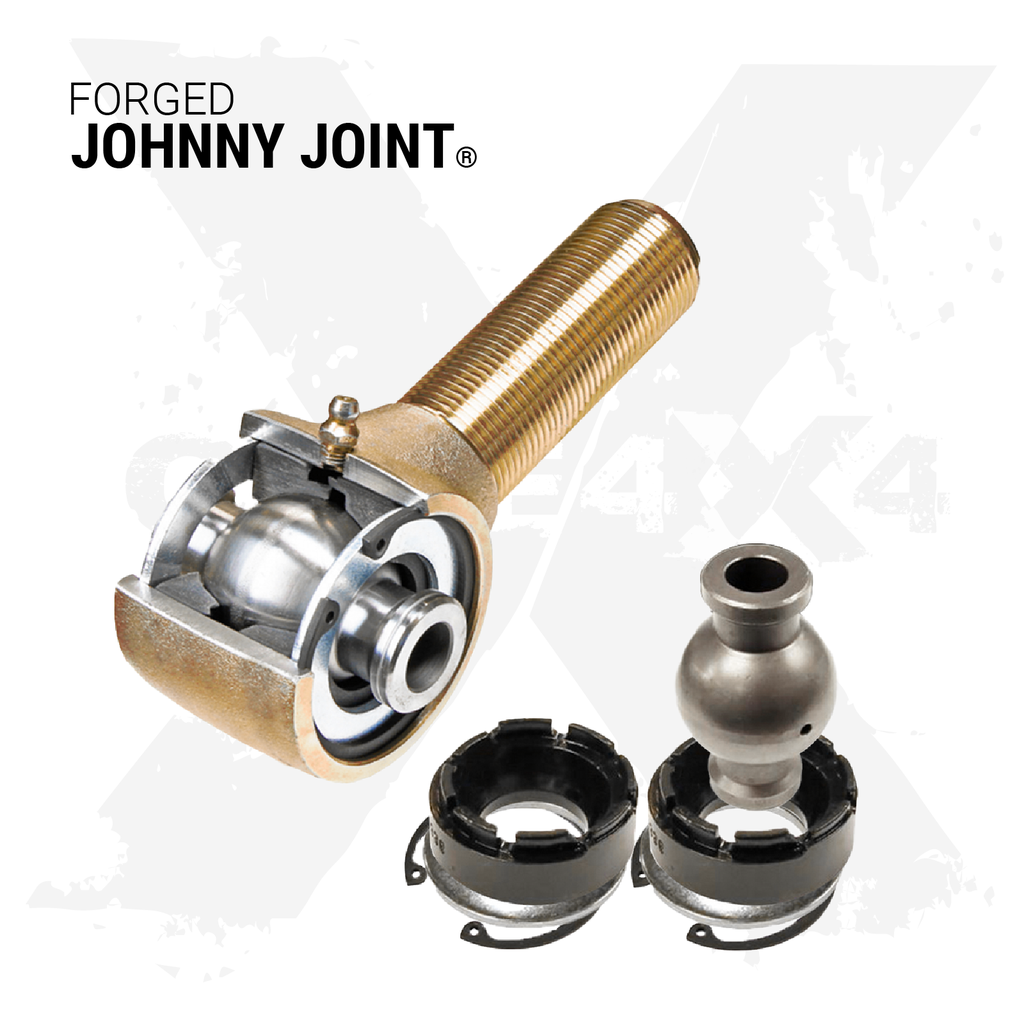

- Johnny Joints for Maximum Flexibility – Equipped with Johnny Joints at both ends, these arms allow superior articulation, reduced suspension binding, and increased off-road performance.
- Left- and Right-Hand Threaded Adjustability – Designed for on-vehicle adjustments, these arms allow for precise pinion angle and axle alignment corrections without removal.
- Fully Adjustable for Lifted Vehicles – Compatible with 0 to 6 inches of lift, these arms enable optimal axle centering and suspension geometry adjustments. For lifts beyond 6 inches, contact us for custom solutions.
- Recommended Pairing – Pair this set with our Crawl Series Rear Track Bar (CRL-T-4R-96-RTB1) for complete rear-end suspension control and fine-tuned handling.
Two-Stage Powder Coating for Maximum Protection
- All control arms undergo a two-stage powder coating process to ensure long-lasting durability and corrosion resistance.
- Zinc primer base coat protects against rust and environmental wear.
- Durable top coat available in 10 custom colors for added protection and personalization.
Proudly Made in the USA
Manufactured in Orem, UT, our Crawl Series Rear Control Arms Set is built with the highest standards of American craftsmanship. By choosing CORE 4X4, you’re supporting locally made, high-quality suspension components designed to withstand the most demanding conditions.
Optional Hardware Upgrade
- Designed for easy installation using factory hardware.
- For those dealing with rusted or stubborn bolts, optional Grade 8 hardware kits are available separately for a hassle-free setup.
Vehicle Fitment: Toyota 4Runner 96-02 – Engineered for extreme articulation, axle control, and suspension durability, ensuring superior handling on and off the road.
CORE Advantage: Delivers total control over axle positioning and pinion angle correction, reducing driveline vibration while maximizing articulation and suspension flex.
Adjustability: Accommodates 0 to 6 inches of lift with left- and right-hand threaded adjusters, allowing precise axle centering and on-vehicle suspension tuning.
Construction: Heavy-duty 5/16” wall DOM tubing with Johnny Joints at both ends, providing unmatched articulation, vibration dampening, and long-term durability.
Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.
Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.
Built With
Rear Lower Control Arms Built With 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Rear Upper Control Arms Built With 1.5” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1” x 14 TPI - 2.32” long threads.
| Make | Model | Submodel | Years |
|---|---|---|---|
| Toyota | 4Runner | 1996 - 2002 |
Each rebuild kit includes all necessary components to replace and restore wearable parts.
Construction & Materials
Rear Lower control arms built with 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Rear Upper control arms built with 1.5” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1” x 14 TPI - 2.32” long threads.
| Vehicle | Toyota 4Runner (96-02) |
| Brand | CORE 4X4 |
| Color | Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed. |
| Series | Crawl Series |
| Hardware | No Hardware or Complete Kit |
| Lift Size | 0" — 6" or 6"+ |
| Placement on Vehicle | Rear Upper, Rear Lower, Rear |
| Mounting Style | Bolt-On |
Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.
Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.
You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
