Product Details
| Make | Model | Submodel | Years |
|---|---|---|---|
| Toyota | 4Runner | 1996–2002 |

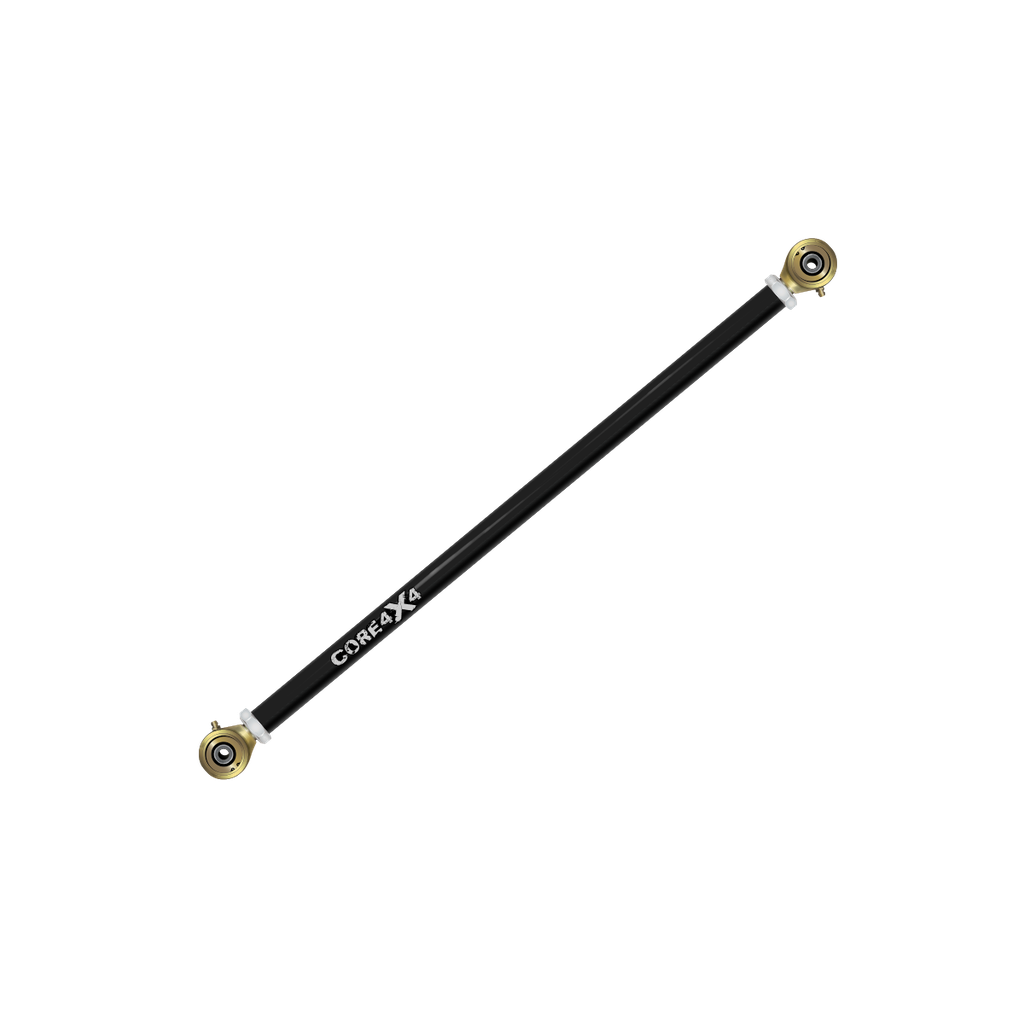

Vehicle Fitment: Toyota 4Runner 96-02 – Designed for precision axle centering, improved handling, and enhanced suspension geometry, ensuring optimal stability on and off the road.
CORE Advantage: Provides full control over rear axle alignment, minimizing lateral movement and improving drivability while increasing articulation for off-road performance.
Adjustability: Left- and right-hand threads allow on-vehicle fine-tuning of axle positioning for lifts from 0 to 6 inches.
Construction: Heavy-duty 1.5” OD 5/16” wall DOM tubing with forged Johnny Joints at both ends, delivering superior articulation, durability, and vibration dampening.
Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.
Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.
Built With
Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1” x 14 TPI - 2.32” long threads.
Construction & Materials
Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1” x 14 TPI - 2.32” long threads.
| Vehicle | Toyota 4Runner (96-02) |
| Brand | CORE 4X4 |
| Color | Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed. |
| Series | Crawl Series |
| Lift Size | 0" — 6" or 6"+ |
| Hardware | No Hardware or Complete Kit |
| Placement on Vehicle | Rear |
| Mounting Style | Bolt-On |
Unmatched Rear-End Stability Off-Road Performance
Upgrade your Toyota 4Runner (1996-2002) with the Crawl Series Rear Track Bar, designed to provide superior axle centering, stability, and articulation. Whether you're tackling rocky trails or highway cruising, this track bar enhances handling, suspension geometry, and overall drivability by keeping your rear axle precisely aligned.
Key Features and Benefits
- Heavy-Duty DOM Tubing Construction – Built from 1.5” OD 5/16” wall DOM Tubing, ensuring unmatched strength and longevity in extreme conditions.
- Forged Joints for Maximum Flexibility – Equipped with premium forged joints at both ends, providing superior articulation, vibration dampening, and durability over welded alternatives.
- Left- and Right-Hand Threaded Adjustability – Designed for on-vehicle adjustments, allowing easy fine-tuning of axle alignment without removal.
- Fully Adjustable for Lifted Vehicles – Compatible with 0 to 6 inches of lift, this track bar allows precise axle centering and suspension tuning. For lifts beyond 6 inches, contact us for custom solutions.
- Recommended Pairing – Pair this track bar with our Crawl Series Rear Control Arms Set (CRL-T-4R-96-RS4) for complete rear-end suspension control and maximum adjustability.
Two-Stage Powder Coating for Maximum Protection
Every track bar undergoes a two-stage powder coating process to ensure long-lasting durability and corrosion resistance.
Zinc Primer Base Coat – Protects against rust and environmental wear.
Durable Top Coat – Available in 10 custom colors for added protection and personalization.
Made in the USA
Manufactured in Orem, UT, the Crawl Series Rear Track Bar is built with the highest standards of American craftsmanship. By choosing CORE 4X4, you’re supporting locally made, high-quality suspension components designed to withstand the most demanding conditions.
Each rebuild kit includes all necessary components to replace and restore wearable parts.
Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.
Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.
You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
