Product Details
This kit includes 3 components, each built and powder-coated in-house.
| Make | Model | Submodel | Years |
|---|---|---|---|
| Toyota | 4Runner | 1996–2002 |
Vehicle Fitment: Toyota 4Runner 96-02 – Designed to improve rear suspension stability, axle alignment, and handling for both on-road and off-road applications.
CORE Advantage: Enhances articulation, reduces driveline vibrations, and ensures precise axle positioning, improving ride quality and durability over factory components.
Adjustability: Fully adjustable to accommodate lifts from 0 to 6 inches, allowing for accurate alignment correction, axle re-centering, and pinion angle adjustments.

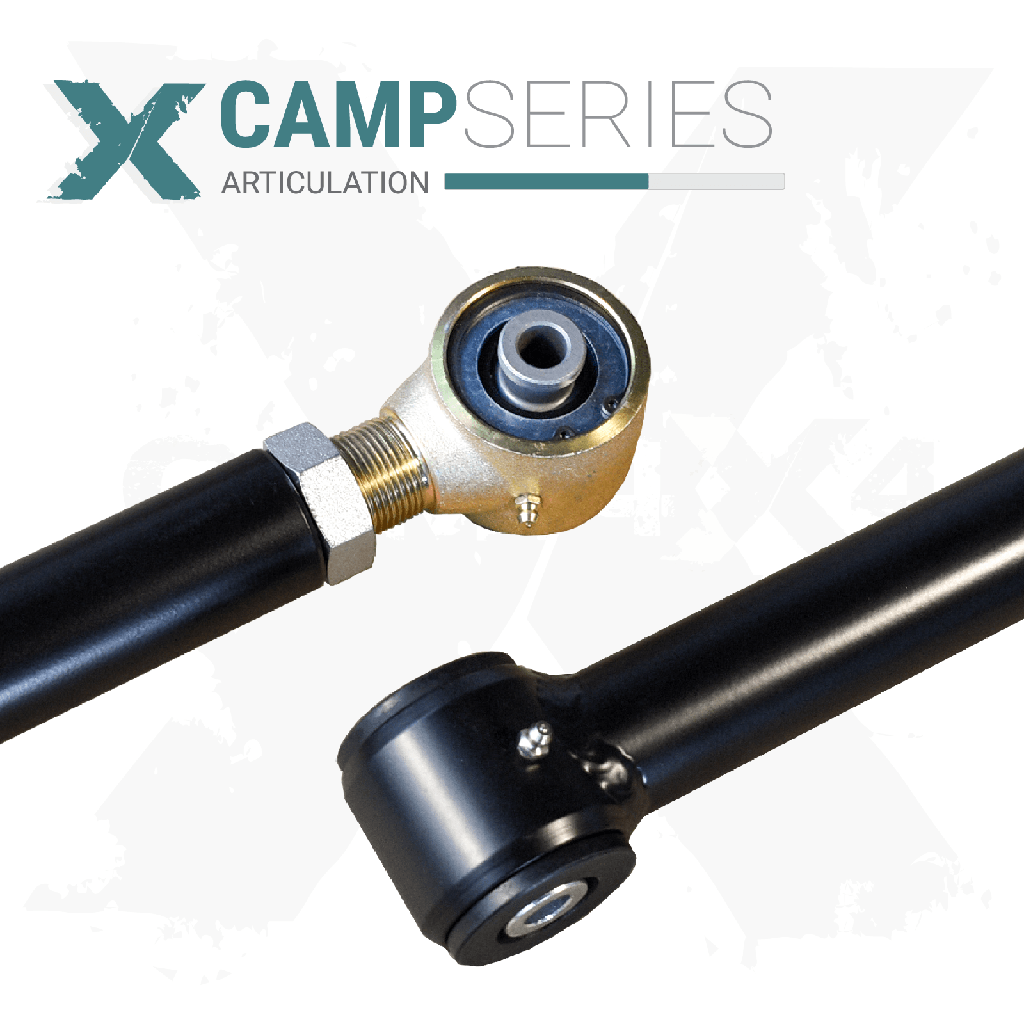

Construction: Heavy-duty 5/16” wall DOM tubing with a Johnny Joint at the adjustable end for articulation and a tapered polyurethane bushing at the fixed end for vibration absorption.
Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.
Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.
Built With
Rear Lower Control Arms Built With 1.75” OD 5/16” Wall DOM. A Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.
Rear Upper Control Arms Built With 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.
Rear Track Bar Built With 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.
Construction & Materials
Rear Lower control arms built with 1.75” OD 5/16” Wall DOM. A Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.
Rear Upper control arms built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.
Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.
| Vehicle | Toyota 4Runner (96-02) |
| Brand | CORE 4X4 |
| Color | Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed. |
| Series | Camp Series |
| Lift Size | 0" — 6" or 6"+ |
| Hardware | No Hardware or Complete Kit |
| Placement on Vehicle | Rear Upper, Rear Lower, Rear |
| Mounting Style | Bolt-On |
Experience Unparalleled Off-Road Performance and On-Road Comfort
Enhance your Toyota 4Runner (1996-2002) with the Camp Series Complete Rear Kit, designed to improve on-road comfort and off-road durability. This kit provides a comprehensive solution for optimizing vehicle stability, axle alignment, and suspension performance, making it an essential upgrade for lifted or modified vehicles.
Key Features Benefits
- Heavy-duty DOM tubing construction – Built from 5/16” wall DOM tubing for maximum durability and strength in extreme off-road conditions.
- Hybrid bushing joint design – Tapered polyurethane bushings at the fixed ends provide vibration dampening, while RockJock Johnny Joints at the adjusting ends allow for superior articulation and flexibility.
- Full adjustability for pinion axle alignment – Designed for lifts from 0 to 6 inches, allowing for precise pinion angle correction, rear axle re-centering, and fine-tuned suspension geometry.
- Durable two-stage powder coating – Features a zinc primer base coat for corrosion resistance and a durable top coat available in 10 color options for added protection and customization.
Robust Construction for Maximum Performance
Built with .313" wall thick DOM tubing, this kit ensures durability and strength, making it ideal for extreme off-road conditions. Each component features a tapered polyurethane bushing at the fixed end to dampen vibrations and a RockJock Johnny Joint at the adjusting end for superior articulation and flexibility.
Adjustability for Precise Alignment
Designed to accommodate lifts from 0 to 6 inches, this kit allows you to correct pinion angles, re-center your rear axle, and fine-tune alignment for improved handling and reduced wear on tires and suspension components. For lifts exceeding 6 inches, additional options are available upon request.
Durable Two-Stage Powder Coating
Each component undergoes a two-stage powder coating process for maximum durability. A zinc primer base coat provides superior corrosion resistance, while the final layer is available in 10 color options, offering both protection and customization for your vehicle.
Proudly Made in the USA
At CORE 4X4, we are dedicated to American craftsmanship. Each component is produced in our Orem, UT facility using locally sourced materials, ensuring exceptional quality and supporting domestic manufacturing.
Optional Hardware Upgrade
The Camp Series Complete Rear Kit is designed for straightforward installation using factory hardware. Optional Grade 8 hardware kits are available separately to replace rusted or stubborn bolts, ensuring a seamless installation process.
Each rebuild kit includes all necessary components to replace and restore wearable parts.
Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.
Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.
You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
