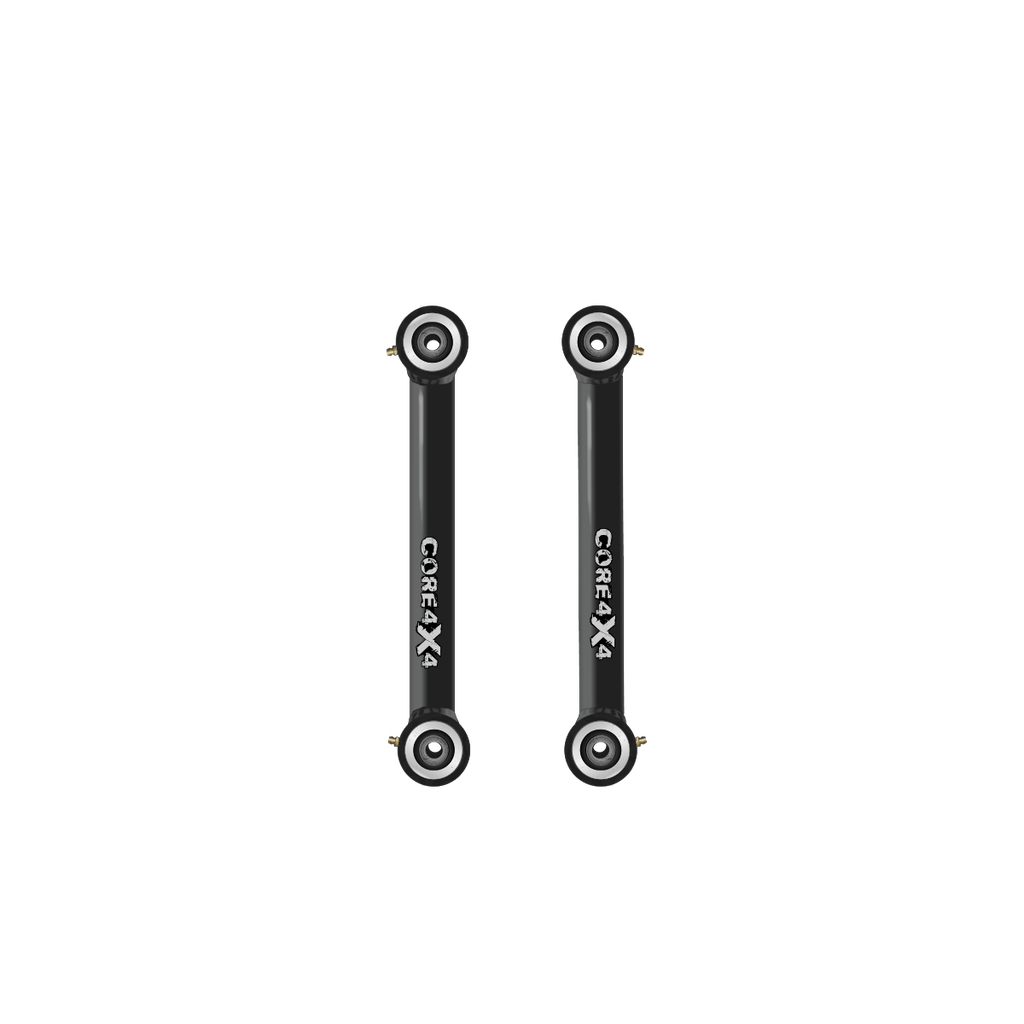

Product Details
| Make | Model | Submodel | Years |
|---|---|---|---|
| Dodge/Ram | 1500 | 2009–Present |
Vehicle Fitment: Designed for Ram 1500 09+, these fixed rear upper control arms improve axle stability, traction, and handling for towing, off-road use, and high-performance driving.
CORE Advantage: Eliminates wheel hop and axle deflection with Johnny Joints at both ends, ensuring superior articulation, power transfer, and consistent tire contact.
Adjustability: Fixed-length design provides a seamless direct replacement for stock arms, maintaining proper suspension geometry for stock, leveled, or lowered applications without additional modifications.
Construction: Built from heavy-duty steel tubing for unmatched durability and strength. Equipped with Rock Jock Johnny Joints at both ends for superior articulation, reduced suspension bind, and long-term reliability. Designed to withstand aggressive driving conditions.
Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.
Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.
Built With
Rear Upper control arms built with 1.625” 3/16” Wall DOM. Welded Johnny Joints on both fixed ends.
Construction & Materials
Rear Upper control arms built with 1.625” 3/16” Wall DOM. Welded Johnny Joints on both fixed ends.
| Vehicle | Ram 1500 (09–Present) |
| Brand | CORE 4X4 |
| Color | Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed. |
| Series | Track Series |
| Hardware | No Hardware or Complete Kit |
| Factory Air Ride | No or Yes |
| Year Range | 09+ |
| Placement on Vehicle | Rear Upper, Rear |
| Mounting Style | Bolt-On |
Unmatched Control for Maximum Stability Performance
Upgrade your Ram 1500 (2009–Present) with the Track Series Fixed Rear Upper Control Arms, the ultimate enhancement for traction, stability, and axle control. Built to outperform factory components and competing aftermarket options, these arms deliver unmatched strength and precision handling. Whether you're launching off the line, towing heavy loads, or navigating rough terrain, these control arms eliminate axle deflection, reduce wheel hop, and improve power transfer, giving you a smoother, more predictable driving experience.
Key Features Benefits
- Built for Maximum Strength Longevity – Constructed from heavy-duty steel tubing and featuring Rock Jock Johnny Joints at both ends, these arms provide unrivaled articulation, durability, and suspension performance.
- Factory-Length Design for Seamless Fit – Designed to match OEM control arm length, making them a direct replacement for factory arms, ideal for stock, leveled, or lowered setups (up to 2” drop).
- Eliminates Wheel Hop Maximizes Traction – Reduces axle movement under acceleration, preventing loss of traction and improving stability, especially under load or in performance applications.
- Superior Handling Predictable Steering Response – Enhances suspension geometry, reducing unwanted flex and improving cornering precision, braking stability, and towing control.
- Complete Rear Suspension Control – For total axle stability and optimal power transfer, pair these upper control arms with the Track Series Fixed Rear Lower Control Arms (TRK-R-15-2009-FXD-RL2) to further improve traction and eliminate unwanted suspension movement.
Eliminate Wheel Hop for Maximum Power Transfer
Wheel hop occurs when the axle binds and oscillates under load, often caused by factory rubber bushings that create excess preload on the suspension. This uncontrolled movement reduces traction and puts unnecessary strain on suspension components.
The Track Series Fixed Rear Upper Control Arms help solve this by utilizing Rock Jock Johnny Joints at both ends, allowing free and independent axle movement without the restriction of rubber bushings. This ensures:
- Consistent tire contact with the road
- Elimination of axle wrap
- Significant improvement in acceleration stability
When paired with our Track Series Fixed Rear Lower Control Arms (TRK-R-15-2009-FXD-RL2), you get complete rear suspension control, keeping your truck planted and performing at its best in any driving condition.
Highly Durable Two-Stage Powder Coating
Every Track Series Control Arm undergoes a two-stage powder coating process for superior durability and corrosion resistance: Zinc primer base coat for advanced rust protection. Durable topcoat available in 10 color options to match your build.
Optional Hardware Upgrade
These control arms are designed to be installed using factory hardware, but for enhanced durability and a more secure installation, we offer an optional Grade 8 hardware kit (sold separately). This upgrade provides a stronger, more reliable connection, reducing the risk of unwanted shifting under heavy loads.
Proudly Made in the USA
All CORE 4X4 components are designed, manufactured, and tested in Orem, UT, ensuring strict quality control and premium craftsmanship. By keeping production local, we maintain full oversight of material sourcing, welding, machining, and finishing, guaranteeing industry-leading durability and precision engineering.
Final Thoughts
The Track Series Fixed Rear Upper Control Arms provide the strength, adjustability, and ride quality needed to handle aggressive acceleration, towing loads, and off-road abuse. Whether you're looking for a performance boost or a long-lasting replacement for worn-out factory parts, this upgrade will keep your Ram 1500 planted and performing at its best.
Upgrade today and experience the difference in traction, stability, and control!
Each rebuild kit includes all necessary components to replace and restore wearable parts.
Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.
Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.
You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
