Product Details

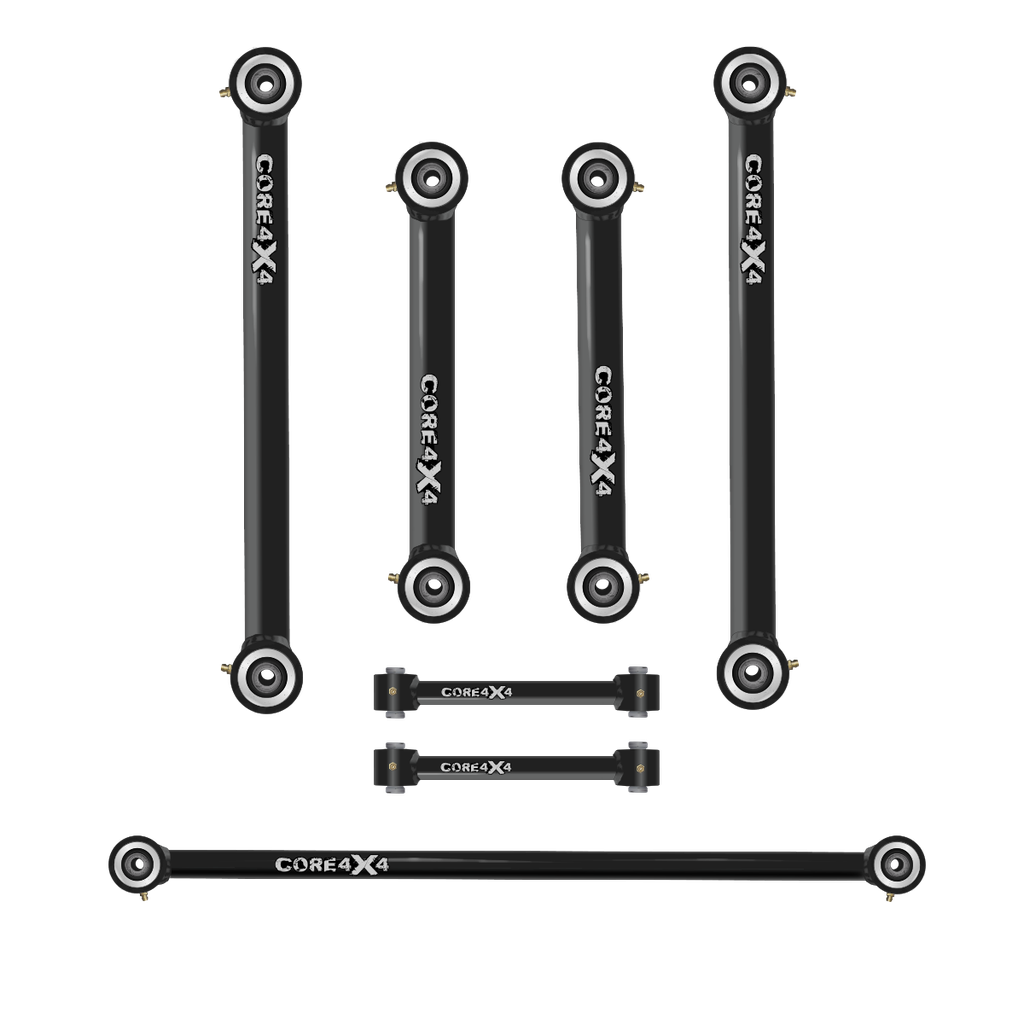

This kit includes 4 components, each built and powder-coated in-house.
Ram 1500 09+ 2pc Track Series Fixed Length Rear Lower Control Arms
View Component →
Ram 1500 09+ 2pc Track Series Fixed Length Rear Upper Control Arms
View Component →
Ram 1500 09+ 2pc Track Series Rear Fixed Length End Links
View Component →
Ram 1500 09+ Track Series Rear Rear Heavy-Duty Panhard/Track Bar
View Component →| Make | Model | Submodel | Years |
|---|---|---|---|
| Dodge/Ram | 1500 | 2009–Present |
Vehicle Fitment: Designed for Ram 1500 09+, this fixed rear suspension kit eliminates wheel hop, improves traction, and optimizes axle stability for towing, off-road use, and performance driving.
CORE Advantage: Enhances rear suspension geometry with Johnny Joints at both ends, preventing axle deflection, improving handling, and ensuring precise power transfer.
Adjustability: Fixed-length design offers a direct replacement for stock components, maintaining proper suspension alignment for stock, leveled, or lowered applications (up to 2") without additional modifications.

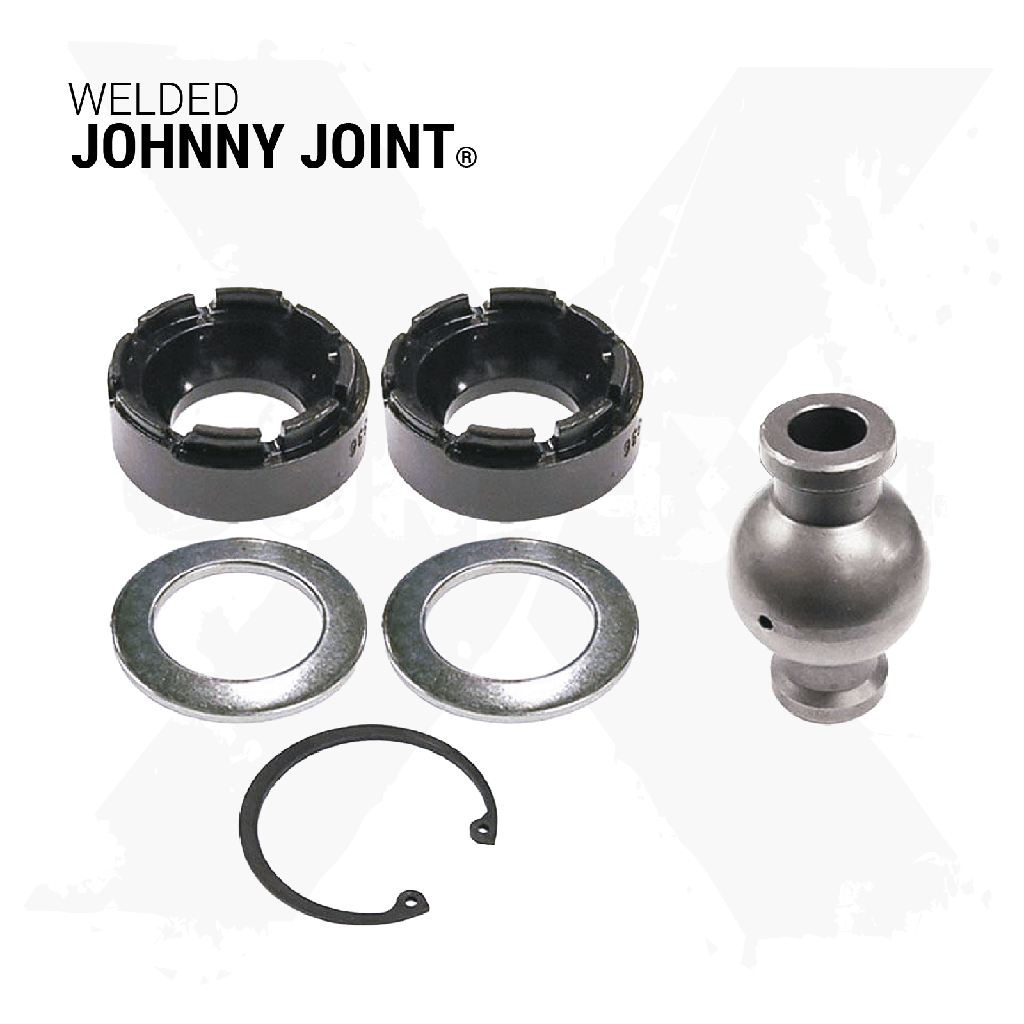

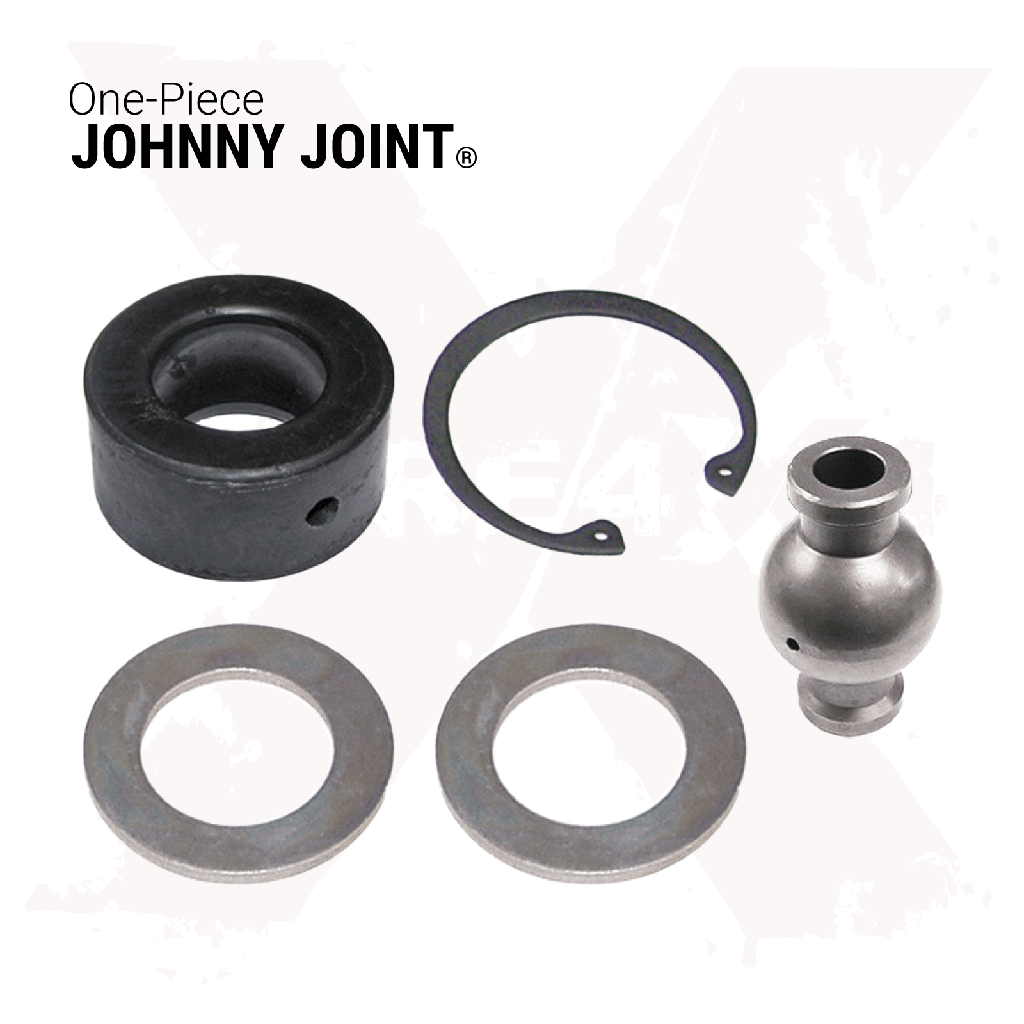

Construction: Built from heavy-duty steel for superior strength and durability. Features Rock Jock Johnny Joints at all ends for maximum articulation, reduced suspension bind, and long-term reliability. Sway bar end links are made from .75” OD cold-rolled steel for added stability.
Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.
Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.
Built With

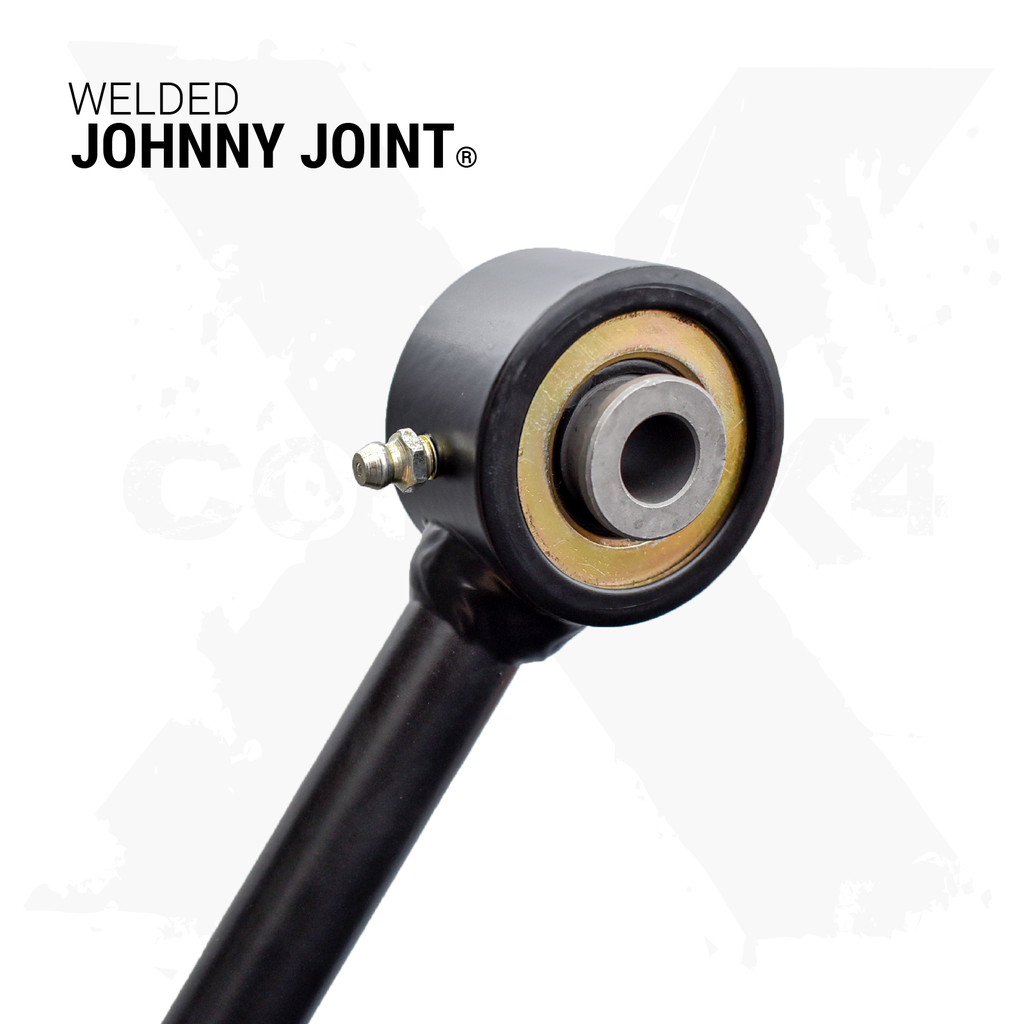

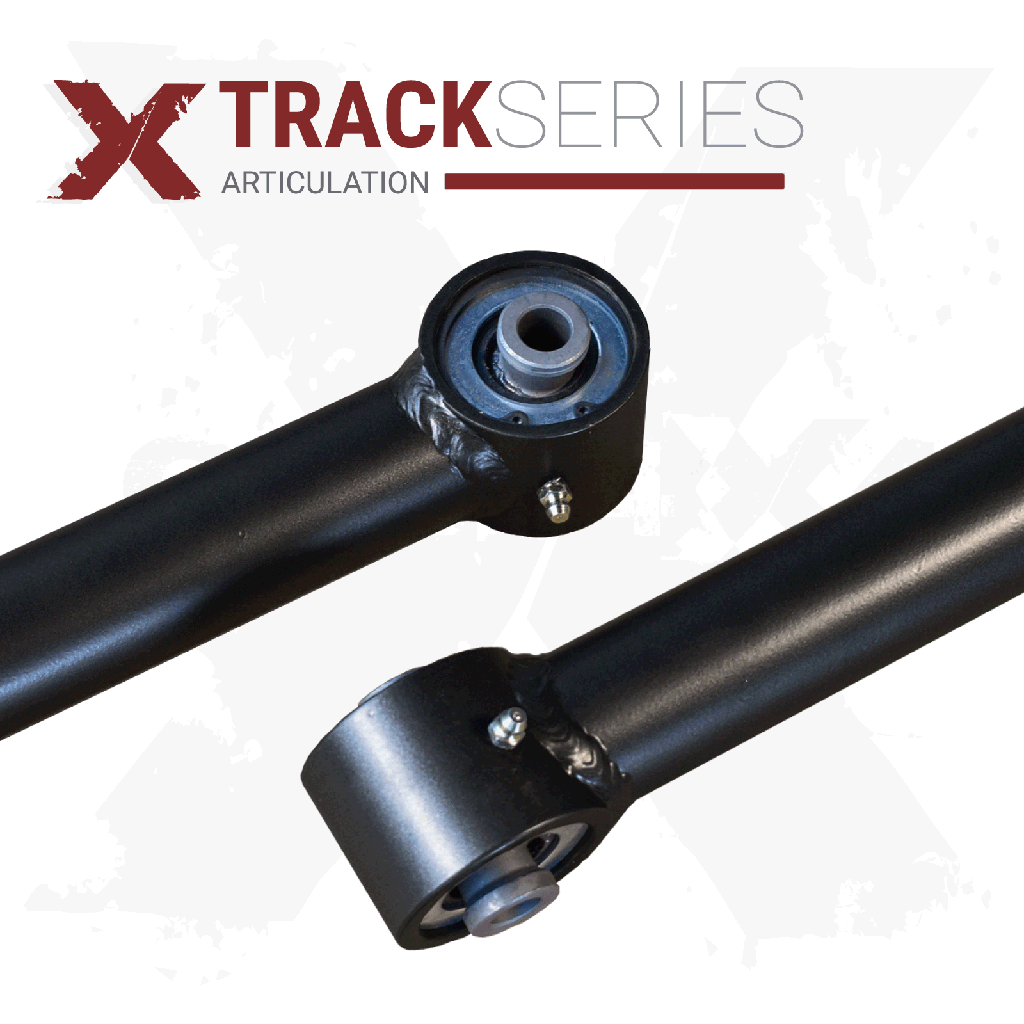

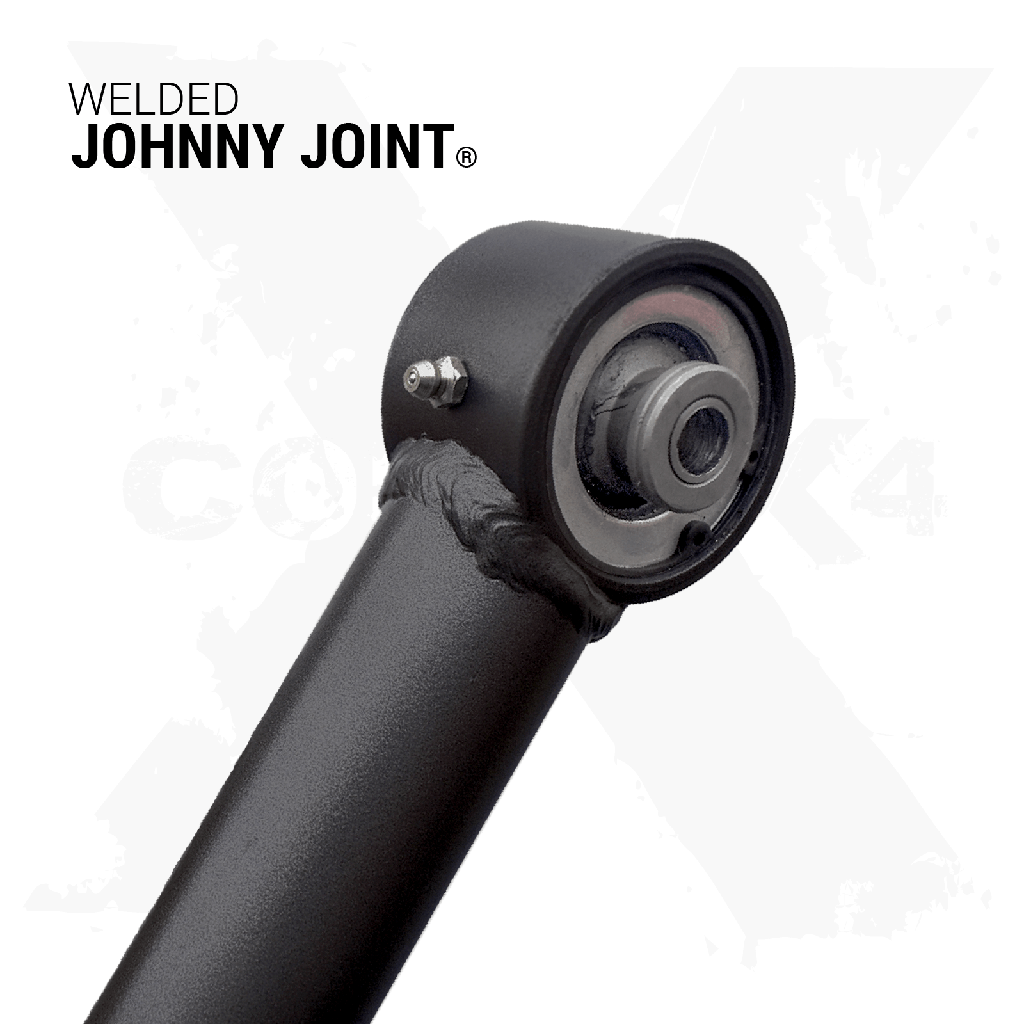

Rear Lower Control Arms Built With 1.625” 3/16” Wall DOM. Welded Johnny Joints on both fixed ends.
Rear Upper Control Arms Built With 1.625” 3/16” Wall DOM. Welded Johnny Joints on both fixed ends.
Rear Track Bar Built With 1” Cold Rolled Steel. Welded Johnny Joints on both fixed ends.
Rear End Links Built With .75” Cold Rolled Steel. Welded Johnny Joints on both fixed ends.
Construction & Materials
Rear Lower control arms built with 1.625” 3/16” Wall DOM. Welded Johnny Joints on both fixed ends.
Rear Upper control arms built with 1.625” 3/16” Wall DOM. Welded Johnny Joints on both fixed ends.
Rear End Links built with .75” Cold Rolled Steel. Welded Johnny Joints on both fixed ends.
Rear Track Bar built with 1” Cold Rolled Steel. Welded Johnny Joints on both fixed ends.
| Vehicle | Ram 1500 (09–Present) |
| Brand | CORE 4X4 |
| Series | Track Series |
| Color | Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed. |
| Hardware | No Hardware or Complete Kit |
| Lift Size | Stock Height or Lifted 1" or Lifted 2" or Lifted 3" or Lifted 4" or Lifted 5" or Lifted 6" or Lifted 7" or Lifted 8" or Custom length or 1/2 sizes (put desired length in the Order Notes) or Lowered 1" or Lowered 2" or Lowered 3" or Lowered 4" or Lowered 5" or Lowered 6" |
| Factory Air Ride | No or Yes |
| Year Range | 09+ |
| Placement on Vehicle | Rear Upper, Rear Lower, Rear |
| Mounting Style | Bolt-On |
The Ultimate Rear Suspension Solution for Maximum Stability Handling
Take your Ram 1500 (2009–Present) to the next level with the Track Series Fixed Rear Suspension Kit with Sway Bar End Links, engineered for unmatched stability, handling, and control. Whether you're towing, daily driving, off-roading, or launching at the track, this kit delivers exceptional durability and performance. Designed as a factory-length direct replacement, this system eliminates wheel hop, improves traction, and ensures optimal suspension geometry.
Key Features Benefits
- Heavy-duty construction for maximum strength – Built with high-strength steel tubing and equipped with Rock Jock Johnny Joints at both ends, ensuring superior durability, articulation, and longevity.
- Factory-length compatibility – Designed as a direct-fit upgrade for stock height, leveled, or lowered applications (up to 2” drop), maintaining proper axle positioning and suspension geometry.
- Eliminates wheel hop enhances traction – The factory rubber bushings create excess preload on the axle, causing oscillation and instability under acceleration. This kit completely eliminates wheel hop by allowing free and controlled axle movement, improving traction and launch stability.
- Optimized handling predictable steering response – Enhances suspension geometry, minimizing unwanted flex and improving cornering precision, braking stability, and overall ride quality.
- Complete rear suspension control – Provides total axle stability with upper and lower control arms, a panhard track bar, and sway bar end links to maintain proper axle centering, suspension alignment, and reduced body roll.
Eliminate Wheel Hop Keep Power to the Ground
Wheel hop is caused by the binding and oscillation of the rear axle under load, a common issue with factory rubber bushings that create excessive preload on the suspension. This Track Series Kit eliminates wheel hop by utilizing Rock Jock Johnny Joints at both ends, allowing independent movement of the axle without restriction. The result? Maximum traction, improved acceleration, and a planted rear-end that puts power down efficiently and predictably.
Highly Durable Two-Stage Powder Coating
Every component in this kit undergoes a two-stage powder coating process for superior durability and corrosion resistance. The zinc primer base coat provides advanced rust protection, while the durable topcoat is available in 10 color options to match your build.
Optional Hardware Upgrade
This kit is designed to be installed using factory hardware, but for enhanced durability and a more secure installation, we offer an optional Grade 8 hardware kit (sold separately). This upgrade provides a stronger, more reliable connection, reducing the risk of unwanted shifting under heavy loads.
Proudly Made in the USA
All CORE 4X4 components are designed, manufactured, and tested in Orem, UT, ensuring strict quality control and premium craftsmanship. By keeping production local, we maintain full oversight of material sourcing, welding, machining, and finishing, guaranteeing industry-leading durability and precision engineering.
Final Thoughts
The Track Series Fixed Rear Suspension Kit with Sway Bar End Links is the ultimate upgrade for Ram 1500 owners looking for superior axle control, maximum traction, and long-lasting durability. Whether you’re eliminating wheel hop, improving towing stability, or enhancing handling, this kit is engineered to keep your truck planted and performing at its best. Upgrade today and experience the difference in traction, stability, and control!
Each rebuild kit includes all necessary components to replace and restore wearable parts.
Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.
Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.
You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
