Product Details
| Make | Model | Submodel | Years |
|---|---|---|---|
| Dodge/Ram | 1500 | 2009–Present |
Vehicle Fitment: Designed for Ram 1500 09+, these fixed rear upper control arms improve traction, axle stability, and suspension performance for daily driving, towing, and off-road use.
CORE Advantage: Reduces wheel hop, eliminates axle deflection, and enhances power transfer with a hybrid joint design that minimizes NVH while maximizing articulation and durability.
Adjustability: Fixed-length design ensures a seamless fit for stock, leveled, or lowered applications (up to 2” drop), maintaining proper suspension geometry without additional modifications.
Construction: Built from 1.75” OD DOM tubing with 5/16” wall thickness for superior strength. Features high-grade polyurethane bushings on one end and a welded Rock Jock Johnny Joint at the other, ensuring durability, articulation, and long-lasting performance.
Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.
Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.
Built With
Rear Upper control arms built with 1.625” 3/16” Wall DOM. Welded Johnny Joint on one fixed end with a Polyurethane Bushing on the other fixed end.
Construction & Materials
Rear Upper control arms built with 1.625” 3/16” Wall DOM. Welded Johnny Joint on one fixed end with a Polyurethane Bushing on the other fixed end.
| Vehicle | Ram 1500 (09–Present) |
| Brand | CORE 4X4 |
| Color | Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed. |
| Series | Trail Series |
| Hardware | No Hardware or Complete Kit |
| Factory Air Ride | No or Yes |
| Year Range | 09+ |
| Placement on Vehicle | Rear Upper, Rear |
| Mounting Style | Bolt-On |
Unmatched Control for Maximum Stability Performance

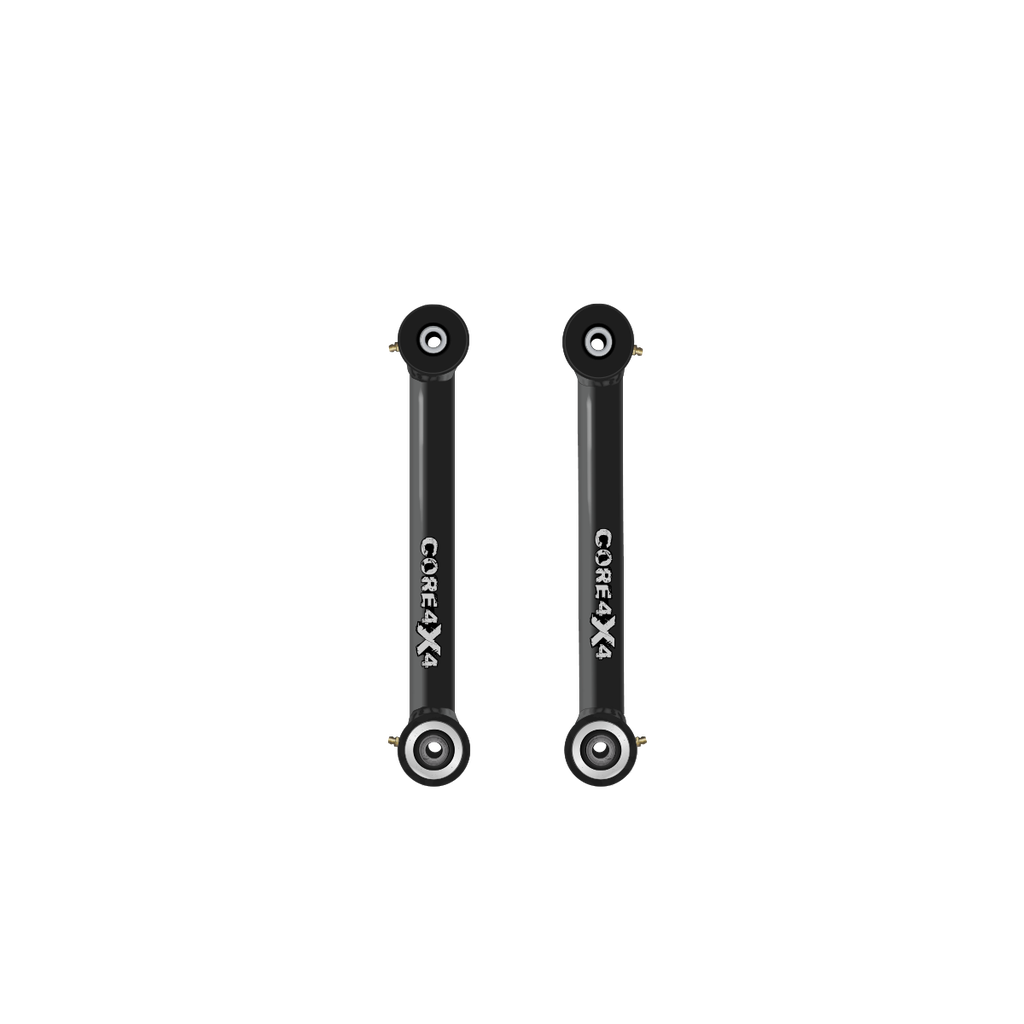

Upgrade your Ram 1500 (2009–Present) with the Trail Series Fixed Rear Upper Control Arms, engineered for enhanced traction, axle stability, and improved ride comfort. Built to outperform factory components and competing aftermarket options, these control arms provide exceptional strength and suspension performance.
Whether you're towing, launching off the line, or tackling rugged terrain, this upgrade reduces wheel hop, eliminates axle deflection, and enhances power transfer, ensuring a more controlled and predictable driving experience.
Key Features Benefits
- Built for Strength, Comfort Longevity – Constructed from high-strength steel tubing, these control arms feature a high-quality polyurethane bushing at one end and a Rock Jock Johnny Joint at the other, offering a perfect balance of articulation, durability, and NVH (Noise, Vibration, and Harshness) reduction.
- Factory-Length Design for Seamless Fit – Designed to match OEM control arm length, making them a direct replacement for factory arms, ideal for stock, leveled, or lowered setups (up to 2” drop).
- Eliminates Wheel Hop Maximizes Traction – Reduces axle movement under acceleration, preventing loss of traction and instability, especially under heavy loads or performance applications.
- Superior Handling Predictable Steering Response – Enhances suspension geometry, minimizing unwanted flex, and improving cornering precision, braking stability, and towing control.
- Recommended Pairing: For total rear axle stability, improved traction, and full suspension control, pair these upper control arms with the Trail Series Fixed Rear Lower Control Arms (TRL-R-15-2009-FXD-RL2).
Eliminate Wheel Hop Improve Ride Quality
Factory rubber bushings can create excessive preload on the axle, leading to wheel hop, instability, and inconsistent traction. The Trail Series Fixed Rear Upper Control Arms solve this by incorporating a hybrid joint design, allowing for free and controlled axle movement.
- Johnny Joint – Delivers unmatched articulation and longevity.
- Polyurethane Bushing – Effectively reduces NVH, making for a smoother, more stable ride.
When paired with our Trail Series Fixed Rear Lower Control Arms (TRL-R-15-2009-FXD-RL2), you gain full rear suspension control, ensuring your Ram 1500 stays planted, predictable, and responsive in any driving condition.
Highly Durable Two-Stage Powder Coating
Every Trail Series Control Arm undergoes a two-stage powder coating process for superior durability and corrosion resistance: Zinc primer base coat for maximum rust protection. Durable topcoat available in 10 color options to match your build.
Optional Hardware Upgrade
These control arms are designed for installation using factory hardware, but for added durability and a more secure fit, we offer an optional Grade 8 hardware kit (sold separately). This upgrade strengthens installation points and eliminates the risk of shifting under heavy loads.
Proudly Made in the USA
All CORE 4X4 components are designed, manufactured, and tested in Orem, UT, ensuring top-tier craftsmanship and strict quality control. Keeping production local allows us to maintain precise engineering standards, deliver industry-leading durability, and support American jobs.
Final Thoughts
The Trail Series Fixed Rear Upper Control Arms are an essential upgrade for Ram 1500 owners looking to eliminate wheel hop, improve ride quality, and enhance handling stability. With high-strength construction, reduced NVH, and superior suspension control, this upgrade delivers reliability and performance for any driving condition.
Upgrade today and experience the difference in traction, stability, and overall ride comfort!
Each rebuild kit includes all necessary components to replace and restore wearable parts.
Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.
Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.
You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
