Product Details
This kit includes 2 components, each built and powder-coated in-house.
| Make | Model | Submodel | Years |
|---|---|---|---|
| Jeep | Wrangler | 1997–2006 | |
| Jeep | Wrangler | 2004–2006 |
Vehicle Fitment: Jeep Wrangler TJ LJ 97-06 – Enhances stability, improves steering response, and keeps axles properly centered, reducing suspension stress for a smoother and more controlled ride.
CORE Advantage: Eliminates side-to-side axle movement, reducing steering wander and improving handling on-road and off-road. Helps address death wobble while maintaining precise suspension geometry.
Adjustability: Fully adjustable for 0 to 6-inch lifts, allowing precise axle centering and optimized suspension tuning. Front track bar requires drilling the frame mount; drill bit and hardware are included.
Construction: Built from 1.5" OD 5/16” wall DOM tubing, reinforced with Johnny Joints at both ends for unmatched articulation, reducing binding and maximizing flexibility on technical terrain.
Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.
Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.
Built With
Front Track Bar Built With 1.5” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.
Rear Track Bar Built With 1.5” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.
Construction & Materials
Front Track Bar built with 1.5” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.
Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.
| Vehicle | Jeep Wrangler TJ (97–06) or Jeep Wrangler LJ (04–06) |
| Brand | CORE 4X4 |
| Color | Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed. |
| Series | Crawl Series |
| Hardware | No Hardware or Complete Kit |
| TJ/LJ Rear Track Bar Bracket - Required For vehicles with 3" or more of lift and/or have an SYE | No or Yes-Include new rear track bar bracket (JKSOGS160) |
| Lift Size | 0" — 6" or 6"+ |
| Placement on Vehicle | Front, Rear |
| Mounting Style | Bolt-On |
Enhanced Stability and Control

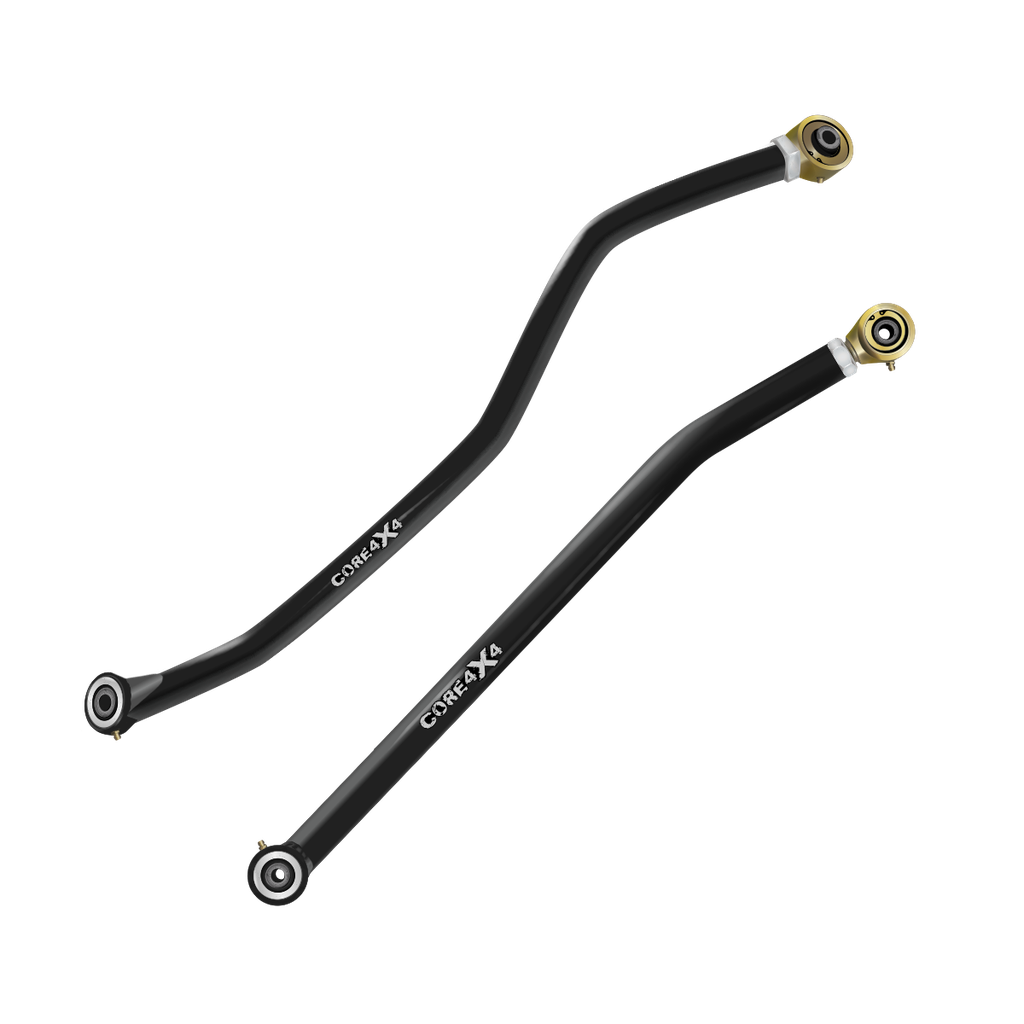

Take your Jeep Wrangler TJ or LJ (1997-2006) to the next level with the Crawl Series Track Bar Kit—a crucial upgrade for any solid axle suspension system.
Designed for unmatched stability, axle centering, and superior handling, this kit includes both front and rear adjustable track bars, ensuring your suspension remains dialed in whether you're on rugged trails or daily commutes.
By keeping your axles properly aligned, this kit helps eliminate death wobble, improves steering response, and reduces suspension stress, making it essential for any lifted Jeep.
Key Features Benefits
- Unmatched Axle Stability Handling – Proper axle alignment is essential for maintaining steering precision and suspension integrity. Our track bars eliminate side-to-side axle movement, reducing steering wander and body roll for a smoother, more controlled driving experience—on or off the road.
- Heavy-Duty DOM Tubing Construction – Both track bars are crafted from 1.5" OD 5/16” wall DOM tubing, significantly stronger than factory track bars. This ensures maximum durability, impact resistance, and long-term reliability, even under extreme off-road abuse.
- RockJock Johnny Joints for Extreme Flexibility – Featuring Johnny Joints at both ends, these track bars provide unmatched articulation, allowing your suspension to move freely while maintaining axle alignment. This dramatically enhances off-road performance by preventing binding and limiting restrictions in high-flex scenarios.
Perfect Fit for Lifted Jeeps
When lifting your TJ or LJ, the axles shift laterally, impacting alignment and suspension geometry. Our adjustable track bars correct this issue, re-centering the axle for better drivability, reduced tire wear, and improved suspension function.
- For 0 to 3-inch lifts, the rear track bar is a direct bolt-in upgrade.
- For 3+ inch lifts, or vehicles with an SYE, a corrected rear axle mount is required due to the steeper pinion angle rotation and clearance issues between the bar and the factory mount. We offer the mount that works best with our kit as a selectable option above.
Two-Stage Powder Coating
Every track bar undergoes a two-stage powder coating process for extreme durability and corrosion resistance. Zinc primer base coat prevents rust. Durable top coat, available in 10 color options, adds a customized look while providing additional protection against harsh elements.
Made in the USA
Proudly manufactured in Orem, UT, the Crawl Series Track Bar Kit reflects the highest standards of American craftsmanship.
By sourcing high-quality materials locally and maintaining strict in-house quality control, we ensure superior reliability, longevity, and performance.
Optional Hardware Upgrade
The Crawl Series Track Bar Kit is designed for straightforward installation using factory hardware.
However, the front track bar requires drilling the frame mount for installation—a drill bit and all necessary mounting hardware are included.
For those dealing with rusted or stubborn bolts, we offer optional Grade 8 hardware kits for an even smoother install.
With its heavy-duty construction, Johnny Joint flexibility, and full adjustability, this kit ensures superior performance in all conditions.
Upgrade today and take full control of your Jeep’s suspension!
Each rebuild kit includes all necessary components to replace and restore wearable parts.
Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.
Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.
You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
