Product Details
This kit includes 2 components, each built and powder-coated in-house.
| Make | Model | Submodel | Years |
|---|---|---|---|
| Jeep | Wrangler | 1997–2006 | |
| Jeep | Wrangler | 2004–2006 |
Vehicle Fitment: Jeep Wrangler TJ LJ 97-06 – Designed to maintain proper axle alignment, eliminate steering inconsistencies, and enhance vehicle stability.
CORE Advantage: Ensures precise axle centering for improved handling, reducing body roll and correcting alignment issues caused by suspension lifts.
Adjustability: Fully adjustable to accommodate lifts from 0 to 6 inches, allowing for accurate axle positioning and optimized suspension geometry.
Construction: Heavy-duty 1.5” OD 5/16” wall DOM tubing with high-grade polyurethane bushings at the fixed ends and Rock Jock Johnny Joints at the adjustable ends for superior articulation and durability. Includes necessary drill bit and hardware for proper frame-side installation.
Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.
Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.
Built With

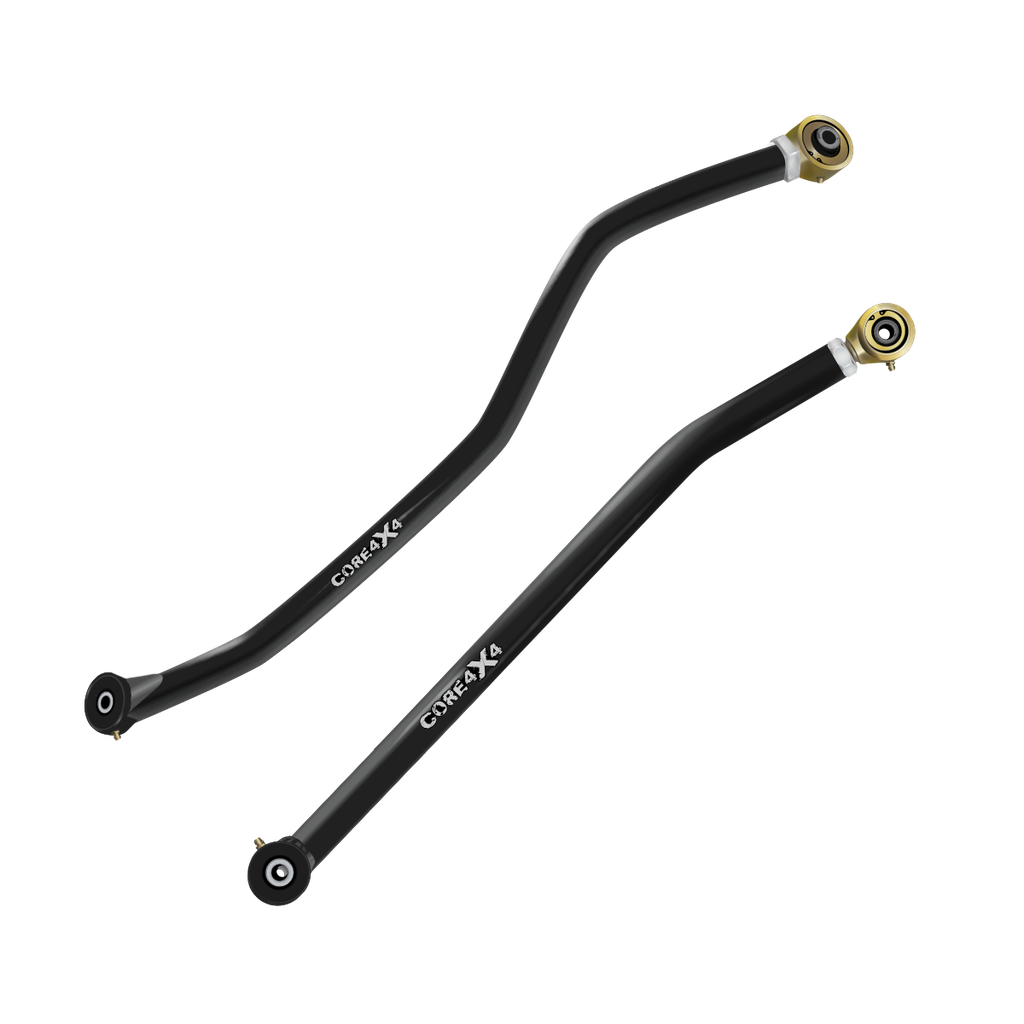

Front Track Bar Built With
1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.
Rear Track Bar Built With
1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.
Construction & Materials
Front Track Bar built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.
Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.
| Vehicle | Jeep Wrangler TJ (97–06) or Jeep Wrangler LJ (04–06) |
| Brand | CORE 4X4 |
| Color | Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed. |
| Series | Camp Series |
| Lift Size | 0" — 6" or 6"+ |
| Hardware | No Hardware or Complete Kit |
| TJ/LJ Rear Track Bar Bracket - Required For vehicles with 3" or more of lift and/or have an SYE | No or Yes-Include new rear track bar bracket (JKSOGS160) |
| Placement on Vehicle | Front, Rear |
| Mounting Style | Bolt-On |
Maximize Your Jeep Wrangler TJ/LJ’s Suspension Performance
Take control of your Jeep Wrangler TJ or LJ’s suspension with the Camp Series Track Bar Kit, designed for superior axle centering and stability. Featuring both front and rear track bars, this kit ensures your axles are perfectly aligned, enhancing overall handling and suspension geometry for optimal performance both on and off the road.
Key Features and Benefits
- Built for strength and performance – Constructed from 1.5" OD .313 Wall DOM Tubing, these track bars withstand extreme conditions, ensuring durability and long-term reliability.
- Premium joint technology – High-grade polyurethane bushings at the fixed ends absorb vibrations, while Rock Jock Johnny Joints at the adjustable ends provide superior articulation and durability.
- Precision adjustability for lifted Jeeps – Fully adjustable to accommodate lifts from 0 to 6 inches, allowing for axle re-centering and proper suspension alignment, reducing axle shift and uneven tire wear.
- Front track bar installation – Requires drilling the frame mount; the necessary drill bit and hardware are included to make installation straightforward.
Perfect Fit for Lifted Jeeps
When lifting your TJ or LJ, the axles shift laterally, impacting alignment and suspension geometry. Our adjustable track bars correct this issue, re-centering the axle for better drivability, reduced tire wear, and improved suspension function.
- For 0 to 3-inch lifts, the rear track bar is a direct bolt-in upgrade.
- For 3+ inch lifts, or vehicles with an SYE, a corrected rear axle mount is required due to the steeper pinion angle rotation and clearance issues between the bar and the factory mount. We offer the one that works best with our kits as a selectable option above.
Stylish and Durable Powder Coating
Each track bar undergoes a two-stage powder coating process for superior protection and customization. The zinc primer base coat offers excellent corrosion resistance, while the top coat, available in 10 color options, provides an extra layer of durability and allows you to personalize your Jeep’s look.
Each rebuild kit includes all necessary components to replace and restore wearable parts.
Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.
Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.
You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
