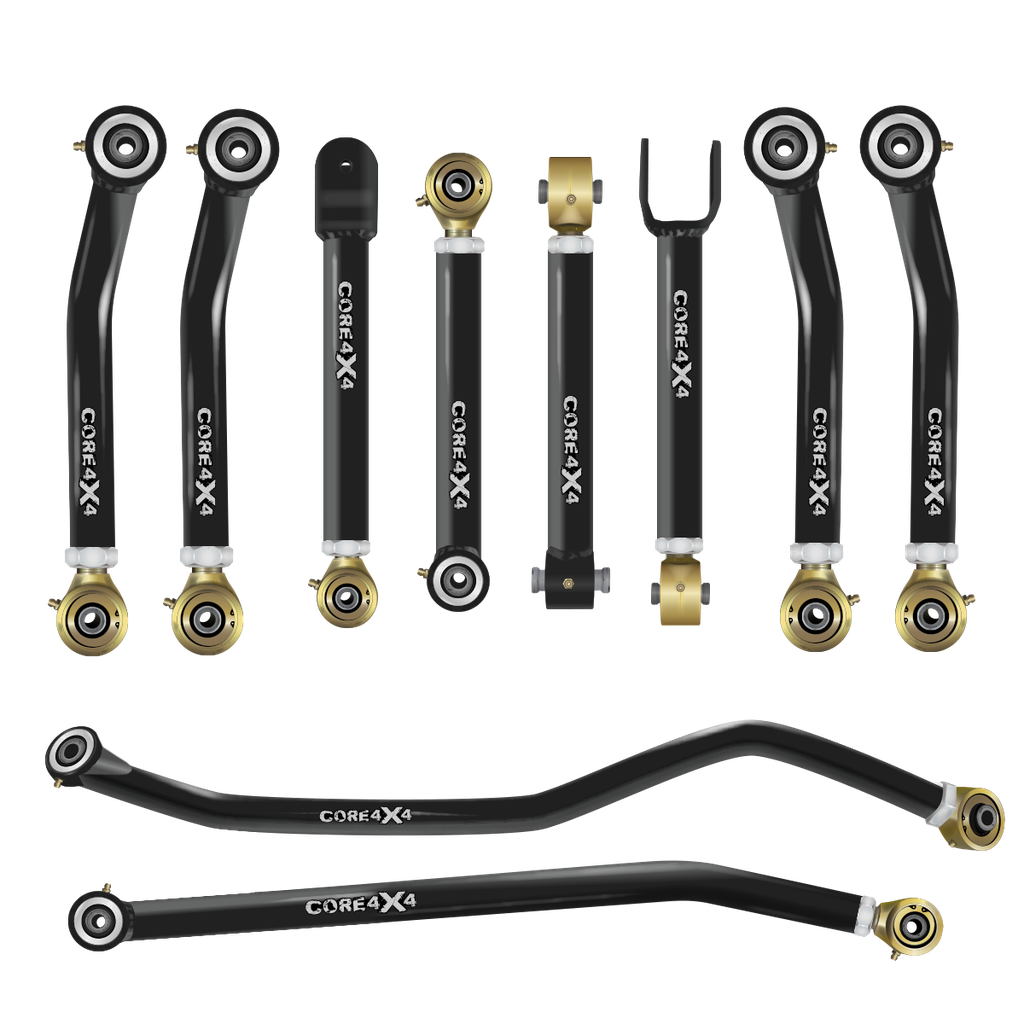

10pc Crawl Series Adjustable Control Arm, Track Bar Kit

SKU: CRL-J-TJLJ-K10
Pick your vehicle to confirm fit
Google 5.0 ★★★★★ (132 reviews)

$ 1,748.21 1748.21 USD $ 1,942.45

$ 1,942.45

(Save 10%)

COLOR 11 colors
Black Blue Charcoal Green LightGreen Orange Purple Red White Yellow Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.
Compare all tiers →

Build Your Kit

  • Vehicle
    Confirm this matches your vehicle. Use Shop by Vehicle to filter correctly.
  • Brand
  • Color
    Powder coat color for control arms and track bars. Does not affect performance.
  • Series
    Cruise: daily driving and light off-road. Camp: overlanding. Crawl: aggressive rock crawling.
  • Lift Size
    Choose your current front lift height. Measure from center of wheel to fender if unsure.
  • Hardware
    Choose upgraded hardware if your factory hardware is worn, damaged, or missing.
  • Adjustment Type
  • TJ/LJ Rear Track Bar Bracket - Required For vehicles with 3" or more of lift and/or have an SYE
    Choose your current front lift height. Measure from center of wheel to fender if unsure.
  • Note to Core4x4:

Select Color to see price and add to cart.

Order today — ships by Mon, Jun 1
Salt Lake City, UT change
Order by 3:00 PM MT today — we'll start tomorrow
See full timeline
Free mounting hardware included — a $100 value

Alignment recommended Lifetime warranty on all non-wear items Made In USA

Made in USA Orem, Utah
Lifetime Guarantee Unconditional
10 Colors In-house powder coat
Fully Adjustable 0-6" of lift
3 X-Series Options Only Core 4x4

Unleash Total Control and Flexibility

Transform your Jeep Wrangler TJ or LJ (1997-2006) with the Crawl Series Complete Kit, the ultimate suspension upgrade for off-road adventurers and daily drivers alike. This comprehensive kit includes eight adjustable control arms and front and rear track bars, delivering unmatched durability, superior articulation, and advanced adjustability. Designed to enhance on-road comfort while providing the flexibility needed to conquer rugged trails, this kit ensures your Jeep performs at its best in any environment.

Key Features and Benefits

  • Comprehensive Suspension Upgrade – Includes all eight control arms and front/rear track bars to deliver precise alignment correction, axle centering, and optimal suspension geometry.
  • Unmatched Articulation – Johnny Joints at both ends of every control arm provide exceptional flexibility and durability, ensuring maximum performance on tough off-road trails.
  • Lift Compatibility – Adjustable to accommodate lifts from 0 to 6 inches, offering superior alignment and handling across a range of suspension setups.
  • Double Adjustability – Upgrade to double adjustability with left- and right-hand threaded joints on all arms for effortless fine-tuning directly on the vehicle.

Double Adjustable Upgrade

For unparalleled convenience, the Crawl Series Complete Kit offers an optional Double Adjustable Upgrade. This upgrade equips the control arms with left- and right-hand-threaded bodies, enabling precise on-the-vehicle adjustments. Fine-tune your axle centering, caster, and pinion angles without removing the control arms, making it easier than ever to achieve the perfect suspension setup for your Jeep.

Durable Two-Stage Powder Coating

Each component undergoes a zinc primer base coat for corrosion resistance, followed by a top coat available in 10 colors for a personalized look.

Optional Hardware Upgrade

Designed for hassle-free installation, this kit works with factory hardware. Optional Grade 8 hardware kits are available separately for rusted or stubborn bolts, ensuring a smooth installation process.



  • Vehicle Fitment: Jeep Wrangler TJ LJ 97-06 – A complete suspension overhaul that enhances articulation, axle alignment, and handling, delivering peak off-road flexibility while maintaining exceptional on-road stability.

  • CORE Advantage: Featuring Johnny Joints at both ends of every control arm, this kit provides superior articulation, allowing smooth, bind-free suspension movement while maximizing traction and control over rough terrain.

  • Adjustability: Accommodates lifts from 0 to 6 inches, enabling precise alignment, axle centering, and optimized caster and pinion angles for improved drivability. Optional double adjustability allows easy fine-tuning on the vehicle.

  • Construction: Crafted from heavy-duty DOM tubing with 5/16” wall thickness, this kit ensures unmatched durability. The front upper arms feature a U-bracket for seamless factory bushing integration while maintaining strength.

  • Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.

  • Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.

Built With

Front Lower control arm built with 1.75” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Front Upper control arm built with 1.5” OD 5/16” Wall DOM. Welded U-bracket on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.

Rear Lower control arm built with 1.75” OD 5/16” Wall DOM. Forded Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.

Rear Upper control arm built with 1.5” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1” x 14 TPI - 2.32” long threads.

Front Track Bar built with 1.5” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Make Model Submodel Years
Jeep Wrangler 1997 - 2006
Jeep Wrangler 2004 - 2006

Construction & Materials

Jeep Wrangler TJ 97-06 LJ 04-06 2pc Crawl Series Front Lower Adjustable Control Arms

Front Lower control arm built with 1.75” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Jeep Wrangler TJ 97-06 LJ 04-06 2pc Crawl Series Front Upper Adjustable Control Arms

Front Upper control arm built with 1.5” OD 5/16” Wall DOM. Welded U-bracket on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.

Jeep Wrangler TJ 97-06 LJ 04-06 2pc Crawl Series Rear Lower Adjustable Control Arms

Rear Lower control arm built with 1.75” OD 5/16” Wall DOM. Forded Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.

Jeep Wrangler TJ 97-06 LJ 04-06 2pc Crawl Series Rear Upper Adjustable Control Arms

Rear Upper control arm built with 1.5” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1” x 14 TPI - 2.32” long threads.

Jeep Wrangler TJ 97-06 LJ 04-06 Crawl Series Front Heavy-Duty Adjustable Track Bar

Front Track Bar built with 1.5” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Jeep Wrangler TJ 97-06 LJ 04-06 Crawl Series Rear Heavy-Duty Adjustable Track Bar

Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Vehicle Jeep Wrangler TJ (97–06) or Jeep Wrangler LJ (04–06)
Brand CORE 4X4
Color Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.
Series Crawl Series
Lift Size 0" — 6" or 6"+
Hardware No Hardware or Complete Kit
Adjustment Type Single Threaded or Double Threaded
TJ/LJ Rear Track Bar Bracket - Required For vehicles with 3" or more of lift and/or have an SYE No or Yes-Include new rear track bar bracket (JKSOGS160)
Placement on Vehicle Front Upper, Front Lower, Rear Upper, Rear Lower, Front, Rear
Mounting Style Bolt-On

Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.

Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.

You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
