Product Details
This kit includes 2 components, each built and powder-coated in-house.
| Make | Model | Submodel | Years |
|---|---|---|---|
| Dodge/Ram | 1500 | 2009–Present |
Vehicle Fitment: Designed for Ram 1500 09+, this adjustable rear control arm set enhances axle stability, traction, and power transfer for track use, towing, and off-road performance.
CORE Advantage: Eliminates wheel hop and prevents axle deflection with Johnny Joints at both ends, maximizing articulation, improving ride quality, and ensuring consistent tire contact.
Adjustability: Fully adjustable for applications lifted or lowerd up to 0–6”, allowing precise caster correction, pinion angle adjustments, and axle centering to maintain proper suspension geometry and handling.
Construction: Built from 1.75" OD .313" wall DOM tubing for maximum strength and durability. Features Rock Jock Johnny Joints at both ends, providing superior articulation, reducing suspension bind, and ensuring long-lasting, rebuildable performance.
Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.
Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.
Built With
Rear Upper Control Arms Built With 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Rear Lower Control Arms Built With 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Construction & Materials
Rear Lower control arms built with 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Rear Upper control arms built with 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
| Vehicle | Ram 1500 (09–Present) |
| Brand | CORE 4X4 |
| Series | Track Series |
| Color | Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed. |
| Lift Size | 0" — 6" or 6"+ or -6" — -1" |
| Hardware | No Hardware or Complete Kit |
| Factory Air Ride | No or Yes |
| Year Range | 09+ |
| Placement on Vehicle | Rear Upper, Rear Lower, Rear |
| Mounting Style | Bolt-On |
Complete Control Over Your Rear Suspension
Unleash the full potential of your Ram 1500 (2009–Present) with the Track Series Adjustable Rear Control Arm Set, designed to provide precision axle alignment, improved traction, and unmatched stability. Whether you're launching at the track, towing heavy loads, or tackling off-road terrain, these adjustable upper and lower control arms ensure your rear axle remains planted, eliminating wheel hop and maximizing power transfer.
What’s Included in the Set?

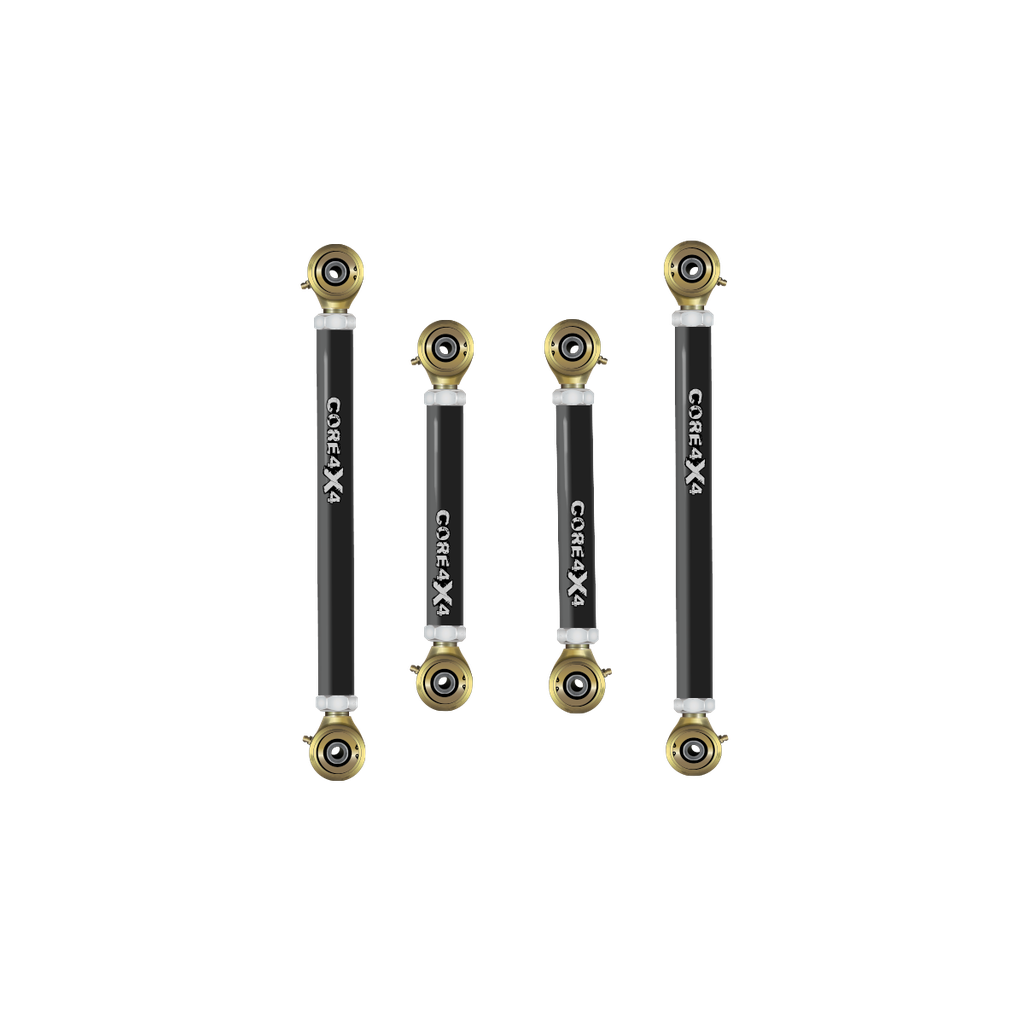

- Track Series Adjustable Rear Upper Control Arms – TRK-R-15-2009-RU2
- Track Series Adjustable Rear Lower Control Arms – TRK-R-15-2009-RL2
Key Features Benefits
- Heavy-Duty DOM Tubing Construction – Built from 1.75" OD .313" wall DOM tubing, ensuring exceptional strength and durability to withstand extreme loads and terrain.

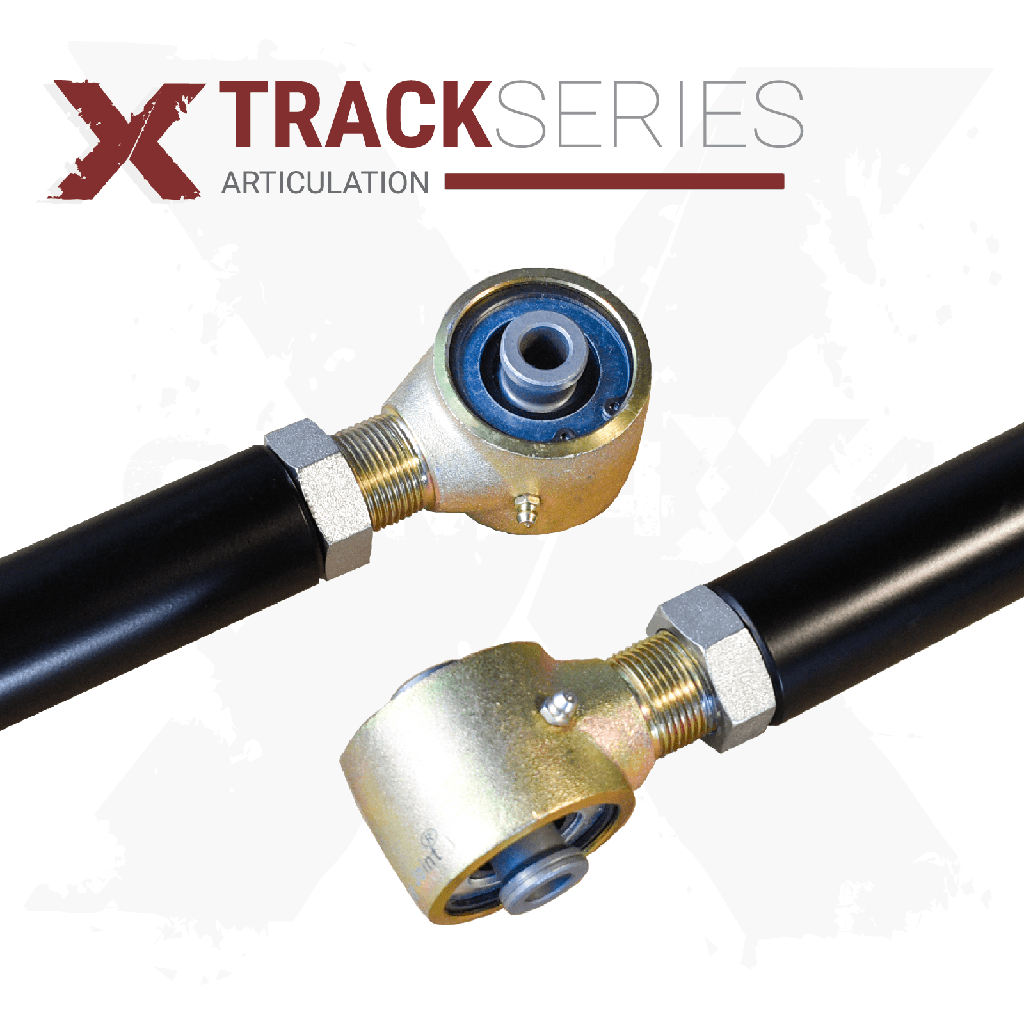

- Rock Jock Johnny Joints at Both Ends – Fully serviceable and rebuildable, these joints allow for maximum articulation, eliminating suspension bind and improving ride quality.
- Left- Right-Hand Threaded Adjustability – Allows for on-vehicle tuning of pinion angle, axle positioning, and suspension geometry without removal, making alignment quick and hassle-free.
- Eliminates Wheel Hop Maximizes Traction – Factory rubber bushings cause axle deflection and oscillation under load, leading to wheel hop. These solid joints prevent unwanted axle movement, ensuring consistent tire contact and improved acceleration stability.
Recommended Pairing for Complete Control
For total control over your rear suspension, we recommend pairing this set with the Track Series Adjustable Rear Panhard Track Bar (TRK-R-15-2009-RPTB1). This ensures perfect axle centering, improved handling, and enhanced stability, eliminating any unwanted lateral movement in the rear suspension.
Maximize Rear Axle Stability Suspension Adjustability
When modifying your truck’s ride height, the factory control arms lack the adjustability needed to maintain proper pinion angle and axle alignment, leading to vibrations, poor handling, and reduced traction. The Track Series Adjustable Rear Control Arm Set allows you to fine-tune your suspension geometry, ensuring precise axle positioning and optimal power transfer.
Highly Durable Two-Stage Powder Coating
Every Track Series component undergoes a two-stage powder coating process for superior durability and corrosion resistance. A zinc primer base coat provides maximum rust protection, while the durable topcoat is available in 10 color options for a customized look.
Optional Hardware Upgrade
This control arm set is designed to be installed using factory hardware, but for increased durability and reliability, we offer an optional Grade 8 hardware kit (sold separately). This upgrade provides a stronger, more secure installation, preventing unwanted shifting under heavy loads.
Proudly Made in the USA
Every CORE 4X4 product is designed, manufactured, and tested in Orem, UT, ensuring superior craftsmanship and strict quality control. By keeping production local, we maintain high-quality material selection, precision machining, and consistent durability.
Final Thoughts
The Track Series Adjustable Rear Control Arm Set is an essential upgrade for Ram 1500 owners looking to eliminate wheel hop, dial in suspension geometry, and improve overall handling. For total rear axle control, pair this set with our Track Series Adjustable Rear Panhard Track Bar (TRK-R-15-2009-RPTB1) to achieve perfect suspension balance and stability.
Each rebuild kit includes all necessary components to replace and restore wearable parts.
Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.
Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.
You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
