Product Details
| Make | Model | Submodel | Years |
|---|---|---|---|
| Dodge/Ram | 1500 | 2009–Present |

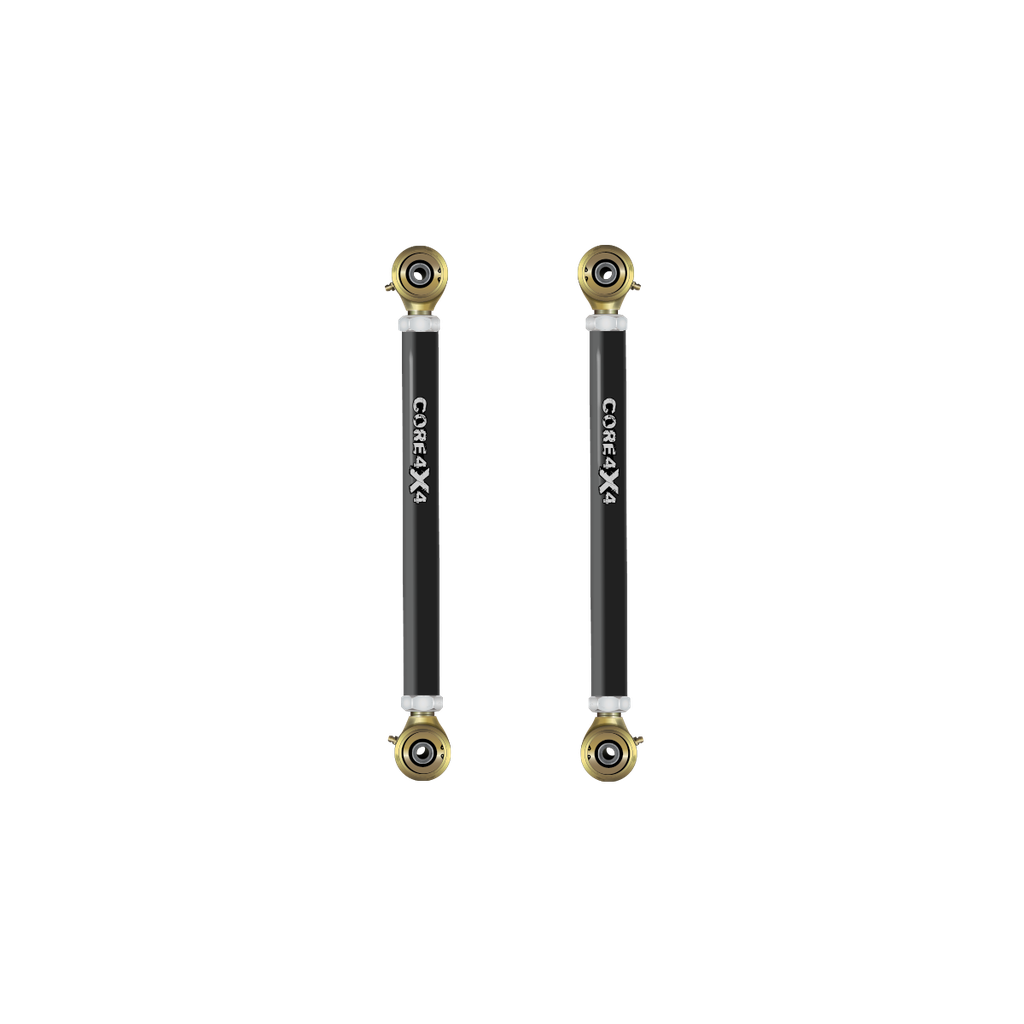

Vehicle Fitment: Designed for Ram 1500 09+, these adjustable rear lower control arms improve traction, eliminate wheel hop, and enhance axle stability for track use, towing, and off-road performance.
CORE Advantage: Prevents axle deflection and enhances power transfer with Johnny Joints at both ends, maximizing articulation, reducing suspension bind, and improving ride quality.
Adjustability: Fully adjustable for applications lifted or lowered up to 6”, allowing precise axle positioning, pinion angle adjustments, and suspension fine-tuning for optimal handling and stability.
Construction: Built from 1.75" OD .313" wall DOM tubing for maximum strength and durability. Features Rock Jock Johnny Joints at both ends, providing superior articulation, reducing suspension bind, and ensuring long-lasting, rebuildable performance.
Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.
Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.
Built With
Rear Lower control arms built with 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Construction & Materials
Rear Lower control arms built with 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
| Vehicle | Ram 1500 (09–Present) |
| Brand | CORE 4X4 |
| Color | Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed. |
| Series | Track Series |
| Lift Size | 0" — 6" or 6"+ or -6" — -1" |
| Hardware | No Hardware or Complete Kit |
| Year Range | 09+ |
| Placement on Vehicle | Rear Lower, Rear |
| Mounting Style | Bolt-On |
Maximize Traction Eliminate Wheel Hop
Upgrade your Ram 1500 (2009–Present) with the Track Series Adjustable Rear Lower Control Arms, designed to improve traction, eliminate wheel hop, and provide enhanced rear axle stability. Whether you're launching off the line, towing heavy loads, or tackling off-road terrain, these control arms ensure your axle remains planted for consistent power transfer and precise suspension control.
Key Features Benefits
- Heavy-Duty DOM Steel Construction – Built from 1.75" OD DOM tubing with .313" wall thickness, providing unmatched strength and resistance to flex under heavy loads.
- Rock Jock Johnny Joints at Both Ends – Fully serviceable and rebuildable for maximum articulation, reduced suspension bind, and long-term durability in all driving conditions.
- Eliminates Wheel Hop Enhances Power Transfer – Factory rubber bushings create excess preload on the axle, leading to oscillation and instability under acceleration. These control arms eliminate wheel hop, ensuring maximum traction and smoother acceleration.
- Left- Right-Hand Threaded Adjustability – Allows for on-truck fine-tuning, making installation and adjustments easy while ensuring perfect rear axle positioning and optimal suspension performance.
Recommended Pairing for Complete Rear Suspension Control – For full adjustability over pinion angle, axle positioning, and ultimate suspension stability, we strongly recommend pairing these lower control arms with the Track Series Adjustable Rear Upper Control Arms (TRK-R-15-2009-RU2).
- When used together, you gain total control over your rear suspension setup, ensuring the best possible traction, handling, and ride quality.
Upgrade to Full Rear Suspension Adjustability
While rear lower control arms help keep the axle planted, all critical suspension adjustments are made with a complete control arm setup. When paired with the Track Series Adjustable Rear Upper Control Arms (TRK-R-15-2009-RU2), you gain the ability to:
- Dial in pinion angle for smooth driveline operation
- Fine-tune rear axle alignment to eliminate unwanted movement
- Maximize stability, articulation, and suspension control in all driving conditions
Highly Durable Two-Stage Powder Coating
Each control arm undergoes a two-stage powder coating process for superior durability and corrosion resistance: Zinc primer base coat for maximum rust protection Durable topcoat available in 10 color options for a customized look
Optional Hardware Upgrade
These control arms are designed to be installed using factory hardware, but for increased durability and reliability, we offer an optional Grade 8 hardware kit (sold separately). This upgrade ensures a stronger, more secure installation, reducing the risk of unwanted shifting under heavy loads.
Proudly Made in the USA
Every CORE 4X4 product is designed, manufactured, and tested in Orem, UT, ensuring superior craftsmanship and strict quality control. By keeping production local, we maintain high-quality material selection, precision machining, and consistent durability.
Final Thoughts
The Track Series Adjustable Rear Lower Control Arms provide the strength, adjustability, and performance needed to eliminate wheel hop, improve traction, and enhance overall suspension stability. For full control over rear suspension adjustments, order these with the Track Series Adjustable Rear Upper Control Arms (TRK-R-15-2009-RU2) and take your Ram 1500’s performance to the next level.
Each rebuild kit includes all necessary components to replace and restore wearable parts.
Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.
Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.
You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
