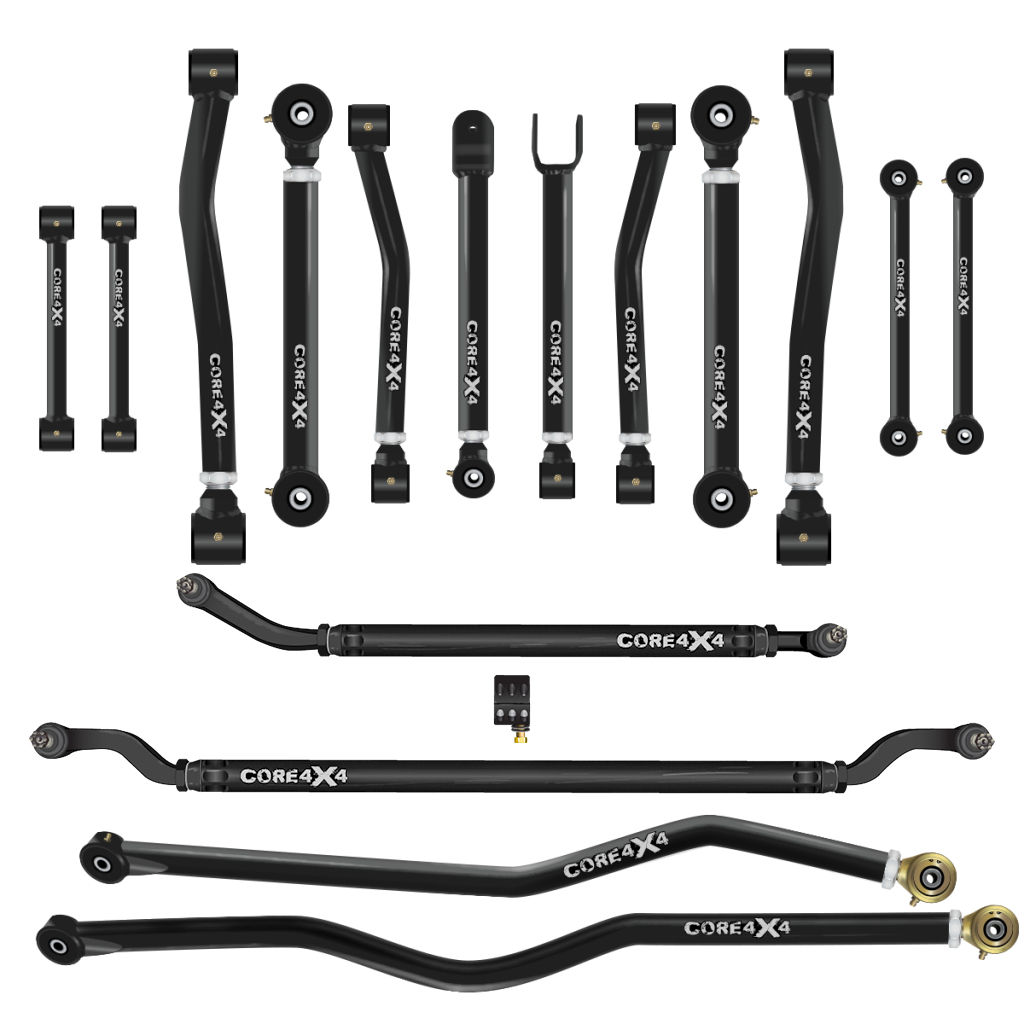

16pc Cruise Series Adjustable Control Arm, Track Bar, Steering, End Link Kit

SKU: CRS-J-JK-K16 ★★★★★ (132 reviews)
Pick your vehicle to confirm fit

$ 2,086.84 2086.84 USD $ 2,782.45

$ 2,782.45

(Save 25%)

See financing options →

Order today — ships within 1–3 business days
Enter ZIP for arrival estimate change
Order by 3:00 PM MT today — we'll start tomorrow
See full timeline
Lifetime warranty Fitment guarantee Ships from Orem, UT 4–8 hr install
COLOR 11 colors — pick yours
https://dev.core4x4.com/web/image/product.template/1602/image_1920?unique=edc8f61

16pc Cruise Series Adjustable Control Arm, Track Bar, Steering, End Link Kit

SKU: CRS-J-JK-K16
Pick your vehicle to confirm fit
Google 5.0 ★★★★★ (132 reviews)

$ 2,086.84 2086.84 USD $ 2,782.45

$ 2,782.45

(Save 25%)

COLOR 11 colors
Black Blue Charcoal Green LightGreen Orange Purple Red White Yellow Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.
Compare all tiers →

Build Your Kit

  • Vehicle
    Confirm this matches your vehicle. Use Shop by Vehicle to filter correctly.
  • Brand
  • Color
    Powder coat color for control arms and track bars. Does not affect performance.
  • Series
    Cruise: daily driving and light off-road. Camp: overlanding. Crawl: aggressive rock crawling.
  • Lift Size
    Choose your current front lift height. Measure from center of wheel to fender if unsure.
  • Hardware
    Choose upgraded hardware if your factory hardware is worn, damaged, or missing.
  • Drag Link Orientation
    Select flipped drag link only if your steering has already been converted to over-the-knuckle.

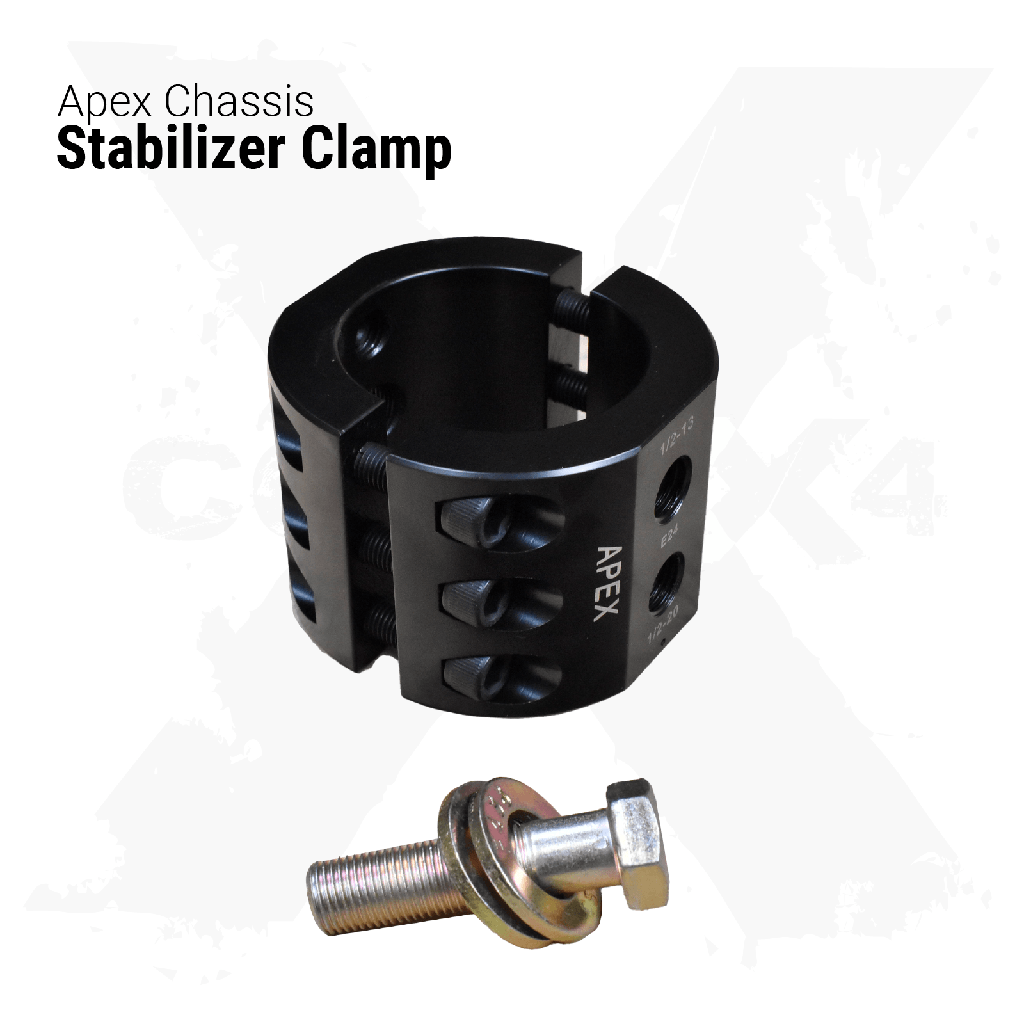

  • Stabilizer Clamp
    Match your steering stabilizer mounting style. Standard clamp, hydraulic assist, or tie rod clamp.
  • Note to Core4x4:

Select Color to see price and add to cart.

Order today — ships within 1–3 business days
Enter ZIP for arrival estimate change
Order by 3:00 PM MT today — we'll start tomorrow
See full timeline

Alignment recommended Lifetime warranty on all non-wear items Made In USA

Made in USA Orem, Utah
Lifetime Guarantee Unconditional
10 Colors In-house powder coat
Fully Adjustable 0-6" of lift
3 X-Series Options Only Core 4x4

Solve Every Suspension Steering Issue with This Complete Upgrade

The Jeep Wrangler JK is an exceptional off-road platform, but its factory suspension system has well-documented weaknesses—including insufficient caster, wandering steering, following ruts in the road, and the dreaded death wobble. The Cruise Series 16-Piece Kit is designed to eliminate these issues entirely by replacing every major suspension and steering component with heavy-duty, fully adjustable upgrades that enhance handling, control, and overall drivability.

This all-inclusive kit provides everything needed to correct alignment, recenter axles, and optimize suspension geometry for lifts from 0 to 6 inches. Whether you’re daily driving or tackling the toughest trails, this kit delivers unmatched stability, precision, and durability.

Key Features and Benefits

  • Eliminates common JK suspension issues – Corrects insufficient caster, eliminates wandering, prevents following ruts in the road, and significantly reduces or eliminates death wobble.
  • Complete suspension steering overhaul – Replaces all major suspension and steering components with fully adjustable upgrades for precise alignment and axle positioning.
  • Adjustable for lifted vehicles – Control arms and track bars adjust to accommodate lifts from 0 to 6 inches, allowing for fine-tuned caster correction, axle centering, and suspension geometry optimization.
  • Build your own lift kit – Simply pair this kit with your preferred springs and shocks to create a custom lift kit that outperforms any off-the-shelf solution.
  • Ultimate steering precision stability – The 2.5-ton aluminum steering kit provides improved handling, eliminates play in the steering system, and enhances overall driving confidence.

Two-Stage Powder Coating for Maximum Protection

All components undergo a two-stage powder coating process for enhanced durability and corrosion resistance:

  • Zinc primer base coat for rust prevention and long-lasting protection.
  • Durable top coat available in 10 color options for personalized customization.

Proudly Made in the USA

Manufactured in Orem, UT, the Cruise Series 16-Piece Kit is built with American craftsmanship and locally sourced materials, ensuring the highest quality standards in every component.

Effortless Installation

Designed for a hassle-free, bolt-on installation using factory hardware. For those dealing with rusted or stubborn bolts, we offer optional Grade 8 hardware kits separately for a smoother setup.


  • Vehicle Fitment: Jeep Wrangler JK 07-18 – The most complete suspension and steering upgrade available, solving common JK issues like wandering steering, death wobble, and poor alignment.

  • CORE Advantage: Replaces every major suspension and steering component with fully adjustable heavy-duty upgrades, delivering precision handling, improved axle positioning, and total control.

  • Adjustability: Designed for 0 to 6 inches of lift, allowing precise caster correction, axle re-centering, and optimized suspension geometry for a smoother, more predictable ride.

  • Construction: Heavy-duty steel control arms, reinforced track bars, premium sway bar end links, and a 2.5-ton aluminum steering kit to eliminate factory weaknesses and enhance durability.

  • Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.

  • Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.

Built With

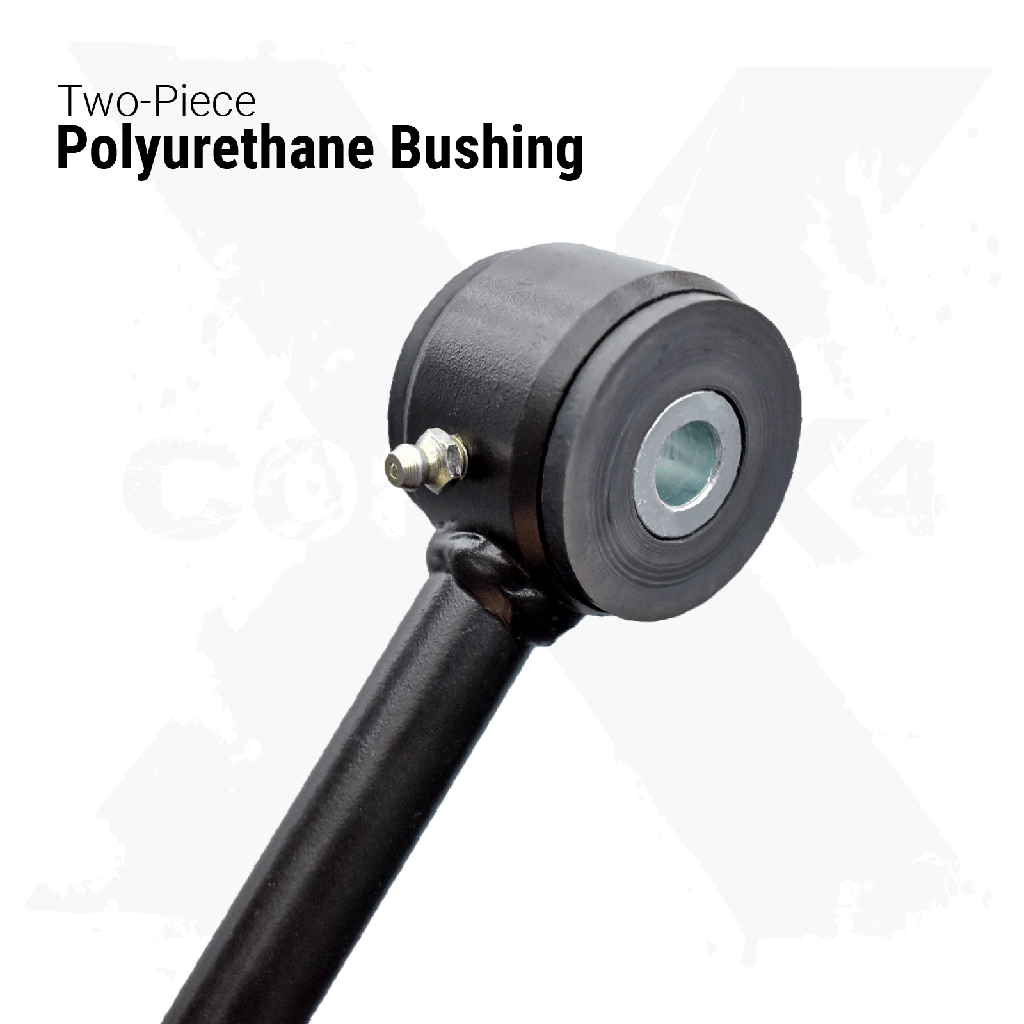

Front Lower control arms built with 1.875” OD 3/16” Wall DOM. Polyurethane Bushings on the fixed and adjustable ends with 1.25” x 12 TPI - 3.25” long threads.

Front Upper control arms built with 1.625” OD 3/16” Wall DOM. Welded U-bracket on the fixed end and a Polyurethane Bushing on the adjustable end with 1” x 14 TPI - 3.25” long threads.

Rear Lower control arms built with 1.875” OD 3/16” Wall DOM. Polyurethane Bushings on the fixed and adjustable ends with 1.25” x 12 TPI - 3.25” long threads.

Rear Upper control arms built with 1.625” OD 3/16” Wall DOM. Polyurethane Bushings on the fixed and adjustable ends with 1” x 14 TPI - 3.25” long threads.

Front Track Bar built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Front End Links built with .75” Cold Rolled Steel. Polyurethane Bushings on both fixed ends.

Rear End Links built with .75” Cold Rolled Steel. Polyurethane Bushings on both fixed ends.

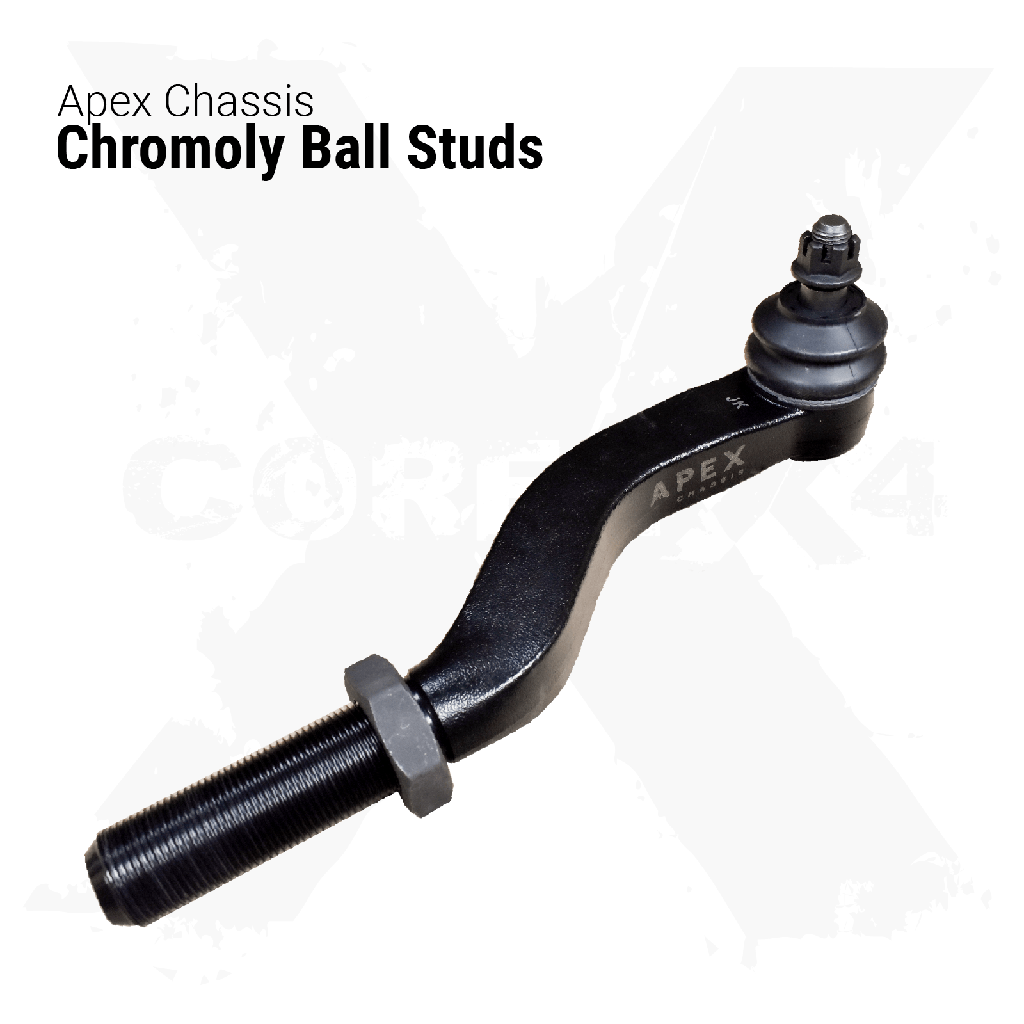

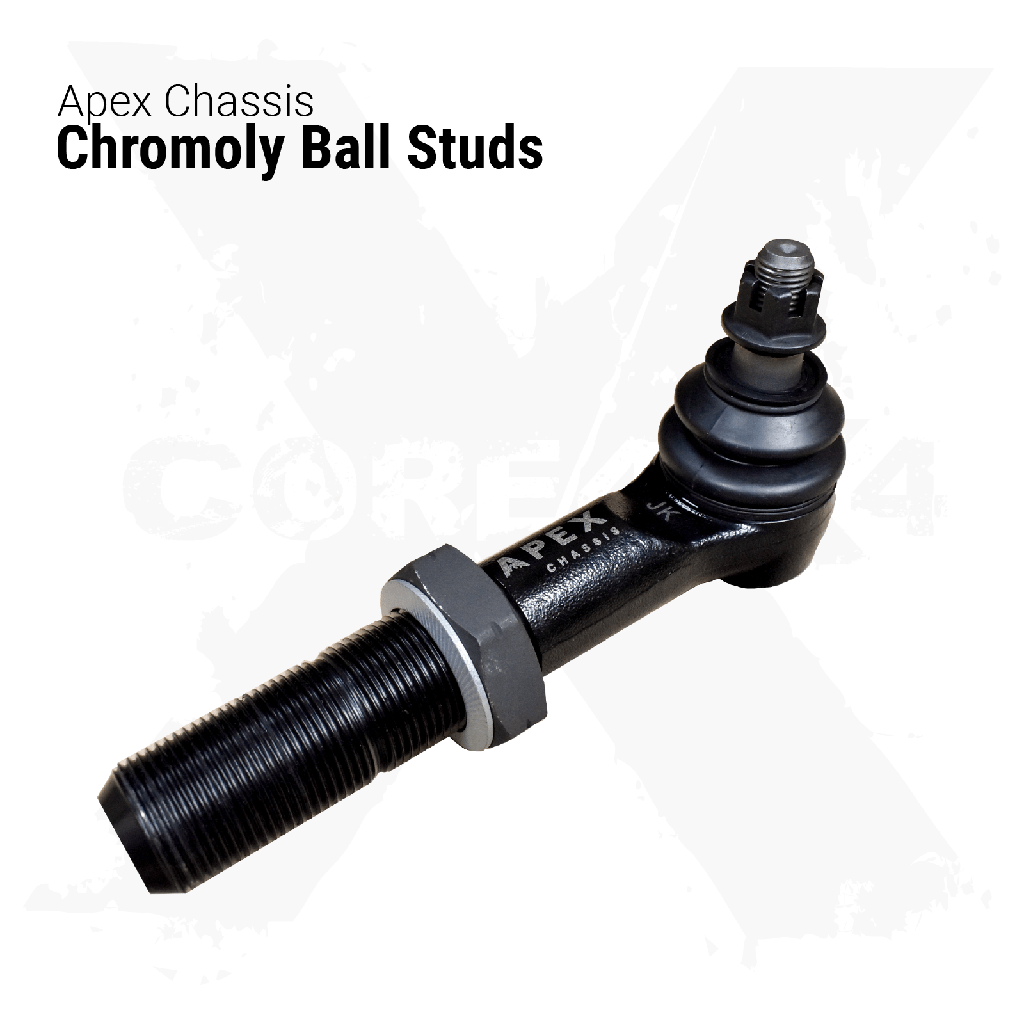

Tie Rod and Drag Link made from 2" 7075 Aluminum. Tie Rod and Drag Link use Apex Chassis Forged Rod Ends.

Make Model Submodel Years
Jeep Wrangler 2007 - 2018

Construction & Materials

Jeep Wrangler JK / JKU 07-18 2pc Cruise Series Front Fixed Length End Links

Front End Links built with .75” Cold Rolled Steel. Polyurethane Bushings on both fixed ends.

Jeep Wrangler JK / JKU 07-18 2pc Cruise Series Front Lower Adjustable Control Arms

Front Lower control arms built with 1.875” OD 3/16” Wall DOM. Polyurethane Bushings on the fixed and adjustable ends with 1.25” x 12 TPI - 3.25” long threads.

Jeep Wrangler JK / JKU 07-18 2pc Cruise Series Front Upper Adjustable Control Arms

Front Upper control arms built with 1.625” OD 3/16” Wall DOM. Welded U-bracket on the fixed end and a Polyurethane Bushing on the adjustable end with 1” x 14 TPI - 3.25” long threads.

Jeep Wrangler JK / JKU 07-18 2pc Cruise Series Rear Fixed Length End Links

Rear End Links built with .75” Cold Rolled Steel. Polyurethane Bushings on both fixed ends.

Jeep Wrangler JK / JKU 07-18 2pc Cruise Series Rear Lower Adjustable Control Arms

Rear Lower control arms built with 1.875” OD 3/16” Wall DOM. Polyurethane Bushings on the fixed and adjustable ends with 1.25” x 12 TPI - 3.25” long threads.

Jeep Wrangler JK / JKU 07-18 2pc Cruise Series Rear Upper Adjustable Control Arms

Rear Upper control arms built with 1.625” OD 3/16” Wall DOM. Polyurethane Bushings on the fixed and adjustable ends with 1” x 14 TPI - 3.25” long threads.

Jeep Wrangler JK / JKU 07-18 2pc Heavy-Duty Tie Rod, Drag Link Steering Kit

Tie Rod and Drag Link made from 2" 7075 Aluminum. Tie Rod and Drag Link use Apex Chassis Forged Rod Ends.

Jeep Wrangler JK / JKU 07-18 Cruise Series Front Heavy-Duty Adjustable Track Bar

Front Track Bar built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Jeep Wrangler JK / JKU 07-18 Cruise Series Rear Heavy-Duty Adjustable Track Bar

Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Vehicle Jeep Wrangler JK / JKU (07–18)
Brand CORE 4X4
Color Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.
Series Cruise Series
Lift Size Stock Height or Lifted 1" or Lifted 2" or Lifted 3" or Lifted 4" or Lifted 5" or Lifted 6" or Lifted 7" or Lifted 8" or Custom length or 1/2 sizes (put desired length in the Order Notes)
Hardware No Hardware or Complete Kit
Drag Link Orientation Factory Mounting (under the knuckle) or Drag Link Flip w/ Tapered Sleeve And Drill Bit (over the knuckle)
Stabilizer Clamp Standard Clamp or Hydraulic Assist Clamp
Placement on Vehicle Front Upper, Front Lower, Rear Upper, Rear Lower, Front, Rear
Mounting Style Bolt-On

Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.

Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.

You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.

Google

Reviews of Core 4x4

See all on Google
5.0
★ ★ ★ ★ ★
132 reviews
5 ★
97%
4 ★
2%
3 ★
0%
2 ★
1%
1 ★
0%
JT
jacob trice Apr 27, 2025
★ ★ ★ ★ ★ Google
Core 4x4 has outstanding products at a fair price and unmatched customer service. When you call Korby, it's like talking with a friend. Very cool and helpul! I ordered some custom control arms, but from the wrong product line and they were super cool about returning them and upgrading to a better "Crawl" series. Only charged the difference between the two products. They paid all the return shipping and sent the uprgaded arms super quick. It was only a couple days. Awesome!! I couldn't be happier with the transaction👍🏼 Also, these control arms are stout and take a beating. I run heck out my Jeep in the rocks and desert. No problems whatsoever. Thanks Core 4x4, ya'll are welcome at my campfire anytime! Jake T. Pleasant Hill, Or.
JO
Jaime Overmyer Nov 23, 2025
★ ★ ★ ★ ★ Google
Korby was extremely helpful in helping me find the right part for my truck. He was kind, knowledgeable, and patient while I asked a million questions. He also went out of his way to find the right shipping option for me since it’s tricky where I live. I’m looking forward to getting the parts so I can fix my truck and go adventuring again soon!
MM
Mike Martinez Aug 25, 2025
★ ★ ★ ★ ★ Google
Phenomenal company - very rare to come by in the automotive industry. Also very impressing. Let me start here. I got a set of yellow sway bar end links for my 19 ram DT (new body style) and let me tell you, I’m hooked. For numerous reasons. One the craftsmanship behind the product is unmatched for sure for without breaking the bank. 2ndly, they stand behind their product. Had a very minor issue and it was resolved in a blink of an eye!!! Insane. Just because of what i listed above i will forever spend my money with core 4x4! And i think you should too! I have no affiliation at all with this company besides being a consumer. I will be ordering my yellow UCAs and the rest of my rear suspension from them here shortly! Korby on the other hand. The representative that helped me went above and beyond FAST. I hung up the phone with him, and with in no lie 3 minutes he was calling back with an answer. GREAT GREAT GREAT customer service, Korby you and core 4x4 are what give us hope in the car community! With much love and great health to you all!!
Review photo 1
GM
George Mar Sep 24, 2025
★ ★ ★ ★ ★ Google
Great company. Highly satisfied with Core 4x4 customer service. Had some bushings fall apart around 600 miles from home. Called and spoke with Korby Linscomb on Thursday, late in the afternoon. He was able to get my bushings sent across country overnight at a very reasonable rate. Had me up and running by Friday evening with enough time to enjoy the Great Smoky Mountain Jeep Invasion. Thanks Guys!
Review photo 1
MN
Mike Nielsen Nov 23, 2025
★ ★ ★ ★ ★ Google
The customer service is first class. I had an issue with a track bar I installed on my F350. I don’t have any other Core 4x4 parts yet, but with the way I was treated, I know their parts are well done, because they went above and beyond to make sure I was made whole. They wouldn’t be in business if they had to take care of a lot of people like they took care of me. Will definitely be back when it’s time to build the Jeep!
D
Don Jul 26, 2025
★ ★ ★ ★ ★ Google
Great shop, great parts and great service. You want to buy off this company and company’s like this!!!! Wish we had more companies as good as this one!! Thank you
E(
Eric Hernandez (savagefit) May 27, 2025
★ ★ ★ ★ ★ Google
The whole process was quick and painless. The products are top tier and when I reached out them for package update info, Korby Linscomb was very responsive, and got me the answers I needed the same day. Even when I emailed back to some additional info, he sent what I was looking for that same day. I love core 4x4 and will be giving them my business from now on.
GC
Grant Chaisson Jun 26, 2025
★ ★ ★ ★ ★ Google
These guys are awesome!! They have helped me build multiple jeeps from zjs to mjs and now with my lj build they all ways impress. There products are the best on the market in my eyes. The best part about it all is it's all made right here in american and shipped anywhere in the world 🌎 . Don't think twice when your looking for control arm or lift kits for your vehicle if these guys sell it BUY IT!!!
Review photo 1
CM
Cameron Masters Mar 24, 2023
★ ★ ★ ★ ★ Google
Absolutely incredible family owned business. I asked to pick up my order since I’m local and they came in on a weekend to accommodate. Had to make some adjustments to parts and took the time to make sure it was perfect. Parts are incredible quality. If you have a Jeep, do not hesitate to support this local business.
BW
Brian Wadsworth Jun 26, 2025
★ ★ ★ ★ ★ Google
Amazing product! Shipping was quick, packaging was great and support was outstanding!!

Specifications

Color Black, Blue, Charcoal, Green, LightGreen, Orange, Purple, Red, White, Yellow, Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.
Lift Size Stock Height, Lifted 1", Lifted 2", Lifted 3", Lifted 4", Lifted 5", Lifted 6", Lifted 7", Lifted 8", Custom length or 1/2 sizes (put desired length in the Order Notes)
Hardware No Hardware, Complete Kit
Drag Link Orientation Factory Mounting (under the knuckle), Drag Link Flip w/ Tapered Sleeve And Drill Bit (over the knuckle)
Stabilizer Clamp Standard Clamp, Hydraulic Assist Clamp
Vehicle Jeep Wrangler JK / JKU (07–18)
Brand CORE 4X4
Series Cruise Series
Note to Core4x4: -
