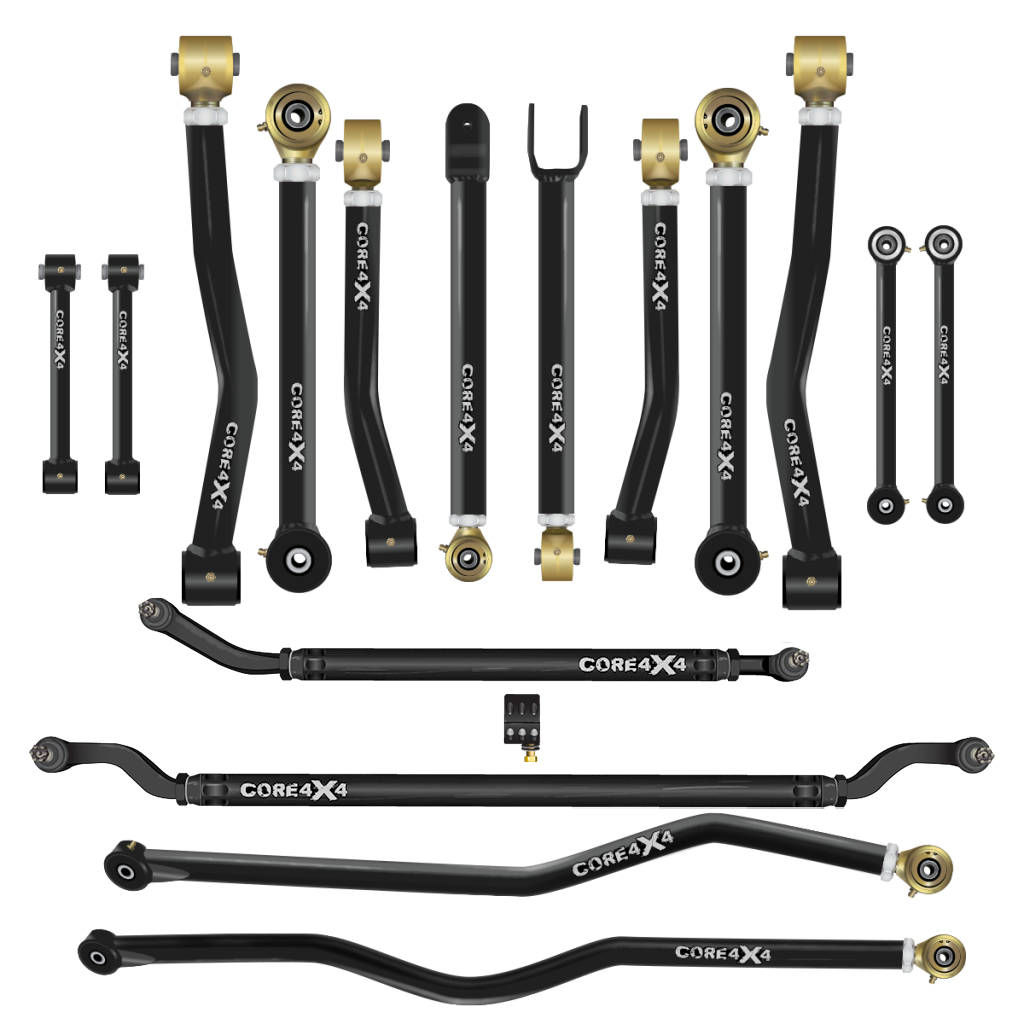

16pc Camp Series Adjustable Control Arm, Track Bar, Steering, End Link Kit

SKU: CMP-J-JK-K16 ★★★★★ (132 reviews)
Pick your vehicle to confirm fit

$ 2,477.96 2477.96 USD $ 3,097.45

$ 3,097.45

(Save 20%)

See financing options →

Order today — ships within 1–3 business days
Enter ZIP for arrival estimate change
Order by 3:00 PM MT today — we'll start tomorrow
See full timeline
Lifetime warranty Fitment guarantee Ships from Orem, UT 4–8 hr install
COLOR 11 colors — pick yours
https://dev.core4x4.com/web/image/product.template/1631/image_1920?unique=edc8f61

16pc Camp Series Adjustable Control Arm, Track Bar, Steering, End Link Kit

SKU: CMP-J-JK-K16
Pick your vehicle to confirm fit
Google 5.0 ★★★★★ (132 reviews)

$ 2,477.96 2477.96 USD $ 3,097.45

$ 3,097.45

(Save 20%)

COLOR 11 colors
Black Blue Charcoal Green LightGreen Orange Purple Red White Yellow Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.
Compare all tiers →

Build Your Kit

  • Vehicle
    Confirm this matches your vehicle. Use Shop by Vehicle to filter correctly.
  • Brand
  • Color
    Powder coat color for control arms and track bars. Does not affect performance.
  • Series
    Cruise: daily driving and light off-road. Camp: overlanding. Crawl: aggressive rock crawling.
  • Lift Size
    Choose your current front lift height. Measure from center of wheel to fender if unsure.
  • Hardware
    Choose upgraded hardware if your factory hardware is worn, damaged, or missing.
  • Drag Link Orientation
    Select flipped drag link only if your steering has already been converted to over-the-knuckle.

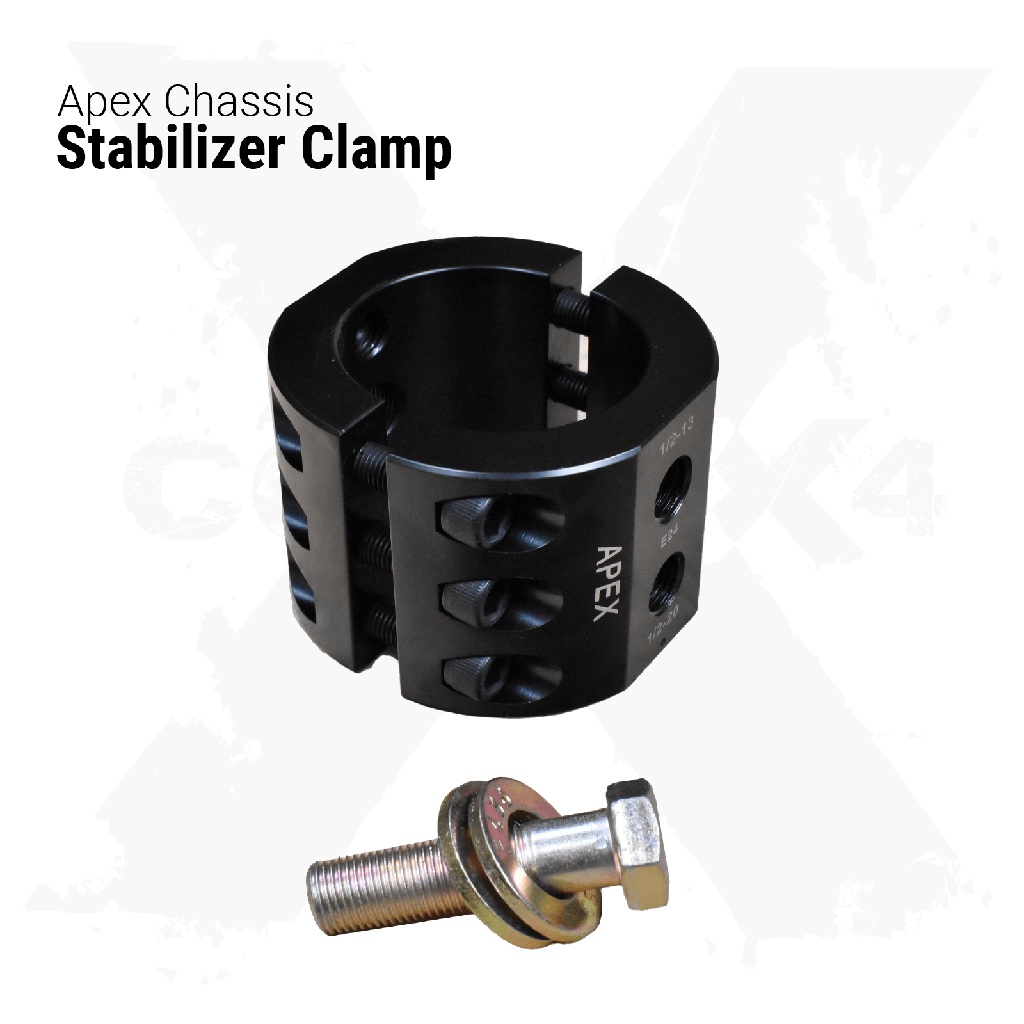

  • Stabilizer Clamp
    Match your steering stabilizer mounting style. Standard clamp, hydraulic assist, or tie rod clamp.
  • Note to Core4x4:

Select Color to see price and add to cart.

Order today — ships within 1–3 business days
Enter ZIP for arrival estimate change
Order by 3:00 PM MT today — we'll start tomorrow
See full timeline

Alignment recommended Lifetime warranty on all non-wear items Made In USA

Made in USA Orem, Utah
Lifetime Guarantee Unconditional
10 Colors In-house powder coat
Fully Adjustable 0-6" of lift
3 X-Series Options Only Core 4x4

The Ultimate All-Inclusive Suspension and Steering Solution

Take your Jeep Wrangler JK (2007-2018) to the next level with the Camp Series Ultimate Control, Steering, and Sway Bar End Links Kit, the most comprehensive upgrade for your suspension and steering system. Designed for those who demand precision, strength, and control, this all-in-one kit replaces every major suspension and steering component, ensuring superior handling, stability, and off-road articulation.

When combined with your choice of springs and shocks, this kit becomes an all-inclusive lift solution, delivering unparalleled performance that outperforms anything else on the market. Whether you’re tackling rocky trails, deep mud, or city streets, this system provides the perfect balance of durability, flexibility, and adjustability.

Key Features and Benefits

  • All-inclusive suspension, steering, and sway stability solution – Replaces all critical suspension and steering components, ensuring unmatched handling, alignment correction, and overall drivability.
  • Premium DOM tubing construction – Built from 1.75” OD DOM tubing for the lower arms and 1.5” OD DOM tubing for the upper arms, each featuring a .313" wall thickness for exceptional durability.
  • Precision suspension geometry correction – Fully adjustable control arms and track bars correct caster angles, eliminate wandering or following road ruts, and ensure axle centering after lifting your Jeep.
  • Heavy-duty steering system – The 2.5-ton aluminum steering kit significantly improves steering response, eliminates play in the linkage, and reduces bump steer, offering better control on and off the road.
  • Sway bar end links for stability – Front and rear sway bar end links reduce body roll during cornering and improve weight distribution, further enhancing handling and ride comfort.

Customizable Lift Compatibility

Fully adjustable to accommodate suspension lifts from 0 to 6 inches, ensuring perfect alignment and axle positioning. For extreme lifts beyond 6 inches, contact us for custom solutions.

Transforms Into a Complete Lift Kit

Simply combine with your own shocks and springs, and this system becomes an all-inclusive lift kit that surpasses anything else on the market in strength, flexibility, and ride quality.

Total Suspension and Steering Control

Upgrading your Jeep’s suspension without correcting caster angles, steering geometry, and axle alignment can lead to poor handling, uneven tire wear, and steering instability. This fully adjustable kit allows you to fine-tune your suspension setup, ensuring your Jeep drives smoothly, tracks straight, and stays controlled in any terrain.

Whether you're navigating tight trails, crawling over rocks, or cruising the highway, this system guarantees maximum durability, articulation, and steering precision.

Durable Two-Stage Powder Coating

Each component undergoes a zinc primer base coat for corrosion resistance, followed by a top coat available in 10 colors for a personalized look.

Optional Hardware Upgrade

Designed for straightforward installation using factory hardware, with optional Grade 8 hardware kits available separately for rusted or worn-out bolts.


  • Vehicle Fitment: Jeep Wrangler JK 07-18 – Precision-engineered for all trims to enhance suspension control, handling, and off-road capability.

  • CORE Advantage: The most complete suspension and steering upgrade, replacing all control arms, track bars, sway bar end links, and steering components for unmatched stability and handling.

  • Adjustability: Fully adjustable to accommodate 0–6” lifts, ensuring precise caster correction, axle centering, and optimized suspension geometry.

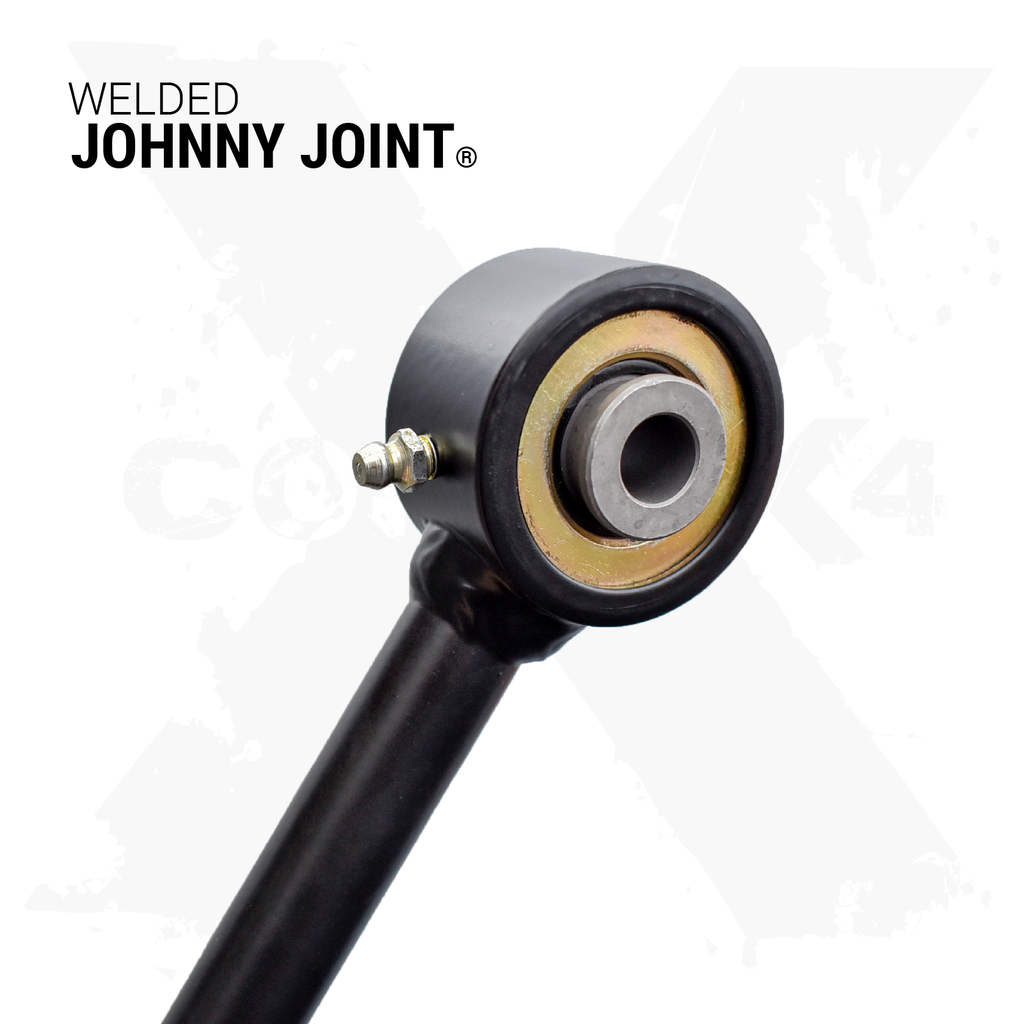

  • Construction: Built from heavy-duty .313-wall DOM tubing with Johnny Joints for articulation, polyurethane bushings for vibration control, and a 2.5-ton aluminum steering kit for precision handling.

  • Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.

  • Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.

Built With

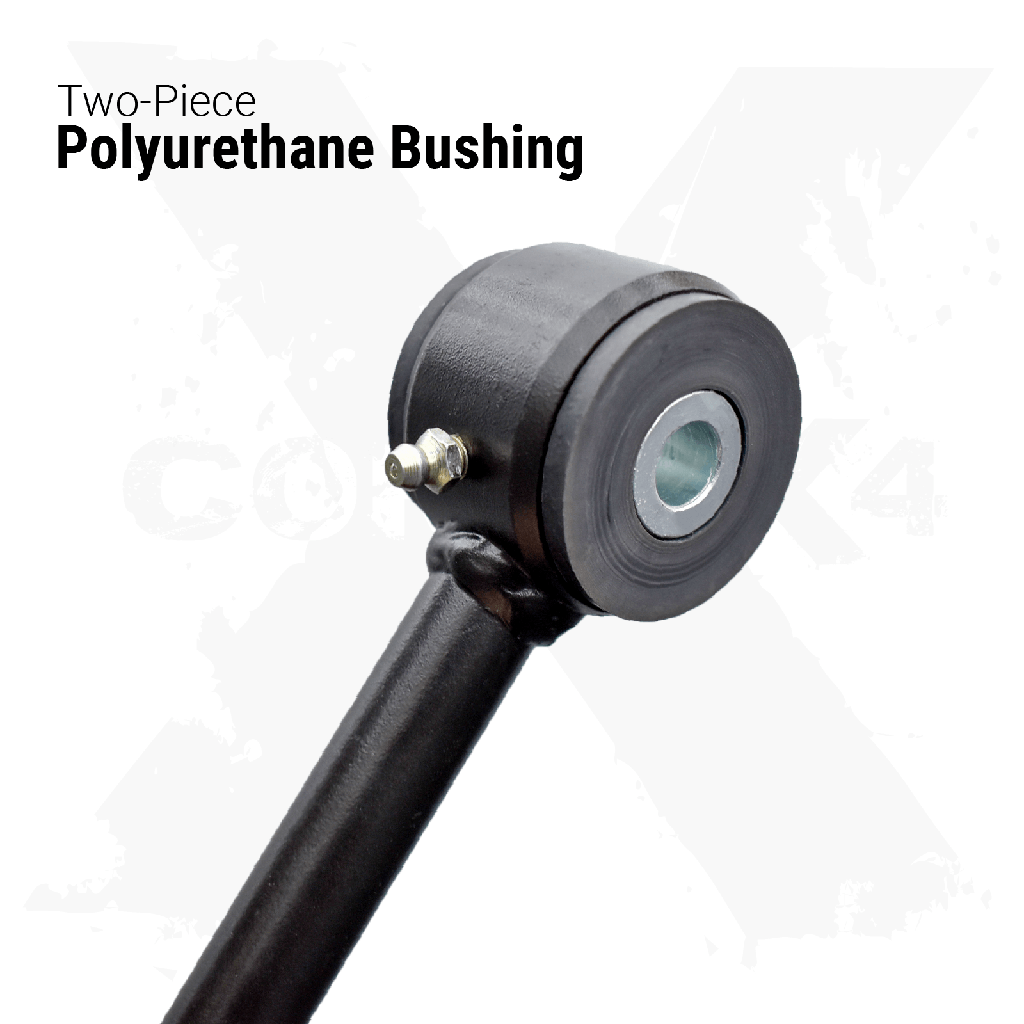

Front Lower control arm built with 1.75” OD 5/16” Wall DOM. A Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Front Upper control arm built with 1.5” OD 5/16” Wall DOM. Welded u-bracket on the welded end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.

Rear Lower control arm built with 1.75” OD 5/16” Wall DOM. A Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Rear Upper control arm built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.

Front Track Bar built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Front Links built with .75” Cold Rolled Steel. Welded Johnny Joints on one fixed end and a Polyurethane Bushing on the other fixed end.

Rear End Links built with .75” Cold Rolled Steel. Welded Johnny Joints on one fixed end and a Polyurethane Bushing on the other fixed end.

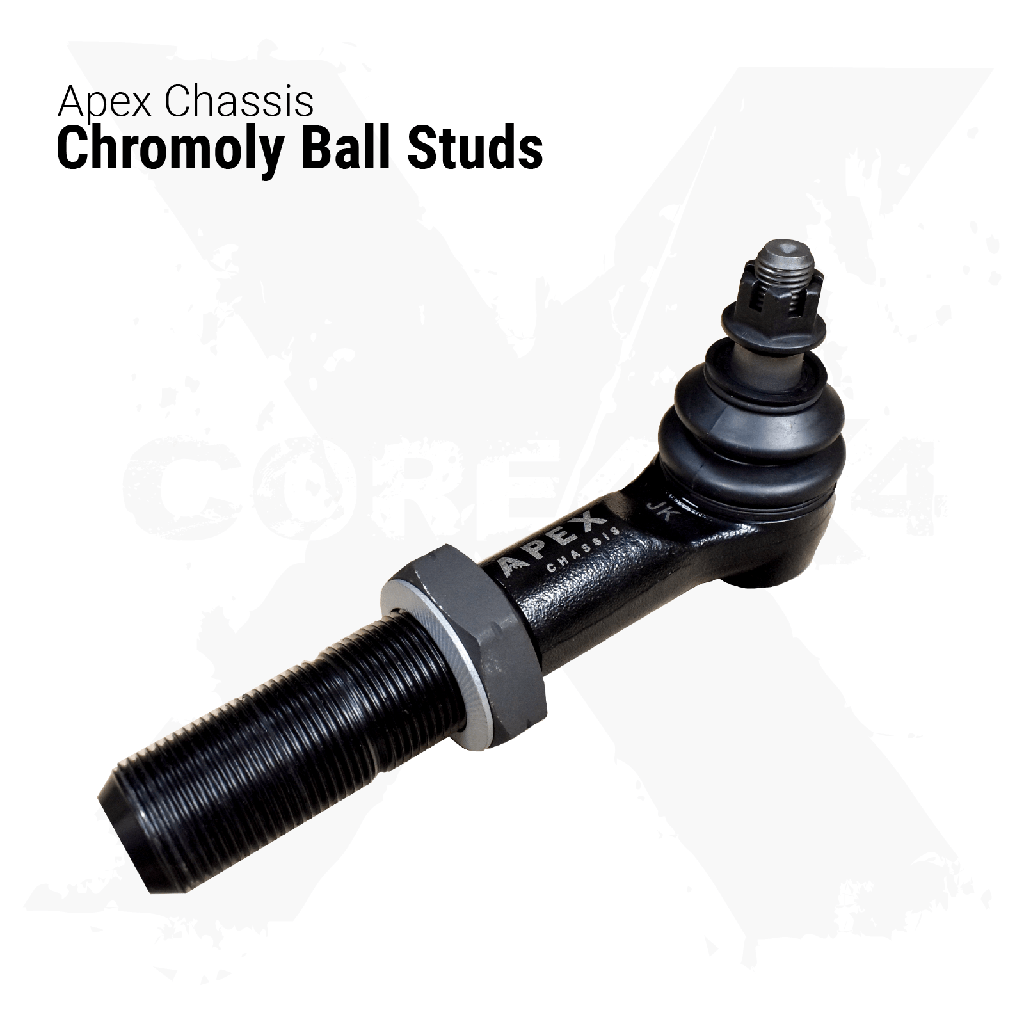

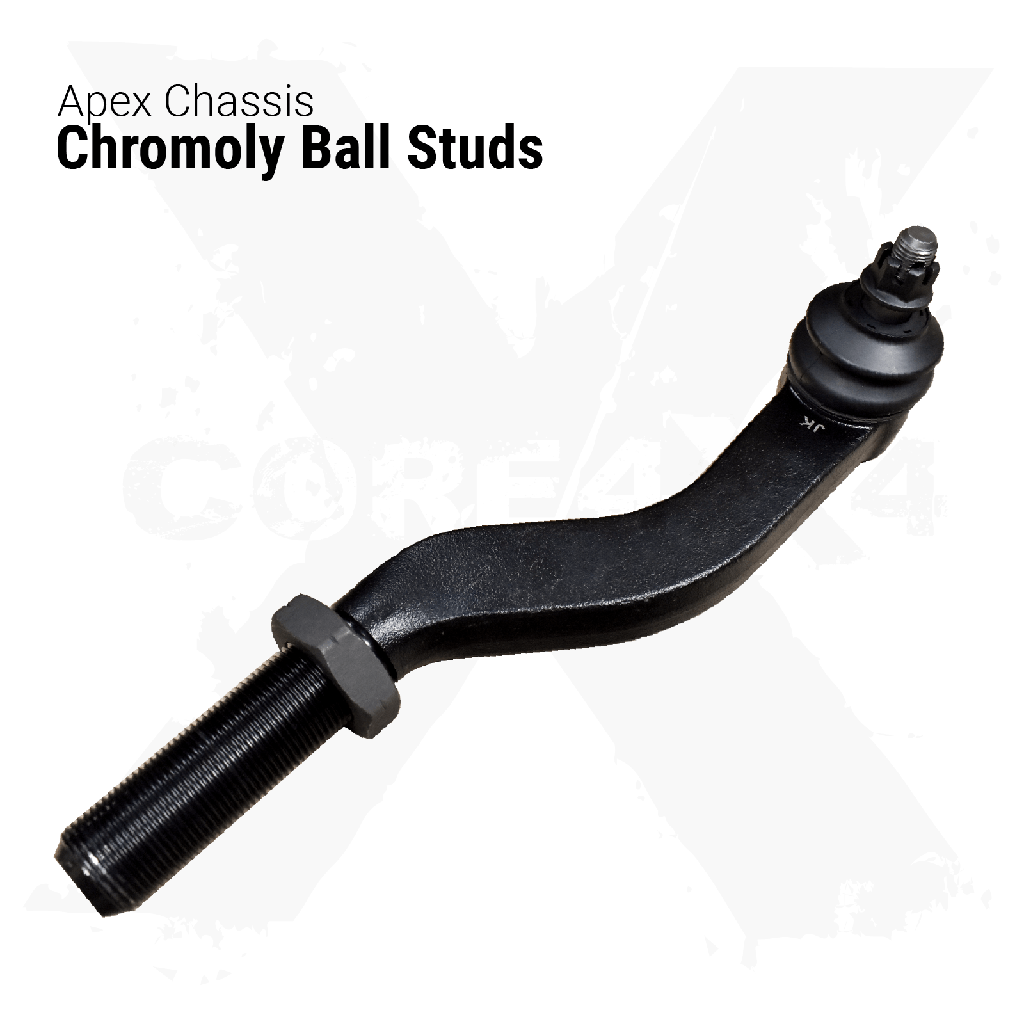

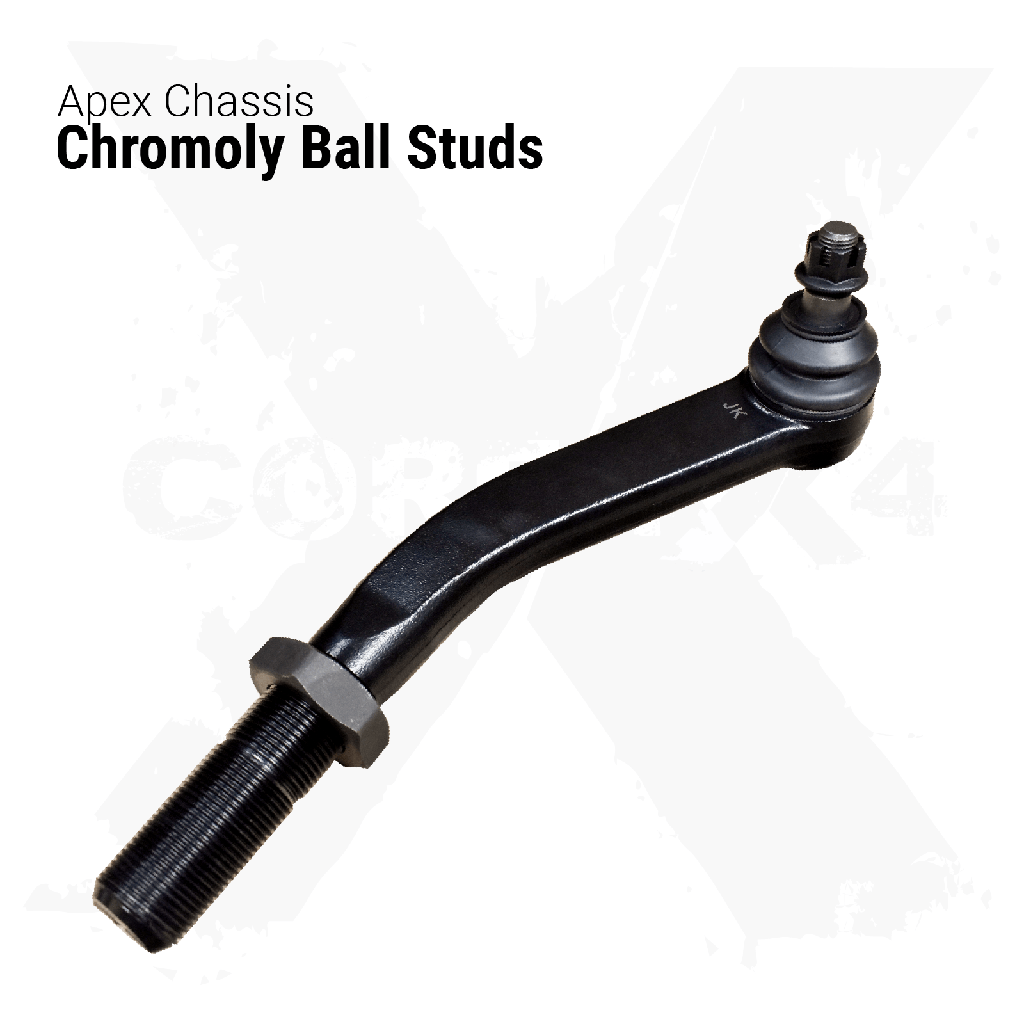

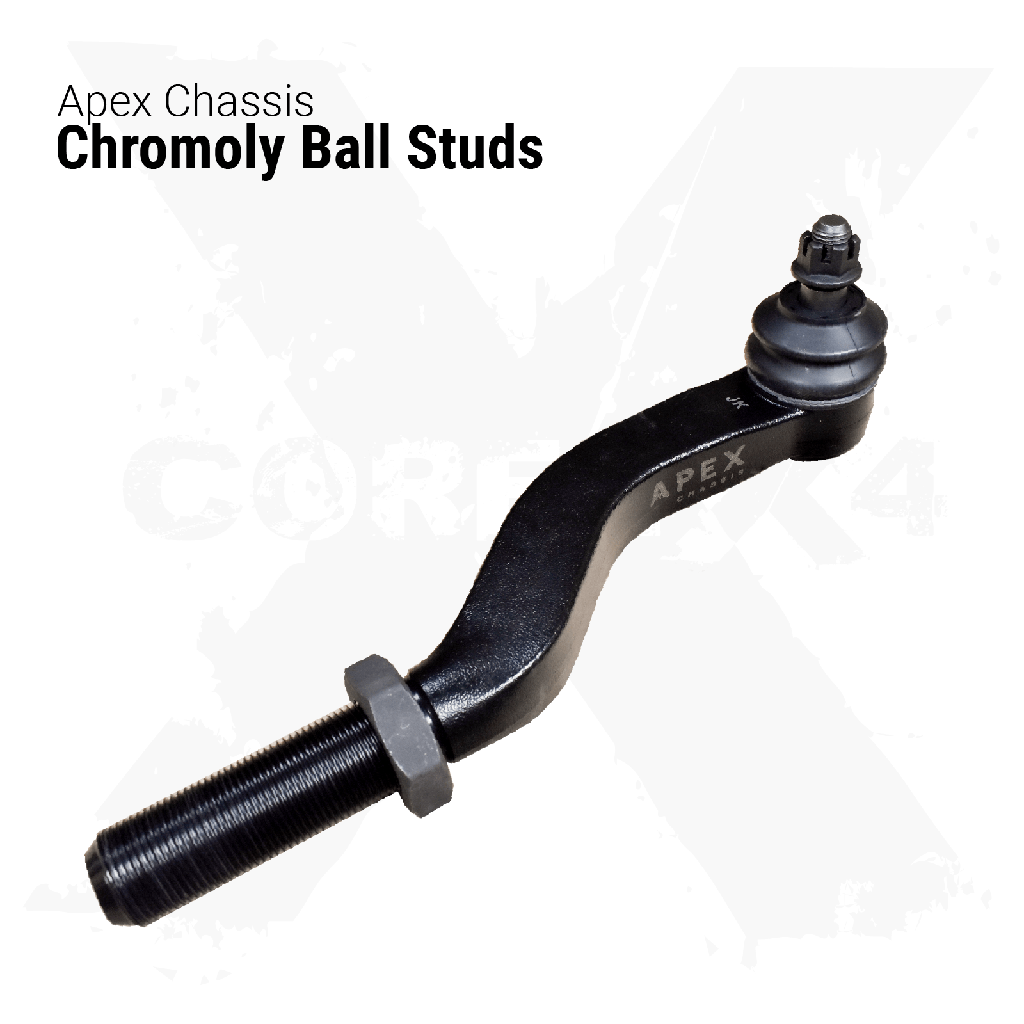

Tie Rod and Drag Link made from 2" 7075 Aluminum. Tie Rod and Drag Link use Apex Chassis Forged Rod Ends.

Make Model Submodel Years
Jeep Wrangler 2007 - 2018

Construction & Materials

Jeep Wrangler JK / JKU 07-18 2pc Camp Series Front Fixed Length End Links

Front Links Built With .75” Cold Rolled Steel.

Welded Johnny Joints Built With one fixed end and a Polyurethane Bushing on the other fixed end.

Jeep Wrangler JK / JKU 07-18 2pc Camp Series Front Lower Adjustable Control Arms

Front Lower control arm built with 1.75” OD 5/16” Wall DOM. A Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Jeep Wrangler JK / JKU 07-18 2pc Camp Series Front Upper Adjustable Control Arms

Front Upper control arm built with 1.5” OD 5/16” Wall DOM. Welded u-bracket on the welded end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.

Jeep Wrangler JK / JKU 07-18 2pc Camp Series Rear Fixed Length End Links

Rear End Links built with .75” Cold Rolled Steel. Welded Johnny Joints on one fixed end and a Polyurethane Bushing on the other fixed end.

Jeep Wrangler JK / JKU 07-18 2pc Camp Series Rear Lower Adjustable Control Arms

Rear Lower control arm built with 1.75” OD 5/16” Wall DOM. A Polyurethane Bushing on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Jeep Wrangler JK / JKU 07-18 2pc Camp Series Rear Upper Adjustable Control Arms

Rear Upper control arm built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.

Jeep Wrangler JK / JKU 07-18 2pc Heavy-Duty Tie Rod, Drag Link Steering Kit

Tie Rod and Drag Link made from 2" 7075 Aluminum. Tie Rod and Drag Link use Apex Chassis Forged Rod Ends.

Jeep Wrangler JK / JKU 07-18 Camp Series Front Heavy-Duty Adjustable Track Bar

Front Track Bar built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Jeep Wrangler JK / JKU 07-18 Camp Series Rear Heavy-Duty Adjustable Track Bar

Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Vehicle Jeep Wrangler JK / JKU (07–18)
Brand CORE 4X4
Color Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.
Series Camp Series
Lift Size Stock Height or Lifted 1" or Lifted 2" or Lifted 3" or Lifted 4" or Lifted 5" or Lifted 6" or Lifted 7" or Lifted 8" or Custom length or 1/2 sizes (put desired length in the Order Notes)
Hardware No Hardware or Complete Kit
Drag Link Orientation Factory Mounting (under the knuckle) or Drag Link Flip w/ Tapered Sleeve And Drill Bit (over the knuckle)
Stabilizer Clamp Standard Clamp or Hydraulic Assist Clamp
Placement on Vehicle Front Upper, Front Lower, Rear Upper, Rear Lower, Front, Rear
Mounting Style Bolt-On

Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.

Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.

You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.

Google

Reviews of Core 4x4

See all on Google
5.0
★ ★ ★ ★ ★
132 reviews
5 ★
97%
4 ★
2%
3 ★
0%
2 ★
1%
1 ★
0%
D
Don Jul 26, 2025
★ ★ ★ ★ ★ Google
Great shop, great parts and great service. You want to buy off this company and company’s like this!!!! Wish we had more companies as good as this one!! Thank you
DD
Dmitriy D May 27, 2025
★ ★ ★ ★ ★ Google
Installed rear and upper control arms and track bar on my 3rd Gen 4RUNNER to align rear axle and restore factory wheel base after 3.5" lift. Car drives better than New! Improved handling cornering and overall driving. Very solid and high quality made product. Support is outstanding. Shipping extremely fast. Thank you so much. I wish you will have something new for my car.
Review photo 1
AS
Anthony Snyder Jun 26, 2025
★ ★ ★ ★ ★ Google
Great experience and really great parts
AP
Ajay Paynter Mar 4, 2026
★ ★ ★ ★ ★ Google
Great company, who worked with me on shipping parts to arrive in time for a show. When I explained my concern they went above and beyond to make it happen. Quality of the parts is top notch.
HK
Harold Kruder Mar 23, 2024
★ ★ ★ ★ ★ Google
I needed some parts and had to replace 1 lower control arm and their customer service is great. Helped with answering my questions and got parts shipped quickly.
LS
Leonard Smith Jan 22, 2026
★ ★ ★ ★ ★ Google
I don’t write reviews often, but Core 4x4 absolutely earned this one. I recently ordered leaf spring mounts and realized after the fact that I messed up my order. Totally my mistake. Instead of giving me the runaround or pointing at a return policy, Core 4x4 emailed me back and forth, worked through exactly what I was doing with my build, and made sure I ended up with the correct parts. That kind of customer service is rare these days — especially in the off-road world where a lot of companies stop caring once the order is placed. The parts themselves are exactly what you hope for: solid, well-made, confidence-inspiring hardware that looks like it belongs under a vehicle that actually gets used. You can tell these are designed by people who understand suspension geometry and real-world abuse, not just CAD screenshots. Mistakes happen — especially on custom or modified builds — and Core 4x4 handled mine like pros. Fast responses, clear communication, and a genuine effort to help me get it right. If you’re on the fence: don’t be. Core 4x4 is the kind of company you want backing your build — the kind that treats customers like fellow enthusiasts, not order numbers.
OA
Owen Adams Sep 24, 2025
★ ★ ★ ★ ★ Google
These guys are awesome I messed up my address on my order somehow and they were so so helpful Korby was right there every step to a solution very communicative and respectful I will definitely be ordering parts with them in the future!
MT
Mike T Nov 23, 2025
★ ★ ★ ★ ★ Google
Korby and the rest of the team at Core 4x4 know there stuff and answered my question in a timely manner. They even were able to quick ship a re-build kit for me so I could get my truck back on the road- Thanks!
OK
oleg k Nov 23, 2025
★ ★ ★ ★ ★ Google
I recently ordered a set of control arms from Core 4x4, and the entire experience was absolutely top-notch from start to finish. The ordering process was smooth, the parts arrived quickly, and the control arms themselves are extremely high quality—solid construction, great finish, and clearly built to last. I also want to give a special shout-out to Korby, the guy I spoke with during the process. His customer service was amazing. He went above and beyond to make sure I got exactly what I needed, answered all my questions, and made the whole experience stress-free. You don’t see service like that very often these days. If you’re looking for high-quality suspension components backed by truly exceptional customer service, I highly recommend Core 4x4. I’ll definitely be buying from them again.
EC
Eric Cox Jul 26, 2025
★ ★ ★ ★ ★ Google
Prompt, professional, and courteous service! Quality parts and broad assortment of products to suite your 4x4 needs:)

Specifications

Color Black, Blue, Charcoal, Green, LightGreen, Orange, Purple, Red, White, Yellow, Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.
Lift Size Stock Height, Lifted 1", Lifted 2", Lifted 3", Lifted 4", Lifted 5", Lifted 6", Lifted 7", Lifted 8", Custom length or 1/2 sizes (put desired length in the Order Notes)
Hardware No Hardware, Complete Kit
Drag Link Orientation Factory Mounting (under the knuckle), Drag Link Flip w/ Tapered Sleeve And Drill Bit (over the knuckle)
Stabilizer Clamp Standard Clamp, Hydraulic Assist Clamp
Vehicle Jeep Wrangler JK / JKU (07–18)
Brand CORE 4X4
Series Camp Series
Note to Core4x4: -
