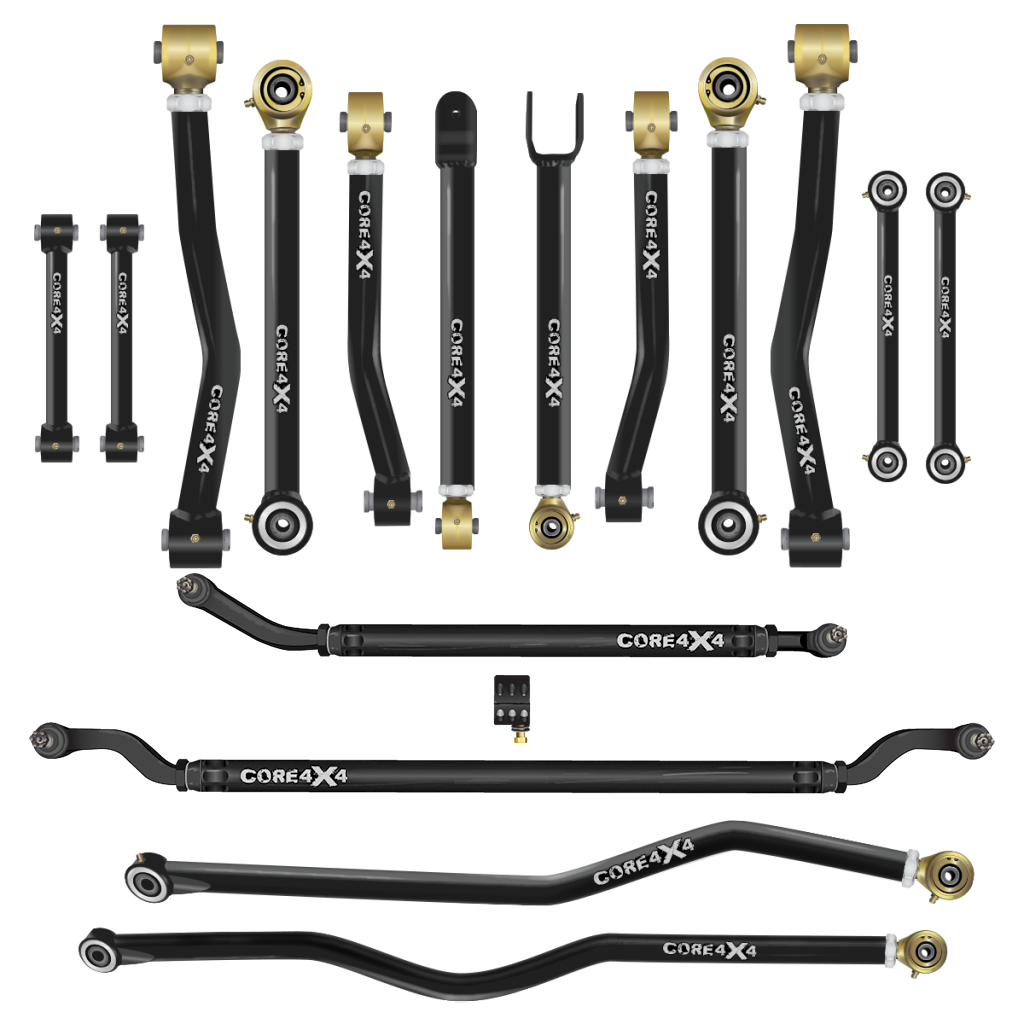

16pc Crawl Series Adjustable Control Arm, Track Bar, Steering, End Link Kit

SKU: CRL-J-JK-K16 ★★★★★ (132 reviews)
Pick your vehicle to confirm fit

$ 3,079.08 3079.08 USD $ 3,622.45

$ 3,622.45

(Save 15%)

See financing options →

Order today — ships within 1–3 business days
Enter ZIP for arrival estimate change
Order by 3:00 PM MT today — we'll start tomorrow
See full timeline
Lifetime warranty Fitment guarantee Ships from Orem, UT 4–8 hr install
COLOR 11 colors — pick yours
https://dev.core4x4.com/web/image/product.template/1659/image_1920?unique=edc8f61

16pc Crawl Series Adjustable Control Arm, Track Bar, Steering, End Link Kit

SKU: CRL-J-JK-K16
Pick your vehicle to confirm fit
Google 5.0 ★★★★★ (132 reviews)

$ 3,079.08 3079.08 USD $ 3,622.45

$ 3,622.45

(Save 15%)

COLOR 11 colors
Black Blue Charcoal Green LightGreen Orange Purple Red White Yellow Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.
Compare all tiers →

Build Your Kit

  • Vehicle
    Confirm this matches your vehicle. Use Shop by Vehicle to filter correctly.
  • Brand
  • Color
    Powder coat color for control arms and track bars. Does not affect performance.
  • Series
    Cruise: daily driving and light off-road. Camp: overlanding. Crawl: aggressive rock crawling.
  • Lift Size
    Choose your current front lift height. Measure from center of wheel to fender if unsure.
  • Hardware
    Choose upgraded hardware if your factory hardware is worn, damaged, or missing.
  • Drag Link Orientation
    Select flipped drag link only if your steering has already been converted to over-the-knuckle.
  • Stabilizer Clamp
    Match your steering stabilizer mounting style. Standard clamp, hydraulic assist, or tie rod clamp.
  • Note to Core4x4:

Select Color to see price and add to cart.

Order today — ships within 1–3 business days
Enter ZIP for arrival estimate change
Order by 3:00 PM MT today — we'll start tomorrow
See full timeline

Alignment recommended Lifetime warranty on all non-wear items Made In USA

Made in USA Orem, Utah
Lifetime Guarantee Unconditional
10 Colors In-house powder coat
Fully Adjustable 0-6" of lift
3 X-Series Options Only Core 4x4

Transform Your Jeep Wrangler JK with Ultimate Suspension and Steering Performance

Transform your Jeep Wrangler JK into the ultimate off-road and on-road machine with the Crawl Series Total Suspension Control Kit (CRL-J-JK-K16). This all-inclusive kit is designed to deliver unparalleled suspension and steering performance, combining adjustable control arms, track bars, front and rear sway bar end links, and a 2.5-ton heavy-duty aluminum steering kit. With this kit, your Jeep is equipped for extreme off-road flexibility, smooth on-road comfort, and precise control in any terrain. Just add springs and shocks, and you have a fully integrated lift kit that outperforms the competition.

Key Features and Benefits

  • Complete suspension transformation – The Crawl Series Kit combines all essential suspension and steering components, ensuring they work seamlessly together for unmatched performance. From control arms and track bars to sway bar end links and steering, this kit delivers total harmony and exceptional flexibility.
  • Built to outperform the competition – Crafted from high-strength DOM Tubing with a 5/16” wall thickness, upper control arms feature 1.5” OD tubing, while lower control arms use 1.75” OD tubing for maximum strength. Every component is designed to handle the most extreme off-road conditions while providing smooth, controlled handling on-road.
  • Superior flexibility with Johnny Joints – Equipped with premium Johnny Joints from Rock Jock 4x4 at every connection, this kit provides unparalleled articulation for tackling uneven terrain. The joints’ durable, low-friction design also enhances ride quality, making this kit as impressive on the highway as it is on the trail.
  • Optimized adjustability for lifted Jeeps – Fully adjustable to accommodate lift heights from 0 to 6 inches, this kit allows you to fine-tune alignment, axle centering, and suspension geometry. For lifts beyond 6 inches, custom solutions are available upon request.

Two-Stage Powder Coating

Each component is finished with a two-stage powder coating process for superior durability and corrosion resistance. The zinc primer base provides a robust layer of protection, while the topcoat—available in 10 customizable colors—ensures long-lasting performance and adds a personalized touch to your Jeep’s style.

Made in the USA

Proudly designed and manufactured in the United States, the Crawl Series Total Suspension Control Kit is built to the highest standards of quality and reliability. By choosing this kit, you’re supporting American craftsmanship and investing in premium components that stand the test of time.

Optional Hardware Upgrade

The Crawl Series Kit is designed for straightforward installation, utilizing your Jeep’s factory hardware for a seamless fit. Optional Grade 8 hardware kits are available for vehicles with rusted or stubborn bolts, ensuring a hassle-free setup.



  • Vehicle Fitment: Jeep Wrangler JK 07-18 – A complete suspension and steering solution for unmatched stability, handling, and off-road capability.

  • CORE Advantage: Includes 8 adjustable control arms, front and rear track bars, sway bar end links, and a 2.5-ton aluminum steering kit for total vehicle control.

  • Adjustability: Fully adjustable for 0–6” lifts, allowing precise axle re-centering, caster correction, and optimized suspension geometry for any terrain.

  • Construction: Built from heavy-duty DOM tubing with a 5/16” wall, featuring Johnny Joints for extreme articulation and powder-coated for long-lasting durability.

  • Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.

  • Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.

Built With

Front Lower Control Arm Built With 1.75” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Front Upper Control Arm Built With 1.5” OD 5/16” Wall DOM. Welded u-bracket on the welded end and a Forged Johnny Joint on the adjustable end with 1” x 14” TPI - 2.32” long threads.

Rear Lower Control Arm Built With 1.75” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joint on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Rear Upper Control Arm Built With 1.5” OD 5/16” Wall DOM. Welded Johnny Joints on the fixed end and a Forged Johnny Joint on the adjustable end with 1” x 14” TPI - 2.32” long threads.

Front Track Bar Built With 1.5” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joint on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Rear Track Bar Built With 1.5” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joint on the adjustable end with 1” x 14” TPI - 2.32” long threads.

Front End Links Built With .75” Cold Rolled Steel. Welded Johnny Joints on both fixed ends.

Rear End Links Built With .75” Cold Rolled Steel. Welded Johnny Joints on both fixed ends.

Tie Rod and Drag Link Made From 2" 7075 Aluminum. Tie Rod and Drag Link use Apex Chassis Forged Rod Ends.

Make Model Submodel Years
Jeep Wrangler 2007 - 2018

Construction & Materials

Jeep Wrangler JK / JKU 07-18 2pc Crawl Series Front Fixed Length End Links

Front End Links built with .75” Cold Rolled Steel. Welded Johnny Joints on both fixed ends.

Jeep Wrangler JK / JKU 07-18 2pc Crawl Series Front Lower Adjustable Control Arms

Front Lower control arm built with 1.75” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Jeep Wrangler JK / JKU 07-18 2pc Crawl Series Front Upper Adjustable Control Arms

Front Upper control arm built with 1.5” OD 5/16” Wall DOM. Welded u-bracket on the welded end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.

Jeep Wrangler JK / JKU 07-18 2pc Crawl Series Rear Fixed Length End Links

Rear End Links built with .75” Cold Rolled Steel. Welded Johnny Joints on both fixed ends.

Jeep Wrangler JK / JKU 07-18 2pc Crawl Series Rear Lower Adjustable Control Arms

Rear Lowers built with Forged Johnny Joints on the adjustable end and a Welded Johnny Joints on the fixed end with 1.25” x 12 TPI - 2.625” long threads.

Jeep Wrangler JK / JKU 07-18 2pc Crawl Series Rear Upper Adjustable Control Arms

Rear Upper control arms built with 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.

Jeep Wrangler JK / JKU 07-18 2pc Heavy-Duty Tie Rod, Drag Link Steering Kit

Tie Rod and Drag Link made from 2" 7075 Aluminum. Tie Rod and Drag Link use Apex Chassis Forged Rod Ends.

Jeep Wrangler JK / JKU 07-18 Crawl Series Front Heavy-Duty Adjustable Track Bar

Front Track Bar built with 1.5” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Jeep Wrangler JK / JKU 07-18 Crawl Series Rear Heavy-Duty Adjustable Track Bar

Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Vehicle Jeep Wrangler JK / JKU (07–18)
Brand CORE 4X4
Color Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.
Series Crawl Series
Lift Size Stock Height or Lifted 1" or Lifted 2" or Lifted 3" or Lifted 4" or Lifted 5" or Lifted 6" or Lifted 7" or Lifted 8" or Custom length or 1/2 sizes (put desired length in the Order Notes)
Hardware No Hardware or Complete Kit
Drag Link Orientation Factory Mounting (under the knuckle) or Drag Link Flip w/ Tapered Sleeve And Drill Bit (over the knuckle)
Stabilizer Clamp Standard Clamp or Hydraulic Assist Clamp
Placement on Vehicle Front Upper, Front Lower, Rear Upper, Rear Lower, Front, Rear
Mounting Style Bolt-On
