12pc Crawl Series Adjustable Control Arm, Track Bar, Steering Kit

SKU: CRL-J-JK-K12 ★★★★★ (132 reviews)
Pick your vehicle to confirm fit

$ 2,632.83 2632.83 USD $ 3,097.45

$ 3,097.45

(Save 15%)

See financing options →

Order today — ships within 1–3 business days
Enter ZIP for arrival estimate change
Order by 3:00 PM MT today — we'll start tomorrow
See full timeline
Lifetime warranty Fitment guarantee Ships from Orem, UT 4–8 hr install
COLOR 11 colors — pick yours
https://dev.core4x4.com/web/image/product.template/1757/image_1920?unique=edc8f61

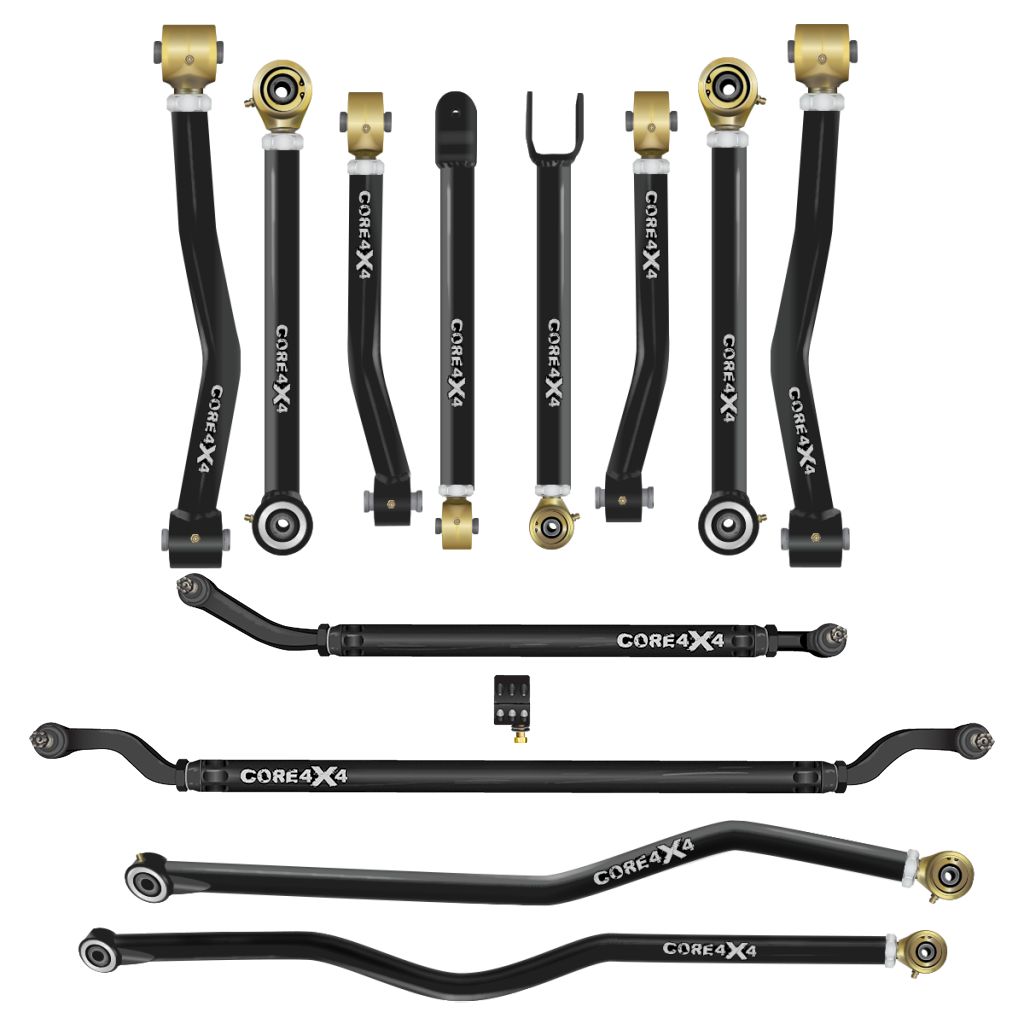

12pc Crawl Series Adjustable Control Arm, Track Bar, Steering Kit

SKU: CRL-J-JK-K12
Pick your vehicle to confirm fit
Google 5.0 ★★★★★ (132 reviews)

$ 2,632.83 2632.83 USD $ 3,097.45

$ 3,097.45

(Save 15%)

COLOR 11 colors
Black Blue Charcoal Green LightGreen Orange Purple Red White Yellow Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.
Compare all tiers →

Build Your Kit

  • Vehicle
    Confirm this matches your vehicle. Use Shop by Vehicle to filter correctly.
  • Brand
  • Color
    Powder coat color for control arms and track bars. Does not affect performance.
  • Series
    Cruise: daily driving and light off-road. Camp: overlanding. Crawl: aggressive rock crawling.
  • Lift Size
    Choose your current front lift height. Measure from center of wheel to fender if unsure.
  • Hardware
    Choose upgraded hardware if your factory hardware is worn, damaged, or missing.
  • Drag Link Orientation
    Select flipped drag link only if your steering has already been converted to over-the-knuckle.

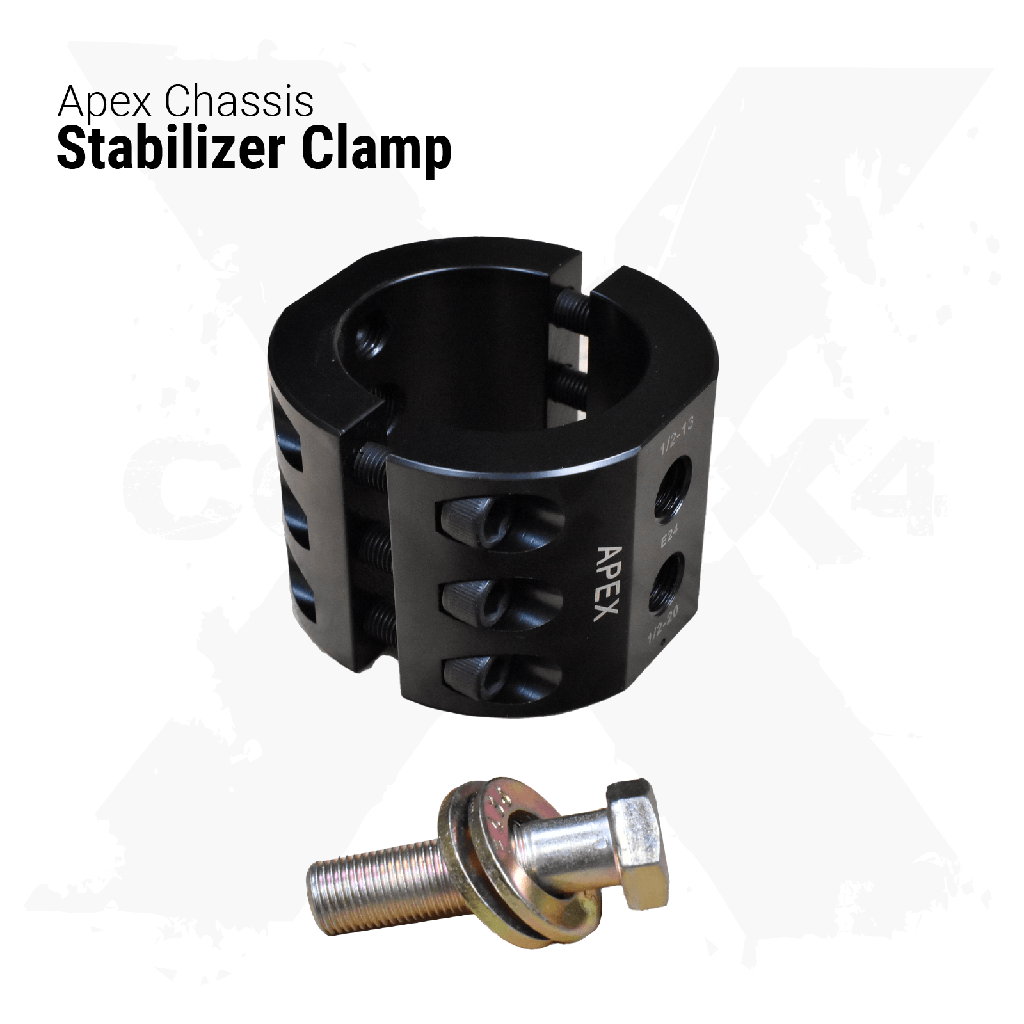

  • Stabilizer Clamp
    Match your steering stabilizer mounting style. Standard clamp, hydraulic assist, or tie rod clamp.
  • Note to Core4x4:

Select Color to see price and add to cart.

Order today — ships within 1–3 business days
Enter ZIP for arrival estimate change
Order by 3:00 PM MT today — we'll start tomorrow
See full timeline

Alignment recommended Lifetime warranty on all non-wear items Made In USA

Made in USA Orem, Utah
Lifetime Guarantee Unconditional
10 Colors In-house powder coat
Fully Adjustable 0-6" of lift
3 X-Series Options Only Core 4x4

Maximize Your Jeep Wrangler JK's Suspension and Steering Performance

Upgrade your Jeep Wrangler JK (2007-2018) with the Crawl Series Complete Kit With Steering, designed for Jeep enthusiasts who demand peak performance in all driving conditions. This kit combines exceptional off-road flexibility with smooth on-road handling. Featuring eight adjustable control arms, front and rear track bars, and a heavy-duty 2.5-ton aluminum steering kit, this comprehensive solution ensures unmatched durability, articulation, and control.

Key Features and Benefits

  • Complete suspension and steering overhaul – Achieve precise alignment, axle centering, and superior steering control with eight adjustable control arms, two track bars, and a heavy-duty aluminum steering kit.
  • Extreme durability and strength – Built from DOM tubing with a 5/16” wall thickness, featuring 1.5” OD upper control arms and 1.75” OD lower control arms for maximum durability in extreme terrain.
  • Maximum articulation with Johnny Joints – All control arms and track bars are equipped with RockJock Johnny Joints at both ends, providing superior flexibility and improved ride quality.
  • Optimized adjustability – Fully adjustable to support suspension lifts from 0 to 6 inches, allowing fine-tuned alignment corrections and optimized suspension geometry. Custom solutions for larger lifts are available upon request.

Durable Two-Stage Powder Coating

Each component undergoes a zinc primer base coat for corrosion resistance, followed by a top coat available in 10 colors for a personalized look.

Optional Hardware Upgrade

Designed for straightforward installation using factory hardware, with optional Grade 8 hardware kits available separately for rusted or stubborn bolts.


  • Vehicle Fitment: Jeep Wrangler JK 07-18 – Provides a complete suspension and steering upgrade for improved stability, handling, and control.

  • CORE Advantage: Includes 8 adjustable control arms, front and rear track bars, and a 2.5-ton aluminum steering kit for total suspension and steering precision.

  • Adjustability: Fully adjustable for 0–6” lifts, allowing precise axle re-centering, caster correction, and optimized suspension geometry for any terrain.

  • Construction: Built from heavy-duty DOM tubing with a 5/16” wall and powder-coated for extreme strength, durability, and long-lasting corrosion resistance.

  • Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.

  • Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.

Built With

Front Lower control arm built with 1.75” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Front Upper control arm built with 1.5” OD 5/16” Wall DOM. Welded u-bracket on the welded end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.

Rear Lower control arm built with 1.75” OD 5/16” Wall DOM. Forded Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.

Rear Upper control arm built with 1.5” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1” x 14 TPI - 2.32” long threads.

Front Track Bar built with 1.5” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

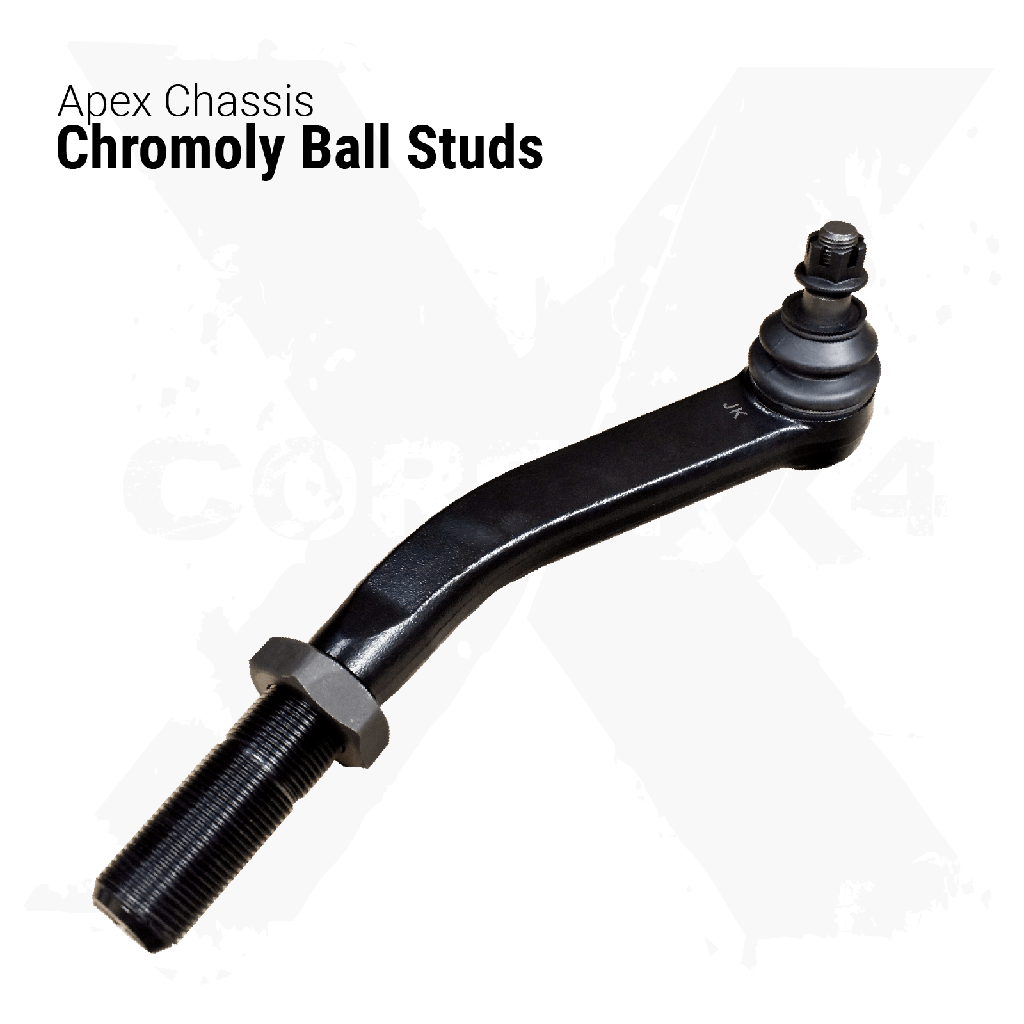

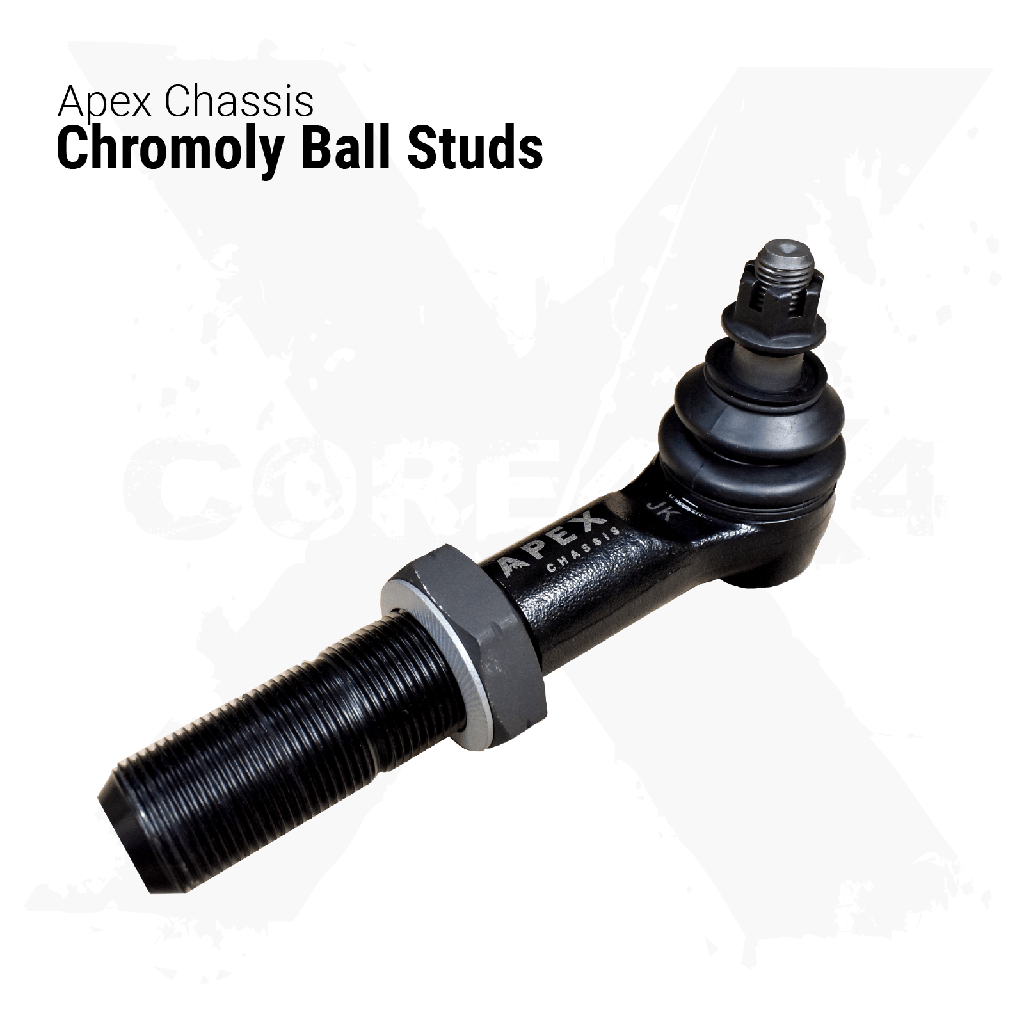

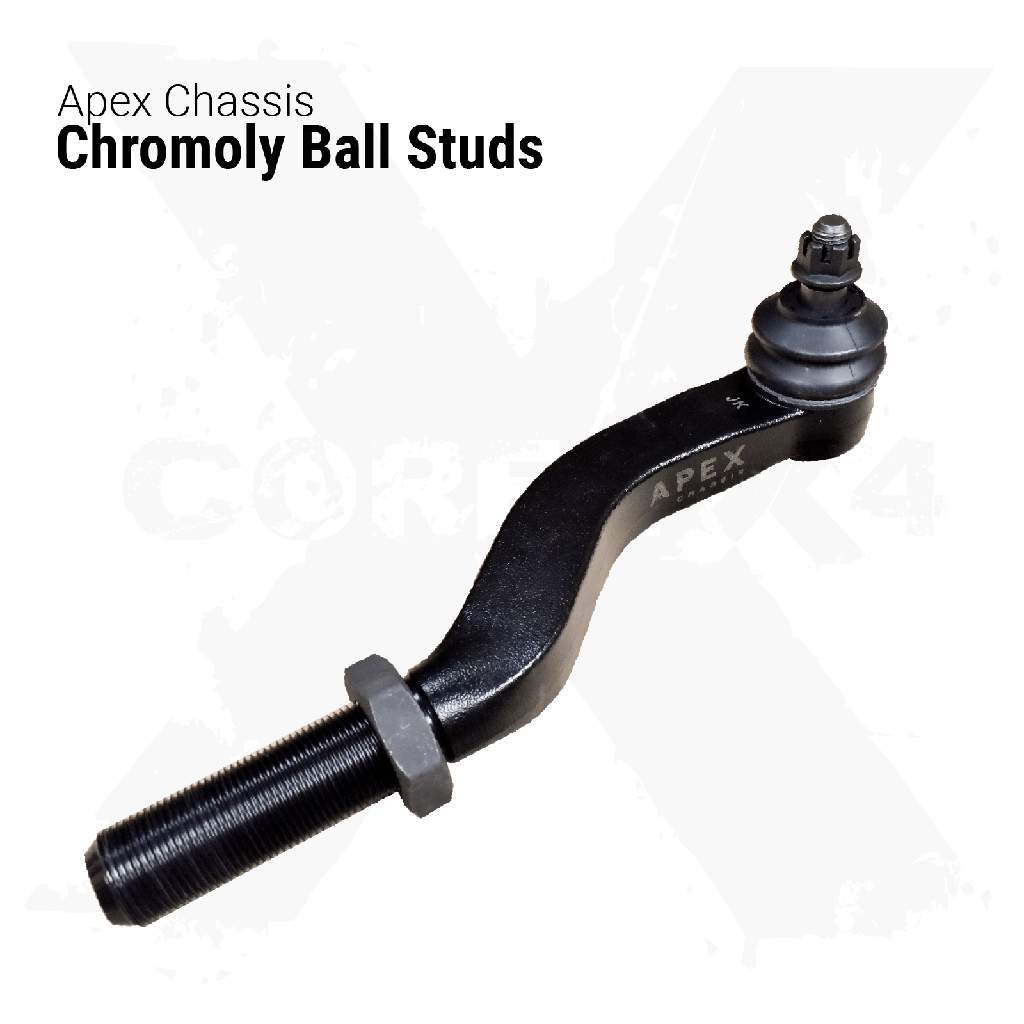

Tie Rod and Drag Link made from 2" 7075 Aluminum. Tie Rod and Drag Link use Apex Chassis Forged Rod Ends.

Make Model Submodel Years
Jeep Wrangler 2007 - 2018

Construction & Materials

Jeep Wrangler JK / JKU 07-18 2pc Crawl Series Front Lower Adjustable Control Arms

Front Lower control arm built with 1.75” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Jeep Wrangler JK / JKU 07-18 2pc Crawl Series Front Upper Adjustable Control Arms

Front Upper control arm built with 1.5” OD 5/16” Wall DOM. Welded u-bracket on the welded end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.

Jeep Wrangler JK / JKU 07-18 2pc Crawl Series Rear Lower Adjustable Control Arms

Rear Lowers built with Forged Johnny Joints on the adjustable end and a Welded Johnny Joints on the fixed end with 1.25” x 12 TPI - 2.625” long threads.

Jeep Wrangler JK / JKU 07-18 2pc Crawl Series Rear Upper Adjustable Control Arms

Rear Upper control arms built with 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.

Jeep Wrangler JK / JKU 07-18 2pc Heavy-Duty Tie Rod, Drag Link Steering Kit

Tie Rod and Drag Link made from 2" 7075 Aluminum. Tie Rod and Drag Link use Apex Chassis Forged Rod Ends.

Jeep Wrangler JK / JKU 07-18 Crawl Series Front Heavy-Duty Adjustable Track Bar

Front Track Bar built with 1.5” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Jeep Wrangler JK / JKU 07-18 Crawl Series Rear Heavy-Duty Adjustable Track Bar

Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Vehicle Jeep Wrangler JK / JKU (07–18)
Brand CORE 4X4
Color Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.
Series Crawl Series
Lift Size 0" — 6" or 6"+
Hardware No Hardware or Complete Kit
Drag Link Orientation Factory Mounting (under the knuckle) or Drag Link Flip w/ Tapered Sleeve And Drill Bit (over the knuckle)
Stabilizer Clamp Standard Clamp or Hydraulic Assist Clamp
Placement on Vehicle Front Upper, Front Lower, Rear Upper, Rear Lower, Front, Rear
Mounting Style Bolt-On

Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.

Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.

You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.

Google

Reviews of Core 4x4

See all on Google
5.0
★ ★ ★ ★ ★
132 reviews
5 ★
97%
4 ★
2%
3 ★
0%
2 ★
1%
1 ★
0%
AS
Anthony Snyder Jun 26, 2025
★ ★ ★ ★ ★ Google
Great experience and really great parts
PM
Paul Melancon Aug 25, 2025
★ ★ ★ ★ ★ Google
Ordered a control arm and track bar kit for my WJ from Core 4x4 on Monday 7/28 and received it today, Friday 8/1. Im not a state or two away, im in CT aka the other side of the country. Communication is phenominal, emails were responded too in an hour or less. Parts arrived well packed, not damaged, and are great quality for my needs. There arent many companies left that service customers as well as Core 4x4 and i wont hesitate to check them out again if i need something else. Well done!
BS
Bailey Smith Mar 23, 2025
★ ★ ★ ★ ★ Google
Core 4x4 excels with precision and service and keeps nothing else higher in mind. Everyone I've met at the company is very honest and down to earth, 10/10 would recommend.
AH
Abbey Hiett Mar 25, 2019
★ ★ ★ ★ ★ Google
Company finally made things right
N
Nick Sep 24, 2025
★ ★ ★ ★ ★ Google
I have a 2016 RAM 1500 Crew Cab and I replaced the rear upper and lower control arms also the pan hard track bar and also the sway bar and links for the rear with all I had the articulating bushings. The vehicle now has no body role. They are absolutely incredible if you get the control arms you gotta get the CORE 4 x 4sway bar end links don’t don’t try and be cheap and get Moog or something else you got to get articulating bushings get the core 4 x 4 ones they are the best. My truck drives now through the canyons like a BMW. I have Fox high-performance shocks on there as well with all the CORE 4 x 4 suspension parts and they are amazing. Well worth the money I would highly recommend anybody thinking about CORE 4 x 4 go with CORE 4X4 and if you can go with their articulating bushings, they’re unbelievable drives better now than my Escalades. Well planted no body role and smooth on the Highway unbelievable the difference they all made!! THANKS AGAIN CORE 4x4!!!!
BW
Brian Wadsworth Jun 26, 2025
★ ★ ★ ★ ★ Google
Amazing product! Shipping was quick, packaging was great and support was outstanding!!
NP
Norb Pranger Oct 24, 2025
★ ★ ★ ★ ★ Google
Not sure where to start, Products or Service or Warranty. Products: I found Core4x4 through a very respected YouTuber in the Jeeping community. I purchased an entire set of Core4x4 Control Arms three years ago and have beat the daylights out of them and they are still in great condition. Now, I purchased another Jeep, this time for my daughter and bought yet another set of Control Arms because I know that these things can take a beating and stand up to it. I plan on replacing more parts on this TJ and my JL and will continue to buy from Core4x4. Service: This isn't some huge name conglomerate that treats you like you're just another customer. They are quick with responses and will always make things right should something be a problem. Oh and the quickness in which they ship their products is unmatched. I bought these CAs for my TJ on Thursday, I received them on Monday. Most other manufacturers will tell you weeks, they had them to me in 2 shipping days. Warranty: Seriously, a lifetime warranty? Yes please. Nothing more to say. I can't say enough about how great of a company this is. I've even spoken to the owner through email a few years back on some questions that I had. Support small American built businesses. P.S. Core 4x4, feel free to make me an ambassador and send me some swag :) .
GC
Grant Chaisson Jun 26, 2025
★ ★ ★ ★ ★ Google
These guys are awesome!! They have helped me build multiple jeeps from zjs to mjs and now with my lj build they all ways impress. There products are the best on the market in my eyes. The best part about it all is it's all made right here in american and shipped anywhere in the world 🌎 . Don't think twice when your looking for control arm or lift kits for your vehicle if these guys sell it BUY IT!!!
Review photo 1
RT
Ruby Timm Apr 27, 2025
★ ★ ★ ★ ★ Google
Bought a new 2019 Ram 1500. Had bad rear wheel hop since new, got all four core 4x4 control arms and it fixed the issue. Thanks
MT
Ma TheMeatLoaf Mar 23, 2024
★ ★ ★ ★ ★ Google
Their website estimated 2 days to get my parts but actually took 11. No communication to let me know what’s going on. Parts were missing. Some days they answer questions, some they don’t. Didn’t let me know I’d have to alter stock bolts to fit their parts. All around just seems like they don’t care.

Specifications

Color Black, Blue, Charcoal, Green, LightGreen, Orange, Purple, Red, White, Yellow, Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.
Lift Size 0" — 6", 6"+
Hardware No Hardware, Complete Kit
Drag Link Orientation Factory Mounting (under the knuckle), Drag Link Flip w/ Tapered Sleeve And Drill Bit (over the knuckle)
Stabilizer Clamp Standard Clamp, Hydraulic Assist Clamp
Vehicle Jeep Wrangler JK / JKU (07–18)
Brand CORE 4X4
Series Crawl Series
Note to Core4x4: -
