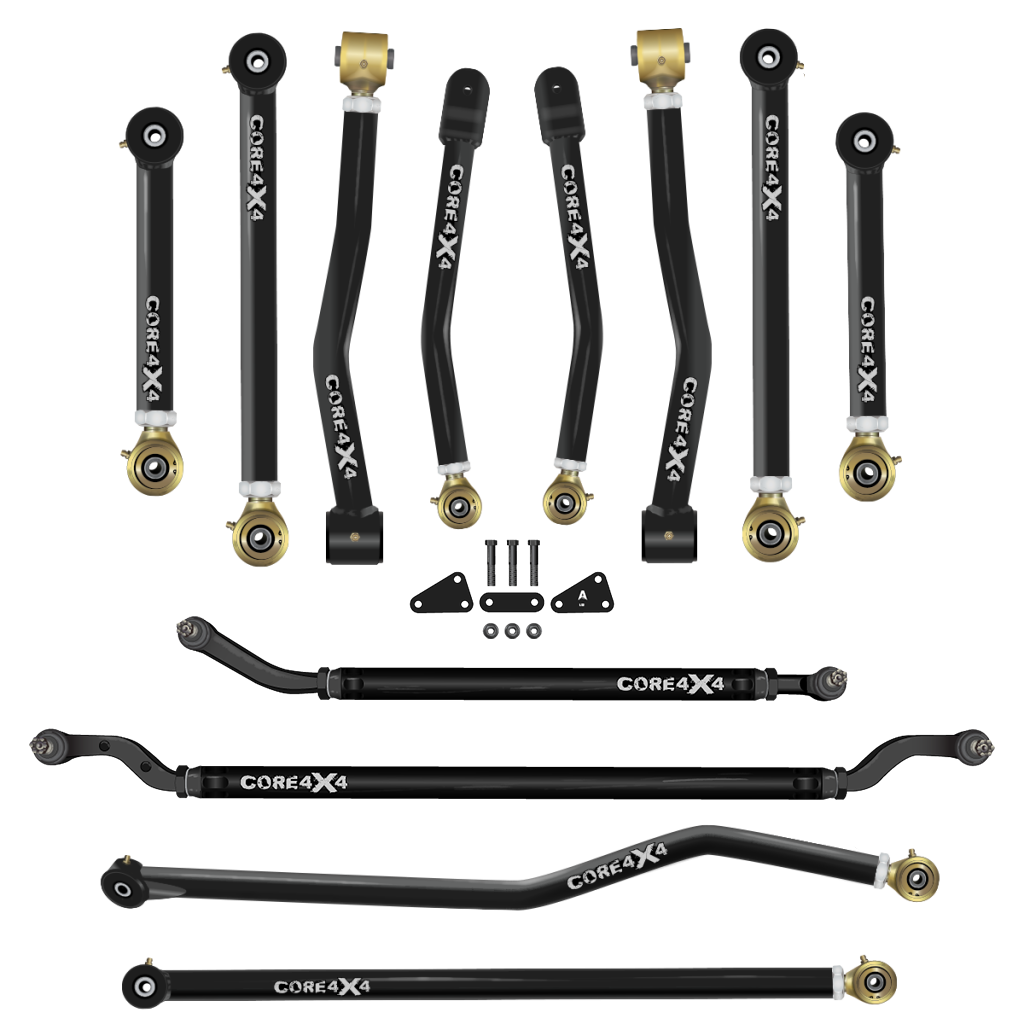

12pc Camp Series Adjustable Control Arm, Track Bar, Steering Kit

SKU: CMP-J-JT-K12 ★★★★★ (132 reviews)
Pick your vehicle to confirm fit

$ 2,246.96 2246.96 USD $ 2,808.70

$ 2,808.70

(Save 20%)

See financing options →

Order today — ships within 1–3 business days
Enter ZIP for arrival estimate change
Order by 3:00 PM MT today — we'll start tomorrow
See full timeline
Lifetime warranty Fitment guarantee Ships from Orem, UT 4–8 hr install
COLOR 11 colors — pick yours
https://dev.core4x4.com/web/image/product.template/1724/image_1920?unique=edc8f61

12pc Camp Series Adjustable Control Arm, Track Bar, Steering Kit

SKU: CMP-J-JT-K12
Pick your vehicle to confirm fit
Google 5.0 ★★★★★ (132 reviews)

$ 2,246.96 2246.96 USD $ 2,808.70

$ 2,808.70

(Save 20%)

COLOR 11 colors
Black Blue Charcoal Green LightGreen Orange Purple Red White Yellow Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.
Compare all tiers →

Build Your Kit

  • Vehicle
    Confirm this matches your vehicle. Use Shop by Vehicle to filter correctly.
  • Brand
  • Color
    Powder coat color for control arms and track bars. Does not affect performance.
  • Series
    Cruise: daily driving and light off-road. Camp: overlanding. Crawl: aggressive rock crawling.
  • Lift Size
    Choose your current front lift height. Measure from center of wheel to fender if unsure.
  • Hardware
    Choose upgraded hardware if your factory hardware is worn, damaged, or missing.
  • Drag Link Orientation
    Select flipped drag link only if your steering has already been converted to over-the-knuckle.
  • Rear Track Bar Clearance Bend For Spare Tire
    Choose clearance bend if your spare tire interferes with a straight rear track bar.
  • Stabilizer Clamp
    Match your steering stabilizer mounting style. Standard clamp, hydraulic assist, or tie rod clamp.
  • Note to Core4x4:

Select Color to see price and add to cart.

Order today — ships within 1–3 business days
Enter ZIP for arrival estimate change
Order by 3:00 PM MT today — we'll start tomorrow
See full timeline

Alignment recommended Lifetime warranty on all non-wear items Made In USA

Made in USA Orem, Utah
Lifetime Guarantee Unconditional
10 Colors In-house powder coat
Fully Adjustable 0-6" of lift
3 X-Series Options Only Core 4x4

The Ultimate Suspension and Steering Upgrade

The Camp Series 12-Piece Kit is the ultimate suspension and steering upgrade for the Jeep Gladiator JT (2020-Present). This comprehensive kit replaces every major suspension and steering component, giving you full control over axle alignment, caster correction, pinion angle, and steering precision. Whether you're tackling rugged trails or maintaining highway stability, this kit eliminates death wobble, improves steering response, and enhances overall drivability, ensuring a smooth, predictable, and controlled ride in all conditions.

Key Features and Benefits

  • Complete suspension steering overhaul – Provides total control over axle positioning, caster correction, pinion angle, and steering geometry for superior performance on and off-road.
  • Eliminates death wobble improves handling – Adjustable track bars, control arms, and the 2.5-ton aluminum steering kit keep axles centered, minimize steering instability, and ensure a smoother, more predictable driving experience.
  • Heavy-duty steering system – The 2.5-ton aluminum steering kit increases strength and control, significantly improving steering precision and stability on tough trails and high-speed roads.
  • Optimized for lifted vehicles – Fully adjustable to accommodate suspension lifts from 0 to 6 inches, allowing precise alignment correction and axle centering at any ride height.

Solve Factory Caster Issues

Proper caster correction improves steering feel, high-speed stability, and overall handling, ensuring your Jeep tracks straight and drives smoothly.

Recommended Pairing

To further refine handling and stability, pair this kit with the Camp Series Sway Bar End Link Set (CMP-J-JT-ELS4) for a complete performance upgrade.

Durable Two-Stage Powder Coating

Each component undergoes a zinc primer base coat for corrosion resistance, followed by a top coat available in 10 colors for a personalized look.

Simple Installation

Designed for easy bolt-on installation using factory hardware, with optional Grade 8 hardware kits available separately for rusted or stubborn bolts.

Notes: Some, (not all) factory axle mounts need to be "clearanced" to accept our larger bar. If needed, it is only a minor amount of trimming to be done. This applies to the front track bar only. Please see our Youtube channel for a video addressing this.


  • Vehicle Fitment: Jeep Gladiator JT 20+ – A complete suspension and steering upgrade engineered for enhanced stability, handling, and drivability.

  • CORE Advantage: Eliminates death wobble, improves steering response, and provides full control over axle alignment, caster correction, and pinion angle.

  • Adjustability: Adjustable from 0 to 6 inches of lift, allowing precise alignment corrections, axle centering, and optimized suspension geometry.

  • Construction: Heavy-duty 1.75” OD 5/16” wall DOM tubing for lower arms, 1.5” OD 5/16” wall DOM tubing for upper arms, and a 2.5-ton aluminum steering kit for maximum durability and performance.

  • Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.

  • Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.

Built With

Front Lower Control Arm Built With 1.75” OD 5/16” Wall DOM. A Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Front Upper Control Arm Built With 1.5” OD 5/16” Wall DOM. Welded u-bracket on the welded end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.

Rear Upper Control Arms Built With 1.75” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Rear Lower Control Arm Built With 1.75” OD 5/16” Wall DOM. A Polyurethane Bushing on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Front Track Bar Built With 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Rear Track Bar Built With 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Make Model Submodel Years
Jeep Gladiator 2020 - Present

Construction & Materials

Jeep Gladiator JT 20+ 2pc Camp Series Front Lower Adjustable Control Arms

Front Lower control arm built with 1.75” OD 5/16” Wall DOM. A Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Jeep Gladiator JT 20+ 2pc Camp Series Front Upper Adjustable Control Arms

Front Upper control arm built with 1.5” OD 5/16” Wall DOM. Welded u-bracket on the welded end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.

Jeep Gladiator JT 20+ 2pc Camp Series Rear Lower Adjustable Control Arms

Rear Lower control arm built with 1.75” OD 5/16” Wall DOM. A Polyurethane Bushing on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Jeep Gladiator JT 20+ 2pc Camp Series Rear Upper Adjustable Control Arms

Rear Upper control arms built with 1.75” OD 5/16” Wall DOM. Polyurethane Bushing one the fixed end and a Forged Johnny Joints on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Jeep Gladiator JT 20+ 2pc Heavy-Duty Tie Rod, Drag Link Steering Kit

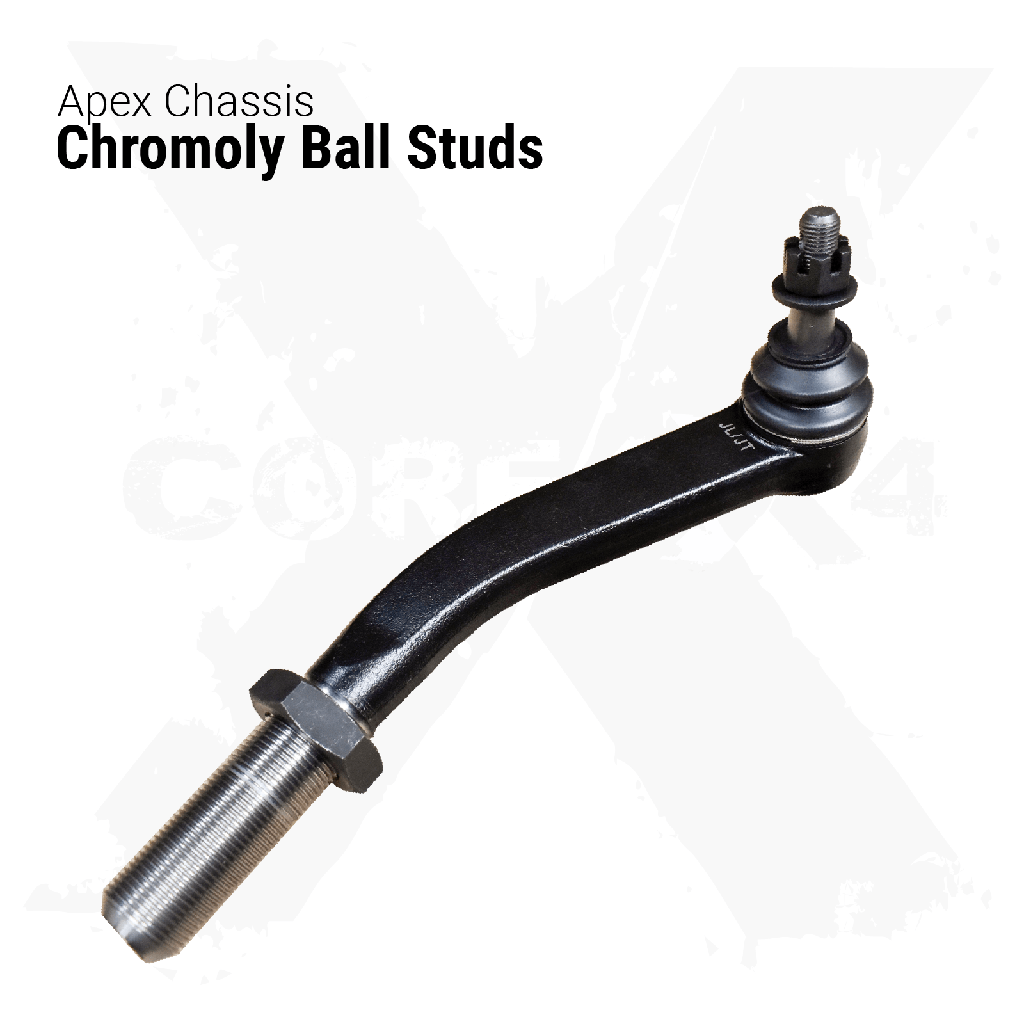

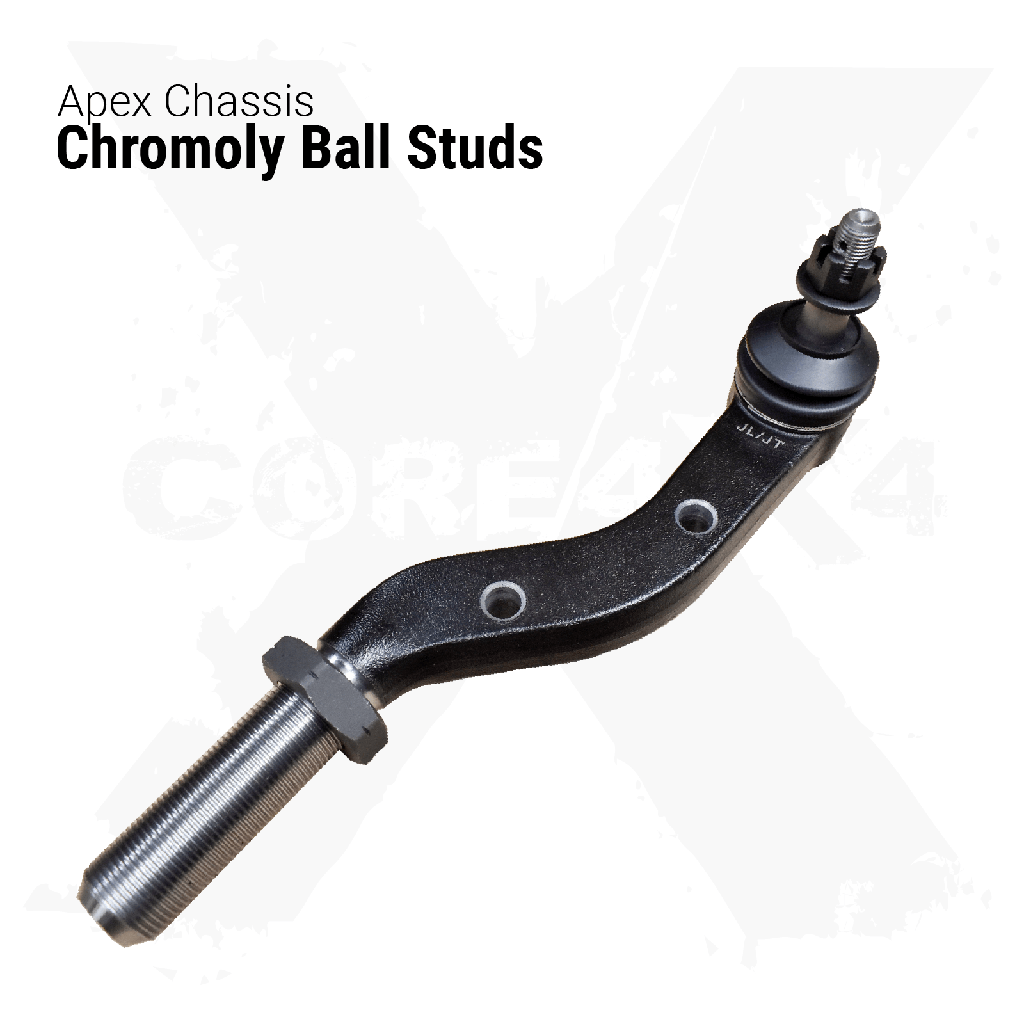

Tie Rod and Drag Link made from 2" 7075 Aluminum. Tie Rod and Drag Link use Apex Chassis Forged Rod Ends.

Jeep Gladiator JT 20+ Camp Series Front Heavy-Duty Adjustable Track Bar

Front Track Bar built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Jeep Gladiator JT 20+ Camp Series Rear Heavy-Duty Adjustable Track Bar

Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Vehicle Jeep Gladiator JT (20–Present)
Brand CORE 4X4
Color Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.
Series Camp Series
Lift Size 0" — 6" or 6"+
Hardware No Hardware or Complete Kit
Drag Link Orientation Factory Mounting (under the knuckle) or Drag Link Flip w/ Tapered Sleeve And Drill Bit (over the knuckle)
Rear Track Bar Clearance Bend For Spare Tire Straight Bar or Clearance Bend
Stabilizer Clamp Standard Clamp or Hydraulic Assist Clamp
Placement on Vehicle Front Upper, Front Lower, Rear Upper, Rear Lower, Front, Rear
Mounting Style Bolt-On

Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.

Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.

You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.

Google

Reviews of Core 4x4

See all on Google
5.0
★ ★ ★ ★ ★
132 reviews
5 ★
97%
4 ★
2%
3 ★
0%
2 ★
1%
1 ★
0%
MV
Mr. V Mar 24, 2021
★ ★ ★ ★ ★ Google
Good quality parts, much stronger than stock
SG
Sal Giordano Sep 24, 2025
★ ★ ★ ★ ★ Google
I want to take the time to share my experience with Core 4x4. I have a 2004 Jeep Wrangler and was looking to upgrade some suspension parts. I went with Core 4x4 upper & lower adjustable control arms and a front adjustable track bar. Everything arrived quickly, and right out of the box I was impressed with the quality and craftsmanship. I had a few questions during installation (measurements and torque specs), and I spoke with Korby on a couple of occasions. Not only did he send me detailed instructions, but he also shared an installation video specific to the part and vehicle I was working on, something you don’t get from many companies. The control arms fit perfectly, look great, and perform exactly as I hoped. I did run into an issue with the front track bar touching the front diff. When I reached out, Korby had me send pictures and then immediately offered two solutions: his bar guy could make a different bend and send it out to me, or I could get a full refund. His response honestly blew me away. As much as I wanted to run the Core 4x4 track bar, I chose the refund. Korby sent me a prepaid shipping label right away, no hassle. My experience with Core 4x4 has been excellent. Korby was extremely understanding, communicative, and helpful every step of the way. The parts I received were high quality, and the customer service was second to none. I would absolutely recommend Core 4x4 10 out of 10 times and will be using them again. Just a great American company with awesome people who truly care about their customers. Thank you Korby, and thank you Core 4x4!
K
Korosunagi Jul 26, 2025
★ ★ ★ ★ ★ Google
I broke a grease fitting off in my end link. I thought I was going to have to buy a new one. Reached out to Core 4x4 and wham! bam! They fixed it and sent it back with 2 day shipping. Got it a day early even. If they couldn't fix it they were going to send me a new one. Now that's customer service! They are now a permanent part of my garage. Thank you Core 4x4!
BC
Brad C Mar 24, 2021
★ ★ ★ ★ ★ Google
Outstanding experience! I asked Core to build me a set of custom control arms that were larger/heavier than they normally build. They gladly accepted the challenge and turned out an expertly crafted and super strong product ahead of schedule. Fit and finish are excellent. Spence and Cameron were a pleasure to work with every step of the way. And all of this for a very reasonable price. I highly recommend these guys!
Review photo 1
PB
Peter Busack May 27, 2025
★ ★ ★ ★ ★ Google
Purchased a set of Trailing arms for my Ram 1500, quality is first class. I bought the ones with the Jonny Joints for more articulation and it appears from the construction I should get a lifetime of use, Zerk fittings are an added plus. Would defiantly recommend, and the the service team answered all of my questions.
JM
Jay Miller Jul 26, 2025
★ ★ ★ ★ ★ Google
I purchased a upper and lower set of control arms from core 4x4 they came early then expected and seem to be very nice quality I ran into a complication installing them and emailed them my question I was expecting to get the response maybe the next day because it was after hours I got a response in about a few minutes which allowed me to finish the project that day I super appreciate that, the products are good strong lifetime warranty and their customer service is top notch
JF
jacob fezza Mar 24, 2022
★ ★ ★ ★ ★ Google
I wanted to take a moment and give these guys a shout out, I’ve currently got, for my xj, their adjustable control arms, tier 4 adjustable track bar and adjustable leaf spring shackles. You can always count on a fair price, high quality products, and quick delivery. Keep up the great work guys, will definitely continue to shop with you
HK
Harold Kruder Mar 23, 2024
★ ★ ★ ★ ★ Google
I needed some parts and had to replace 1 lower control arm and their customer service is great. Helped with answering my questions and got parts shipped quickly.
OK
oleg k Nov 23, 2025
★ ★ ★ ★ ★ Google
I recently ordered a set of control arms from Core 4x4, and the entire experience was absolutely top-notch from start to finish. The ordering process was smooth, the parts arrived quickly, and the control arms themselves are extremely high quality—solid construction, great finish, and clearly built to last. I also want to give a special shout-out to Korby, the guy I spoke with during the process. His customer service was amazing. He went above and beyond to make sure I got exactly what I needed, answered all my questions, and made the whole experience stress-free. You don’t see service like that very often these days. If you’re looking for high-quality suspension components backed by truly exceptional customer service, I highly recommend Core 4x4. I’ll definitely be buying from them again.
MP
Mirko Pompili Mar 19, 2026
★ ★ ★ ★ ★ Google
I want to share a truly positive experience. I ordered a car kit consisting of two packages, but unfortunately one was lost during shipping with UPS. The situation could have become complicated... but it didn't. The company manager was extremely helpful and professional: he personally followed up on the situation and did everything he could to resolve the issue, even sending me the package again without hesitation. It's rare to find such attentive and reliable customer service these days. My sincere congratulations on your professionalism and commitment: that makes all the difference.

Specifications

Color Black, Blue, Charcoal, Green, LightGreen, Orange, Purple, Red, White, Yellow, Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.
Lift Size 0" — 6", 6"+
Hardware No Hardware, Complete Kit
Drag Link Orientation Factory Mounting (under the knuckle), Drag Link Flip w/ Tapered Sleeve And Drill Bit (over the knuckle)
Rear Track Bar Clearance Bend For Spare Tire Straight Bar, Clearance Bend
Stabilizer Clamp Standard Clamp, Hydraulic Assist Clamp
Vehicle Jeep Gladiator JT (20–Present)
Brand CORE 4X4
Series Camp Series
Note to Core4x4: -
