Product Details
This kit includes 3 components, each built and powder-coated in-house.
| Make | Model | Submodel | Years |
|---|---|---|---|
| Dodge/Ram | 1500 | 2009–Present |
Vehicle Fitment: RAM 1500 09+ – The Town Series Adjustable Rear Suspension Kit enhances rear axle alignment and handling, eliminating wheel hop and providing smooth operation. Works for trucks lowered 6 inches to lifted 6 inches, ensuring stability for all configurations.
CORE Advantage: This kit provides adjustable rear upper and lower control arms and a track bar, allowing precise tuning of axle positioning and pinion angle. It eliminates wheel hop, enhances stability, and improves traction under any conditions.
Adjustability: Fully adjustable from 6 inches lowered to 6 inches lifted, allowing you to fine-tune axle alignment, optimize pinion angles, and maintain correct suspension geometry for smoother operation and reduced driveline stress.
Construction: Built with heavy-duty steel tubing and high-grade polyurethane bushings to enhance durability, reduce NVH, and maintain stability under various driving conditions. Designed to withstand harsh environments and provide long-term performance.
Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.
Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.
Built With

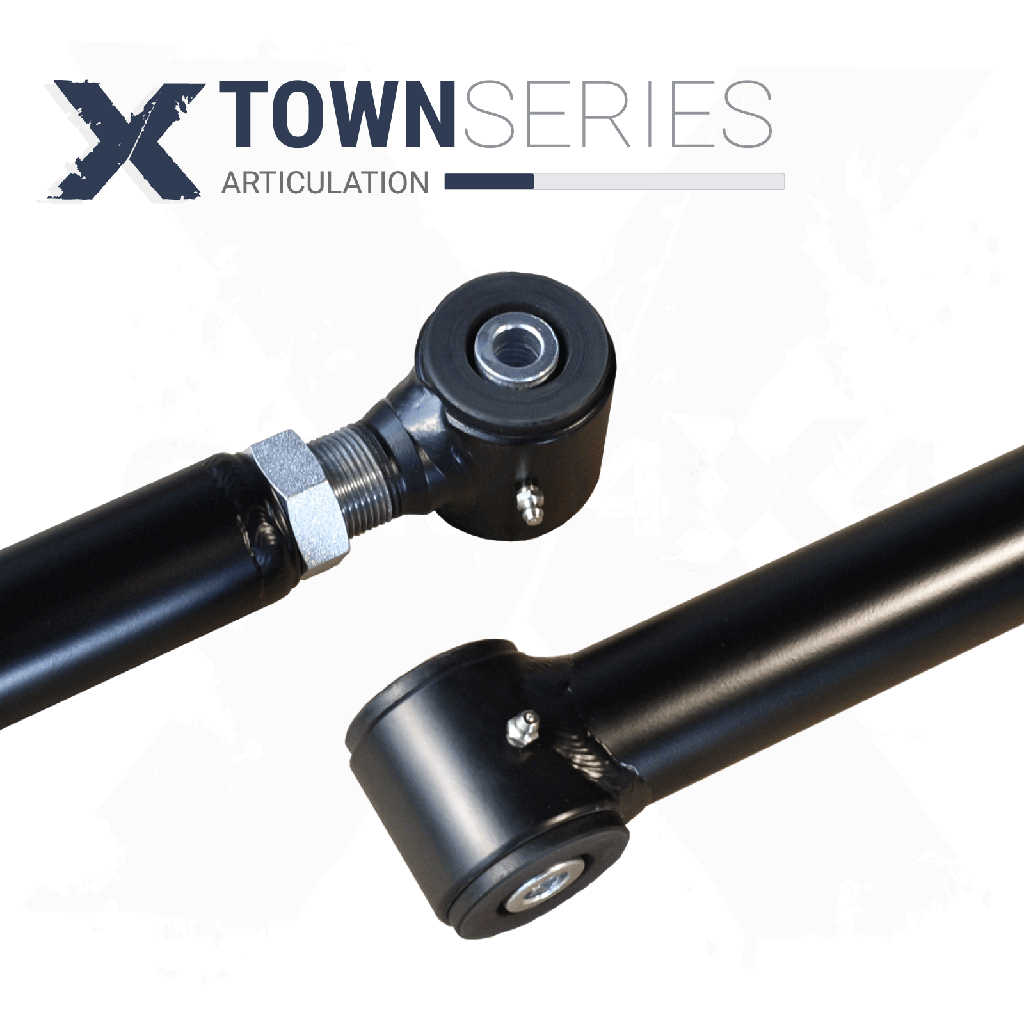

Rear Upper control arms built with 1.875” OD 3/16” Wall Steel Tubing, Polyurethane Bushings on both the adjustable end and fixed end with 1.25” x 12 TPI - 3.25” long threads.
Rear Lower control arms built with 1.875” OD 3/16” Wall Steel Tubing, Polyurethane Bushings on the fixed and adjustable ends with 1.25” x 12 TPI - 3.25” long threads.
Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on both the adjustable and fixed end with 1” x 14 TPI - 3.25” long threads.
Construction & Materials
Rear Lower control arms built with 1.875” OD 3/16” Wall steel tube. Polyurethane Bushings on the fixed and adjustable ends with 1.25” x 12 TPI - 3.25” long threads.
Rear Upper control arms built with 1.875” DOM 3/16” Wall steel tube. Polyurethane Bushings on both the adjustable end and fixed end with 1.25” x 12 TPI - 3.25” long threads.
Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on both the adjustable and fixed end with 1” x 14 TPI - 3.25” long threads.
| Vehicle | Ram 1500 (09–Present) |
| Brand | CORE 4X4 |
| Color | Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed. |
| Series | Town Series |
| Hardware | No Hardware or Complete Kit |
| Factory Air Ride | No or Yes |
| Year Range | 09+ |
| Placement on Vehicle | Rear Upper, Rear Lower, Rear |
| Mounting Style | Bolt-On |
Unleash Your Vehicle’s Potential
Upgrade your Ram 1500’s suspension with the Town Series Adjustable Rear Suspension Kit, engineered to provide enhanced stability, improved handling, and a more controlled ride across all environments. Whether you’re commuting through the city, towing, or venturing onto mild off-road terrain, this kit delivers precise axle alignment and superior suspension performance.
Key Features Benefits
- Durable DOM Tubing Construction – Built from high-strength DOM steel tubing for superior durability and performance.

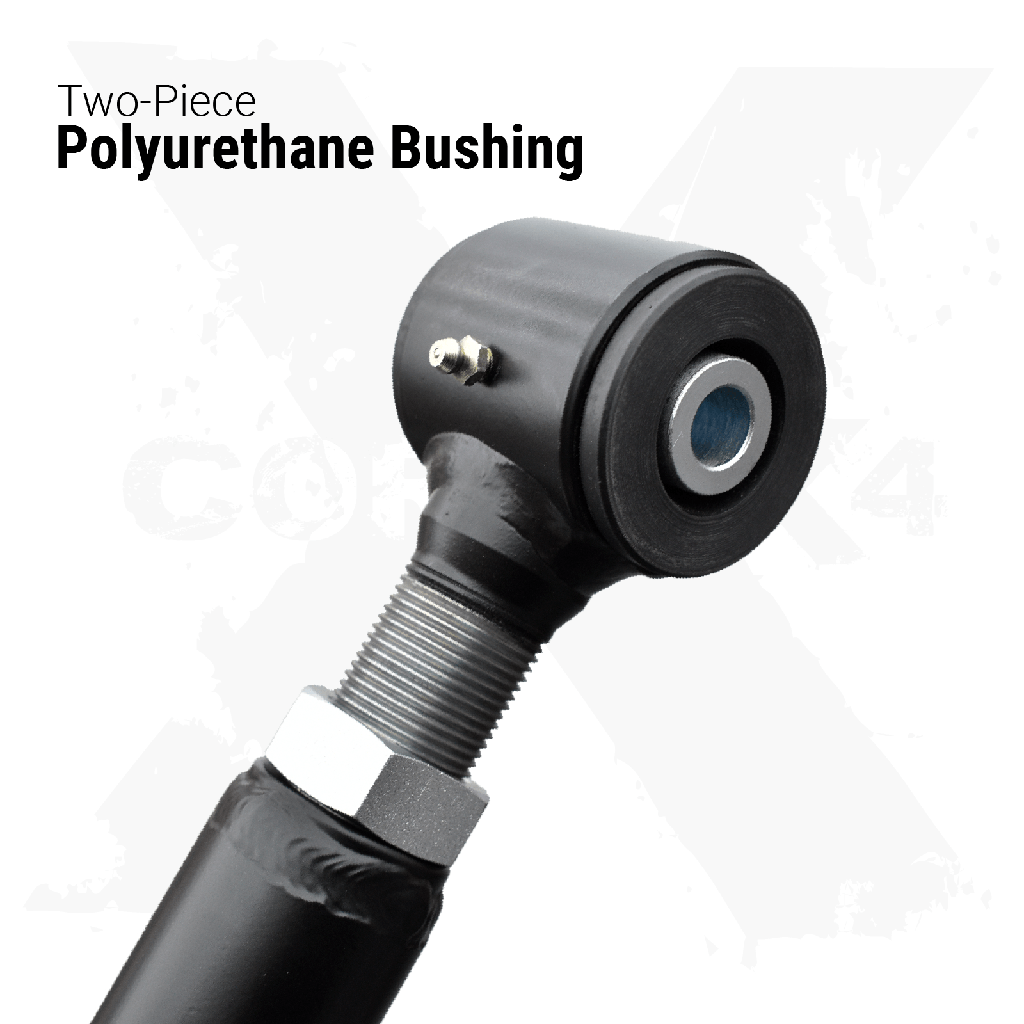

- Polyurethane Bushings for Comfort Longevity – Features high-grade polyurethane bushings at both ends to minimize NVH (Noise, Vibration, and Harshness) while maintaining stability and strength.
- Adjustable for Precision Alignment – Fully adjustable design allows you to fine-tune axle positioning, optimize pinion angle, and maintain correct suspension geometry for smooth operation and extended component lifespan.
- Eliminate Wheel Hop Maintain Suspension Geometry – Provides better traction, reduced suspension flex, and improved drivability by eliminating factory suspension limitations.
Highly Durable Two-Stage Powder Coating
Each suspension component undergoes a two-stage powder coating process for long-lasting durability and corrosion resistance. A zinc primer base coat protects against rust, while a durable topcoat is available in 10 color options for a customized look.
Proudly Made in the USA
Manufactured in Orem, UT, every CORE 4X4 component meets strict quality control standards for precision, strength, and long-term durability.
Optional Hardware Upgrade
The kit installs using factory hardware, but if you need to replace worn or rusted bolts, we offer an optional Grade 8 hardware kit (sold separately) for a secure and hassle-free installation.
Final Thoughts
The Town Series Adjustable Rear Suspension Kit is the ultimate upgrade for Ram 1500 owners looking for superior axle control, pinion angle precision, and improved handling. Whether you’re daily driving, towing, or tackling mild off-road terrain, this kit provides the adjustability and durability needed for a smoother, more controlled ride.
Upgrade today and experience the difference in stability, traction, and drivability!
Each rebuild kit includes all necessary components to replace and restore wearable parts.
Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.
Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.
You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
