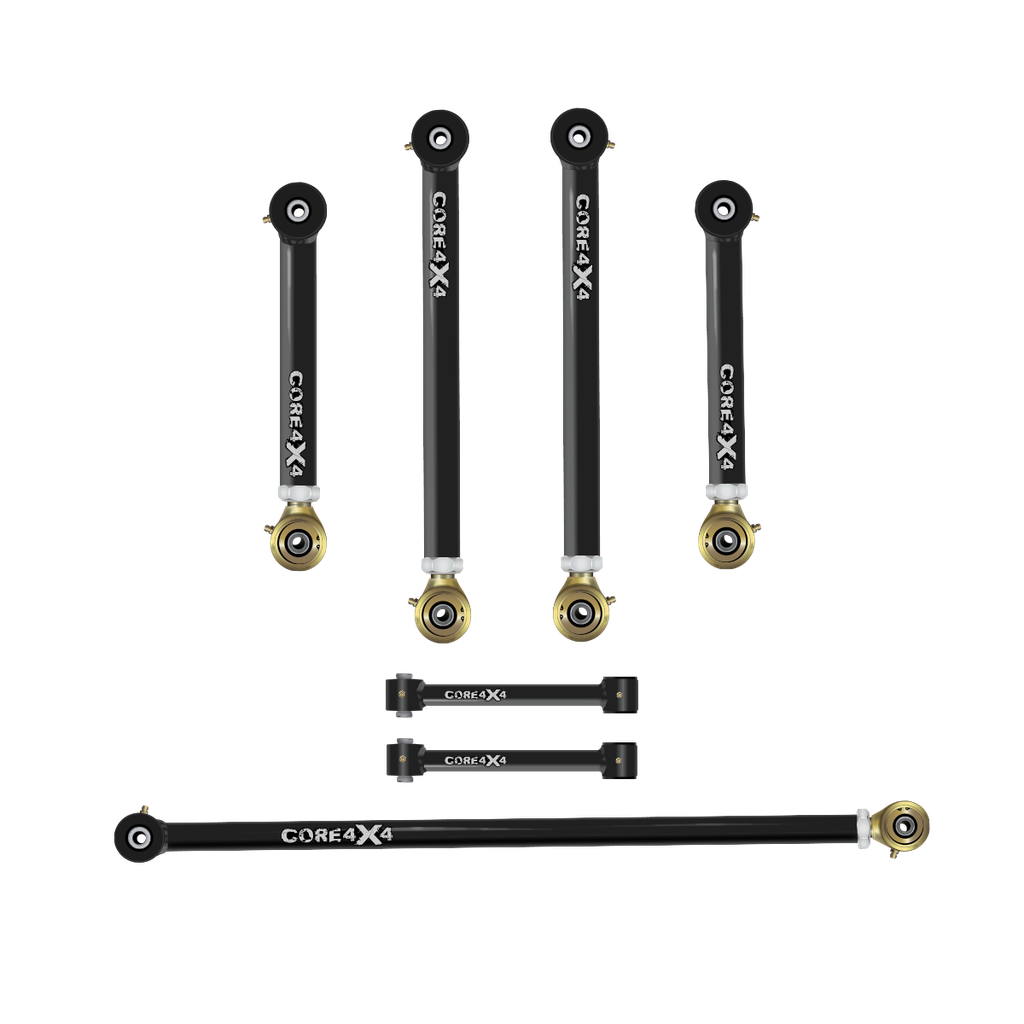

Product Details
This kit includes 4 components, each built and powder-coated in-house.
Ram 1500 09+ 2pc Trail Series Rear Fixed Length End Links
View Component →
Ram 1500 09+ 2pc Trail Series Rear Lower Adjustable Control Arms
View Component →
Ram 1500 09+ 2pc Trail Series Rear Upper Adjustable Control Arms
View Component →
Ram 1500 09+ Trail Series Rear Rear Heavy-Duty Adjustable Panhard/Track Bar
View Component →| Make | Model | Submodel | Years |
|---|---|---|---|
| Dodge/Ram | 1500 | 2009–Present |
Vehicle Fitment: Designed for Ram 1500 09+, this rear suspension kit enhances traction, stability, and axle control for daily driving, towing, and off-road use.
CORE Advantage: Eliminates wheel hop, reduces body roll, and improves power transfer with Johnny Joints for articulation and polyurethane bushings to minimize NVH for a smoother, more controlled ride.
Adjustability: Adjustable for pinion angle and axle alignment, supporting up to a 6-inch lift or 6-inch drop to maintain proper suspension geometry and driveline efficiency.

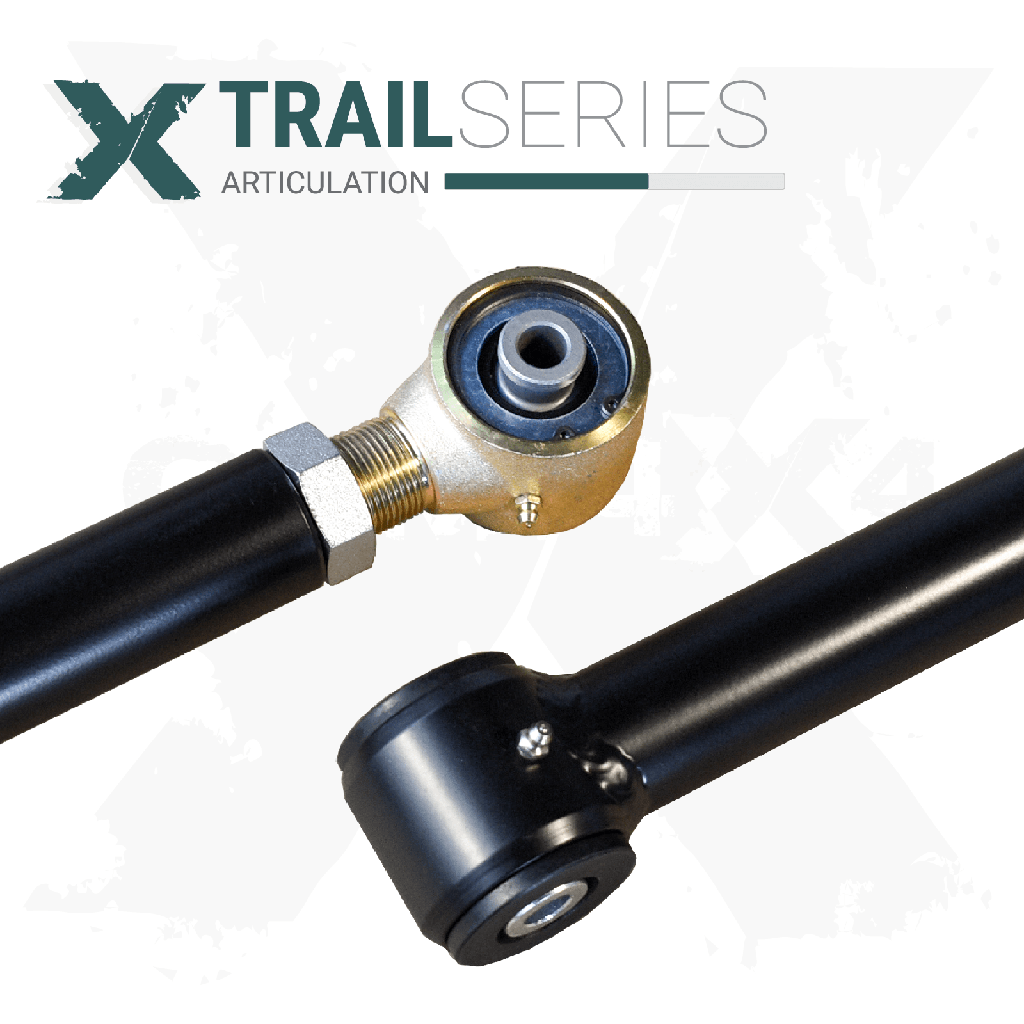

Construction: Rear upper and lower control arms use 1.75” x 5/16” DOM tubing, while the panhard bar is 1.5” x 5/16” DOM. Features Rock Jock Johnny Joints at adjustable ends, polyurethane bushings at fixed ends, and .75” cold-rolled steel end links.
Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.
Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.
Built With

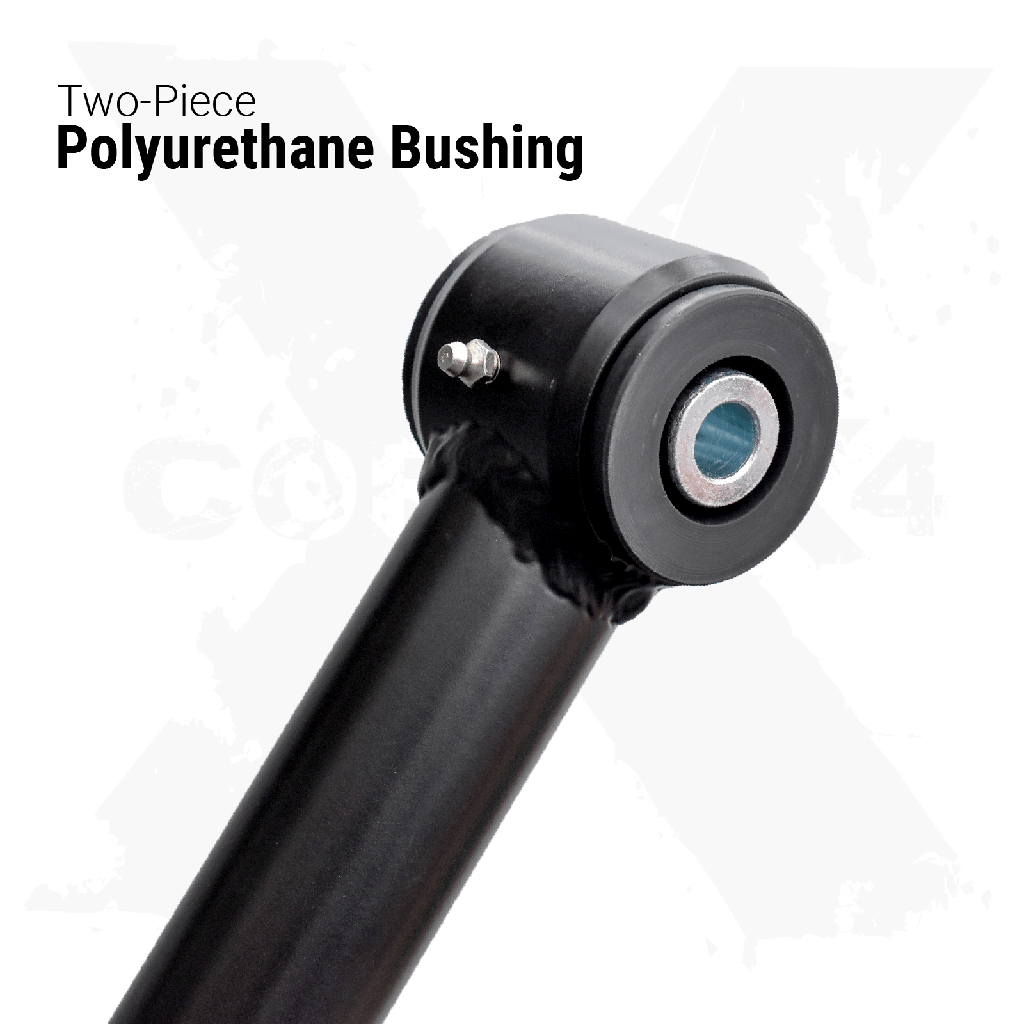

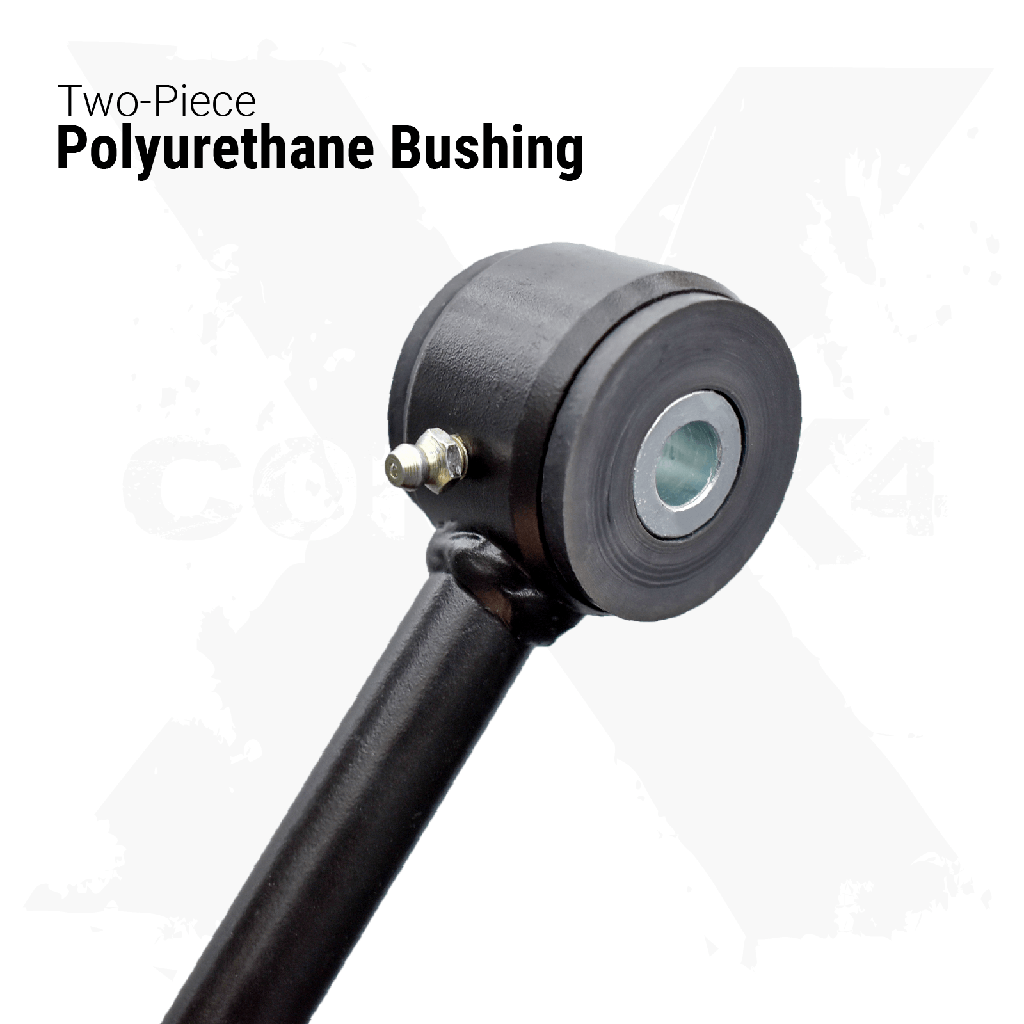

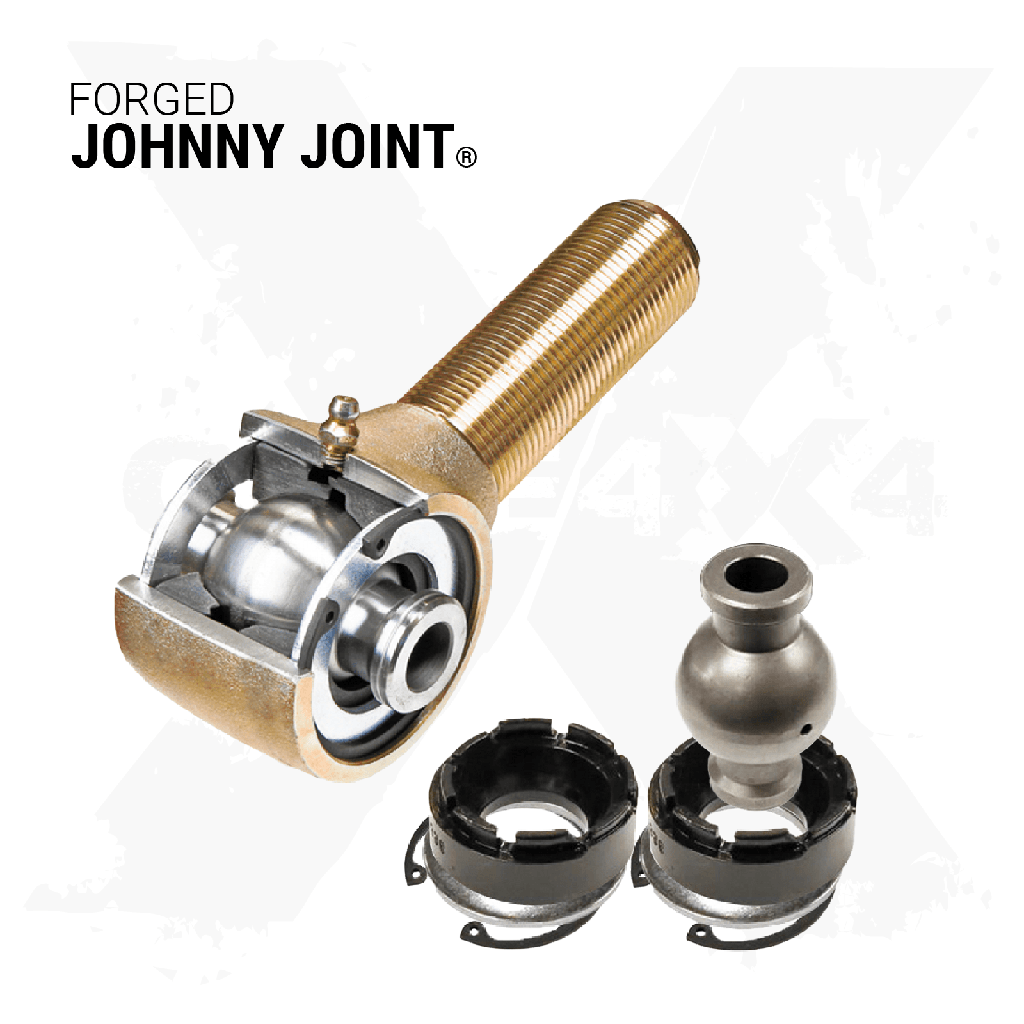

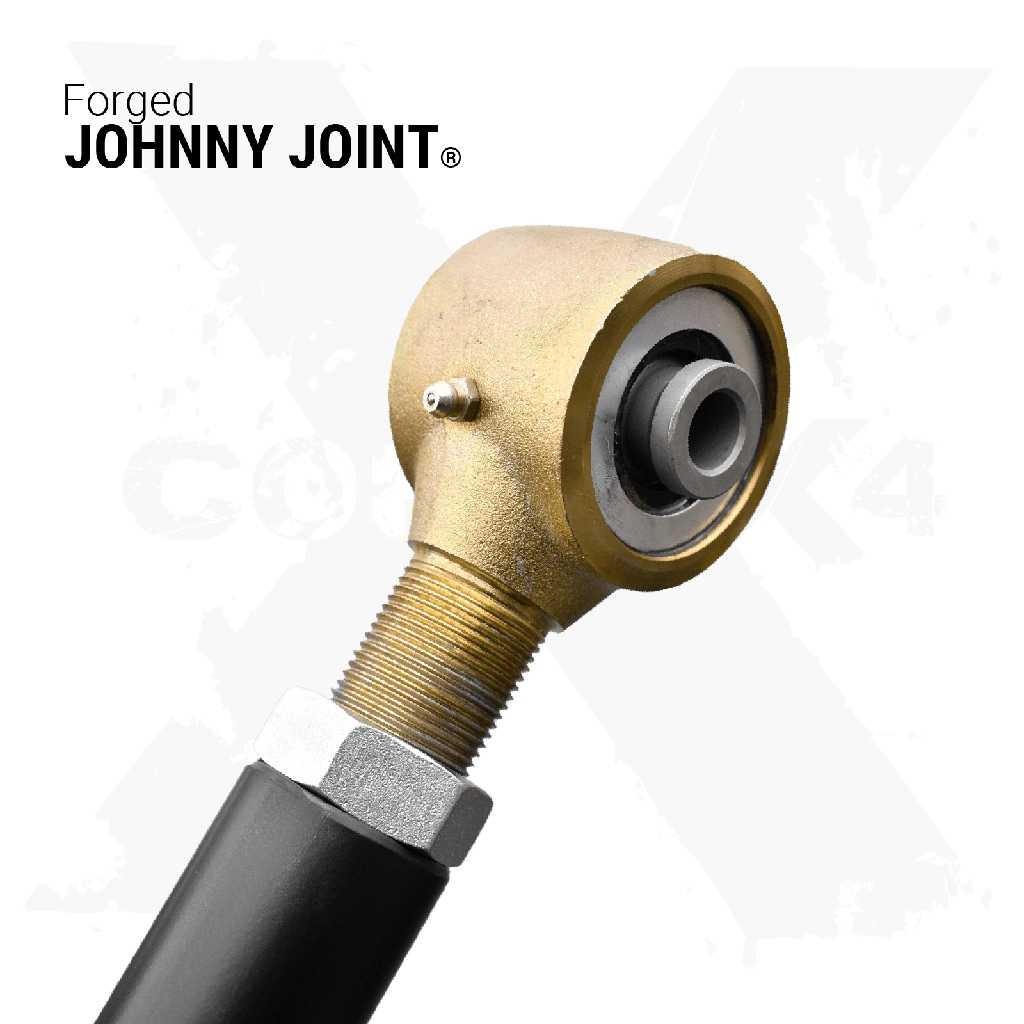

Rear Upper Control Arms Built With 1.75” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.
Rear Lower Control Arm Built With 1.75” OD 5/16” Wall DOM. A Polyurethane Bushing on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.
Rear Track Bar Built With 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joint on the adjustable end with 1” x 14 TPI - 2.32” long threads.
Construction & Materials

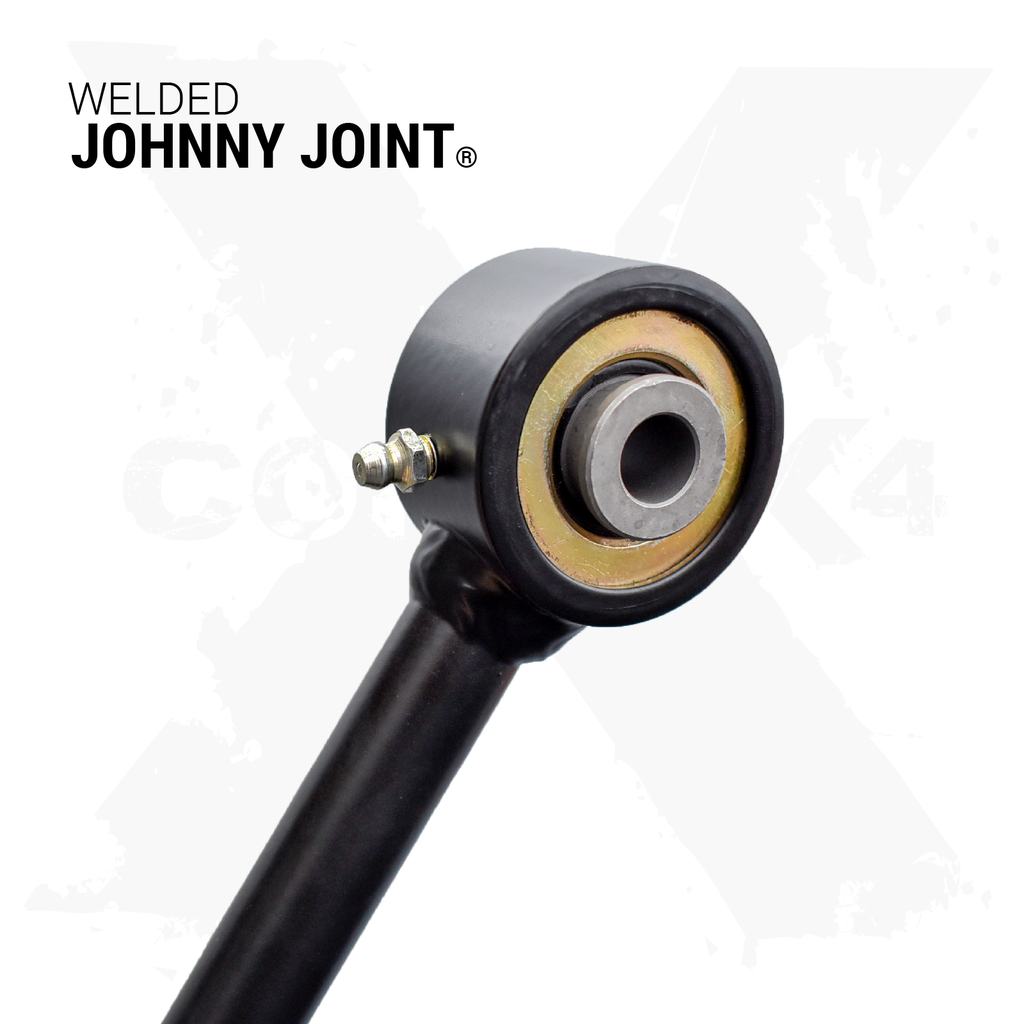

Rear End Links built with .75” Cold Rolled Steel. Welded Johnny Joints on one fixed end and a Polyurethane Bushing on the other fixed end.
Rear Lower control arm built with 1.75” OD 5/16” Wall DOM. A Polyurethane Bushing on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.
Rear Lower control arm built with 1.75” OD 5/16” Wall DOM. A Polyurethane Bushing on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.
Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.
| Brand | CORE 4X4 |
| Vehicle | Ram 1500 (09–Present) |
| Color | Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed. |
| Series | Trail Series |
| Lift Size | Stock Height or Lifted 1" or Lifted 2" or Lifted 3" or Lifted 4" or Lifted 5" or Lifted 6" or Lifted 7" or Lifted 8" or Custom length or 1/2 sizes (put desired length in the Order Notes) or Lowered 1" or Lowered 2" or Lowered 3" or Lowered 4" or Lowered 5" or Lowered 6" |
| Track Bar Diff Cover Clearance Bend | Straight Bar or Bent Bar |
| Hardware | No Hardware or Complete Kit |
| Factory Air Ride | No or Yes |
| Year Range | 09+ |
| Placement on Vehicle | Rear Upper, Rear Lower, Rear |
| Mounting Style | Bolt-On |
Maximize Your Vehicle's Stability Handling
Transform your Ram 1500 (2009–Present) with the Trail Series Adjustable Rear Suspension Kit with Sway Bar End Links, a complete solution for improved traction, reduced body roll, and optimized axle control. Designed to provide greater adaptability for towing, daily driving, and off-road performance, this kit ensures your suspension is dialed in for superior ride quality and handling.
Key Features Benefits
- Heavy-duty DOM tubing construction – Built with heavy-wall DOM tubing, offering exceptional strength and durability.

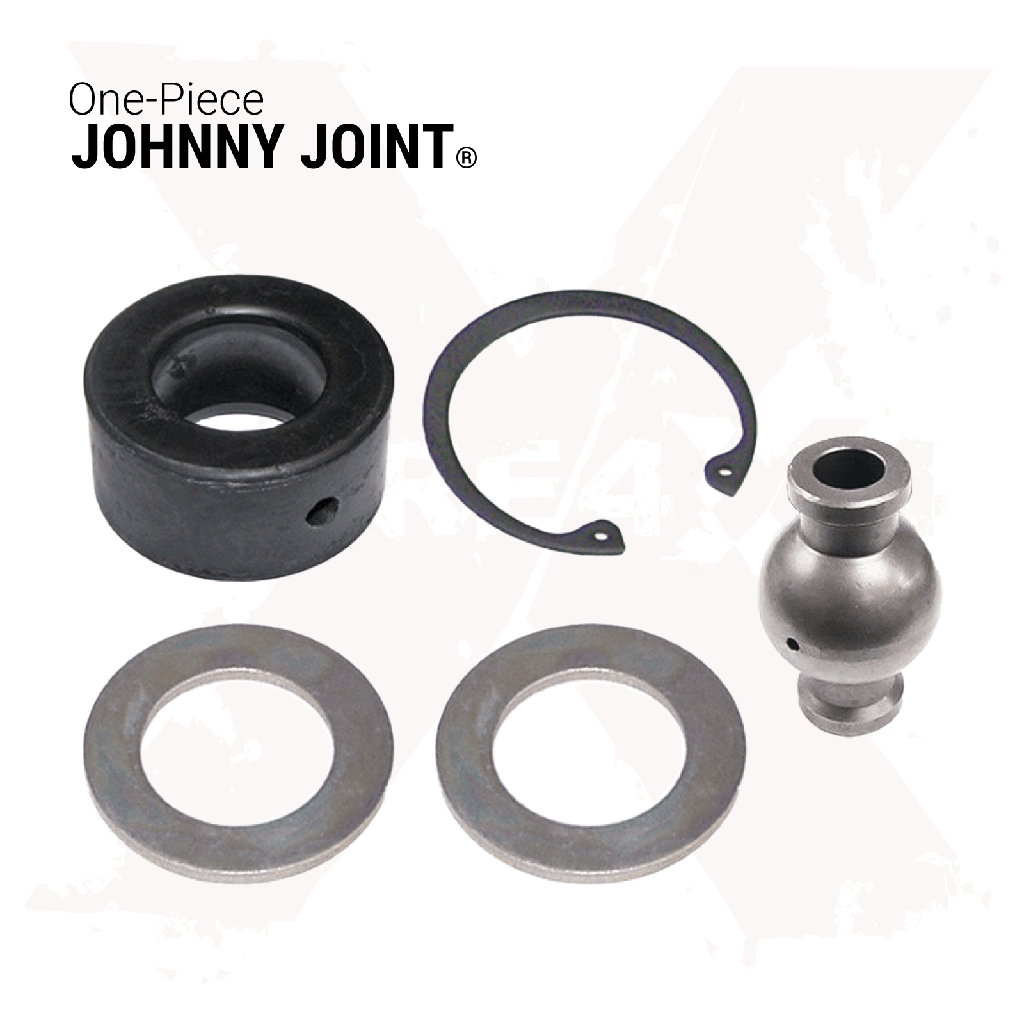

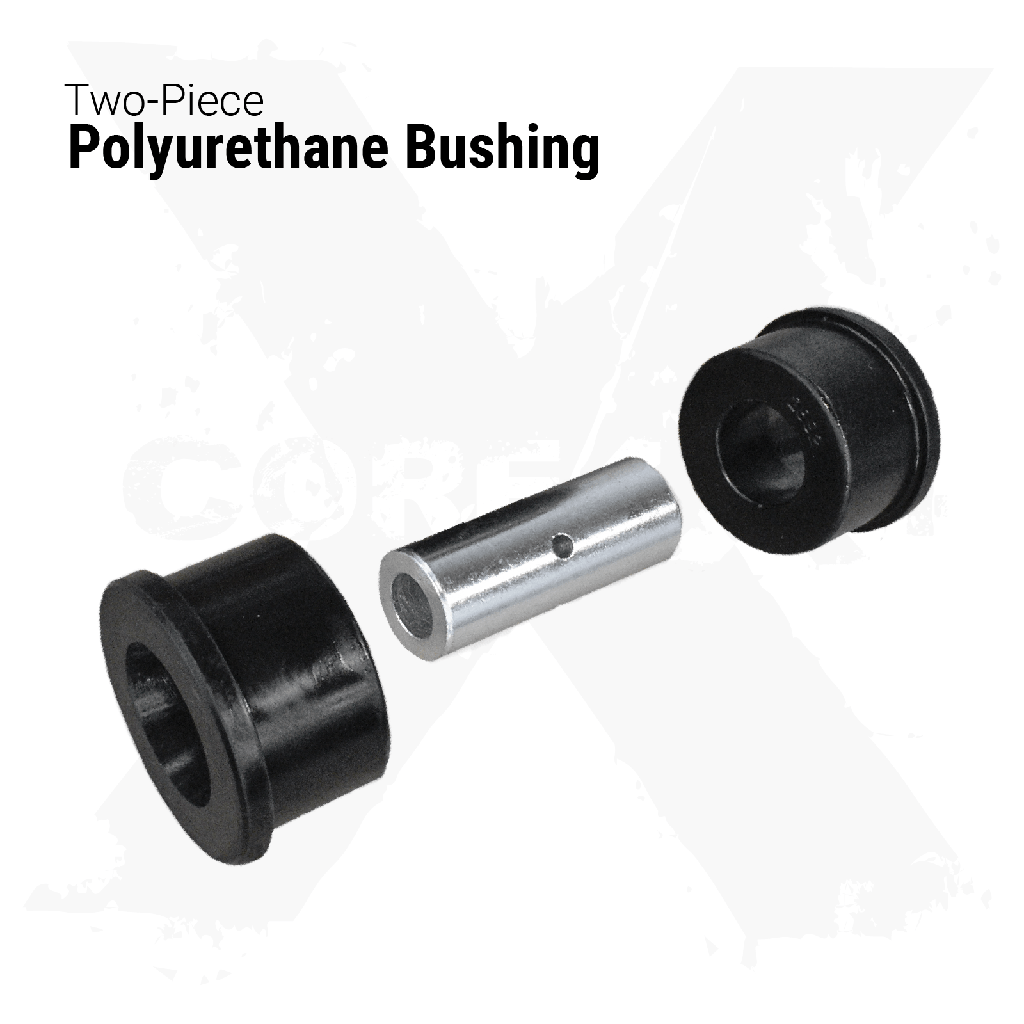

- Rock Jock Johnny Joints high-grade polyurethane bushings – Features Johnny Joints at the adjustable ends for maximum articulation and polyurethane bushings on the fixed ends to reduce NVH (Noise, Vibration, and Harshness).
- Adjustable for pinion angle axle alignment – Designed for precise rear axle alignment, reducing driveline vibrations and maintaining proper suspension geometry.
- Eliminates wheel hop enhances traction – The factory rubber bushings allow excessive movement, leading to wheel hop and loss of traction. Our control arms stabilize the axle, ensuring better power transfer and smoother acceleration.
- Improved stability handling – The included sway bar end links reduce body roll, further improving cornering ability and overall suspension control.
Fine-Tune Your Suspension for a Smoother Ride
The Trail Series Adjustable Rear Suspension Kit gives you full control over axle positioning and pinion angle adjustments, ensuring optimal handling and a smooth, vibration-free ride. Whether you're lifting, lowering, or fine-tuning your truck's suspension, this kit provides the flexibility needed to achieve your ideal setup.

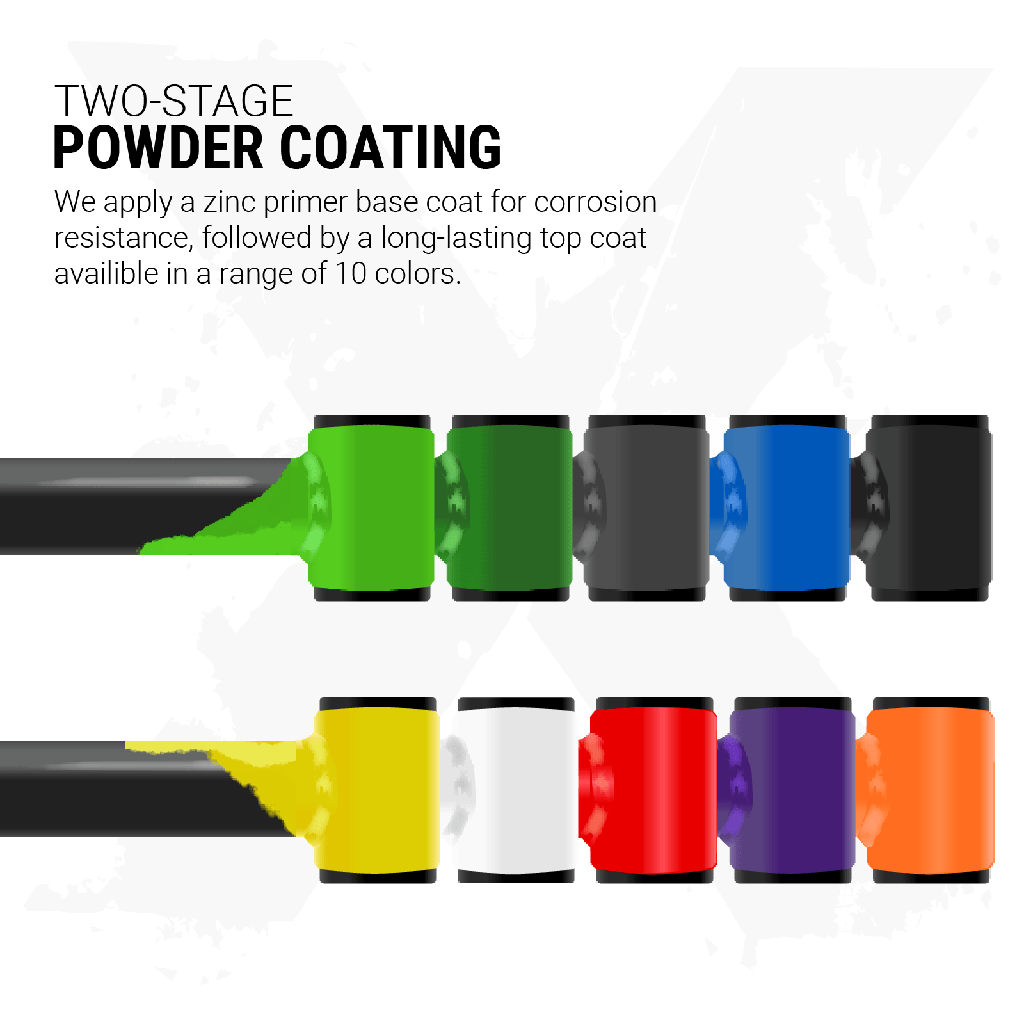

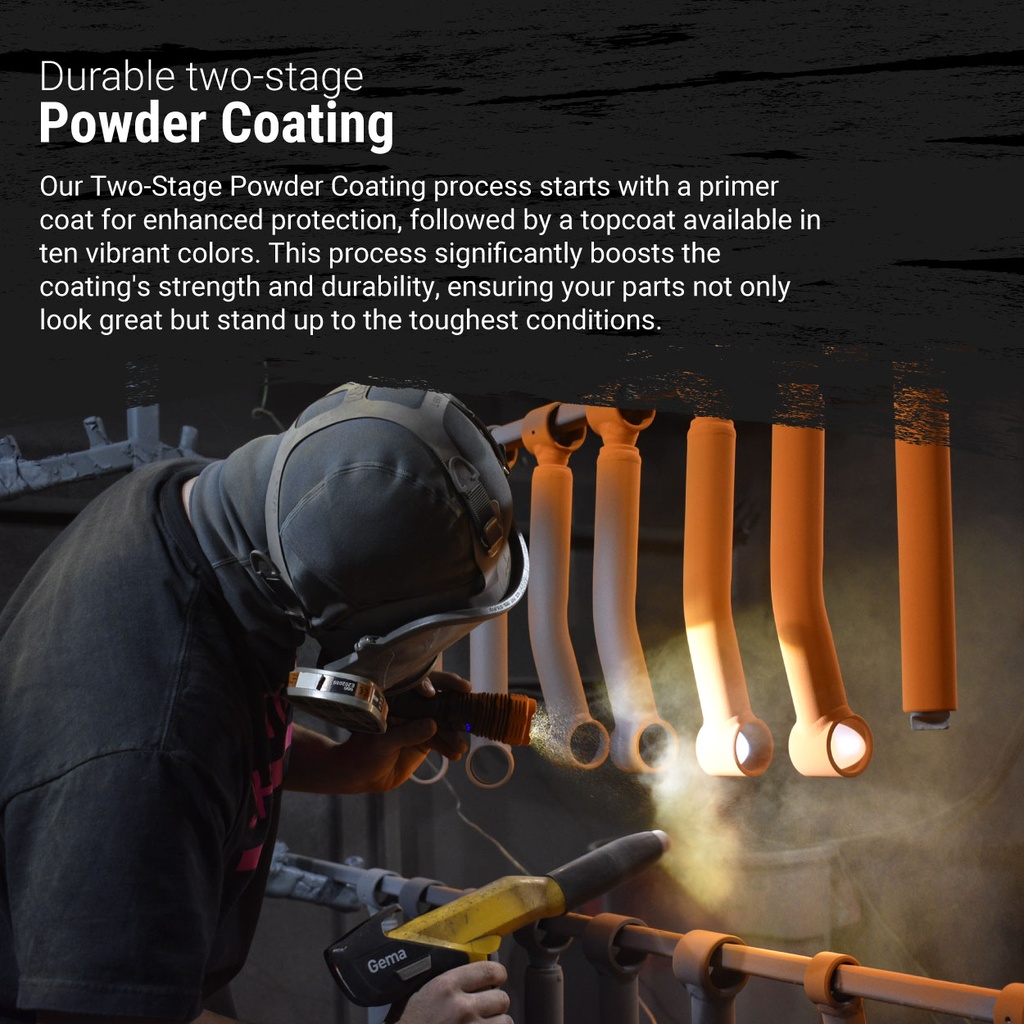

Highly Durable Two-Stage Powder Coating
Every component undergoes a two-stage powder coating process for maximum durability and corrosion resistance. The zinc primer base coat provides advanced rust protection, while the durable topcoat is available in 10 color options for customization.
Optional Hardware Upgrade
This kit is designed for installation using factory hardware, but for enhanced durability and a more secure installation, we offer an optional Grade 8 hardware kit (sold separately).

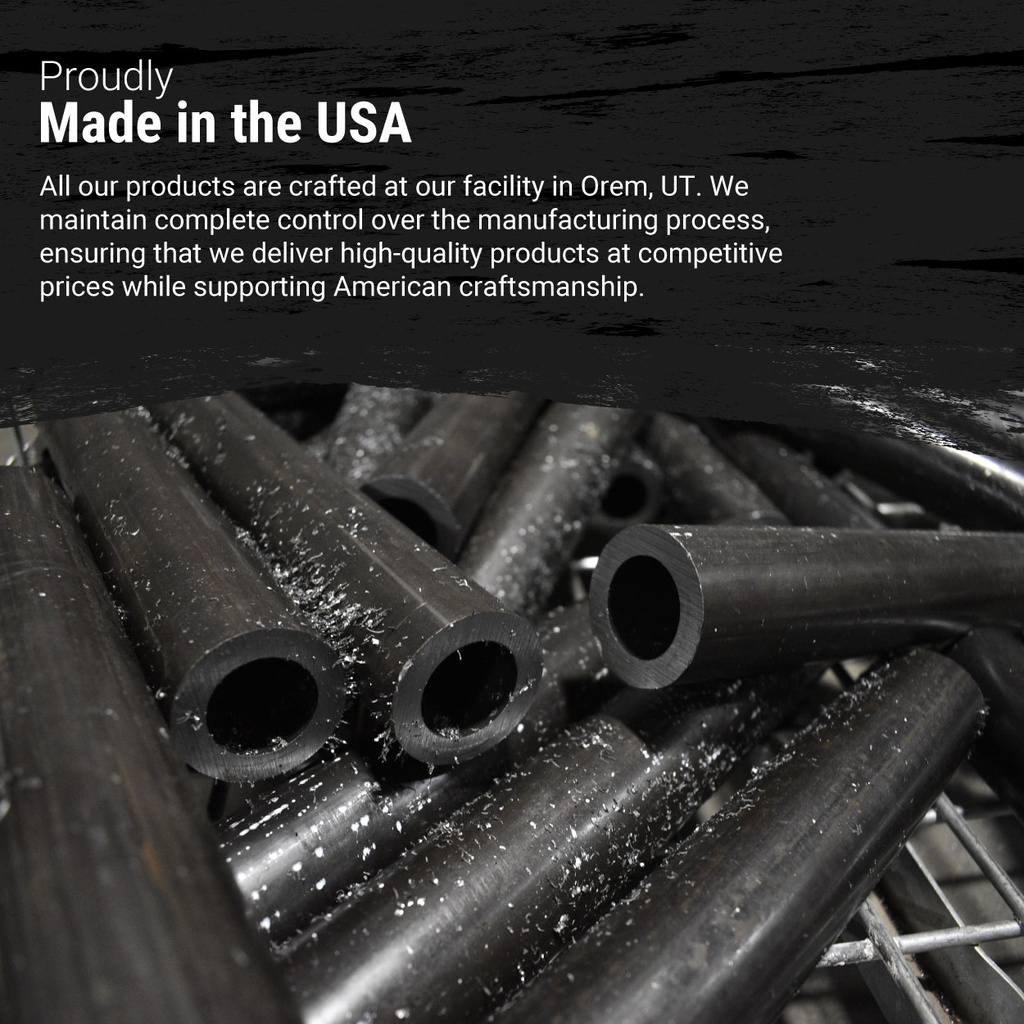

Proudly Made in the USA
Manufactured in Orem, UT, every CORE 4X4 component meets strict quality control standards for precision, strength, and long-term durability.
Final Thoughts
The Trail Series Adjustable Rear Suspension Kit with Sway Bar End Links provides the ultimate combination of adjustability, ride quality, and suspension control. For complete rear-end stability and cornering performance, this kit ensures your truck remains planted, responsive, and smooth over any terrain. Upgrade today and experience the difference in traction, stability, and ride comfort!
Each rebuild kit includes all necessary components to replace and restore wearable parts.
Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.
Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.
You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
