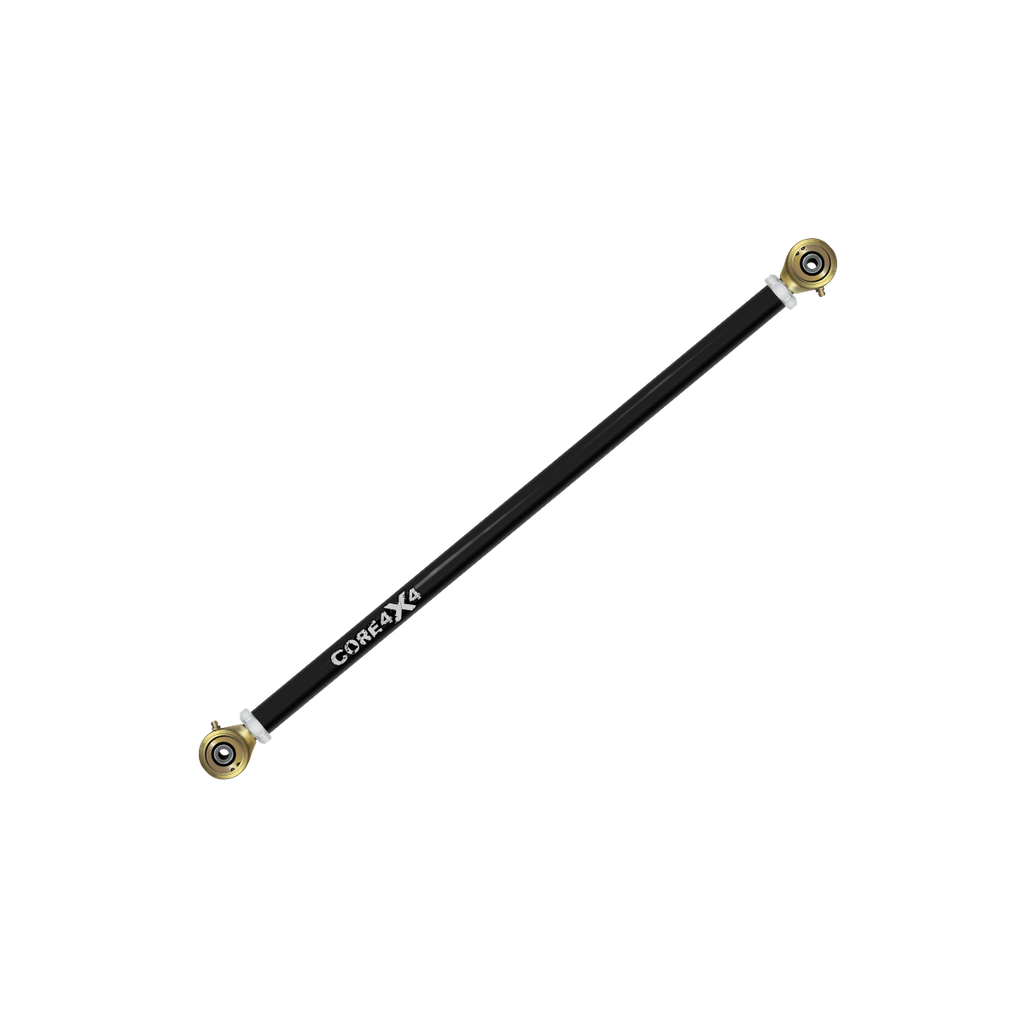

Precision Axle Control for Maximum Handling Stability
Upgrade your Ram 1500 (2009–Present) with the Track Series Adjustable Rear Panhard Track Bar, engineered to provide precise axle alignment, enhanced stability, and improved handling for lifted, leveled, or lowered trucks. Whether you’re tackling rugged off-road terrain, towing heavy loads, or launching at the track, this track bar keeps your axle centered and eliminates rear-end instability, ensuring a smooth, controlled ride.
Key Features Benefits
- Heavy-duty DOM steel construction – Built from 1.5" OD .313" wall DOM tubing, offering superior strength and rigidity over factory track bars.

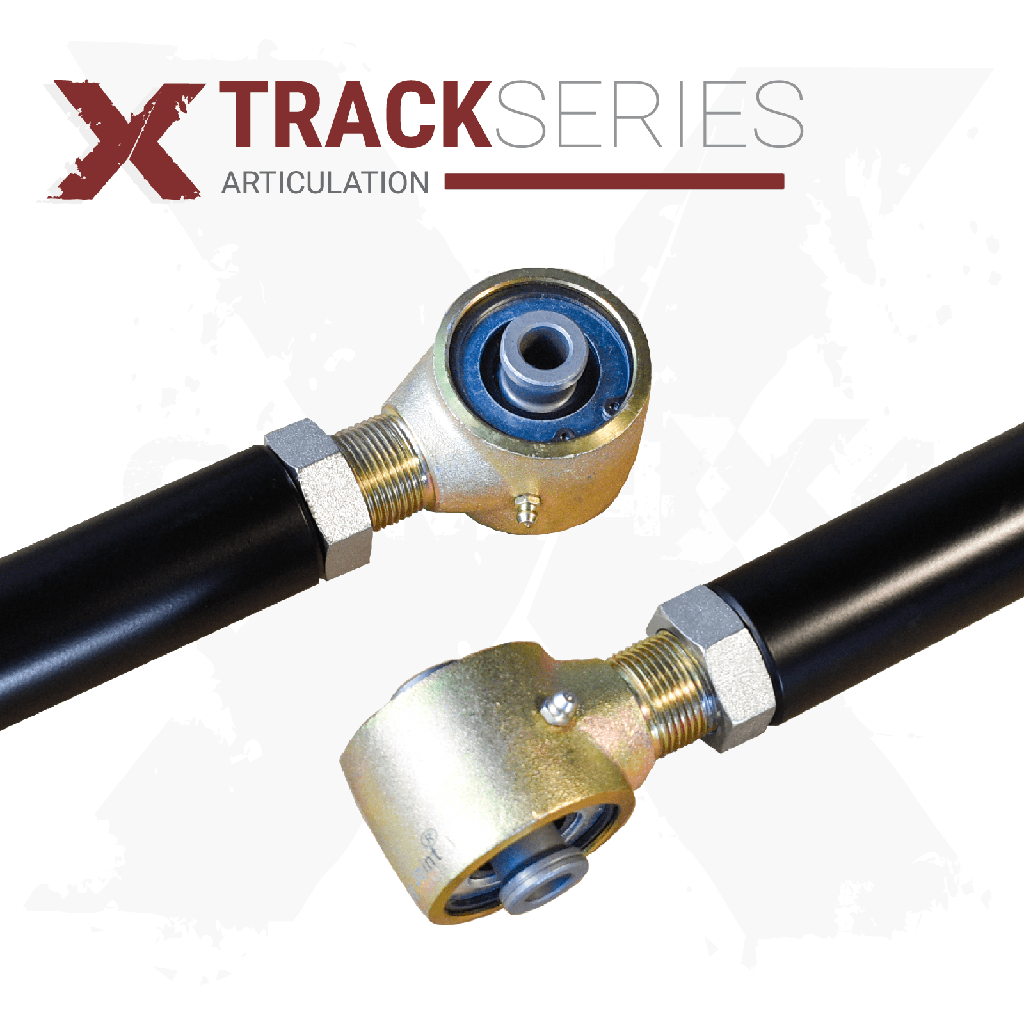

- Rock Jock Johnny Joints at both ends – Fully serviceable and rebuildable to provide maximum articulation, reduced suspension bind, and long-term durability.
- Left- right-hand threaded adjustability – Allows for on-truck adjustments, enabling precise axle alignment without removal, making suspension tuning quick and hassle-free.
- Accommodates lifted lowered setups – Designed to adjust for ride heights from an 8” drop to an 8” lift, ensuring proper axle centering and optimal suspension geometry.
- Enhanced steering response handling – Eliminates side-to-side axle movement under load, reducing body roll and improving cornering stability for a planted, predictable feel.
Full Suspension Control for Lifted Lowered Trucks
When modifying your truck’s ride height, the factory track bar can no longer maintain proper axle positioning, leading to misalignment, poor handling, and increased component wear. The Track Series Adjustable Rear Panhard Track Bar allows you to precisely dial in your axle position, eliminating rear-end play, bump steer, and unwanted lateral movement.
For maximum suspension control, we recommend pairing this track bar with the Track Series Adjustable Rear Upper and Lower Control Arms (TRK-R-15-2009-RS4) to ensure full adjustability over pinion angle, axle positioning, and traction control.
Highly Durable Two-Stage Powder Coating
Every Track Series component undergoes a two-stage powder coating process for superior durability and corrosion resistance. The zinc primer base coat provides maximum rust protection, while the durable topcoat is available in 10 color options for a customized look.
Optional Hardware Upgrade
This track bar is designed to be installed using factory hardware, but for increased durability and reliability, we offer an optional Grade 8 hardware kit (sold separately). This upgrade ensures a stronger, more secure installation, reducing the risk of unwanted shifting under heavy loads.
Proudly Made in the USA
Every CORE 4X4 product is designed, manufactured, and tested in Orem, UT, ensuring superior craftsmanship and strict quality control. By keeping production local, we maintain high-quality material selection, precision machining, and consistent durability.
Final Thoughts
The Track Series Adjustable Rear Panhard Track Bar is an essential upgrade for Ram 1500 owners looking to fine-tune their suspension, eliminate axle shift, and maximize handling stability. For full control over rear axle positioning and suspension adjustability, pair this with our Track Series Adjustable Rear Control Arms to achieve the ultimate in rear-end stability and performance.
Vehicle Fitment: Designed for Ram 1500 09+, this adjustable rear control arm set enhances axle stability, traction, and power transfer for track use, towing, and off-road performance.
CORE Advantage: Eliminates wheel hop and prevents axle deflection with Johnny Joints at both ends, maximizing articulation, improving ride quality, and ensuring consistent tire contact.
Adjustability: Fully adjustable for applications lifted or lowered up to 6”, allowing precise caster correction, pinion angle adjustments, and axle centering to maintain proper suspension geometry and handling.
Construction: Built from 1.5" OD .313" wall DOM tubing for superior strength and durability. Features Rock Jock Johnny Joints at both ends, providing maximum articulation, adjustability, and a fully serviceable, rebuildable design for long-term performance.
Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.
Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.
Built With
Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1” x 14” TPI - 2.32” long threads.
| Make | Model | Submodel | Years |
|---|---|---|---|
| Dodge/Ram | 1500 | 2009 - Present |
Each rebuild kit includes all necessary components to replace and restore wearable parts.
Construction & Materials
Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1” x 14” TPI - 2.32” long threads.
| Brand | CORE 4X4 |
| Color | Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed. |
| Series | Track Series |
| Hardware | No Hardware or Complete Kit |
| Track Bar Diff Cover Clearance Bend | Straight Bar or Bent Bar |
| Vehicle | Ram 1500 (09–Present) |
| Year Range | 09+ |
| Placement on Vehicle | Rear |
| Mounting Style | Bolt-On |
Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.
Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.
You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
Reviews of Core 4x4
Specifications
| Color | Black, Blue, Charcoal, Green, LightGreen, Orange, Purple, Red, White, Yellow, Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed. |
| Hardware | No Hardware, Complete Kit |
| Track Bar Diff Cover Clearance Bend | Straight Bar, Bent Bar |
| Brand | CORE 4X4 |
| Series | Track Series |
| Vehicle | Ram 1500 (09–Present) |
| Year Range | 09+ |
