This kit includes 3 components, each built and powder-coated in-house.
The Ultimate Front-End Upgrade for Heavy-Duty Towing Hauling
Take full control of your Dodge Ram 2500 (2008–2009) with the Tow Series Adjustable Front Suspension Kit—a massive upgrade engineered specifically for towing, hauling, and extreme-duty applications. Factory suspension components simply can’t handle the added strain of heavy loads, leading to death wobble, wandering steering, and premature wear. This kit eliminates these issues by delivering unmatched strength, precision alignment, and rock-solid stability, making it an essential upgrade for any Ram owner who demands performance and reliability.
Key Features Benefits
- Eliminates Death Wobble Wandering Steering – By correcting caster and axle positioning, this kit locks in front-end stability, ensuring precise steering even under heavy towing loads.
- Maximum Strength for Towing Hauling – Built from 1.75” OD DOM Tubing with a 5/16” wall thickness, these components outperform factory parts by a wide margin, preventing bending, flexing, or failure under extreme conditions.
- Fully Adjustable for Perfect Alignment – Featuring left- and right-hand threads, all components can be adjusted on the truck without removal, making it easy to dial in precise caster and axle centering for improved handling and tire wear.
- Extreme Durability with Rock Jock 4x4 Johnny Joints – Unlike factory-style rubber or poly bushings that degrade under load, these greaseable, fully rebuildable Johnny Joints provide exceptional longevity, reduce wear on surrounding components, and eliminate bushing deflection for consistent performance.
Optional Inward Bend for Larger Tires
Running oversized tires? The optional inward bend upgrade allows for greater tire clearance, eliminating rubbing against control arms. This is a highly recommended upgrade for anyone experiencing steering limitations due to larger tires.
Two-Stage Powder Coating for Maximum Protection
Every component undergoes a two-stage powder coating process for exceptional durability and corrosion resistance. A zinc primer base coat provides advanced rust protection, followed by a durable topcoat available in 10 color options, allowing you to match your truck’s style.
Made in the USA
Manufactured in Orem, UT, the Tow Series Front Suspension Kit is proudly built in the USA, ensuring strict quality control, superior craftsmanship, and long-term reliability.
Optional Hardware Upgrade with Cam Bolt Delete Kit
This kit installs using factory hardware, but for enhanced durability and easier installation, we offer an optional Grade 8 hardware kit with a cam bolt delete kit, available separately. The cam bolt delete kit eliminates weak factory cam bolts, preventing unwanted alignment shifts under load. It locks in proper alignment, ensuring stable, consistent performance under heavy towing and hauling conditions.
Final Thoughts
The Tow Series Adjustable Front Suspension Kit (TOW-D-25-2008-K5) is a game-changing upgrade for Ram 2500 owners who demand stability, durability, and performance. Whether you're hauling heavy loads, towing trailers, or tackling rough job sites, this kit delivers the control and strength you need to eliminate front-end issues and drive with confidence. Upgrade today and experience the difference in handling, stability, and reliability!
Vehicle Fitment: Compatible with Dodge Ram 2500 08-09, this front suspension kit enhances stability, steering control, and alignment for heavy towing and hauling.
CORE Advantage: Eliminates death wobble, corrects caster, and provides rock-solid axle positioning for precise handling under extreme loads.
Adjustability: Fully adjustable for lifts up to 6", allowing precise caster correction, axle centering, and pinion angle adjustments to maintain proper suspension geometry.
Construction: Control arms are crafted from 5/16” wall 1.75” OD steel, featuring Rock Jock Johnny Joints at both ends for superior articulation and durability. The track bar is built from 1.5” solid steel, ensuring precise axle alignment.
Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.
Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.
Built With

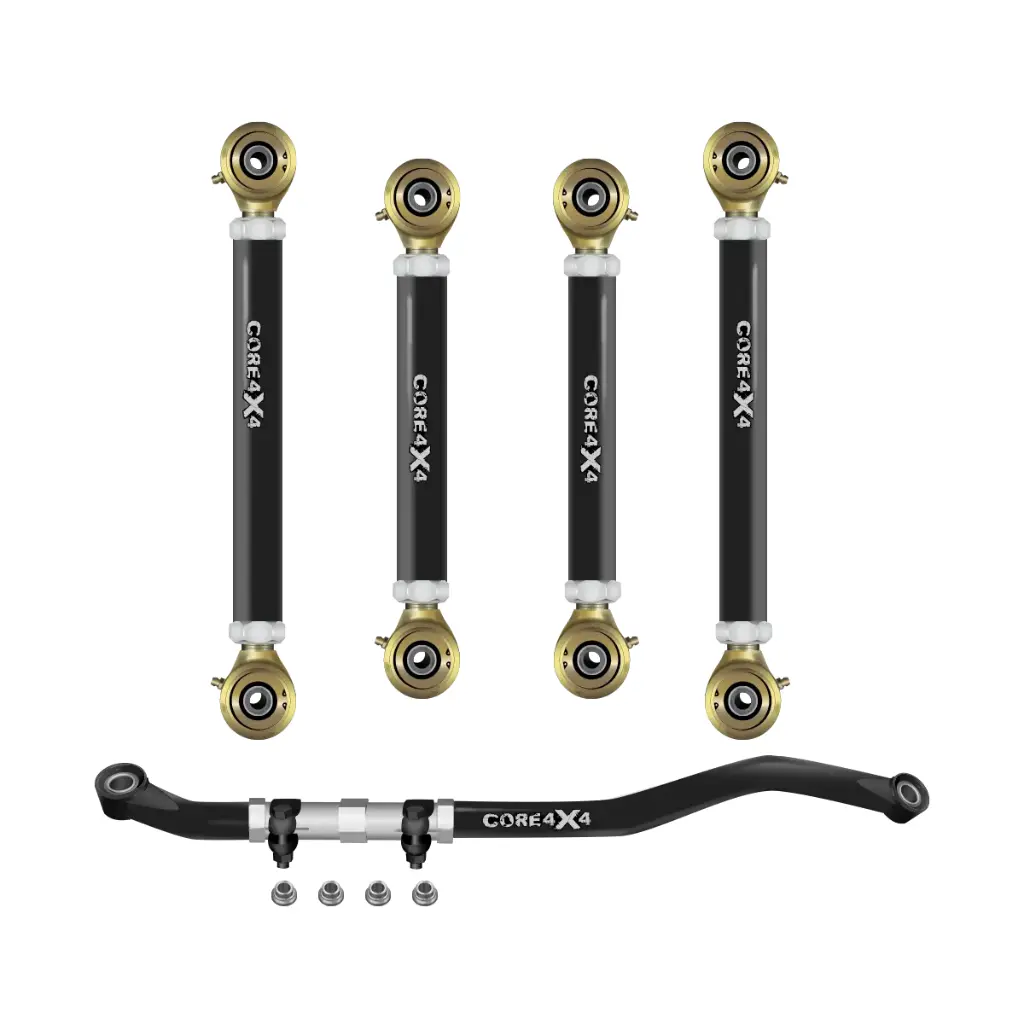

Front Upper Control Arms Built With 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 3.25” long threads.
Front Lower Control Arms Built With 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Front Track Bar Built With 1.5” Solid Cold Rolled Steel. Polyurethane Bushings on both ends of the track bar with a Chromoly turnbuckle.
| Make | Model | Submodel | Years |
|---|---|---|---|
| Ram | 2500 | 2008 - 2009 |
Each rebuild kit includes all necessary components to replace and restore wearable parts.
Construction & Materials
Front Lower control arms built with 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Front Upper control arms built with 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 3.25” long threads.
Front Track Bar built with 1.5” Solid Cold Rolled Steel. Replaceable FK Bearings on both ends of the track bar with a Chromoly turnbuckle.
| Vehicle | Ram HD 2500 (08–09) |
| Brand | CORE 4X4 |
| Series | Tow Series |
| Color | Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed. |
| Lift Size | 0" — 6" or 6"+ |
| Arm Bend | No Bend or Inward Bend |
| Hardware | No Hardware or Complete Kit |
| Year Range | 08-09 |
| Placement on Vehicle | Front Upper, Front Lower, Front |
| Mounting Style | Bolt-On |
Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.
Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.
You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
