Made in USA
Orem, Utah
Lifetime Guarantee
Unconditional
10 Colors
In-house powder coat
Fully Adjustable
0-6" of lift
3 X-Series Options
Only Core 4x4
Fits:
- 2018+ Jeep Wrangler JL / JLU
- 20+ Jeep JT Gladiator
Benefits:
- Correctly re-centers front axle at 3” lift height without a track bar
- Raises vehicle roll center height for improved stability and reduced body roll.
- Lessens track bar angle to improve geometry
Features:

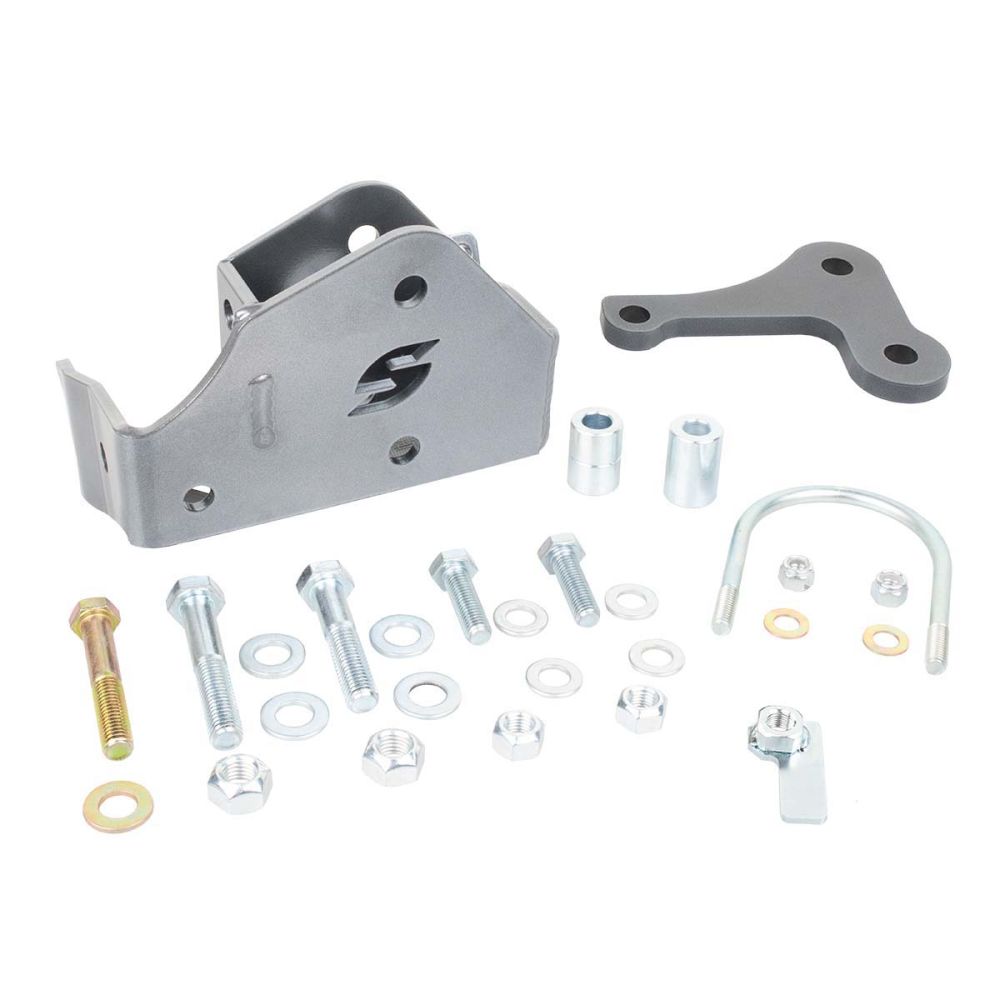

- Raises front track bar 3.125" from stock location.
- Laser cut and CNC formed from 3/16 and 1/4 inch steel for precision fit and maximum durability.
- Securely indexes to the factory track bar bracket and reinforces with additional attachment points.
- Raises axle side sway bar mounting holes to improve geometry for lifted Jeeps.
- 100 percent bolt-on design assures an easy, trouble free installation with the use of basic hand tools.
- No cutting or drilling required.
- Suspension components feature an abrasion-resistant powder coat finish for maximum durability and corrosion resistance.
Notes:
- Must run drag link in high steer configuration, flipped above knuckle, to use this bracket.
- Adjustable front track bar recommended for lifts 3” or higher.
- Minimum of 3” bump stop spacing required.
- Minimum 4.75” wheel backspacing required to clear drag link in flipped position.
| Make | Model | Submodel | Years |
|---|---|---|---|
| Jeep | Gladiator | 2020 - Present | |
| Jeep | Wrangler | 2018 - Present |
| Vehicle | Jeep Gladiator JT (20–Present) or Jeep Wrangler JL / JLU (18–Present) |
| Brand | Synergy |
| Placement on Vehicle | Front |
| Mounting Style | Bolt-On |
