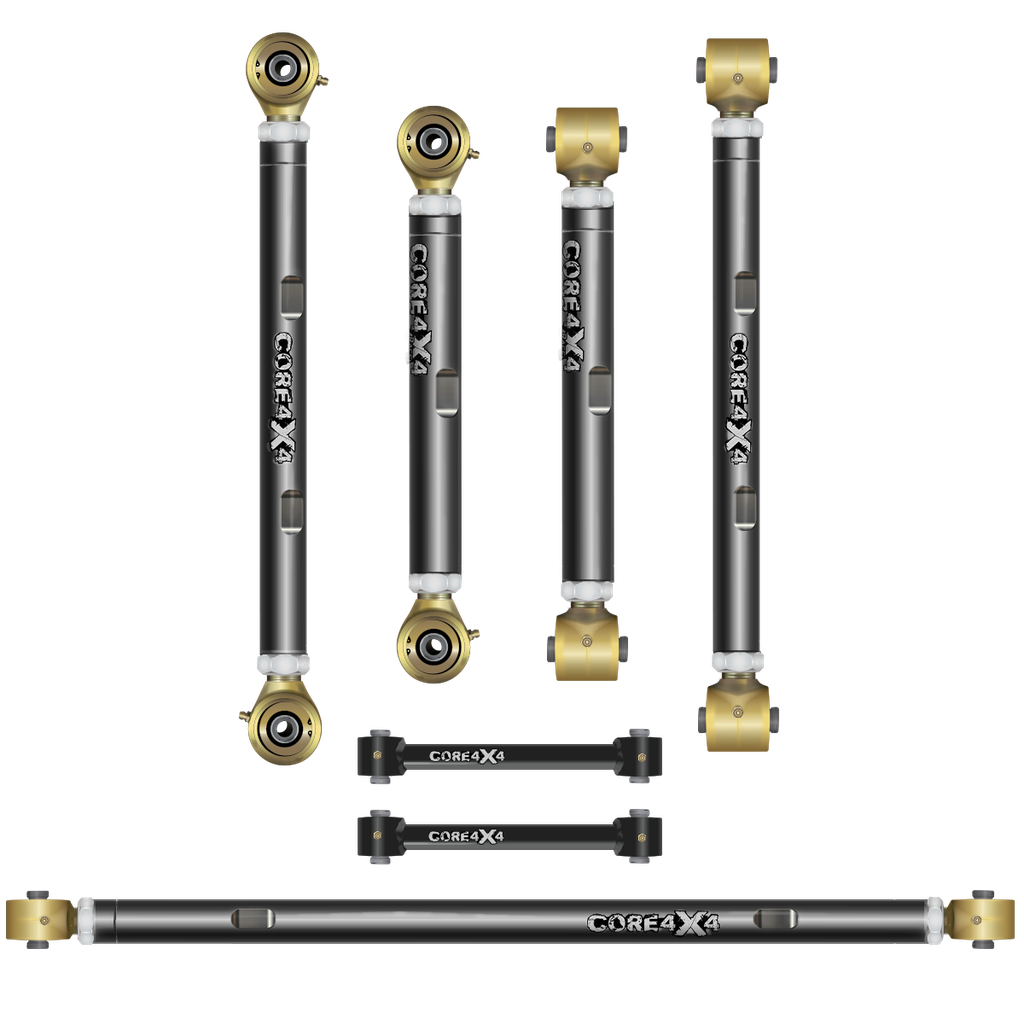

This kit includes 4 components, each built and powder-coated in-house.
Ram 1500 09+ 2pc Race Series Rear Lower Adjustable Control Arms
View Component →
Ram 1500 09+ 2pc Race Series Rear Upper Adjustable Control Arms
View Component →

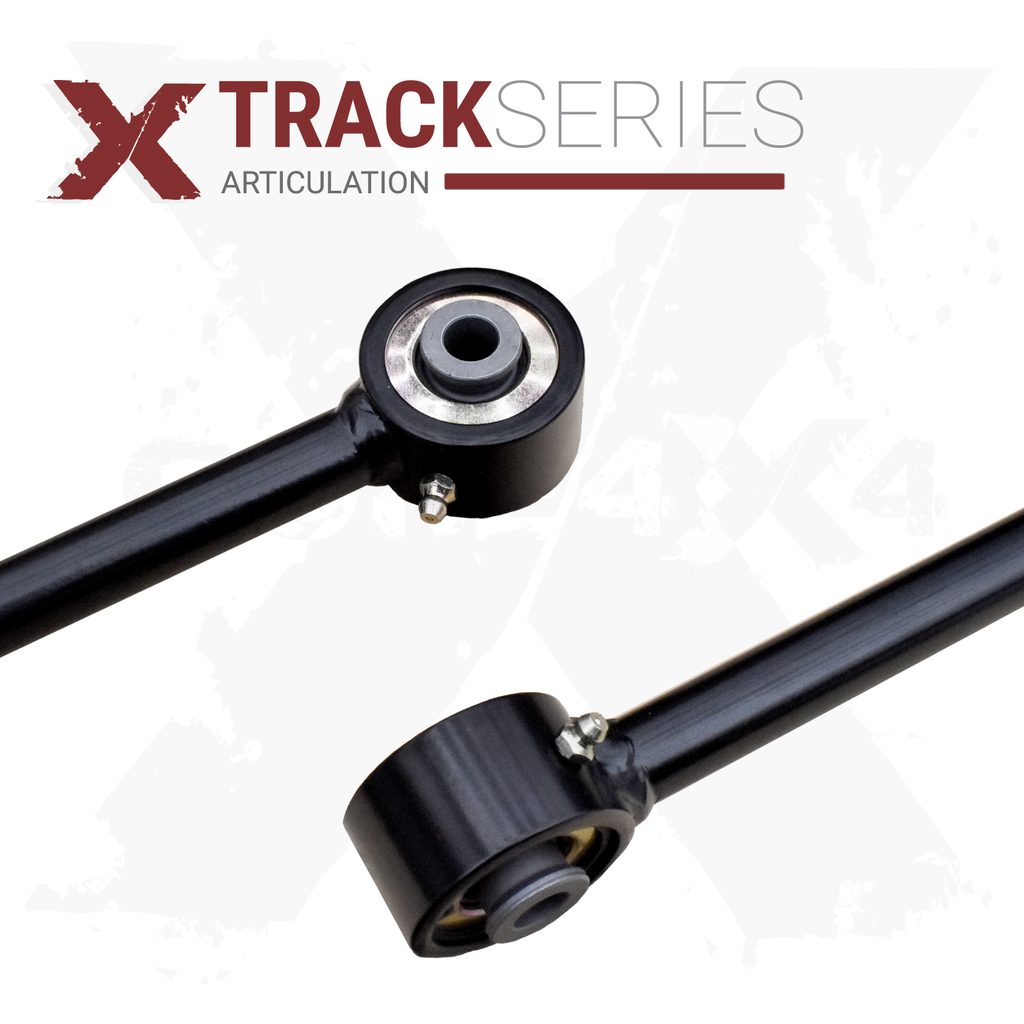

Ram 1500 09+ 2pc Track Series Rear Fixed Length End Links
View Component →
Ram 1500 09+ Race Series Rear Adjustable Panhard/Track Bar
View Component →Take Your Suspension to the Next Level
Upgrade your Ram 1500 with the Race Series Complete Rear Suspension Kit, engineered for precision, durability, and maximum control. This kit eliminates wheel hop, enhances rear-end stability, and provides superior handling on any terrain. Whether you're pushing limits off-road or maximizing track performance, this suspension upgrade ensures your truck stays planted, responsive, and built for high performance.
Key Features Benefits
- Maximum traction power transfer – Eliminates wheel hop and enhances power application, ensuring superior grip under acceleration.
- Fully adjustable for precise axle alignment – Control arms and track bar allow fine-tuned adjustments to eliminate dog tracking and improve handling.

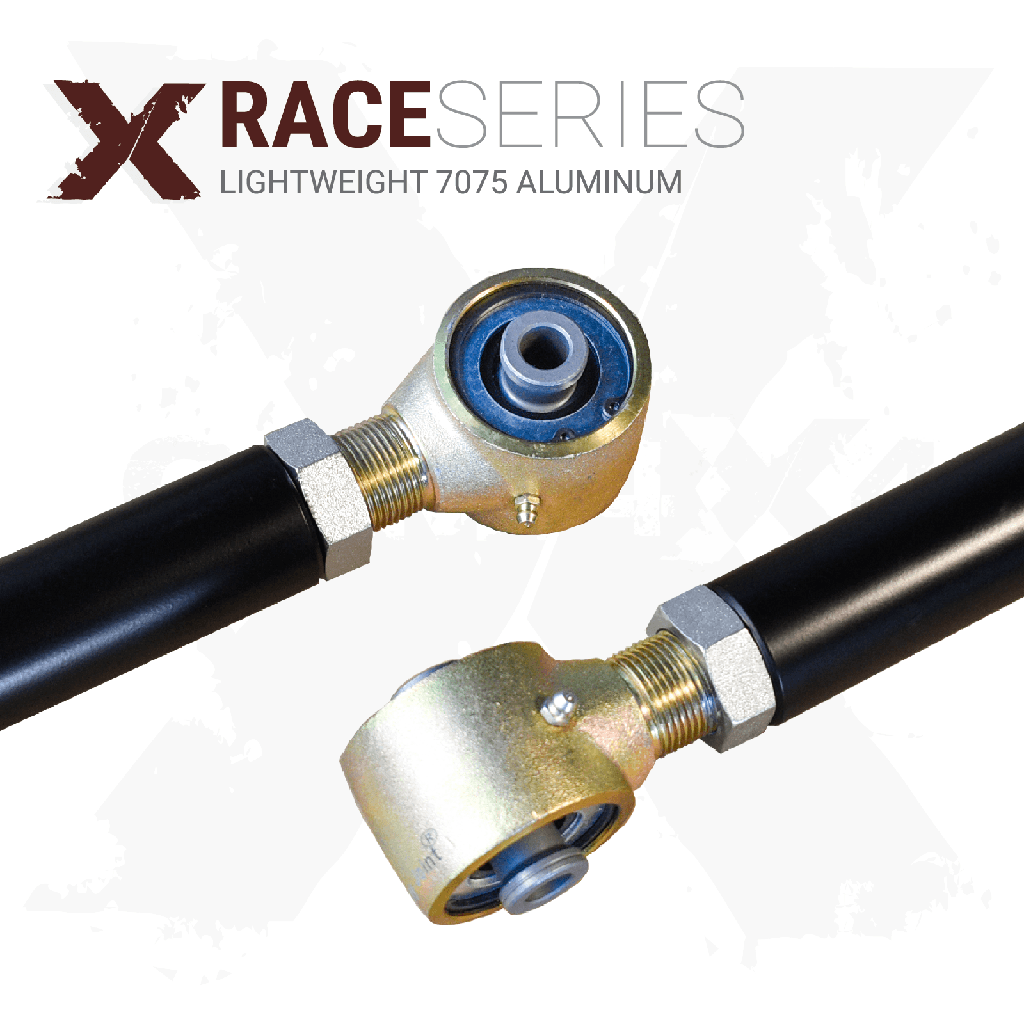

- Lightweight 7075 aluminum cold-rolled steel – Control arms and track bar are crafted from aircraft-grade aluminum, while sway bar end links use durable cold-rolled steel for maximum strength.

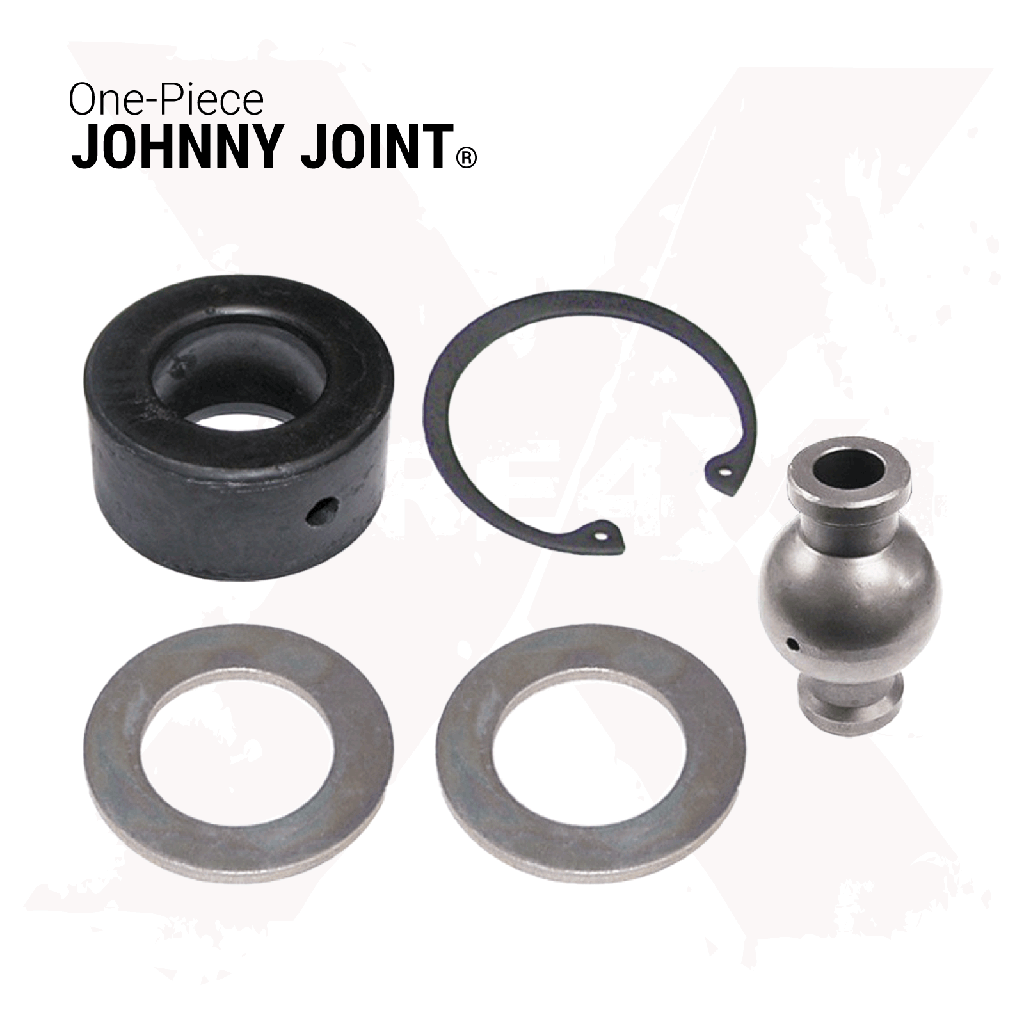

- Rock Jock 4x4 Johnny Joints – High-misalignment joints at both ends provide outstanding articulation, longevity, and serviceability.
- Enhanced cornering sway control – The included sway bar end links reduce body roll and increase high-speed stability for confident handling.
Recommended Pairing
Optimize your suspension by adding the Race Series Front Upper Arms (R-1500-UFAA2) for a fully balanced performance setup.
Unmatched Performance Control
This kit is designed to eliminate wheel hop, improve handling, and optimize rear-end traction in both high-performance and off-road applications. With fully adjustable control arms, a reinforced panhard track bar, and sway bar end links for additional stability, your truck will feel more planted and responsive, even under extreme driving conditions.
Two-Stage Powder Coating
Every component undergoes a two-stage powder coating process for ultimate corrosion resistance, starting with a zinc primer base and finished with a durable topcoat in your selected color. For a raw, high-performance aesthetic, opt for the uncoated aluminum finish.
Made in the USA
Proudly designed and manufactured in Orem, UT, this kit reflects our commitment to American craftsmanship, rigorous quality standards, and industry-leading durability. Every component is built with precision to ensure long-lasting performance.
Optional Hardware Upgrade
For a smoother installation, upgrade to our Grade 8 hardware kit, perfect for replacing stubborn or rusted factory bolts and ensuring a secure fit.
Final Thoughts
The Race Series Complete Rear Suspension Kit is the ultimate solution for Ram 1500 owners looking for unmatched traction, stability, and adjustability. With lightweight yet durable construction, premium components, and a focus on precision control, this kit delivers race-ready performance you can feel. Upgrade today and experience next-level handling and power delivery.
Vehicle Fitment: RAM 1500 09+ – Elevate your truck’s performance with the Race Series Complete Rear Suspension Kit, engineered to eliminate wheel hop, enhance traction, and deliver precise handling on the track and off-road.
CORE Advantage: Built for ultimate control, this suspension upgrade ensures superior power transfer and axle alignment, eliminating dog tracking and enhancing rear-end stability under extreme driving conditions.
Adjustability: Fully adjustable control arms and track bar allow fine-tuned axle positioning, while ensuring proper suspension geometry and superior handling for towing, hauling, and high-speed performance.
Construction: Constructed with lightweight, high-strength 7075 aluminum and cold-rolled steel for durability and efficiency. Equipped with Rock Jock Johnny Joints for maximum articulation and increased longevity, ensuring high-performance reliability.
Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.
Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.
Built With
Rear Upper Control Arms Built With 2” 7075 Aluminum. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Rear Lower Control Arms Built With 2” 7075 Aluminum. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Rear Track Bar Built With 1.5” 7075 Aluminum. Forged Johnny Joints on both adjustable ends with 1” x 14 TPI - 2.32” long threads.

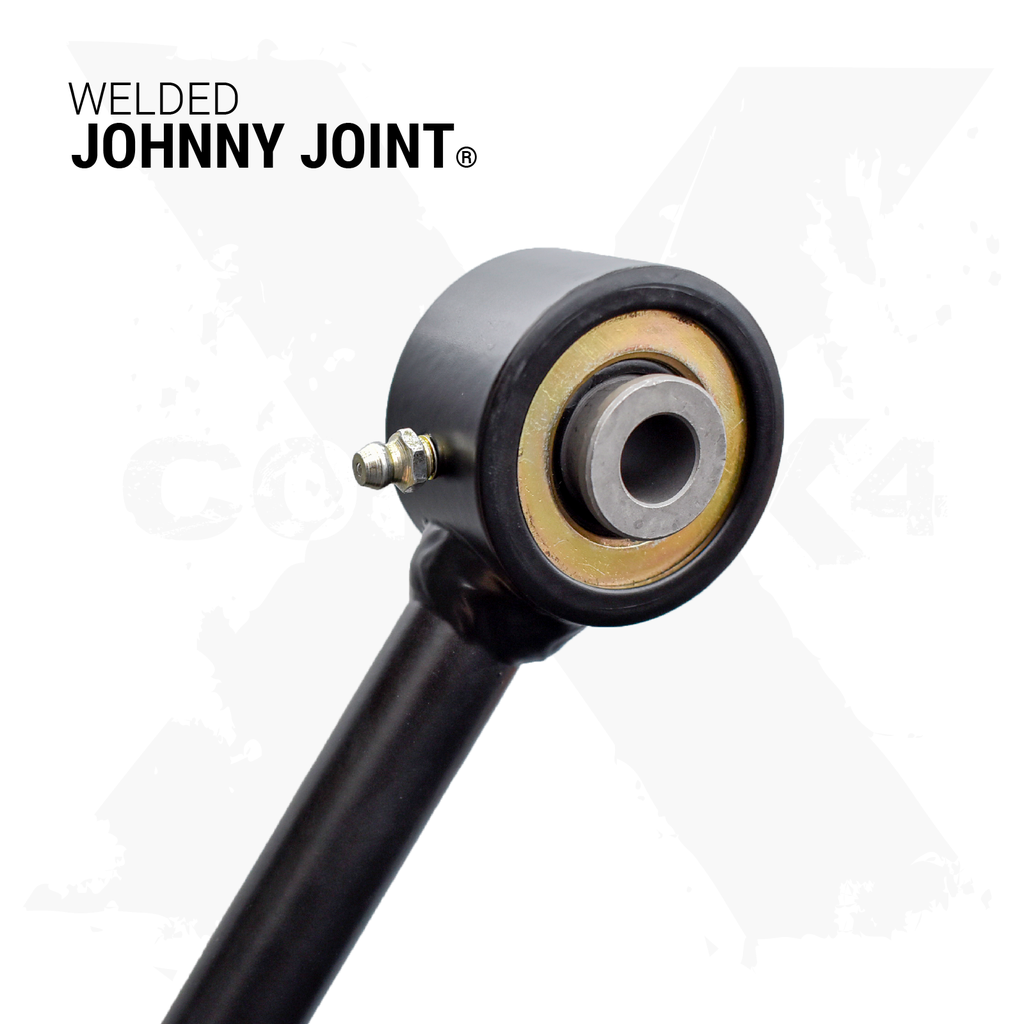

Rear End Links Built With .75” Cold Rolled Steel. Welded Johnny Joints on both fixed ends.
| Make | Model | Submodel | Years |
|---|---|---|---|
| Dodge/Ram | 1500 | 2009 - Present |
Each rebuild kit includes all necessary components to replace and restore wearable parts.
Construction & Materials
Rear Lower control arms built with 2” 7075 Aluminum. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Rear Upper control arms built with 2” 7075 Aluminum. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Rear End Links built with .75” Cold Rolled Steel. Welded Johnny Joints on both fixed ends.
Rear Track Bar built with 1.5” 7075 Aluminum. Forged Johnny Joints on both adjustable ends with 1” x 14 TPI - 2.32” long threads.
| Vehicle | Ram 1500 (09–Present) |
| Brand | CORE 4X4 |
| Color | Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed. |
| Hardware | No Hardware or Complete Kit |
| Lift Size | Stock Height or Lifted 1" or Lifted 2" or Lifted 3" or Lifted 4" or Lifted 5" or Lifted 6" or Lifted 7" or Lifted 8" or Custom length or 1/2 sizes (put desired length in the Order Notes) or Lowered 1" or Lowered 2" or Lowered 3" or Lowered 4" or Lowered 5" or Lowered 6" |
| Year Range | 09+ |
| Placement on Vehicle | Rear Upper, Rear Lower, Rear |
| Mounting Style | Bolt-On |
Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.
Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.
You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
