Product Details
This kit includes 4 components, each built and powder-coated in-house.

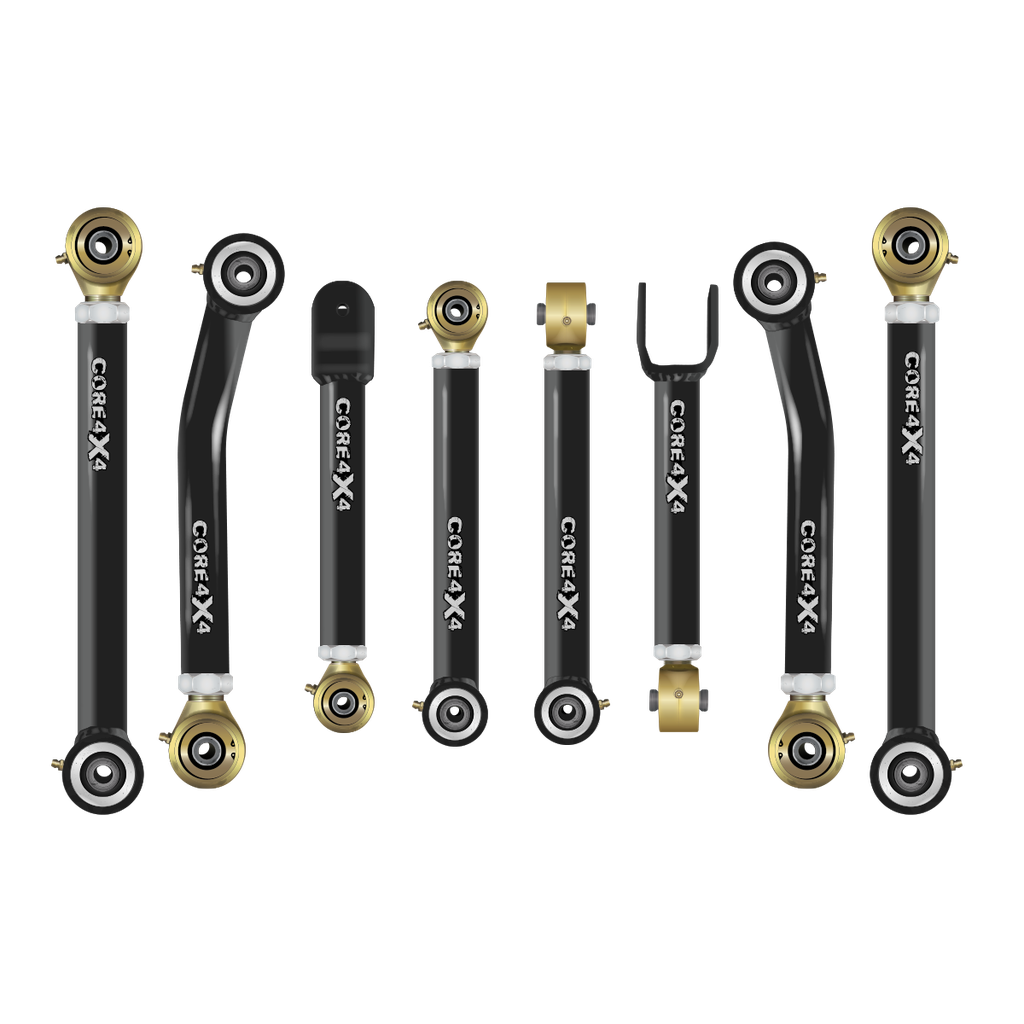

Jeep Grand Cherokee ZJ 93-98 2pc Crawl Series Front Lower Adjustable Control Arms
View Component →
Jeep Grand Cherokee ZJ 93-98 2pc Crawl Series Front Upper Adjustable Control Arms
View Component →
Jeep Grand Cherokee ZJ 93-98 2pc Crawl Series Rear Lower Adjustable Control Arms
View Component →
Jeep Grand Cherokee ZJ 93-98 2pc Crawl Series Rear Upper Adjustable Control Arms
View Component →| Make | Model | Submodel | Years |
|---|---|---|---|
| Jeep | Grand Cherokee | 1993–1998 |
Vehicle Fitment: Jeep Grand Cherokee ZJ 93-98 – Transforms suspension performance with superior handling, articulation, and ride quality for extreme off-road and on-road control.
CORE Advantage: The ultimate 8-arm suspension upgrade—enhancing stability, eliminating axle bind, and delivering full control over alignment, pinion angles, and wheel positioning.
Adjustability: Engineered for lifts from 0 to 6 inches, allowing precise axle centering, optimized caster correction, and pinion angle fine-tuning for unmatched suspension geometry.
Construction: Heavy-duty 1.75” OD DOM tubing (5/16” wall) for lowers, 1.5” OD DOM tubing (5/16” wall) for uppers, and Johnny Joints at both ends for extreme articulation, durability, and vibration absorption.
Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.
Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.
Built With
Front Lower Control Arm Built With 1.75” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.
Front Upper Control Arm Built With 1.5” OD 5/16” Wall DOM. Welded u-bracket on the welded end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.
Rear Lower Control Arm Built With 1.75” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.
Rear Upper Control Arm Built With 1.5” OD 5/16” Wall DOM. Welded Johnny Joints on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.
Construction & Materials
Front Lower control arm built with 1.75” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.
Front Upper control arm built with 1.5” OD 5/16” Wall DOM. Welded u-bracket on the welded end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.
Rear Lower control arm built with 1.75” OD 5/16” Wall DOM. Forded Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Rear Upper control arm built with 1.5” OD 5/16” Wall DOM. Welded Johnny Joints on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.
| Vehicle | Jeep Grand Cherokee ZJ (93–98) |
| Brand | CORE 4X4 |
| Color | Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed. |
| Hardware | No Hardware or Complete Kit |
| Series | Crawl Series |
| Placement on Vehicle | Front Upper, Front Lower, Rear Upper, Rear Lower, Front, Rear |
| Mounting Style | Bolt-On |
Ultimate Off-Road Performance with Unmatched Strength
Upgrade your Jeep Grand Cherokee ZJ with the Crawl Series Complete Control Arm Set, engineered to maximize off-road articulation, suspension control, and on-road comfort. This comprehensive 8-piece kit replaces factory control arms with heavy-duty adjustable components, allowing for precise axle positioning, improved suspension geometry, and enhanced overall handling. Whether you're hitting technical trails or cruising city streets, this kit provides superior durability, adjustability, and flexibility.
Key Features and Benefits
- Extreme durability strength – Constructed from 1.75” OD DOM tubing (5/16” wall) for lower control arms and 1.5” OD DOM tubing (5/16” wall) for upper control arms, this kit surpasses competitors in strength and longevity.
- Johnny Joints for maximum flexibility – Each control arm features genuine Johnny Joints at both ends, providing unparalleled articulation, vibration reduction, and long-lasting durability. (Front upper control arms attach to the axle using a U-bracket, which connects to the factory-installed bushing.)
- Fully adjustable for lifted vehicles – Designed to accommodate suspension lifts from 0 to 6 inches, allowing you to fine-tune alignment, re-center your axles, and optimize caster and pinion angles.
- Recommended pairing – For a complete suspension solution, pair this kit with the Crawl Series Track Bar Kit (CRL-J-ZJ-TBK2) to further enhance axle stability and alignment.
Two-Stage Powder Coating for Maximum Protection
Each control arm undergoes a two-stage powder coating process, starting with a zinc primer base coat for exceptional rust resistance, followed by a durable top coat available in 10 color options for long-lasting protection and customization.
Proudly Made in the USA
Manufactured in Orem, UT, the Crawl Series Control Arms are built with high-quality American craftsmanship, ensuring top-tier durability, performance, and reliability.
Optional Hardware Upgrade
This kit is designed for straightforward bolt-on installation using factory hardware. For those dealing with rusted or stubborn bolts, optional Grade 8 hardware kits are available separately to ensure a seamless installation.
Final Thoughts
The Crawl Series Complete Control Arm Set is the ultimate suspension upgrade for Jeep Grand Cherokee ZJ owners, providing improved axle articulation, precise alignment, and superior strength for any terrain. Whether you're tackling extreme off-road obstacles or enhancing daily drivability, this kit delivers unmatched performance and durability. Upgrade today and transform your Jeep into the ultimate off-road machine!
Each rebuild kit includes all necessary components to replace and restore wearable parts.
Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.
Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.
You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
