Product Details
This kit includes 2 components, each built and powder-coated in-house.
| Make | Model | Submodel | Years |
|---|---|---|---|
| Jeep | Cherokee | 1984–2001 |
Vehicle Fitment: Jeep Cherokee XJ 84-01 – Designed to provide proper suspension geometry, enhanced stability, and optimal clearance for 33”-35” tires with trimming and correct backspacing.
CORE Advantage: A complete suspension solution that improves ride quality, axle alignment, and articulation. Optional Long Arm Upgrade delivers superior suspension geometry and smoother handling over rough terrain.
Adjustability: Accommodates lifts from 4 inches, allowing precise pinion angle correction, axle centering, and suspension tuning. Adjustable components ensure long-term drivability and off-road performance.
Construction: Heavy-duty DOM tubing control arms, high-performance coil and leaf springs, and extended brake lines ensure durability. Two-stage powder-coated components offer corrosion resistance and lasting strength.
Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.
Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.
Built With
Front Lowers Built With 1.75” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joints on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.
Front Uppers Built With 1.5” OD 5/16” Wall DOM. Welded u-bracket on the welded end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.
Construction & Materials
Front Lower Control Arm Built With 1.75” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.
Front Upper Control Arm Built With 1.5” OD 5/16” Wall DOM. Welded u-bracket on the welded end and a Forged Johnny Joint on the adjustable end with 1” x 14” TPI - 2.32” long threads.
Front Track Bar Built With 1.5” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.
| Vehicle | Jeep Cherokee XJ (84–01) |
| Color | Black or Blue or Charcoal or Green or Light Green or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed. |
| Brand | CORE 4X4 |
| Long Arm Kit Upgrade | Crawl Series Short Arms or Heavy Duty Long Arm Kit |
| Steering Kit | No Steering Kit or Include Steering Kit |
| XJ Rear Axle U-bolts | No or Yes - Dana 35 or Yes - Dana 44 or Yes - Chrysler 8.25 or Yes - Ford 8.8 |
| Placement on Vehicle | Front Upper, Front Lower, Rear Upper, Rear Lower, Front, Rear |
| Mounting Style | Bolt-On |
The Ultimate Suspension Upgrade for Your Jeep Cherokee XJ

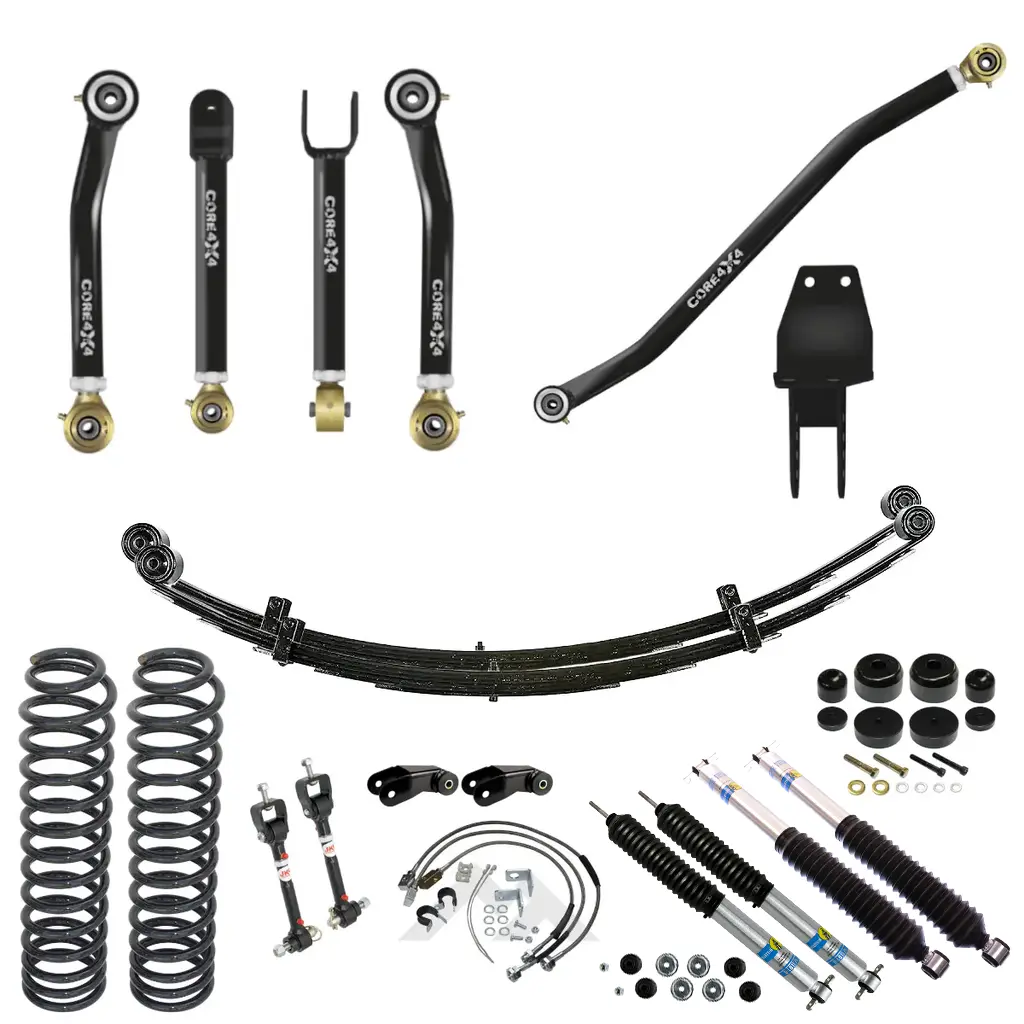

Upgrade your Jeep Cherokee XJ (1984-2001) with the Crawl Series 4” Lift Kit, the ultimate all-in-one solution for enhanced off-road capability and on-road drivability. Designed to provide the correct geometry and strength required for lifted vehicles, this kit allows you to clear 33”-35” tires (with proper backspacing and trimming) while ensuring maximum articulation, stability, and handling in any terrain. With multiple customization options, you can choose between our Crawl Series Front Control Arms or upgrade to a Long Arm Kit for even greater suspension performance. Additionally, for those looking to improve steering precision, we offer the Rock Jock Currectlync Heavy Duty Steering Kit (CE-9701) as an optional upgrade.
Key Features and Benefits
- Complete Suspension Overhaul – This all-inclusive lift kit provides everything needed to correctly lift your Jeep, optimize axle alignment, and improve handling both on and off the road.
Customization Options for Different Driving Styles – Choose between:
- Crawl Series Control Arms Track Bar – Best for daily drivers and weekend warriors, providing a balance of on-road comfort and off-road capability.
- Crawl Series Control Arms Track Bar – Ideal for dedicated off-road rigs, delivering maximum articulation, strength, and durability.
- Optional Upgrade to a Long Arm Kit – For those seeking superior ride quality, articulation, and suspension geometry correction, upgrade to the Crawl Series Long Arm Kit.
- Superior Steering Performance (Optional Upgrade) – Add the Rock Jock Currectlync Heavy Duty Steering Kit (CE-9701) for improved steering precision, control, and durability, making it the perfect complement to a lifted XJ.
- Optimized for 33”-35” Tires – With the correct backspacing and minor trimming, this lift kit allows for proper clearance and full suspension travel.
- Fully Adjustable Suspension – Accommodates axle re-centering, pinion angle correction, and proper suspension geometry for lifted Jeeps, ensuring maximum drivability and reliability.
Two-Stage Powder Coating for Maximum Protection
All suspension components undergo a rigorous two-stage powder coating process, featuring a zinc primer base coat for superior corrosion resistance and a top coat available in 10 custom colors. This ensures long-lasting protection and allows you to customize your suspension to match your build.
Made in the USA
Manufactured in Orem, UT, the Crawl Series 4” Lift Kit represents the highest standards of American craftsmanship, ensuring top-tier durability, performance, and reliability for off-road enthusiasts.
Important note: The leaf springs in this kit ship unboxed due to their shape and weight. Some cosmetic (scratches/chips in paint) damage may occur while in transit, but this will not effect the performance whatsoever.
Each rebuild kit includes all necessary components to replace and restore wearable parts.
Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.
Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.
You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
