Product Details
| Make | Model | Submodel | Years |
|---|---|---|---|
| Jeep | Cherokee | 1984–2001 |
Vehicle Fitment: Jeep Cherokee XJ 84-01 – Transforms suspension performance with a true long-arm design, delivering unmatched stability, ride quality, and articulation for extreme off-road and on-road comfort.
CORE Advantage: A true 4-link design with long upper and lower control arms creates a superior suspension arc, increasing ride quality, downtravel, and articulation while reducing binding and improving axle control.
Adjustability: Designed for 2 to 6 inches of lift, allowing for precise alignment correction, longer suspension travel, and optimized ground clearance for low center of gravity (LCG) builds.

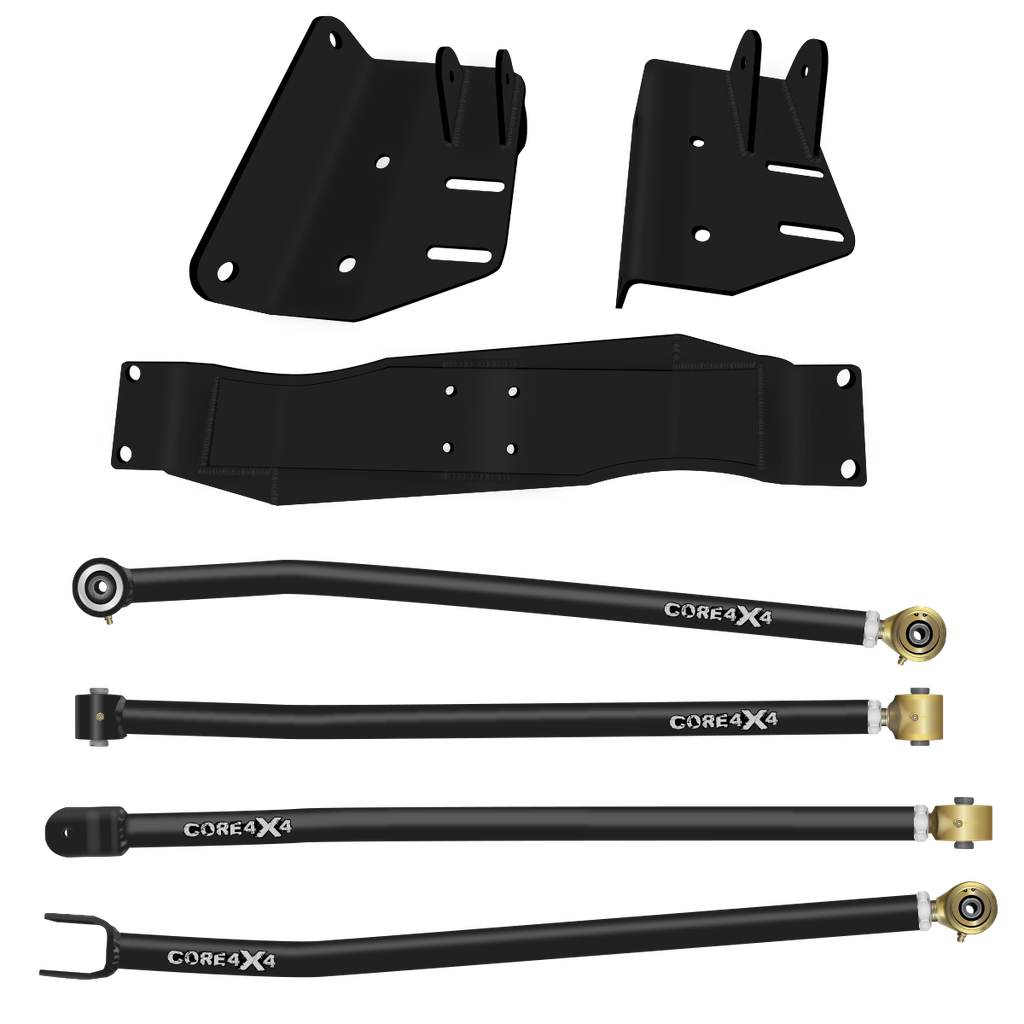

Construction: Built with 5/16” wall DOM tubing, 1/4” plate steel brackets, and a 3-piece high-clearance crossmember, featuring Johnny Joints for industry-leading articulation and durability.
Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.
Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.
Built With
Front Lowers Built With 1.75” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joints on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.
Front Uppers Built With 1.5” OD 5/16” Wall DOM. Welded u-bracket on the welded end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.
Construction & Materials
Front Lowers Built With 1.75” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joints on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.
Front Uppers Built With 1.5” OD 5/16” Wall DOM. Welded u-bracket on the welded end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.
| Vehicle | Jeep Cherokee XJ (84–01) |
| Brand | CORE 4X4 |
| Color | Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed. |
| Series | Crawl Series |
| Lift Size | 0" — 6" or 6"+ |
| Long Arm Kit Front Track Bar Add-On | No or Yes, include optional Track Bar |
| Axle End Upper Joint Upgrade | No-Maintain factory mounting point or Yes-Include Johnny Joint Upgrade (CE-9102K1) |
| Placement on Vehicle | Front Upper, Front Lower, Front |
| Mounting Style | Bolt-On |
Enhanced Suspension Performance for Your Jeep Cherokee XJ
Upgrade your Jeep Cherokee XJ with the Crawl Series Long Arm Upgrade Kit, designed to improve suspension travel, axle stability, and overall ride quality. Unlike radius-style long arms that create single points of failure, this long arm design features both long lower and upper control arms, providing superior strength, articulation, and ground clearance for off-road and on-road performance.
Key Features and Benefits
- Long Arm Design – Enhances suspension articulation, improves ride quality, and eliminates binding issues found in short-arm setups.
- Heavy-Duty Construction – Made from .313-inch wall DOM tubing for exceptional strength and durability in extreme conditions.
- High-Clearance Crossmember – Improves obstacle clearance while maintaining drivetrain accessibility.
- Adjustable for Various Lift Heights – Designed to work with lifts from 2 inches and up, making it an ideal low center of gravity (LCG) option for enhanced stability.
- 100% Bolt-On Installation – Features bolt-on installation with optional weld surfaces for additional reinforcement.
Built for Strength and Performance
The Crawl Series Long Arm Upgrade Kit is engineered to provide maximum articulation and control. By utilizing long upper and lower control arms, this kit allows for a smoother suspension cycle, reducing driveline strain and providing superior ride comfort. Whether navigating technical rock crawls or daily commutes, this upgrade enhances handling and stability.
Optional Axle Side Upper Bushing Upgrade
While factory bushings provide adequate performance, they may wear prematurely under extreme conditions. We offer two upgrade options:
- Polyurethane Replacement Bushings – Provides increased durability and longevity.
- Rock Jock Axle Side Johnny Joint Upgrade Kit – Replaces factory rubber with Johnny Joints for the best articulation and longevity (cutting and welding required for installation).
Two-Stage Powder Coating for Maximum Durability
Each component undergoes a two-stage powder coating process for superior protection.
Zinc Primer Base Coat – Provides rust and corrosion resistance.
Durable Top Coat – Available in 10 custom color options to match or contrast your Jeep’s suspension.
Made in the USA
Proudly manufactured in Orem, UT, the Crawl Series Long Arm Upgrade Kit meets the highest standards of American craftsmanship. By sourcing local materials and maintaining strict quality control, we ensure premium durability and performance.
Each rebuild kit includes all necessary components to replace and restore wearable parts.
Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.
Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.
You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
