Product Details
This kit includes 2 components, each built and powder-coated in-house.
| Make | Model | Submodel | Years |
|---|---|---|---|
| Jeep | Wrangler | 1997–2006 | |
| Jeep | Wrangler | 2004–2006 |
Vehicle Fitment: Jeep Wrangler TJ/LJ 97-06 – Improves front suspension geometry for enhanced handling, stability, and axle positioning, delivering precise steering response and better control.
CORE Advantage: Corrects caster angle issues caused by lifting, eliminating wandering and unstable steering, improving high-speed stability, and ensuring a confident driving experience on and off the road.
Adjustability: Fully adjustable for lifts from 0 to 6 inches, allowing for axle re-centering, optimized pinion and caster angles, and fine-tuned alignment for a smoother, more controlled ride.
Construction: Heavy-duty DOM tubing—1.75” OD for lowers and 1.5” OD for uppers—with a 5/16” wall thickness, featuring Johnny Joints at all ends for superior articulation, reduced suspension bind, and long-term durability.
Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.
Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.
Built With
Front Lower Control Arm Built With 1.75” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.
Front Upper Control Arm Built With 1.5” OD 5/16” Wall DOM. Welded u-bracket on the welded end and a Forged Johnny Joint on the adjustable end with 1” x 14” TPI - 2.32” long threads.
Construction & Materials
Front Lower control arm built with 1.75” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.
Front Upper control arm built with 1.5” OD 5/16” Wall DOM. Welded U-bracket on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.
| Vehicle | Jeep Wrangler TJ (97–06) or Jeep Wrangler LJ (04–06) |
| Brand | CORE 4X4 |
| Color | Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed. |
| Series | Crawl Series |
| Hardware | No Hardware or Complete Kit |
| Adjustment Type | Single Threaded or Double Threaded |
| Lift Size | 0" — 6" or 6"+ |
| Placement on Vehicle | Front Upper, Front Lower, Front |
| Mounting Style | Bolt-On |
Ultimate Flexibility and On-Road Comfort

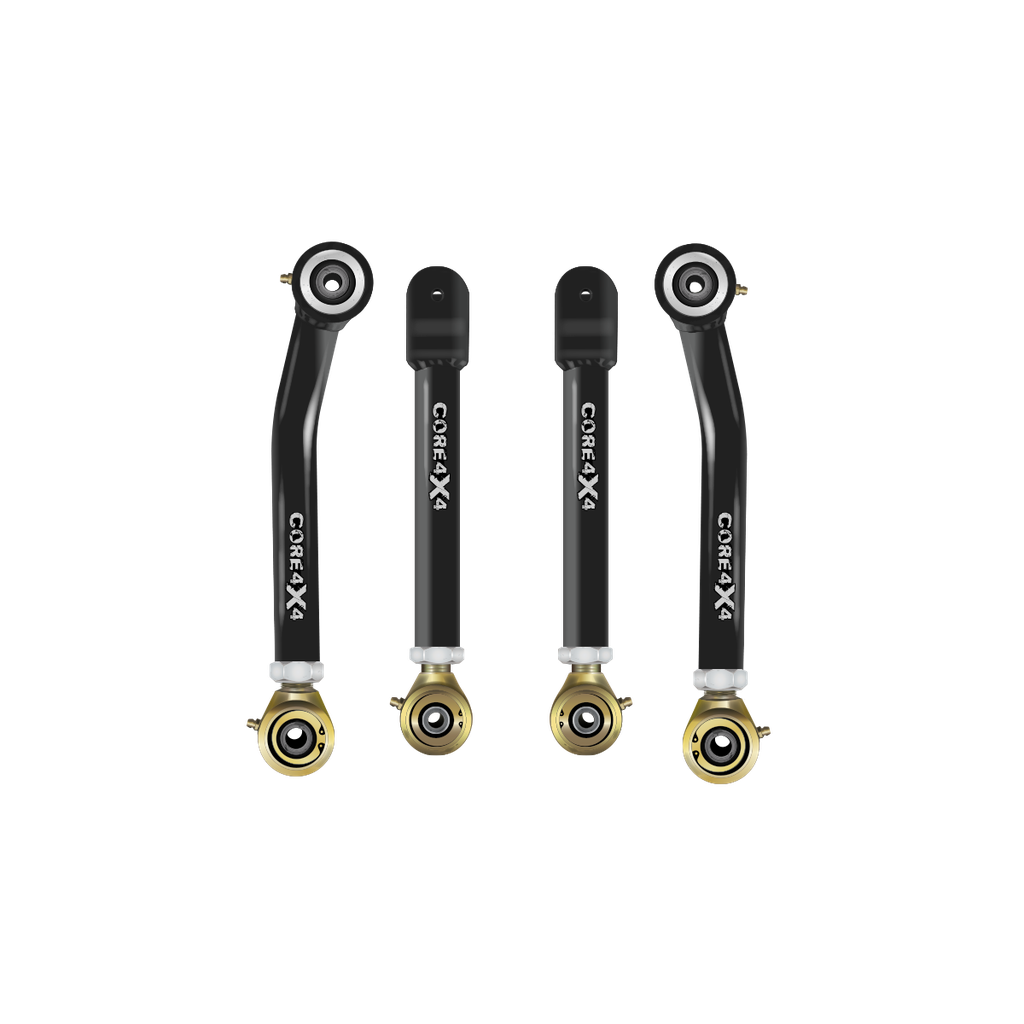

Elevate your Jeep Wrangler TJ/LJ (1997-2006) with the Crawl Series Front Control Arms Set. Engineered to deliver unmatched off-road performance and superior on-road comfort, this set includes a pair of Front Upper Control Arms and Front Lower Control Arms. Designed for enthusiasts who demand precision, flexibility, and durability, these control arms offer a significant performance upgrade over factory and competitor components.
Key Features and Benefits
- Unparalleled Flexibility – Featuring Johnny Joints at all connection points, these control arms allow for maximum articulation, ensuring smooth suspension travel and exceptional off-road performance.
- Precision Adjustability – Designed to accommodate lifts from 0 to 6 inches, these control arms enable precise alignment correction, axle re-centering, and optimized pinion and caster angles.
- Enhanced Durability – Constructed from heavy-duty DOM tubing—1.75" OD for the lowers and 1.5" OD for the uppers—each control arm is built to withstand extreme off-road conditions while maintaining reliability and strength.
- Complete Suspension Solution – Pair these control arms with our Crawl Series Front Track Bar for a fully dialed-in front suspension system that ensures optimal alignment and stability.
Engineered for Precision and Strength
The lower control arms are constructed from 1.75” OD DOM Tubing with a robust 5/16” wall thickness, while the upper control arms utilize 1.5” OD DOM Tubing with the same impressive wall thickness. These materials far exceed industry standards for durability and performance. The Johnny Joints at both ends provide unmatched articulation and longevity, ensuring your suspension can handle the toughest trails while maintaining a smooth ride on the highway.
Two-Stage Powder Coating for Maximum Protection
Our control arms undergo a rigorous two-stage powder coating process to ensure superior corrosion resistance and durability. A zinc primer base coat protects against rust, while a top coat, available in 10 vibrant colors, adds a personalized touch and further safeguards your investment.
Proudly Made in the USA
Manufactured in Orem, UT, the Crawl Series represents the finest in American engineering. By sourcing materials locally and maintaining strict quality control, we ensure every product meets the highest standards of craftsmanship and performance.
Optional Hardware Upgrade
The Crawl Series Front Control Arms Set is designed for a straightforward installation using factory hardware. For those dealing with rusted or stubborn bolts, optional Grade 8 hardware kits are available separately to make the process seamless.
Each rebuild kit includes all necessary components to replace and restore wearable parts.
Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.
Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.
You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
