8pc Crawl Series Adjustable Control Arm Kit

SKU: CRL-J-JL-CS8 ★★★★★ (132 reviews)
Pick your vehicle to confirm fit

$ 1,347.63 1347.63 USD $ 1,585.45

$ 1,585.45

(Save 15%)

See financing options →

Order today — ships within 1–3 business days
Enter ZIP for arrival estimate change
Order by 3:00 PM MT today — we'll start tomorrow
See full timeline
Lifetime warranty Fitment guarantee Ships from Orem, UT 4–8 hr install
COLOR 11 colors — pick yours
https://dev.core4x4.com/web/image/product.template/1909/image_1920?unique=edc8f61

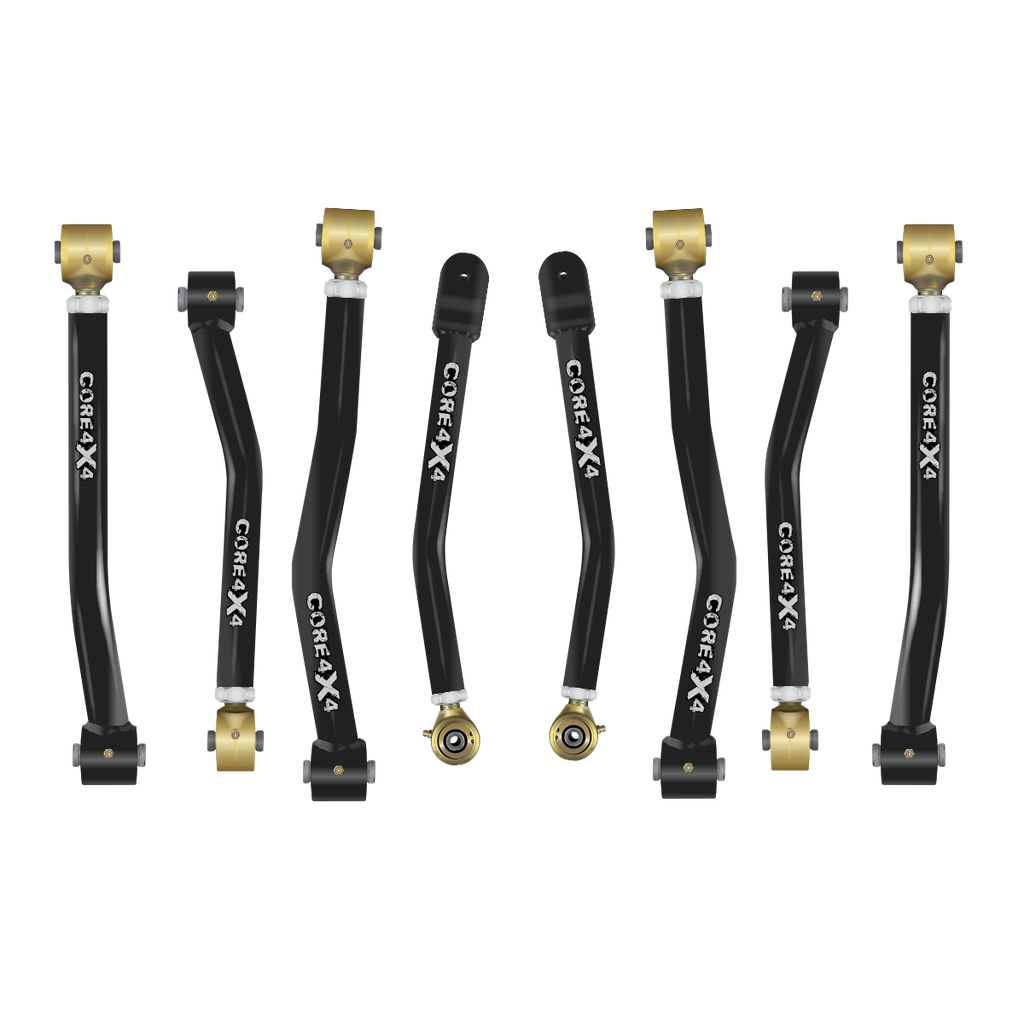

8pc Crawl Series Adjustable Control Arm Kit

SKU: CRL-J-JL-CS8
Pick your vehicle to confirm fit
Google 5.0 ★★★★★ (132 reviews)

$ 1,347.63 1347.63 USD $ 1,585.45

$ 1,585.45

(Save 15%)

COLOR 11 colors
Black Blue Charcoal Green LightGreen Orange Purple Red White Yellow Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.
Compare all tiers →

Build Your Kit

  • Vehicle
    Confirm this matches your vehicle. Use Shop by Vehicle to filter correctly.
  • Brand
  • Color
    Powder coat color for control arms and track bars. Does not affect performance.
  • Series
    Cruise: daily driving and light off-road. Camp: overlanding. Crawl: aggressive rock crawling.
  • Lift Size
    Choose your current front lift height. Measure from center of wheel to fender if unsure.
  • Hardware
    Choose upgraded hardware if your factory hardware is worn, damaged, or missing.
  • Note to Core4x4:

Select Color to see price and add to cart.

Order today — ships within 1–3 business days
Enter ZIP for arrival estimate change
Order by 3:00 PM MT today — we'll start tomorrow
See full timeline

Alignment recommended Lifetime warranty on all non-wear items Made In USA

Made in USA Orem, Utah
Lifetime Guarantee Unconditional
10 Colors In-house powder coat
Fully Adjustable 0-6" of lift
3 X-Series Options Only Core 4x4

Ultimate Off-Road Performance

Upgrade your Jeep Wrangler JL with the Crawl Series Complete Set of Control Arms, designed for superior flexibility and durability while maintaining excellent road manners. This 8-piece set provides unmatched strength, articulation, and adjustability, outperforming all other aftermarket options. Whether tackling rugged trails or cruising the highway, this upgrade enhances handling, axle alignment, and overall suspension geometry.

Key Features and Benefits

  • Heaviest tubing for upper and lower control arms – Lower control arms are constructed from 1.75” OD DOM tubing with a 5/16” wall thickness, while upper control arms use 1.5” OD DOM tubing with the same robust wall thickness for maximum durability.
  • Johnny Joints for superior flexibility – Each control arm is equipped with Johnny Joints at both ends for unmatched articulation and longevity. The front upper control arms feature a U-bracket at the axle end, attaching to the factory-installed bushing.
  • Adjustable for lift heights from 0 to 6 inches – Enables precise alignment correction, axle centering, and pinion angle optimization to eliminate driveline vibrations.
  • Recommended pairing – When all 8 control arms work in sync, your suspension is fully dialed in for improved handling and off-road capability.

Durable Powder Coating for Maximum Protection

Every control arm undergoes a two-stage powder coating process for superior durability and corrosion resistance. A zinc primer base coat enhances rust protection, while the top coat—available in 10 color options—provides long-lasting resilience and customization.

Proudly Made in the USA

The Crawl Series reflects the highest standards of American manufacturing. Built in Orem, UT, using locally sourced materials, every component undergoes rigorous quality control to ensure maximum strength, reliability, and longevity.

Optional Hardware Upgrade

This kit is designed for straightforward installation using factory hardware. For those dealing with rusted or stubborn bolts, optional Grade 8 hardware kits are available separately to ensure a seamless setup.

Final Thoughts

Investing in the Crawl Series Complete Control Arm Set delivers superior off-road flexibility while maintaining exceptional on-road handling. Whether you're tackling challenging terrain or refining your Jeep’s ride quality, this upgrade provides unmatched strength, adjustability, and articulation. Upgrade today and experience the ultimate suspension performance engineered for Jeep enthusiasts!


  • Vehicle Fitment: Jeep Wrangler JL 18+ – Delivers a complete suspension overhaul for superior handling, stability, and off-road capability.

  • CORE Advantage: Provides absolute control over axle positioning, pinion angle, and caster adjustments, ensuring a smooth, stable ride on any terrain.

  • Adjustability: Fully adjustable for 0–6” lifts, allowing fine-tuned axle re-centering, drivetrain alignment, and optimized suspension geometry.

  • Construction: Built from heavy-duty DOM tubing with 5/16” walls, featuring 1.75” OD lowers and 1.5” OD uppers for maximum strength and performance.

  • Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.

  • Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.

Built With

Front Lower Control Arm Built With 1.75” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Front Upper Control Arm Built With 1.5” OD 5/16” Wall DOM. Welded u-bracket on the welded end and a Forged Johnny Joint on the adjustable end with 1” x 14” TPI - 2.32” long threads.

Rear Lower Control Arm Built With 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on the adjustable end and a Welded Johnny Joint on the fixed end with 1.25” x 12 TPI - 2.625” long threads.

Rear Upper Control Arm Built With 1.5” OD 5/16” Wall DOM. Welded Johnny Joints on the fixed end and a Forged Johnny Joint on the adjustable end with 1” x 14” TPI - 2.32” long threads.

Make Model Submodel Years
Jeep Wrangler 2018 - Present

Each rebuild kit includes all necessary components to replace and restore wearable parts.

Master Rebuild kit for CRL-J-JL-CS8 $ 294.00
Master Rebuild kit for CRL-J-JL-FL2 $ 84.00
Master Rebuild kit for CRL-J-JL-RL2 $ 84.00
Master Rebuild kit for CRL-J-JL-RU2 $ 84.00
Master Rebuild kit for CRL-J-JL-FU2 $ 42.00

Construction & Materials

Jeep Wrangler JL / JLU 18+ 2pc Crawl Series Front Lower Adjustable Control Arms

Front Lower control arm built with 1.75” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Jeep Wrangler JL / JLU 18+ 2pc Crawl Series Front Upper Adjustable Control Arms

Front Upper control arm built with 1.5” OD 5/16” Wall DOM. Welded u-bracket on the welded end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.

Jeep Wrangler JL / JLU 18+ 2pc Crawl Series Rear Lower Adjustable Control Arms

Rear Lower control arm built with 1.75” OD 5/16” Wall DOM. Forded Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.

Jeep Wrangler JL / JLU 18+ 2pc Crawl Series Rear Upper Adjustable Control Arms

Rear Upper control arms built with 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.

Vehicle Jeep Wrangler JL / JLU (18–Present)
Brand CORE 4X4
Color Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.
Series Crawl Series
Lift Size 0" — 6" or 6"+
Hardware No Hardware or Complete Kit
Placement on Vehicle Front Upper, Front Lower, Rear Upper, Rear Lower, Front, Rear
Mounting Style Bolt-On

Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.

Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.

You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.

Google

Reviews of Core 4x4

See all on Google
5.0
★ ★ ★ ★ ★
132 reviews
5 ★
97%
4 ★
2%
3 ★
0%
2 ★
1%
1 ★
0%
CW
Cody Whitlock Sep 24, 2025
★ ★ ★ ★ ★ Google
10/10 overall experience, shipping, customer service, and such a great product!
Review photo 1
RH
R and H H Oct 24, 2025
★ ★ ★ ★ ★ Google
Top notch company. Mechanic lost bolts that clamp upper control arms. Korby sent out spare bolts no charge. Best customer service I’ve come across in a long time. Only suspension brand I’ll ever use.
JH
Joe Hu Sep 24, 2025
★ ★ ★ ★ ★ Google
Amazing! I put all my new control arms and it drives a lot smoother and looks great!!!
Review photo 1
BS
Bailey Smith Mar 23, 2025
★ ★ ★ ★ ★ Google
Core 4x4 excels with precision and service and keeps nothing else higher in mind. Everyone I've met at the company is very honest and down to earth, 10/10 would recommend.
DS
Dana Smith Jul 26, 2025
★ ★ ★ ★ ★ Google
Excellent, strong, and durable products—perfect for both on-road and off-road applications. The customer service is outstanding—friendly, knowledgeable, and extremely helpful with understanding installation and ensuring I got exactly what I needed. I would definitely order again. Top-notch company with high-quality products made right here in the U.S.A.
Review photo 1 Review photo 2 Review photo 3
MT
Mike T Nov 23, 2025
★ ★ ★ ★ ★ Google
Korby and the rest of the team at Core 4x4 know there stuff and answered my question in a timely manner. They even were able to quick ship a re-build kit for me so I could get my truck back on the road- Thanks!
MH
mark hinz Mar 2, 2026
★ ★ ★ ★ ★ Google
Went above and beyond to get the parts we needed to complete our customers build for Moab Easter safari cant thank you enough for all your hard work and efforts Thank you and look forward to working with you in the near future
CL
Cade Leith Mar 23, 2024
★ ★ ★ ★ ★ Google
Have full upper/lower CA set on both front and rear axles on a 96 ZJ. These are the rubber bushing sets not joint sets. I have beat the hell out it in the Nevada desert for 2 years and has been great. I don’t go fast but I do articulate suspension a lot. Super solid and haven’t any issues. Just inspected the entire set recently due to some banging under it. Turns out the banging is lower rear shock bushings. Inspected each CA along the way nothing. Aside from dirt and obviously winter roads and what not still in excellent condition, bushings are solid like the day they were installed. I’ll add that I’m about tapped on a short arm at 4.25(less with settle) so the front CA’s get beat on just from that, still they’re like new. Paint is great condition, this set is red. I would definitely buy again. Another plus for me, Utah isn’t local necessarily, but it’s nice to support businesses closer to me.
RR
Ryan Rogers Aug 25, 2025
★ ★ ★ ★ ★ Google
I purchased a set of the Cruiser Series control arms for my Jeep Jk based on postive reviews from different Jeep Facebook pages. Ordered and 2 days later realized they had the very same exact arms on sale in the overstock section. Called them up and they refunded me the savings from my original purchase. Amazing, honest service. Can't wait to get them installed. Keep up the good work guys.
RC
Robert C May 27, 2025
★ ★ ★ ★ ★ Google
Fantastic products! Outstanding performance!! Absolutely the best customer service!! You will not be disappointed!

Specifications

Color Black, Blue, Charcoal, Green, LightGreen, Orange, Purple, Red, White, Yellow, Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.
Lift Size 0" — 6", 6"+
Hardware No Hardware, Complete Kit
Vehicle Jeep Wrangler JL / JLU (18–Present)
Brand CORE 4X4
Series Crawl Series
