Product Details
This kit includes 2 components, each built and powder-coated in-house.
| Make | Model | Submodel | Years |
|---|---|---|---|
| Jeep | Gladiator | 2020–Present |
Vehicle Fitment: Jeep Gladiator JT 20+ – Designed to restore proper caster, improve steering precision, and enhance suspension geometry.
CORE Advantage: Adjusts caster angle to improve high-speed stability, reduce steering wander, and enhance overall drivability.
Adjustability: Adjustable from 0 to 6 inches of lift, ensuring precise axle centering and pinion angle correction for a properly aligned suspension.
Construction: Heavy-duty 1.75" OD 5/16” wall DOM Tubing for the lowers and 1.5" OD 5/16” wall DOM Tubing for the uppers, offering superior strength and off-road durability.
Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.
Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.
Built With
Front Lower Control Arm Built With 1.75” OD 5/16” Wall DOM. A Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.
Front Upper Control Arm Built With 1.5” OD 5/16” Wall DOM. Welded u-bracket on the welded end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.
Construction & Materials
Front Lower control arm built with 1.75” OD 5/16” Wall DOM. A Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.
Front Upper control arm built with 1.5” OD 5/16” Wall DOM. Welded u-bracket on the welded end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.
| Vehicle | Jeep Gladiator JT (20–Present) |
| Brand | CORE 4X4 |
| Color | Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed. |
| Series | Camp Series |
| Lift Size | 0" — 6" or 6"+ |
| Hardware | No Hardware or Complete Kit |
| Placement on Vehicle | Front Upper, Front Lower, Front |
| Mounting Style | Bolt-On |
Correct Your Caster and Take Full Control of Your Suspension

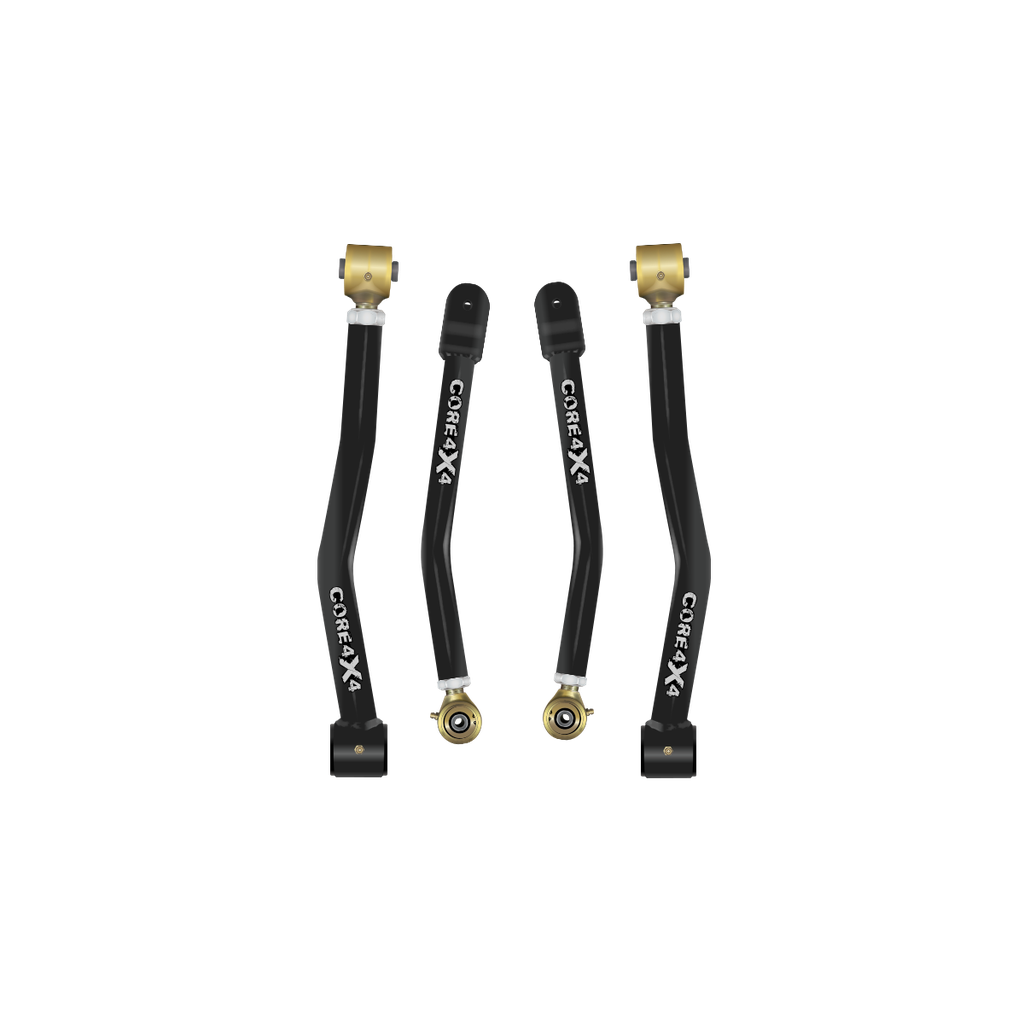

Upgrade your Jeep Gladiator JT (2020-Present) with the Camp Series Front Control Arms Set, designed to correct the factory caster deficiency while improving axle positioning, handling, and overall suspension performance. This set includes Front Upper Control Arms and Front Lower Control Arms, offering a complete solution to regain stability, steering precision, and ride quality.
Key Features and Benefits
- Corrects Caster for Improved Driveability – The Gladiator’s factory suspension lacks sufficient caster, leading to unstable steering and wandering at higher speeds. These control arms restore proper caster angles, improving handling, cornering, and high-speed stability.
- Superior Strength and Durability – Constructed from 1.75" OD DOM Tubing for the lowers and 1.5" OD DOM Tubing for the uppers, both with a .313" wall thickness, these arms are built to withstand aggressive off-road conditions while maintaining on-road comfort.
- Johnny Joint and Polyurethane Bushing Combination – Features Johnny Joints at the adjustable ends for maximum articulation and tapered polyurethane bushings at the axle ends for vibration dampening and long-term durability.
- Adjustable for Lifted Vehicles – Accommodates suspension lifts from 0 to 6 inches, allowing for precise axle re-centering and alignment correction. For lifts over 6 inches, contact us for additional options.
- Recommended Pairing – For total front-end stability and precise axle alignment, we recommend pairing these control arms with the Camp Series Front Track Bar (CMP-J-JT-FTB1) for the ultimate Gladiator suspension upgrade.
Optimized Suspension Performance
The factory Gladiator suspension geometry struggles with caster misalignment, which can cause vague steering and reduced handling precision. The Camp Series Front Control Arms correct these issues, keeping your axle properly positioned and suspension dialed in, whether you're on the road or the trail.
Two-Stage Powder Coating for Maximum Durability
Each control arm undergoes a two-stage powder coating process for superior protection against rust and corrosion. A zinc primer base coat ensures long-term resistance, while the top coat (available in 10 colors) lets you customize your Jeep’s look.
Proudly Made in the USA
All Camp Series components are designed and manufactured in Orem, UT. By keeping production in-house, we ensure strict quality control while supporting American manufacturing.
Straightforward Installation
The Camp Series Front Control Arms Set is designed for easy bolt-on installation using factory hardware. If your stock bolts are rusted or worn, we offer optional Grade 8 hardware kits for a hassle-free installation.
Each rebuild kit includes all necessary components to replace and restore wearable parts.
Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.
Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.
You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
