Product Details
This kit includes 3 components, each built and powder-coated in-house.
| Make | Model | Submodel | Years |
|---|---|---|---|
| Toyota | Tundra | 2022–Present |
Vehicle Fitment: Compatible with Toyota Tundra 22+, this complete rear suspension kit optimizes axle alignment, traction, and handling for enhanced performance on and off the road.
CORE Advantage: Eliminates wheel hop, corrects suspension geometry, and enhances stability, ensuring precise control and improved ride quality under all driving conditions.
Adjustability: Fully adjustable for fine-tuning pinion angle and axle alignment, ensuring proper suspension function for up to a 8" lift.
Construction: Built from 5/16” wall DOM tubing—1.75” OD for control arms and 1.5” OD for the panhard track bar—delivering superior strength and impact resistance. Equipped with Rock Jock Johnny Joints at all ends for maximum articulation, durability, and reduced suspension stress.
Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.
Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.

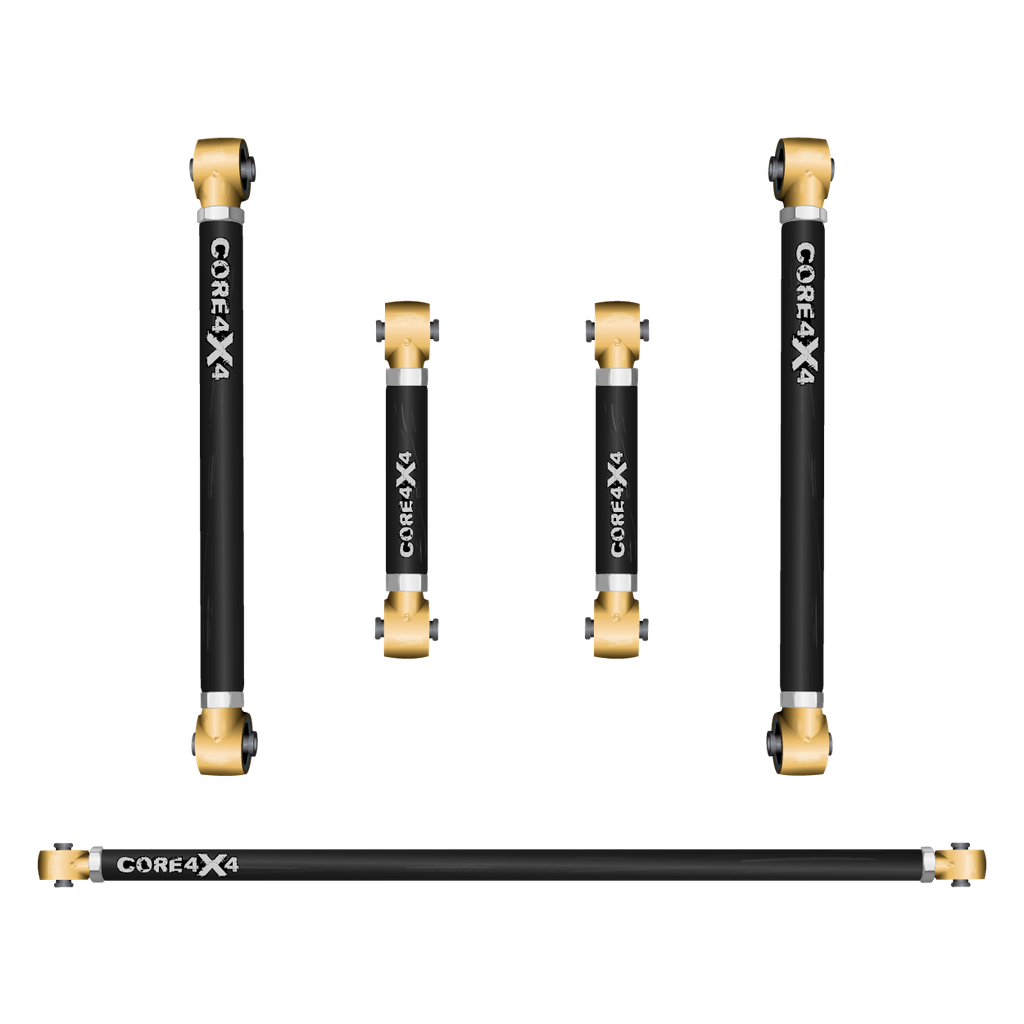

Built With
Rear Upper Control Arms Built With 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Rear Lower Control Arms Built With 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Rear Track Bar Built With 1.5” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1” x 14” TPI - 2.32” long threads.
Construction & Materials
Rear Lower control arms built with 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Rear Upper control arms built with 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1” x 14” TPI - 2.32” long threads.
| Vehicle | Toyota Tundra (22–Present) |
| Brand | CORE 4X4 |
| Color | Black or Blue or Charcoal or Green or Light Green or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed. |
| Hardware | No Hardware or Complete Kit |
| Placement on Vehicle | Rear Upper, Rear Lower, Rear |
| Mounting Style | Bolt-On |
Maximize Performance Stability for Your Toyota Tundra
Upgrade your Toyota Tundra’s suspension with the CORE 4X4 Rear Suspension Kit, designed for superior stability, enhanced handling, and total control. Whether you're tearing up trails, hauling heavy loads, or hitting the racetrack, this complete rear suspension solution ensures your truck performs at its best.
Key Features Benefits
- Unmatched Suspension Control – Fine-tune your rear axle alignment to improve vehicle handling, ensure stability, and prevent dog-tracking.
- High-Strength DOM Tubing Construction – Crafted from 1.75” 1.5” OD DOM Tubing with 5/16” wall thickness, ensuring maximum durability and impact resistance.
- Rock Jock 4x4 Johnny Joints for Maximum Articulation – These premium joints at both ends allow for greater flexibility and suspension movement, reducing stress on key components.
- Eliminates Wheel Hop Enhances Traction – Provides better power transfer, reducing strain on suspension components and enhancing grip under acceleration.
Recommended Pairing
Maximize rear-end control by adding the CORE 4X4 Rear Sway Bar End Links (T-TUN-2022-REL2) for enhanced stability and sway control.
Engineered for Maximum Performance
Lifting or modifying your Tundra’s suspension can throw off axle geometry, leading to handling instability and premature component wear. This adjustable rear suspension kit corrects alignment issues, ensuring your truck remains stable, responsive, and optimized for any terrain. Designed for Toyota Tundra owners who demand precision handling, durability, and off-road capability, this rear suspension upgrade is a must-have for lifted and performance-driven builds.
Two-Stage Powder Coating for Superior Durability
Our two-stage powder coating process provides long-lasting corrosion resistance. Each component is coated with a zinc primer base coat for rust protection, followed by a tough topcoat in your choice of 10 colors.
Proudly Made in the USA
Manufactured in Orem, UT, our CORE 4X4 components are built to exacting standards, ensuring premium craftsmanship, quality control, and long-term reliability.
Optional Hardware Upgrade
This kit installs using factory hardware, but for those dealing with worn or rusted bolts, we offer an optional Grade 8 hardware kit, available separately, for a secure and hassle-free installation.
Conclusion
The CORE 4X4 Rear Suspension Kit (T-TUN-2022-RK5) delivers unparalleled strength, control, and adjustability, making it the ultimate suspension upgrade for 2022+ Toyota Tundra owners. Whether you're off-roading, towing, or daily driving, this kit ensures peak performance and stability. Upgrade today and experience the difference in suspension control, traction, and ride quality with CORE 4X4!
Each rebuild kit includes all necessary components to replace and restore wearable parts.
Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.
Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.
You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
