Product Details
| Make | Model | Submodel | Years |
|---|---|---|---|
| Toyota | Tacoma | 2005–2023 | |
| Toyota | Tacoma | 2024–Present |
Vehicle Fitment: Toyota Tacoma (2023–Present) – Maintains precise axle alignment for improved rear-end control, stability, and cornering, whether on daily drives or rugged off-road terrain.
CORE Advantage: Dual Johnny Joints deliver unmatched articulation and durability while reducing axle shift and body roll, improving suspension geometry and high-speed handling.
Adjustability: Left and right-hand threaded ends allow on-vehicle adjustments for 8" of drop to 8" of lift, realigning the axle and optimizing handling after suspension modifications.
Construction: Built from 1.5" OD DOM tubing with 5/16" wall thickness and premium Johnny Joints at both ends, delivering extreme strength, serviceability, and long-term performance.
Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.
Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.
Built With

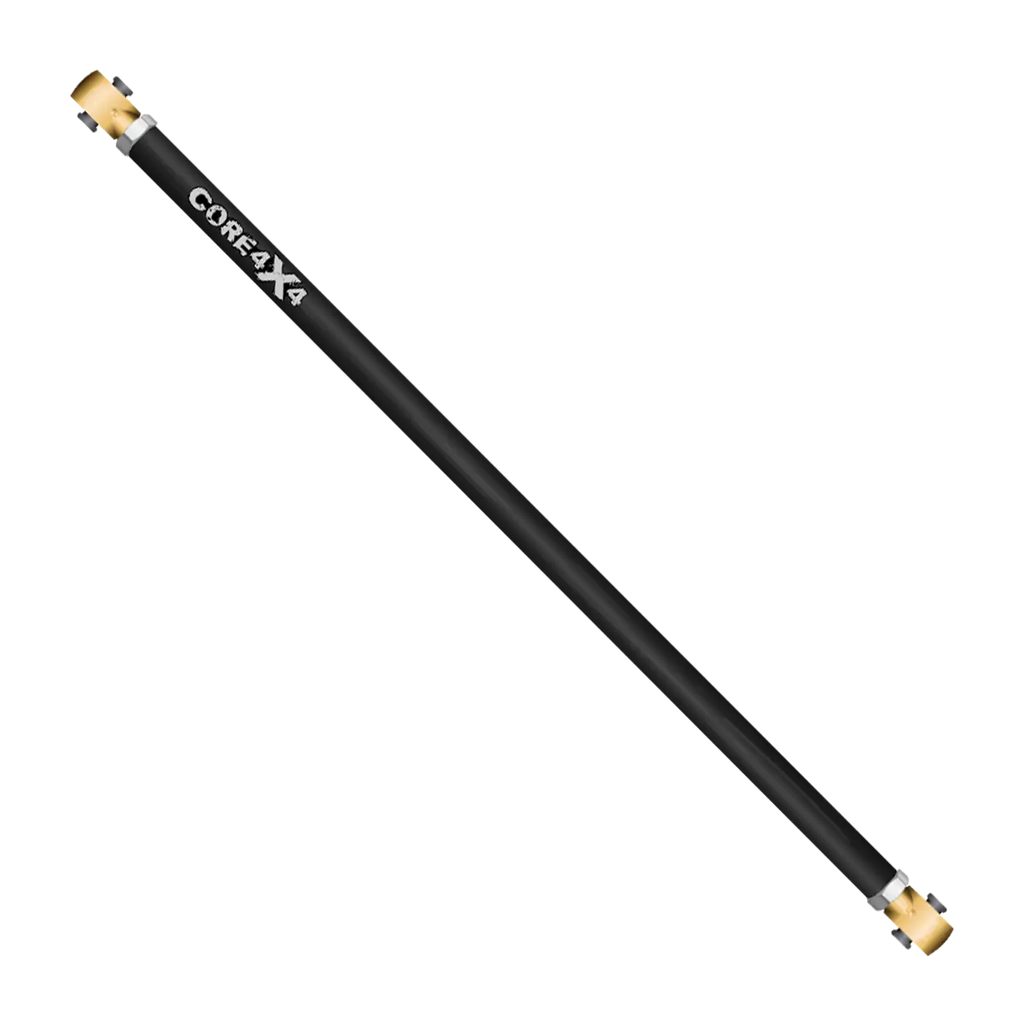

Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1” x 14 TPI - 2.32” long threads.
Construction & Materials
Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1” x 14 TPI - 2.32” long threads.
| Vehicle | Toyota Tacoma (05–23) |
| Color | Black or Blue or Charcoal or Green or Light Green or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed. |
| Hardware | No Hardware or Complete Kit |
| Brand | CORE 4X4 |
| Placement on Vehicle | Rear |
| Mounting Style | Bolt-On |
Superior Vehicle Performance
Boost your vehicle's performance and control with our Rear Panhard Track Bar. Tailored to be compatible with Toyota Tacoma models from 2023 to present, this track bar is an essential component in any solid axle suspension system. It keeps your vehicle's axle perfectly aligned, especially during navigation on uneven terrains or cornering, thus offering a consistently superior handling experience.
Sturdy Construction
Our Rear Panhard Track Bar is constructed from 1.5” OD DOM Tubing with 5/16” wall thickness, ensuring unparalleled robustness and durability across all terrains. It uniquely features a Rock Jock Johnny Joint at both ends of the track bar, renowned for their exceptional durability and range of motion. Each end is serviceable and rebuildable, which simplifies maintenance and extends their lifespan. This cost-effective and adaptable design perfectly meets the demands of off-road adventures or daily drives aiming for peak performance.
Unrivaled Adjustability
Changes in your vehicle's height, either by lifting or lowering, can cause the axle to move to one side due to the change in the track bar's angle. Our adjustable Rear Panhard Track Bar effectively handles this deviation. With left and right hand threaded ends it is designed to accommodate modifications from a drop of 8 inches to a lift of 8 inches, allowing you to precisely realign your axle and make adjustments while installed. This enhances the vehicle's handling and reduces stress on suspension components. For adjustments beyond this range, please contact us for additional options.
Durable Two-Stage Powder Coating
We subject our track bars to a rigorous two-stage powder coating process for top-notch durability and corrosion resistance. The process begins with a zinc primer base coat for optimal rust protection, followed by a top coat in one of our available color options. This not only provides an additional layer of protection but also lets you personalize the appearance of your Rear Panhard Track Bar.
Proudly Manufactured in the USA
We take immense pride in manufacturing our parts right here in our advanced facility in Orem, UT. Adhering to our commitment to American craftsmanship, we oversee virtually every step of the manufacturing process in-house. From precise machining to professional welding, from meticulous powder coating to quality inspection, we ensure that every component meets our high standards. This approach ensures product excellence while keeping prices affordable for our customers. By choosing our products, you're supporting local manufacturing while receiving superior quality at a competitive price.
Easy Installation
Our Rear Panhard Track Bar is designed for a straightforward installation, using factory hardware. If worn-out bolts need to be replaced, we offer optional new Grade 8 hardware kits separately.
Key Features
- Enhances stability and offers exceptional handling
- Sturdy design featuring Rock Jock Johnny Joints at both ends
- Highly adjustable to accommodate lift or lowering modifications up to 8 inches
Why Choose Our Rear Panhard Track Bar?
- Enhanced Stability: Our Rear Panhard Track Bar significantly reduces body roll during cornering and ensures accurate alignment of the axle, enhancing steering response and overall handling.
- Sturdy Construction: Made from 1.5” DOM Tubing and featuring Rock Jock Johnny Joints at both ends, our Rear Panhard Track Bar offers superior strength and durability compared to our competition.
- High Adjustability: Enjoy improved stability and superior handling with the ability to make accurate adjustments to your suspension, whether you've lifted or lowered your vehicle, with our Rear Panhard Track Bar.
- Supports American Manufacturing: By choosing our products, you're supporting American-made products, and benefiting from our stringent manufacturing standards.
Concluding Thoughts
Selecting our Rear Panhard Track Bar means choosing exceptional control, robust durability, and American-made quality. It's an outstanding upgrade for those who've modified their vehicles' height, whether lifted or lowered, and for off-road enthusiasts wanting to enhance their vehicle's performance.
Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.
Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.
You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
