Product Details
| Make | Model | Submodel | Years |
|---|---|---|---|
| Toyota | Tacoma | 2005–2023 | |
| Toyota | Tacoma | 2024–Present |
Vehicle Fitment: Compatible with Toyota Tacoma 24+, this rear suspension kit enhances stability, axle alignment, and traction for off-road, towing, and performance applications.
CORE Advantage: Eliminates wheel hop, prevents rear axle shifting, and improves handling by fine-tuning pinion angle and suspension geometry.
Adjustability: Fully adjustable for lifted and lowered setups, up to 8", allowing fine-tuning of pinion angle and suspension geometry to maintain optimal drivetrain efficiency.
Construction: Crafted from 5/16” wall DOM tubing—1.75” OD for control arms and 1.5” OD for the panhard track bar—delivering superior strength and impact resistance. Equipped with Rock Jock Johnny Joints at all ends for maximum articulation, durability, and reduced suspension stress.
Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.
Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.

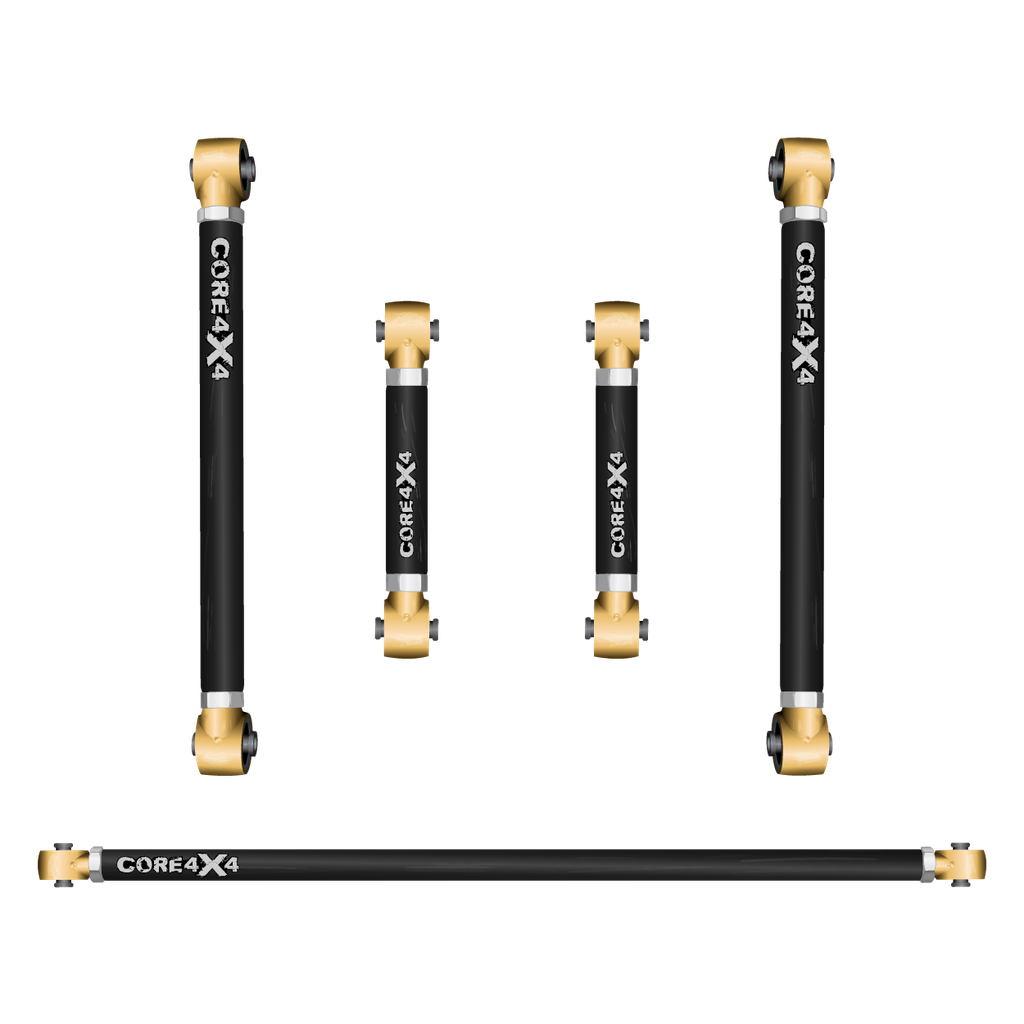

Built With
Rear Upper Control Arms Built With 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Rear Lower Control Arms Built With 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Rear Track Bar Built With 1.5” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1” x 14” TPI - 2.32” long threads.
Construction & Materials
Rear Upper Control Arms Built With 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Rear Lower Control Arms Built With 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Rear Track Bar Built With 1.5” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1” x 14” TPI - 2.32” long threads.
| Vehicle | Toyota Tacoma (05–23) |
| Brand | CORE 4X4 |
| Color | Black or Blue or Charcoal or Green or Light Green or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed. |
| Hardware | No Hardware or Complete Kit |
| Placement on Vehicle | Rear Upper, Rear Lower, Rear |
| Mounting Style | Bolt-On |
Optimize Your Tacoma’s Rear Suspension Performance
Upgrade your Toyota Tacoma’s rear suspension with the CORE 4X4 Rear Suspension Kit, designed for unmatched stability, precision, and adaptability. Whether you're hitting the trails, tackling rough terrain, or fine-tuning your setup for high-performance applications, this kit provides exceptional strength and adjustability to keep your Tacoma handling at its best.
Key Features Benefits
- Unmatched axle control stability – Prevents rear axle shifting, improving handling, traction, and ride quality.
- Heavy-duty DOM tubing construction – Crafted from 1.75” 1.5” OD DOM tubing with 5/16” wall thickness, ensuring incredible strength and durability.
- RockJock 4x4 Johnny Joints – Equipped with high-misalignment Johnny Joints at both ends, providing exceptional articulation and longevity.
- Fully adjustable for precision alignment – Fine-tune your axle positioning and pinion angle for optimal drivetrain performance.
- Eliminates wheel hop – Improves traction under acceleration, reducing rear-end instability on both off-road and high-speed applications.
Superior Adjustability Performance
Lifting or lowering your Tacoma can throw off axle alignment and create handling issues. This fully adjustable rear suspension kit allows you to dial in perfect alignment and ensure smooth, predictable handling. If your modifications exceed an 8-inch lift or drop, please contact us for additional options and support.
Two-Stage Powder Coating
Our two-stage powder coating process provides superior corrosion resistance. The zinc primer base coat offers maximum rust protection, while the durable topcoat is available in 10 color options for a customized look.
Proudly Made in the USA
Manufactured in Orem, UT, this CORE 4X4 Rear Suspension Kit is precision-built to exceed industry standards. We take pride in supporting American craftsmanship, rigorous quality control, and exceptional durability.
Optional Hardware Upgrade
This kit installs with factory hardware, but for easier installation and long-term reliability, we offer an optional Grade 8 hardware kit. This upgrade is ideal for replacing stubborn or rusted bolts, ensuring a secure and hassle-free installation.
Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.
Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.
You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
