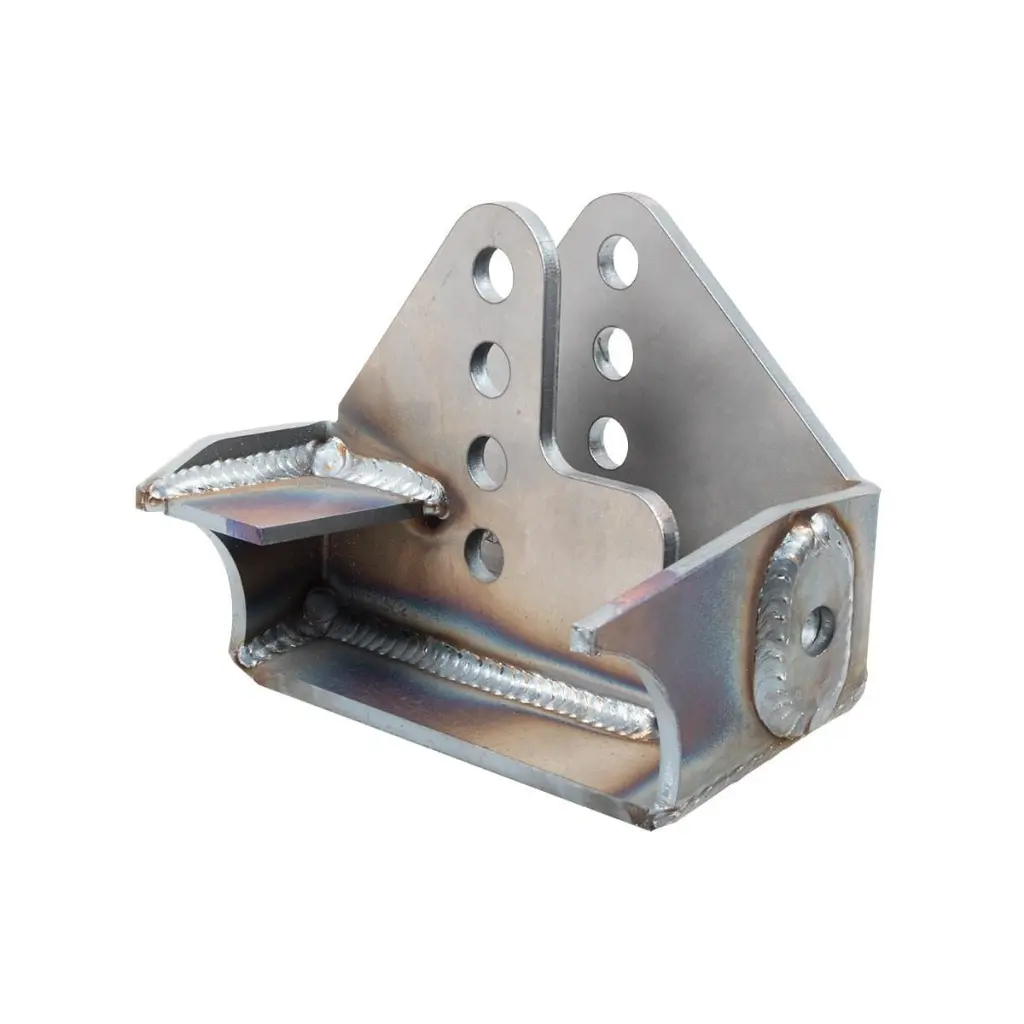

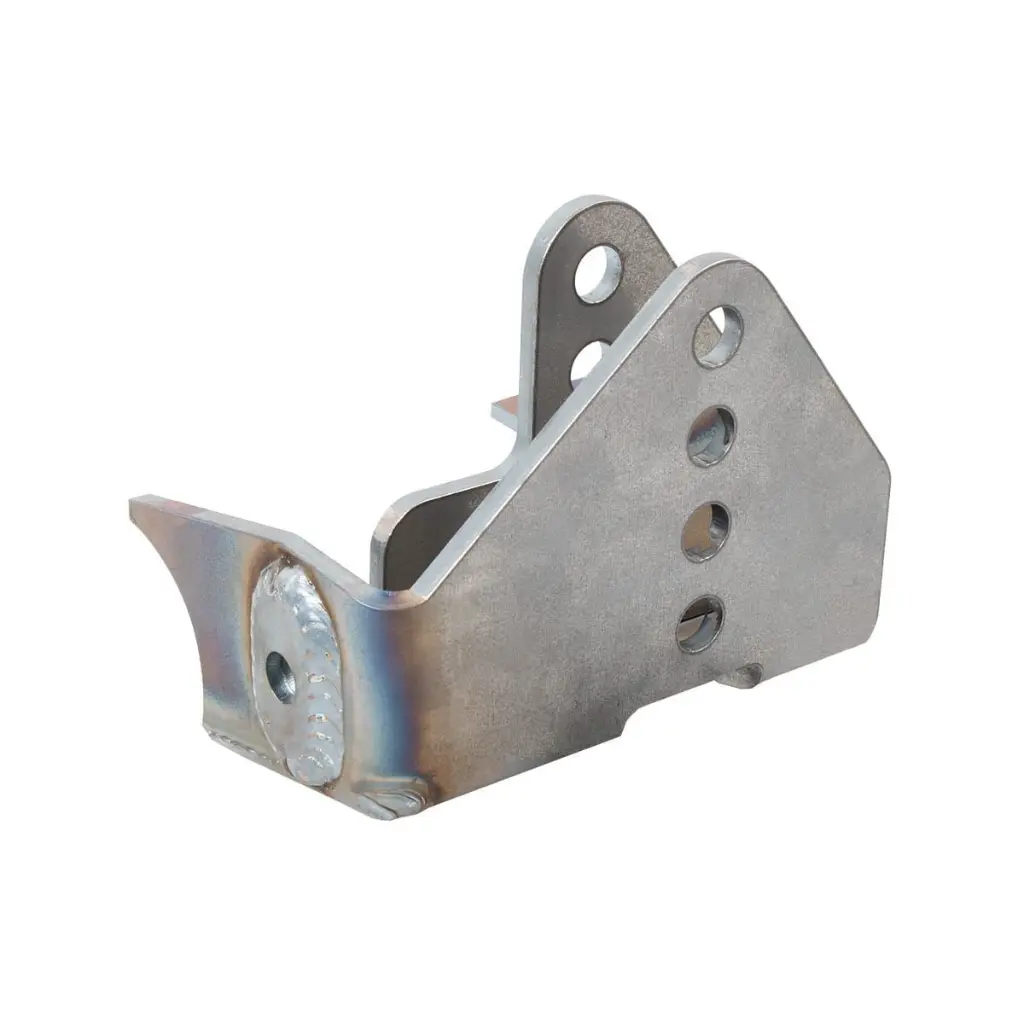

Jeep JK/JL/JT Weld On Track Bar Bracket

Jeep JK/JL/JT Weld On Track Bar Bracket
SKU: SYN-8812-05
Pick your vehicle to confirm fit

180.00 180.0 USD 180.00

180.00

  • Vehicle
    Confirm this matches your vehicle. Use Shop by Vehicle to filter correctly.
  • Brand

Select Color to see price and add to cart.

Lifetime warranty United States

Made in USA Orem, Utah
Lifetime Guarantee Unconditional
10 Colors In-house powder coat
Fully Adjustable 0-6" of lift
3 X-Series Options Only Core 4x4

Fits:

  • 2018+ Jeep Wrangler JL / JLU
  • 20+ Jeep JT Gladiator
  • 07-18 Jeep Wrangler JK / JKU

Benefits:

  • The vehicle's roll center is raised, reducing body roll and dramatically improving overall handling
  • Weld on design for strength and reliability
  • Compatible with all lift heights, bracket can be trimmed for track bar bracket heights from stock, 1", 2" +3" over stock height
  • Bracket moves track bar closer to the axle centerline to clear aftermarket high-steer knuckles/tie rod at full steering lock
  • Takes the place of the very weak factory axle side track bar mount
  • Top mount designed to be compatible with the drag link flip

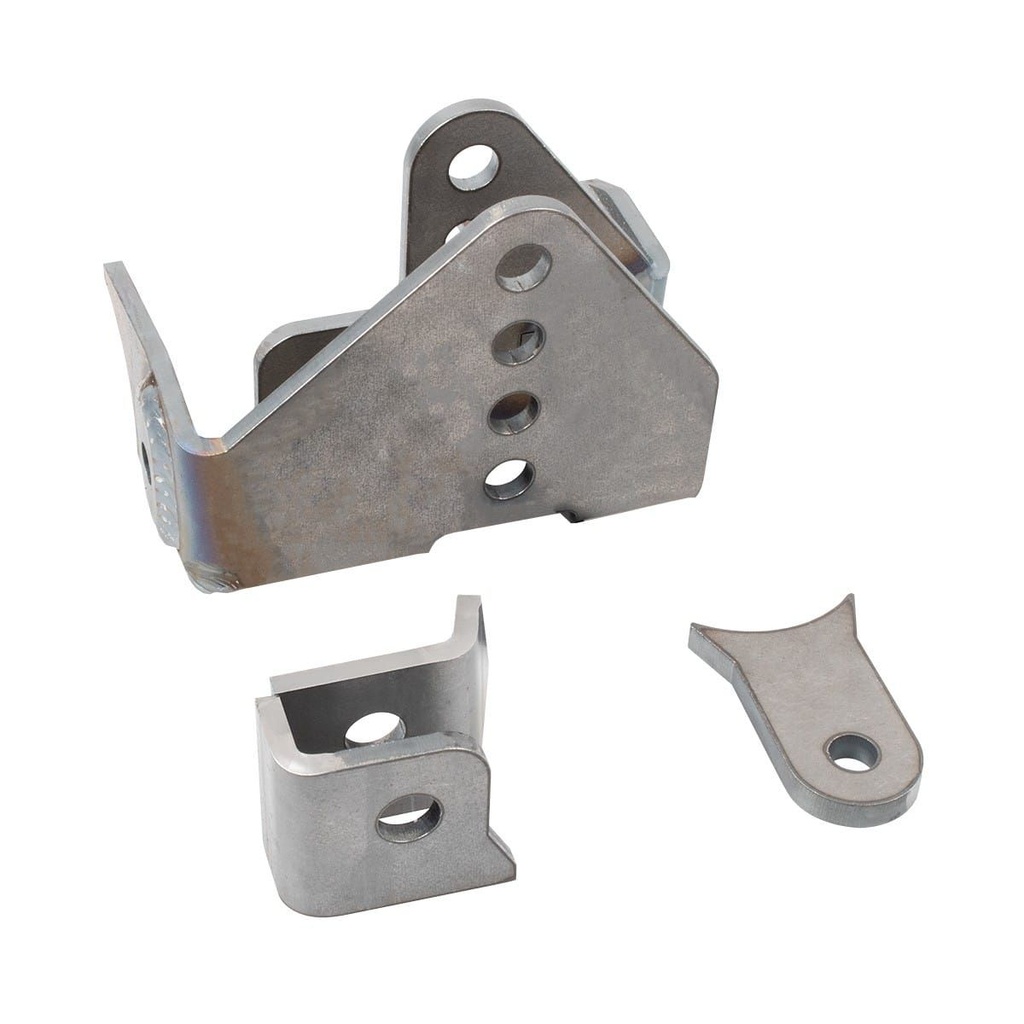

Features:

  • Laser cut from 1/4" steel
  • Weld on tabs for steering assist rams included
  • Weld on sway bar relocation tab included

Notes:

  • Must run drag link in high steer configuration, flipped above knuckle, to use this bracket.
  • Adjustable front track bar recommended for lifts 3” or higher.
  • Minimum of 3” bump stop spacing required.
  • Minimum 4.75” wheel backspacing required to clear drag link in flipped position.


Make Model Submodel Years
Jeep Gladiator 2020 - Present
Jeep Wrangler 2007 - 2018
Jeep Wrangler 2018 - Present

Vehicle Jeep Gladiator JT (20–Present) or Jeep Wrangler JL / JLU (18–Present) or Jeep Wrangler JK / JKU (07–18)
Brand Synergy
Placement on Vehicle Front
Mounting Style Weld-On
