Made in USA
Orem, Utah
Lifetime Guarantee
Unconditional
10 Colors
In-house powder coat
Fully Adjustable
0-6" of lift
3 X-Series Options
Only Core 4x4

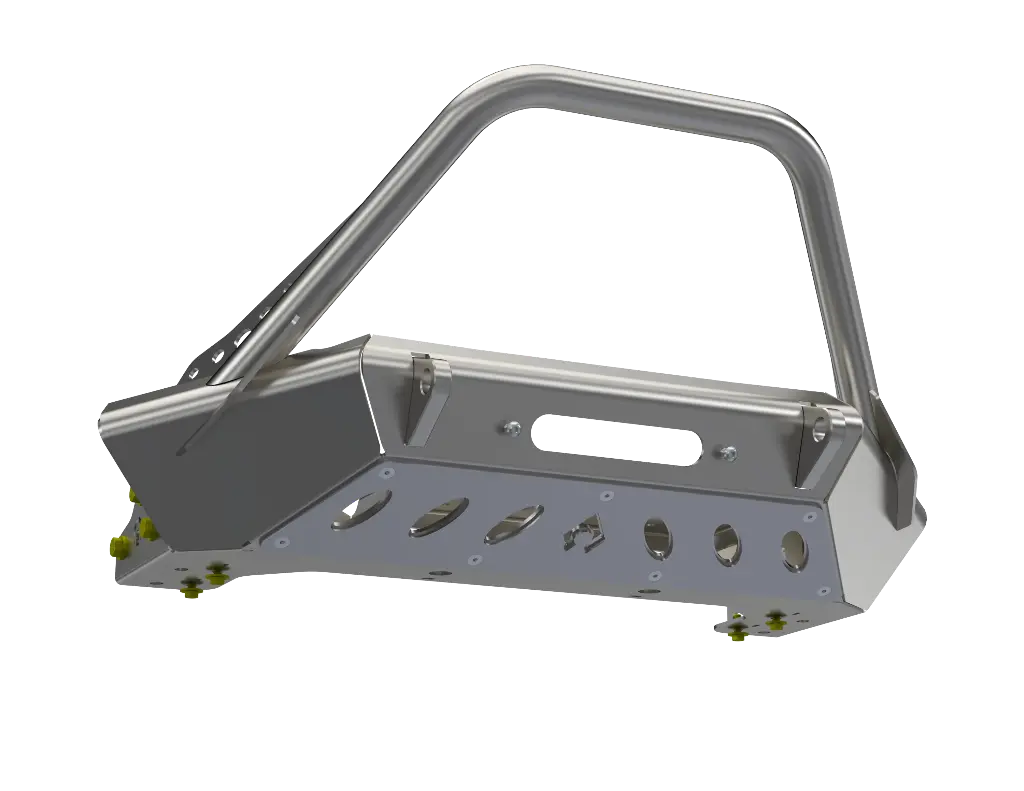

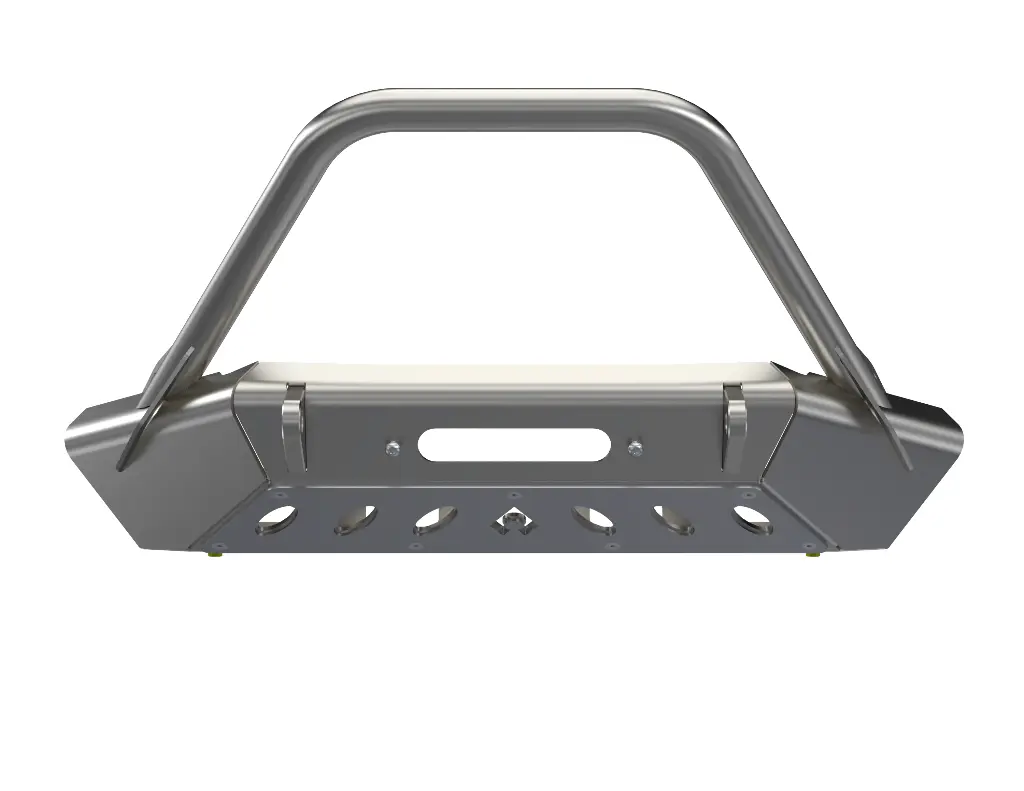

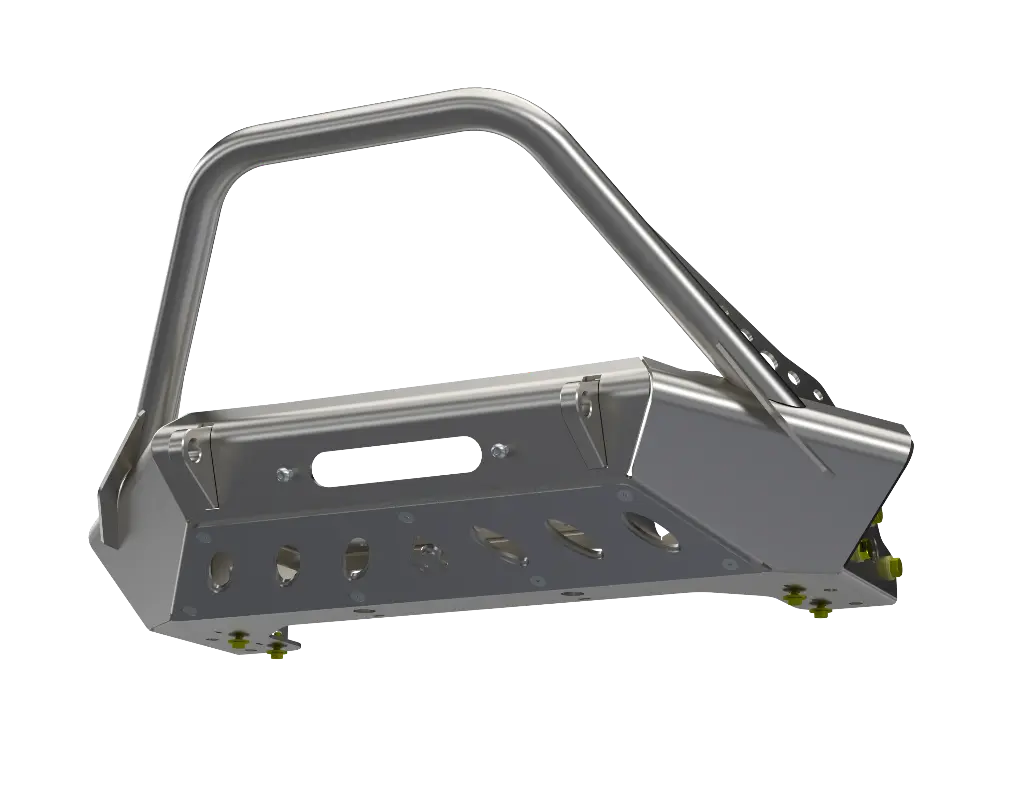

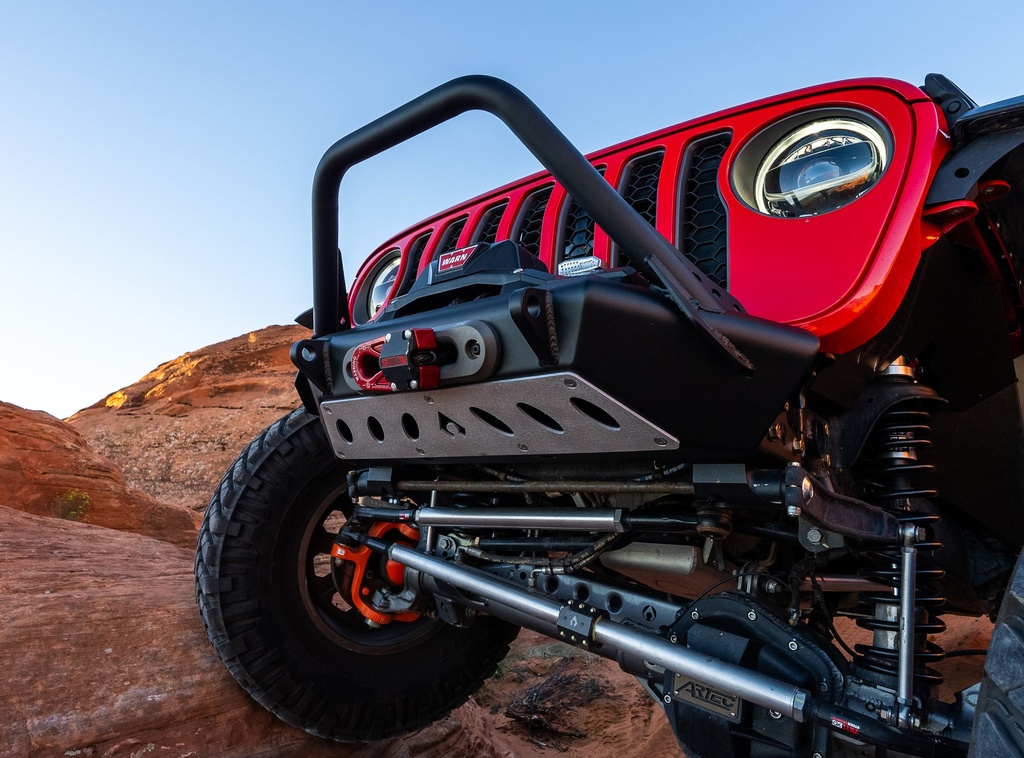

Artec Industries' Bantam Series Front Bumper with Hoop: USA-crafted from CNC laser-cut steel. Features amplified clearance, reinforced winch mount, aerospace-grade skid, and a robust hoop. Choose bare steel or matte black powder coat.
Features and Benefits:
- Raw Steel
- Enhances clearance and approach angle, complemented by an integrated fairlead mount.
- Crafted in the USA using 1/4 inch and 3/16 inch CNC laser-cut and formed steel.
- Installation involves drilling and trimming 5.25 inch from front frame horns, optimizing the approach angle.
- Features high clearance that directly bolts to the modified frame, anchored by an internal PEM Plate.
- Boasts a winch mount made of 1/4 inch thick steel, ensuring superior rigidity.
- Features a 3/16 inch aerospace-grade aluminum bash skid, precision-machined for countersunk hardware, resulting in a sleek finish.
- Expertly contoured to maximize approach angle and tire clearance.
- The distinctive hoop is crafted from sturdy 1.75 inch DOM tubing.
- Large plate steel gussets reinforce the hoop, adding both strength and style.
- Offers multiple swaybar mounting solutions; however, the OEM electric swaybar is incompatible.
- Weighs in at an approximate total of 65lbs.
Please Note:
Permanent Solution: After fitting our bumper, there's no turning back to the ordinary; embrace the upgrade.
Unwavering Bond: For those seeking unmatched strength, weld our bumper directly to the stock frame and witness unparalleled rigidity.
Flawless Installation Journey: Our guide isn't just informative-it's a visual treat. Dive into vivid imagery and detailed steps for a hassle-free setup.
While providing varied swaybar mounting solutions, the OEM electric swaybar is incompatible.
This product is compatible with ROCKJOCK Antirock series swaybars:
Jeep JK/JKU Swaybar Compatibility:
CE-9900JKF
CE-9900JKFA
Jeep JL/JLU/JT Gladiator Swaybar Compatibility:
CE-9900JLF
CE-9900JLFA
Winch And Fairlead Compatibility:
Compatible with most winches comparable to the warn Zeon.
Not compatible with offset winches.
| Make | Model | Submodel | Years |
|---|---|---|---|
| Jeep | Gladiator | 2020 - Present | |
| Jeep | Wrangler | 2007 - 2018 | |
| Jeep | Wrangler | 2018 - Present |
| Vehicle | Jeep Gladiator JT (20–Present) or Jeep Wrangler JL / JLU (18–Present) or Jeep Wrangler JK / JKU (07–18) |
| Brand | Artec |
| Placement on Vehicle | Front |
| Mounting Style | Bolt-On |
