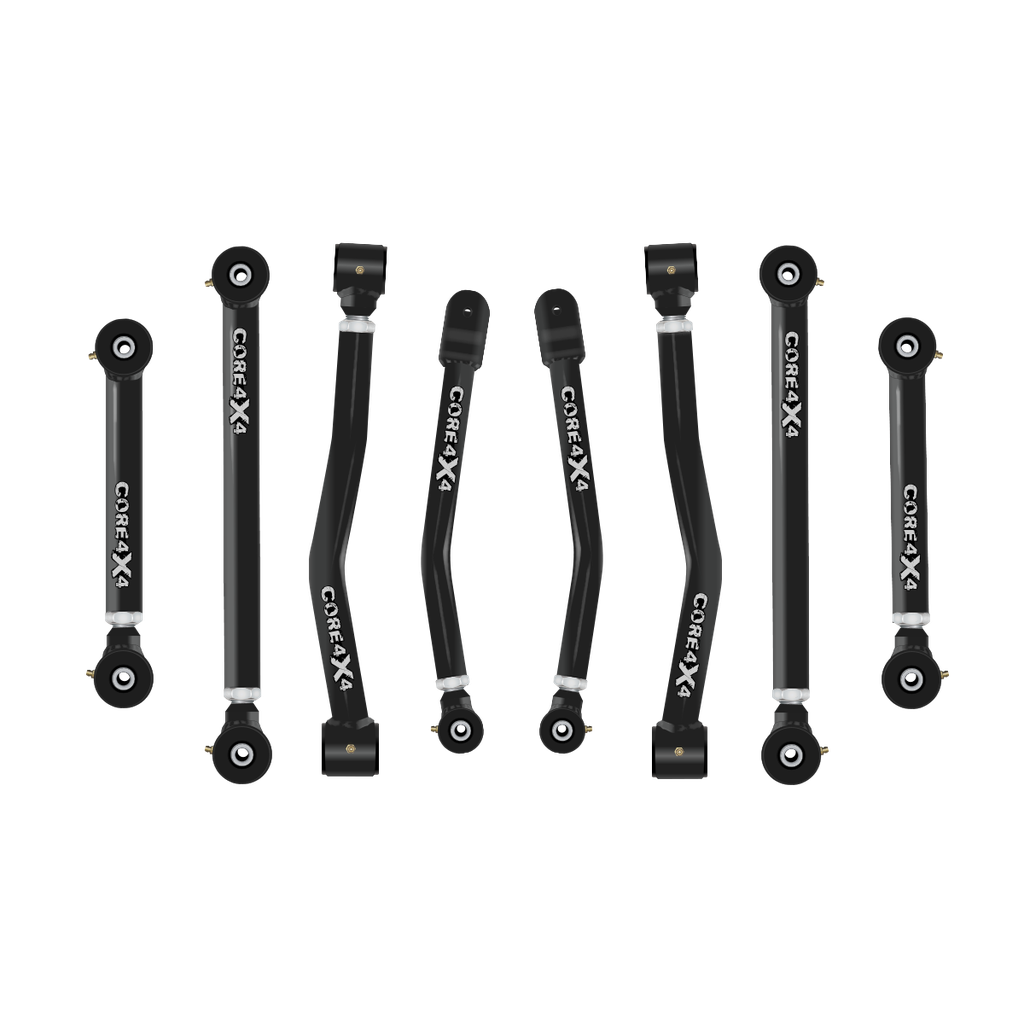

Jeep Gladiator JT 8pc Cruise Series Adjustable Control Arm Kit

Name: Jeep Gladiator JT 20+ 8pc Cruise Series Adjustable Control Arm Kit
Brand: CORE 4X4
SKU: CRS-J-JT-CS8
Price: 976.45 USD
Availability: InStock

8pc Kit

SKU: CRS-J-JT-CS8 ★★★★★ (132 reviews)

$ 732.34 732.34 USD $ 976.45

$ 976.45

(Save 25%)

See financing options →

Order today — ships within 1–3 business days

Enter ZIP for arrival estimate change

Order by 3:00 PM MT today — we'll start tomorrow

See full timeline

Lifetime warranty Fitment guarantee Ships from Orem, UT 4–8 hr install

Jeep Gladiator JT 20+ 8pc Cruise Series Adjustable Control Arm Kit

Shared Image from x_studio_series_image_1

Shared Image from x_studio_series_image_2

Shared Image from x_studio_series_image_3

Shared Image from x_studio_series_image_4

COLOR 11 colors — pick yours

	Daily Confidence $732	Trail-Ready $1,033	Trail Domination $1,369
Articulation	30°	65°	95°
Joint Type	Flex Polyurethane	Forged Johnny Joint	Forged Johnny Joint
Tubing	1.875" OD lowers / 1.625" OD uppers · 3/16" wall DOM	1.75" OD lowers / 1.50" OD uppers · 5/16" wall DOM	1.75" OD lowers / 1.50" OD uppers · 5/16" wall DOM
Maintenance	Periodic greasing	Periodic greasing	Periodic greasing
Warranty	Lifetime	Lifetime	Lifetime
	SELECT CRUISE →	SELECT CAMP →	SELECT CRAWL →

Made in USA Orem, Utah

Lifetime Guarantee Unconditional

10 Colors In-house powder coat

Fully Adjustable 0-6" of lift

3 X-Series Options Only Core 4x4

This kit includes 4 components, each built and powder-coated in-house.

Complete Suspension Control for Maximum Stability

Upgrade your Jeep Gladiator JT (2020-Present) with the Cruise Series Control Arms Set, designed to eliminate caster deficiencies, drivability issues, wandering, and rear axle misalignment. This complete eight-piece set provides full control over your suspension geometry, allowing for precise axle centering, pinion angle correction, and improved ride quality both on and off the road.

Key Features and Benefits

Corrects caster for enhanced steering stability – Eliminates wandering and rut-following by restoring the correct caster angle in the front suspension, especially after lifting.
Re-centers the rear axle eliminates driveline vibrations – Adjusts pinion angle to reduce driveline vibrations and prevents dog-tracking for a more stable ride.
Adjustable for lifted vehicles – Designed for 0 to 6 inches of lift, allowing fine-tuned adjustments to optimize handling, alignment, and tire wear.
Heavy-duty construction – Built from high-strength steel tubing with tapered polyurethane bushings for durability and long-lasting performance.

Two-Stage Powder Coating for Maximum Protection

Each control arm undergoes a two-stage powder coating process for superior corrosion resistance and durability. The zinc primer base coat creates a protective barrier against rust and environmental damage, while the customizable top coat, available in 10 different colors, allows you to personalize your Jeep’s look while adding an extra layer of protection.

Made in the USA

Proudly manufactured in Orem, UT, we oversee every step of the production process to ensure top-tier quality, precision, and durability.

Optional Hardware Upgrade

Our control arms install using factory hardware, but if you need replacement bolts, we offer optional Grade 8 hardware kits to make installation easier and more secure.

Final Thoughts

By upgrading to the Cruise Series Control Arms Set, you’ll eliminate front-end wandering, improve rear axle alignment, and correct pinion angles for a smoother, more controlled ride. This kit provides a complete suspension solution, ensuring precision alignment, better stability, and long-term durability for your lifted Jeep Gladiator JT. Upgrade today and experience the next level of performance with CORE 4X4!

Vehicle Fitment: Jeep Gladiator JT 20+ – Eliminates wandering, improves steering precision, and re-centers the rear axle for a more stable and predictable ride.
CORE Advantage: Provides full suspension control, correcting caster, optimizing pinion angle, and improving handling for lifted and stock-height setups.
Adjustability: Designed for lifts from 0 to 6 inches, allowing precise alignment correction, axle positioning, and optimized tire wear.
Construction: Heavy-duty steel tubing with tapered polyurethane bushings for durability, improved articulation, and vibration absorption.
Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.
Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.

Built With

Front Lower Control Arms Built With 1.875” OD 3/16” Wall DOM. Polyurethane Bushings on the fixed and adjustable ends with 1.25” x 12 TPI - 3.25” long threads.

Front Upper Control Arms Built With 1.625” OD 3/16” Wall DOM. Welded U-bracket on the fixed end and a Polyurethane Bushing on the adjustable end with 1” x 14 TPI - 3.25” long threads.

Rear Upper Control Arms Built With 1.875” DOM 3/16” Wall DOM. Polyurethane Bushings on both the adjustable end and fixed end with 1.25” x 12 TPI - 3.25” long threads.

Rear Lower Control Arms Built With 1.875” OD 3/16” Wall DOM. Polyurethane Bushings on the fixed and adjustable ends with 1.25” x 12 TPI - 3.25” long threads.

Make	Model	Submodel	Years
Jeep	Gladiator		2020 - Present

Each rebuild kit includes all necessary components to replace and restore wearable parts.

Master Rebuild kit for CRS-J-JT-CS8 $ 234.00

Master Rebuild kit for CRS-J-JT-RL2 $ 72.00

Master Rebuild kit for CRS-J-JT-RU2 $ 72.00

Master Rebuild kit for CRS-J-JT-FL2 $ 60.00

Master Rebuild kit for CRS-J-JT-FU2 $ 30.00

Construction & Materials

Jeep Gladiator JT 20+ 2pc Cruise Series Front Lower Adjustable Control Arms

Front Lower control arms built with 1.875” OD 3/16” Wall DOM. Polyurethane Bushings on the fixed and adjustable ends with 1.25” x 12 TPI - 3.25” long threads.

Jeep Gladiator JT 20+ 2pc Cruise Series Front Upper Adjustable Control Arms

Front Upper control arms built with 1.5” OD 5/16” Wall DOM. Welded U-bracket on the fixed end and a Polyurethane Bushing on the adjustable end with 1” x 14 TPI - 3.25” long threads.

Jeep Gladiator JT 20+ 2pc Cruise Series Rear Lower Adjustable Control Arms

Rear Lower control arms built with 1.875” OD 3/16” Wall DOM. Polyurethane Bushings on the fixed and adjustable ends with 1.25” x 12 TPI - 3.25” long threads.

Jeep Gladiator JT 20+ 2pc Cruise Series Rear Upper Adjustable Control Arms

Rear Upper control arms built with 1.875” DOM 3/16” Wall DOM. Polyurethane Bushings on both the adjustable end and fixed end with 1.25” x 12 TPI - 3.25” long threads.

Vehicle	Jeep Gladiator JT (20–Present)
Brand	CORE 4X4
Color	Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.
Hardware	No Hardware or Complete Kit
Series	Cruise Series
Placement on Vehicle	Front Upper, Front Lower, Rear Upper, Rear Lower, Front, Rear
Mounting Style	Bolt-On

Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.

Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.

You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
