This kit includes 2 components, each built and powder-coated in-house.
Unmatched Flexibility Durability

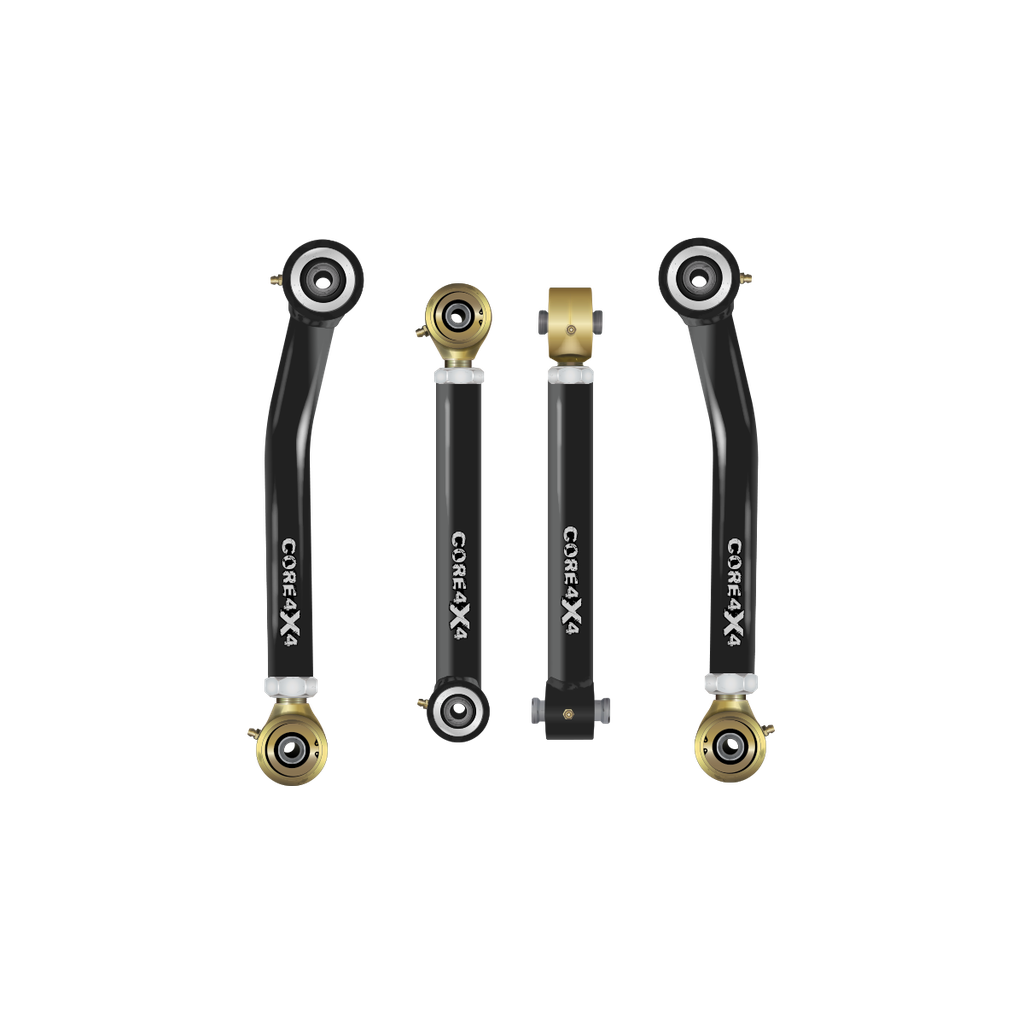

Upgrade your Jeep Wrangler TJ/LJ (1997-2006) with the Crawl Series Rear Control Arms Set, the ultimate solution for enhanced off-road performance and superior road manners. This complete set includes two upper (CRL-J-TJLJ-RU2) and two lower (CRL-J-TJLJ-RL2) control arms, designed to provide maximum articulation, improved stability, and long-term durability. Whether you're conquering rocky trails or navigating the highway, these control arms offer a significant upgrade over stock and aftermarket alternatives.
Key Features Benefits
- Heavy-Duty Construction – The lower control arms are built from 1.75” OD x 5/16” wall DOM Tubing, while the upper control arms feature 1.5” OD x 5/16” wall DOM Tubing, offering unparalleled strength and durability over factory components.

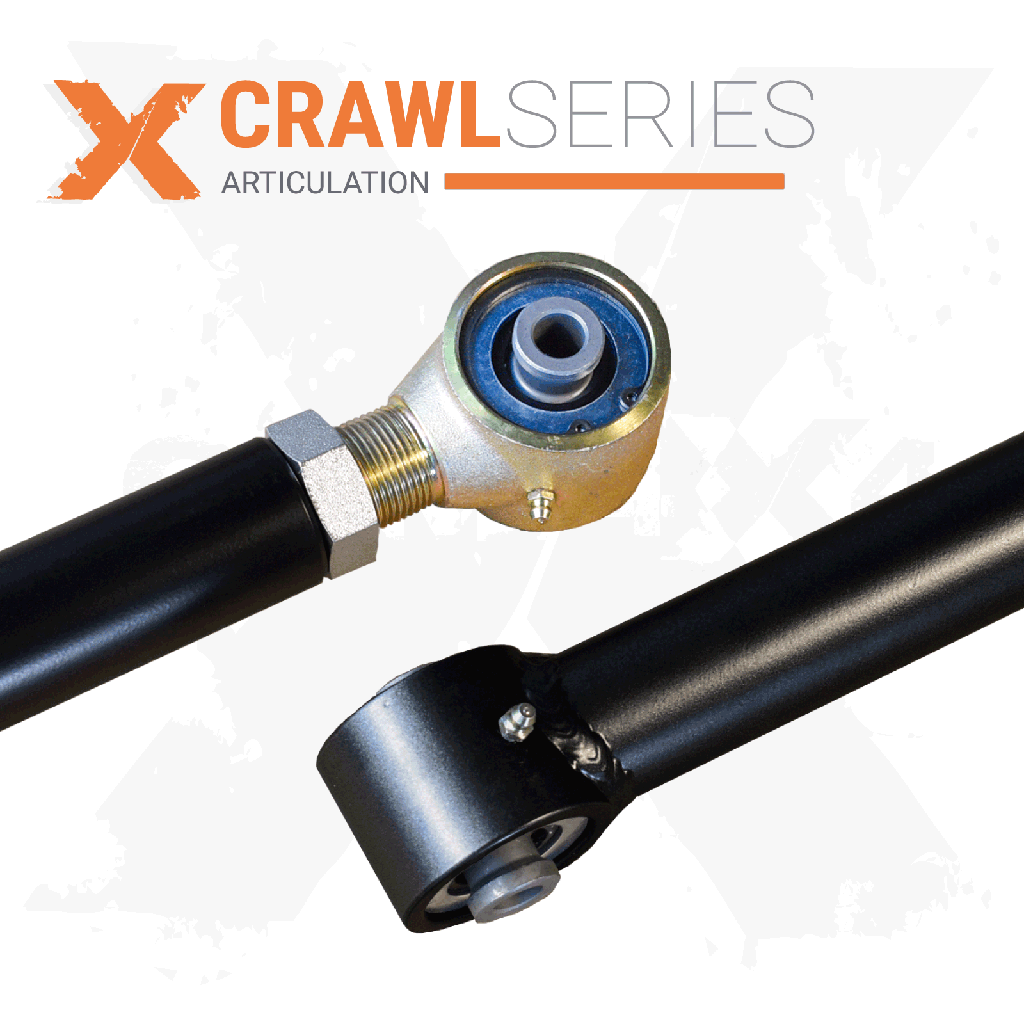

- Extreme Articulation – Equipped with Johnny Joints at both ends, these arms provide maximum flexibility and movement, allowing for smooth articulation over rough terrain while eliminating binding that limits suspension travel.
- Adjustability for Lifts from 0 to 6 Inches – Easily fine-tune axle centering and pinion angle adjustments, optimizing suspension geometry for better handling, stability, and drivetrain longevity. For lifts beyond 6 inches, contact us for additional solutions.
- Complete Rear-End Suspension Upgrade – Pairing these rear control arms with the Crawl Series Rear Track Bar creates a fully adjustable rear suspension solution, maximizing performance and ensuring precise axle alignment.
Double Adjustable Upgrade
For the ultimate convenience, we offer an optional Double Adjustable Upgrade, which equips the control arms with left- and right-hand threaded joints, allowing you to make precise on-the-vehicle adjustments. This feature enables easy alignment correction, pinion angle fine-tuning, and axle centering, eliminating the need to remove the arms during suspension adjustments.
Two-Stage Powder Coating
Every control arm undergoes a two-stage powder coating process to ensure maximum durability and corrosion resistance. The zinc primer base coat provides superior rust protection. The top coat, available in 10 color options, adds an extra layer of durability and customization.
Proudly Made in the USA
The Crawl Series Rear Control Arms Set is manufactured with pride in Orem, UT, using locally sourced materials and rigorous quality control standards. By choosing Crawl Series, you’re investing in American-made craftsmanship that’s designed to withstand the toughest conditions.
Optional Hardware Upgrade
- Designed for a hassle-free installation, these control arms utilize factory mounting locations and hardware.
- For vehicles with rusted or stubborn bolts, we offer optional Grade 8 hardware kits to ensure a smooth and secure installation.
Vehicle Fitment: Jeep Wrangler TJ LJ 97-06 – A complete rear suspension upgrade that enhances articulation, improves axle alignment, and eliminates driveline vibrations caused by improper pinion angles in lifted setups.

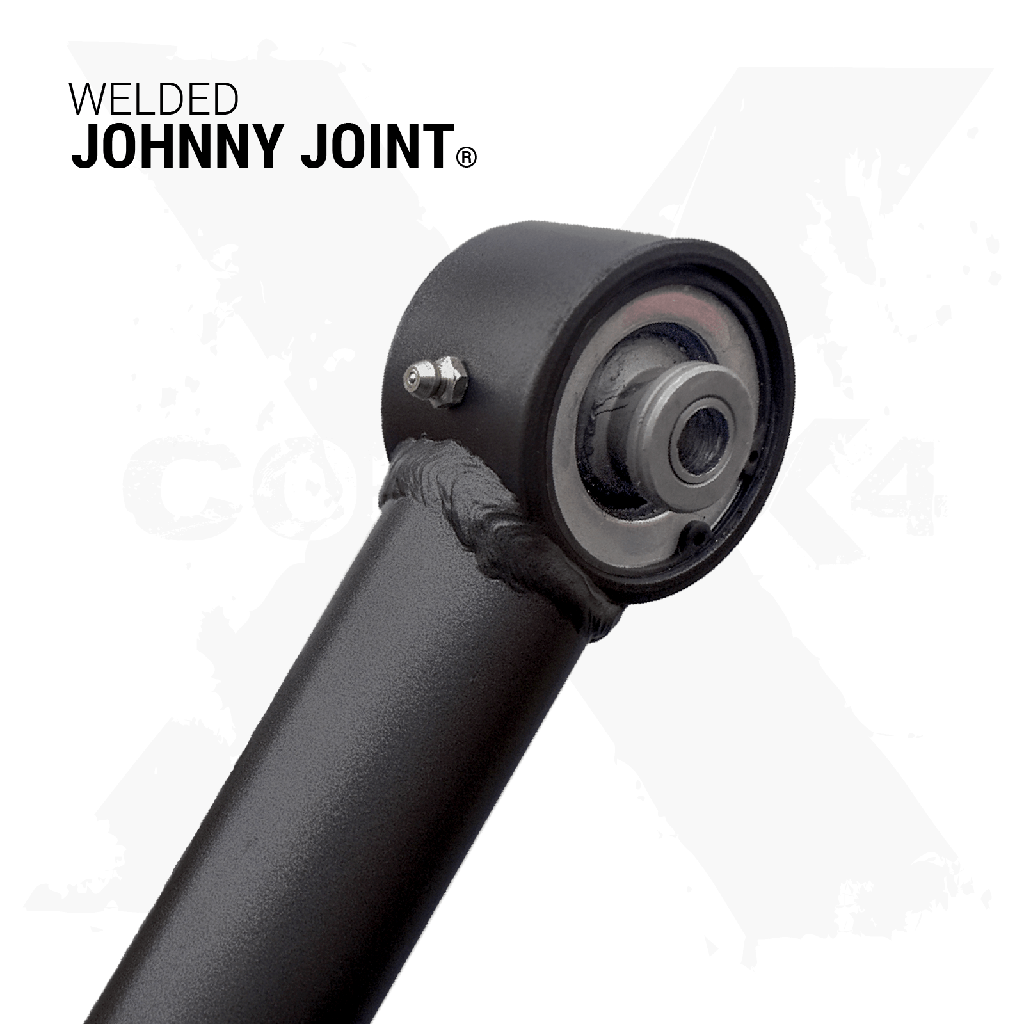

CORE Advantage: Johnny Joints at both ends allow for maximum articulation, ensuring smooth suspension movement while preventing bind that limits flex and reduces traction on rugged trails.
Adjustability: Accommodates lifts from 0 to 6 inches, enabling precise axle centering and pinion angle correction to reduce driveline vibrations. Upgrade to double adjustability for quick, on-the-vehicle fine-tuning.
Construction: Lower control arms use 1.75” OD x 5/16” wall DOM tubing, while uppers feature 1.5” OD x 5/16” wall DOM tubing, providing extreme durability and long-term reliability for off-road abuse.
Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.
Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.
Built With
Rear Lower Control Arm Built With 1.75” OD 5/16” Wall DOM. Forded Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Rear Upper Control Arm Built With 1.5” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1” x 14 TPI - 2.32” long threads.
| Make | Model | Submodel | Years |
|---|---|---|---|
| Jeep | Wrangler | 1997 - 2006 | |
| Jeep | Wrangler | 2004 - 2006 |

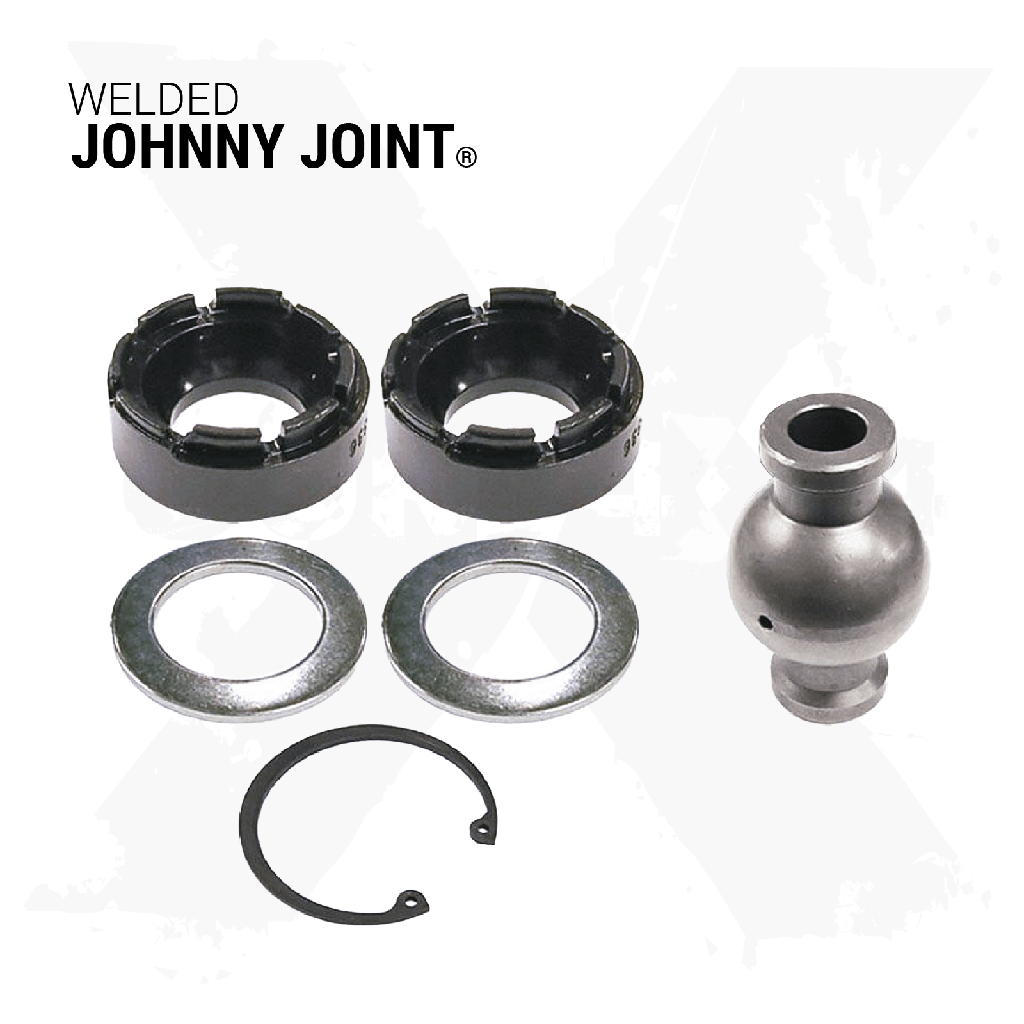

Each rebuild kit includes all necessary components to replace and restore wearable parts.
Construction & Materials
Rear Lower control arm built with 1.75” OD 5/16” Wall DOM. Forded Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Rear Upper control arm built with 1.5” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1” x 14 TPI - 2.32” long threads.
| Vehicle | Jeep Wrangler TJ (97–06) or Jeep Wrangler LJ (04–06) |
| Brand | CORE 4X4 |
| Color | Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed. |
| Series | Crawl Series |
| Hardware | No Hardware or Complete Kit |
| Lift Size | 0" — 6" or 6"+ |
| Adjustment Type | Single Threaded or Double Threaded |
| Placement on Vehicle | Rear Upper, Rear Lower, Rear |
| Mounting Style | Bolt-On |
Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.
Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.
You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
