Forged Johnny Joint Rod Ends

Johnny Joint Rod End, 2 1/2 in., Narrow Forged, 2.365 in. X .562 in. Ball, 1 1/4 in.-12 LH Threaded Shank, Externally Greased

Johnny Joint Rod End, 2 1/2 in., Narrow Forged, 2.365 in. X .562 in. Ball, 1 1/4 in.-12 LH Threaded Shank, Externally Greased

66.00 66.0 USD 66.00

66.00

Not Available For Sale

See financing options →

Fitment guarantee Ships from Orem, UT 4–8 hr install
ADD TO CART →
https://dev.core4x4.com/web/image/product.template/24319/image_1920?unique=2d5d26f

Johnny Joint Rod End, 2 1/2 in., Narrow Forged, 2.365 in. X .562 in. Ball, 1 1/4 in.-12 LH Threaded Shank, Externally Greased

Johnny Joint Rod End, 2 1/2 in., Narrow Forged, 2.365 in. X .562 in. Ball, 1 1/4 in.-12 LH Threaded Shank, Externally Greased
SKU: CE-9114NL-14

66.00 66.0 USD 66.00

66.00

Not Available For Sale

  • Brand

Select Color to see price and add to cart.

Lifetime warranty Made in USA

Made in USA Orem, Utah
Lifetime Guarantee Unconditional
10 Colors In-house powder coat
Fully Adjustable 0-6" of lift
3 X-Series Options Only Core 4x4

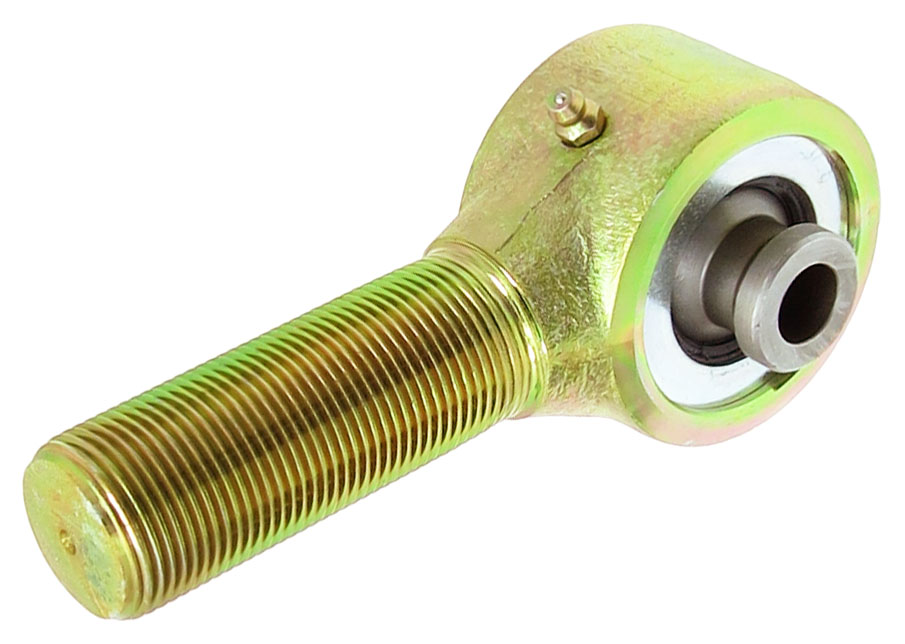

RockJock's narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via a high-density urethane bushing that encases the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 1/2 in. diameter, fitted with a zerk fitting for greasing, 2 1/4 in. of 1 1/4 in.-12 left hand threads on the shank, and a 2.365 in. mounting width offset ball with a .562 in. thru bolt hole. Finished in gold zinc plating.

Brand RockJock
Google

Reviews of Core 4x4

See all on Google
5.0
132 reviews
5
97%
4
2%
3
0%
2
1%
1
0%
MM
Mike Martinez Aug 25, 2025
Google
Phenomenal company - very rare to come by in the automotive industry. Also very impressing. Let me start here. I got a set of yellow sway bar end links for my 19 ram DT (new body style) and let me tell you, I’m hooked. For numerous reasons. One the craftsmanship behind the product is unmatched for sure for without breaking the bank. 2ndly, they stand behind their product. Had a very minor issue and it was resolved in a blink of an eye!!! Insane. Just because of what i listed above i will forever spend my money with core 4x4! And i think you should too! I have no affiliation at all with this company besides being a consumer. I will be ordering my yellow UCAs and the rest of my rear suspension from them here shortly! Korby on the other hand. The representative that helped me went above and beyond FAST. I hung up the phone with him, and with in no lie 3 minutes he was calling back with an answer. GREAT GREAT GREAT customer service, Korby you and core 4x4 are what give us hope in the car community! With much love and great health to you all!!
Review photo 1
CD
Christopher Dami Jun 26, 2025
Google
2022 I ordered a 2023 Jeep Wrangler Rubicon in High Velocity yellow. Without any hesitation I knew I was going with Core 4x4’s 16pc Camp series suspension, powder coated in yellow. Compliments were a given from any and everyone that looked under my jeep. So beefy, I may have left some yellow paint on the rocks from Maine to Florida, but no bends or breaks. Customer service has been perfect each and every time I have needed something. Their warranty is top notch! Their communication is also wonderful. Might upgrade to the Crawl Series control arms where the Johnny joints are on both sides. Great all around company and a great team to troubleshoot your issue and come to a conclusion. Nothing bad to say about this company. Just love this suspension.
Review photo 1 Review photo 2 Review photo 3
MT
Ma TheMeatLoaf Mar 23, 2024
Google
Their website estimated 2 days to get my parts but actually took 11. No communication to let me know what’s going on. Parts were missing. Some days they answer questions, some they don’t. Didn’t let me know I’d have to alter stock bolts to fit their parts. All around just seems like they don’t care.
JS
Jon Stempien May 27, 2025
Google
Big thanks to Corby at core 4 x 4 outstanding customer service I like to thank them or 4 x 4 for helping me Well-made product in the United States recommend core 4 x 4 for all jeep Owners that like the four wheel
FS
Fernando Salazar Aug 25, 2025
Google
Great quality control arms and great customer service. Korby has been a great help at answering my questions on some issues I’ve been having with installation!
C
caleb Mar 24, 2022
Google
Absolutely a great company. Ordered rear lower control arms with hardware but when i got it the hardware wasn't there but they sent it out right away and got a free t-shirt! Highly recommend.
J
Justin Mar 24, 2021
Google
Small business, family owned, made in the USA, lifetime warranty. Purchased Tier 3 control arms and rear track bar for a 2006 Jeep LJ. Simple website and easy to contact over phone and email. I had some technical questions and they were happy to answer them. They allow local pickup and were built to order same week. The order was wrapped and ready when I walked in and even gave a tour of the shop. They abrasive blast all raw materials to achieve a better surface profile for powdercoat to adhere and create a smooth, durable finish. I also noticed several CNC machines and a robotic welder they use for all their parts. A small outfit with a robotic welder? Their concern for quality is obvious and it shows in the parts they make. Very impressed. Happy to do business with these guys.
Review photo 1
AL
Andrew LaFave May 27, 2025
Google
I am really please with this company. Great product, i had an issue with a couple of the jonnhy joint bushings, they explained what had caused it and how to fix it. Within hrs of receiving my inquiry, i had heard back with the required info I needed. A couple hrs later problem was fixed and ready for the trail again. They care about heir product and their customers. Thanks crew, you rock
BW
Brian Wadsworth Jun 26, 2025
Google
Amazing product! Shipping was quick, packaging was great and support was outstanding!!
TW
Travis Walker Sep 24, 2025
Google
I have nothing but great things to say about this company and their customer service. If you like American made products backed by warranty and amazing customer support, this is the company for you. I have a Lexus GX470 and love their rear control arms.
Review photo 1 Review photo 2

Specifications

Brand RockJock
