SKU: CE-9113L-25

Johnny Joint Rod End, 2 1/2 in., Forged, 2.365 in. X .484 in. Ball, 1 in.-14 LH Threaded Shank, Externally Greased

Johnny Joint Rod End, 2 1/2 in., Forged, 2.365 in. X .484 in. Ball, 1 in.-14 LH Threaded Shank, Externally Greased
$72.00

$ 72.00 72.0 USD $ 72.00

$ 72.00

Not Available For Sale

Checking shipping cost… Check shipping
Enter ZIP for arrival estimate Delivery date by ZIP
Order by 3:00 PM MT today — we'll start tomorrow
See full timeline
100% bolt-on, no welding Made in USA · Orem, Utah
Talk to an Expert: 385-375-2104 ADD TO CART →
https://dev.core4x4.com/web/image/product.template/24282/image_1920?unique=04d29e5

Johnny Joint Rod End, 2 1/2 in., Forged, 2.365 in. X .484 in. Ball, 1 in.-14 LH Threaded Shank, Externally Greased

Johnny Joint Rod End, 2 1/2 in., Forged, 2.365 in. X .484 in. Ball, 1 in.-14 LH Threaded Shank, Externally Greased
SKU: CE-9113L-25

  • Brand

$ 72.00 72.0 USD $ 72.00

$ 72.00

Not Available For Sale

Select Color to see price and add to cart.

100% bolt-on, no welding Made in USA · Orem, Utah
Talk to an Expert: 385-375-2104
Checking shipping cost… Check shipping
Enter ZIP for arrival estimate Delivery date by ZIP
Order by 3:00 PM MT today — we'll start tomorrow
See full timeline

You break it, we replace it. Made in USA

Made in USA Orem, Utah
You break it, we replace it Warranty on non-wear items
10 Colors In-house powder coat
Fully Adjustable 0-6" of lift
3 X-Series Options Only Core 4x4

Product Details

Brand RockJock

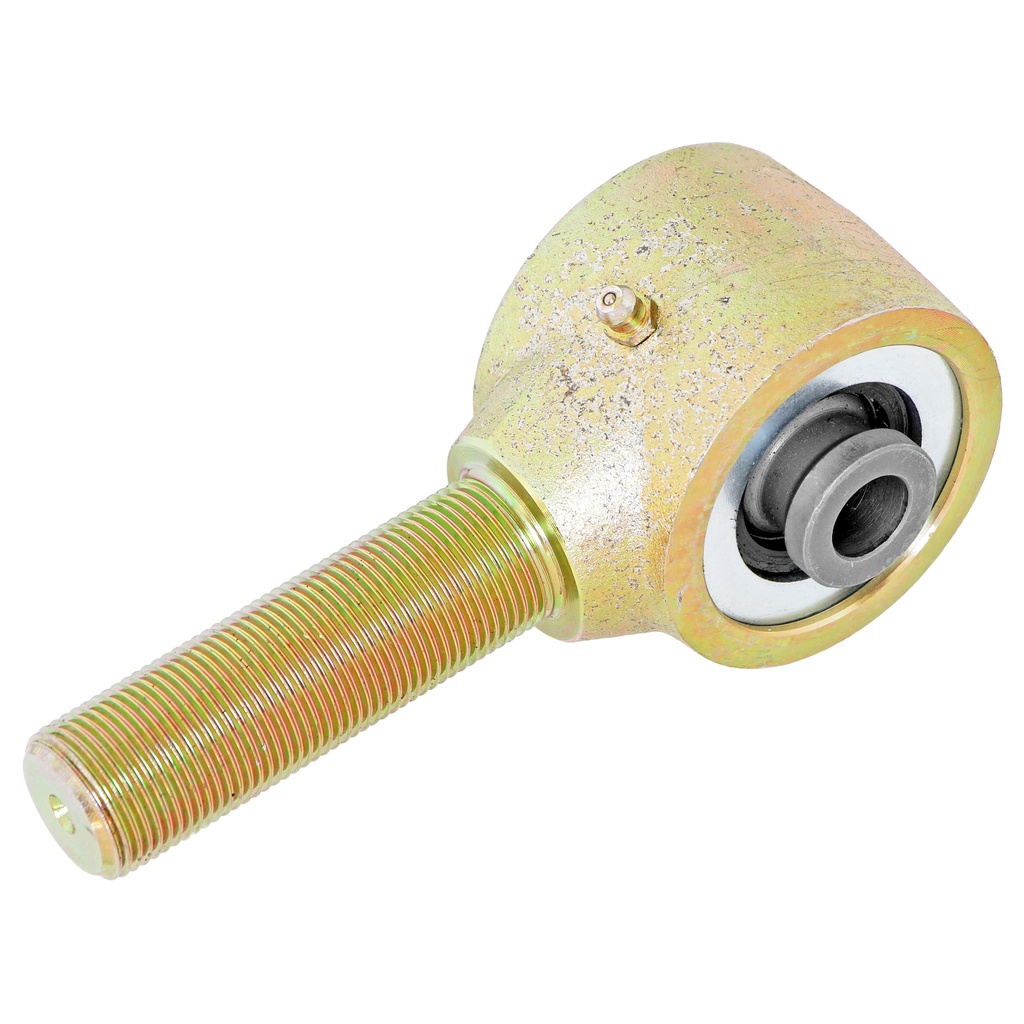

RockJock's forged Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 1/2 in. diameter, fitted with a zerk fitting for greasing, 2 1/4 in. of 1 in.-14 left hand threads on the shank, and a 2.365 in. mounting width ball with a .484 in. thru bolt hole. Finished in gold zinc plating.
