Forged Johnny Joint Rod Ends
Johnny Joint Rod End, 2 1/2 in., Forged, 2.440 in. X .515 in. Ball, 1 in.-14 RH Threaded Shank, Externally Greased

72.00 72.0 USD 72.00

72.00

Not Available For Sale

See financing options →

Fitment guarantee Ships from Orem, UT 4–8 hr install
ADD TO CART →
https://dev.core4x4.com/web/image/product.template/24267/image_1920?unique=09d00f0

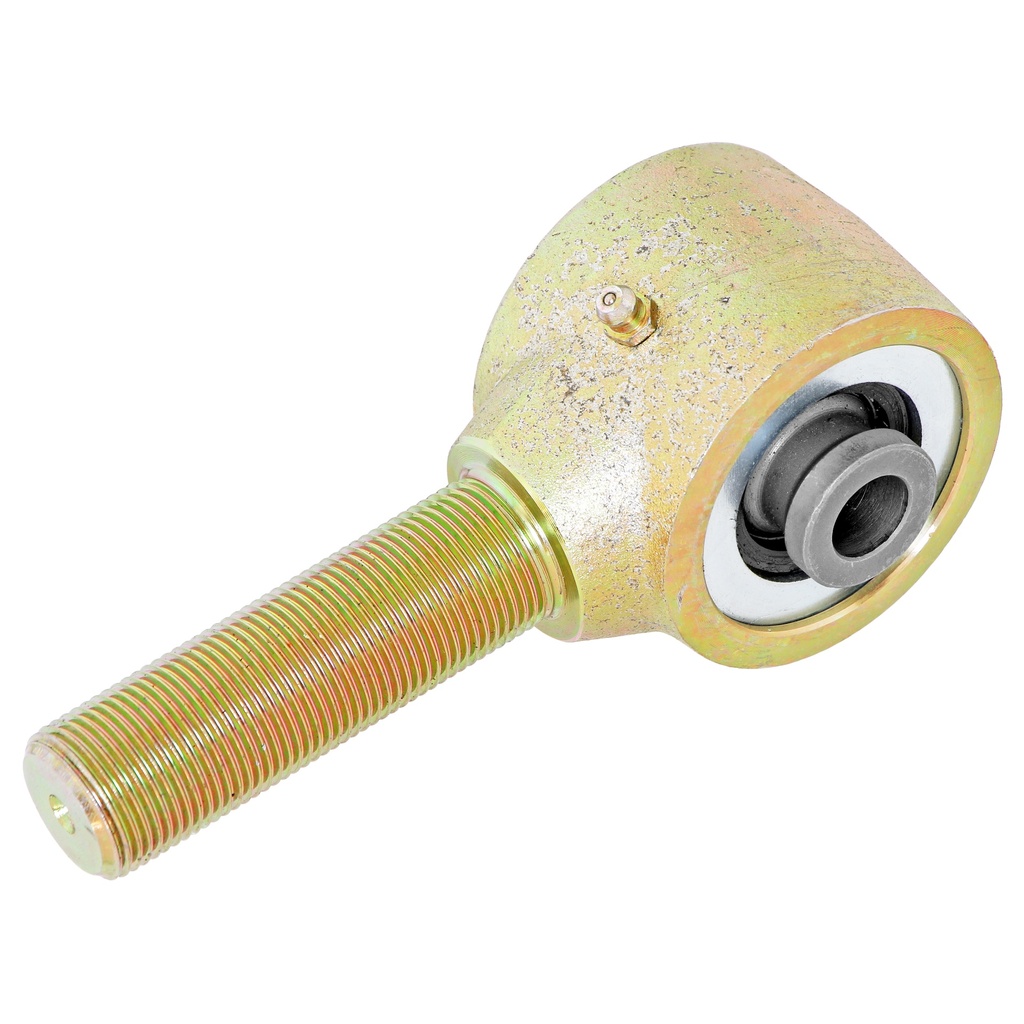

Johnny Joint Rod End, 2 1/2 in., Forged, 2.440 in. X .515 in. Ball, 1 in.-14 RH Threaded Shank, Externally Greased

Johnny Joint Rod End, 2 1/2 in., Forged, 2.440 in. X .515 in. Ball, 1 in.-14 RH Threaded Shank, Externally Greased
SKU: CE-9113-12

72.00 72.0 USD 72.00

72.00

Not Available For Sale

  • Brand

Select Color to see price and add to cart.

Lifetime warranty Made in USA

Made in USA Orem, Utah
Lifetime Guarantee Unconditional
10 Colors In-house powder coat
Fully Adjustable 0-6" of lift
3 X-Series Options Only Core 4x4

RockJock's forged Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 1/2 in. diameter, fitted with a zerk fitting for greasing, 2 1/4 in. of 1 in.-14 right hand threads on the shank, and a 2.440 in. mounting width ball with a .515 in. thru bolt hole. Finished in gold zinc plating.

Brand RockJock
