Johnny Joint Rod Ends

Johnny Joint Rod End, 2 in., Forged, 2.190 in. X .482 in. Ball, 3/4 in.-16 RH Threaded Shank, Externally Greased

Johnny Joint Rod End, 2 in., Forged, 2.190 in. X .482 in. Ball, 3/4 in.-16 RH Threaded Shank, Externally Greased

66.00 66.0 USD 66.00

66.00

Not Available For Sale

See financing options →

Fitment guarantee Ships from Orem, UT 4–8 hr install
ADD TO CART →
https://dev.core4x4.com/web/image/product.template/24257/image_1920?unique=2d5d26f

Johnny Joint Rod End, 2 in., Forged, 2.190 in. X .482 in. Ball, 3/4 in.-16 RH Threaded Shank, Externally Greased

Johnny Joint Rod End, 2 in., Forged, 2.190 in. X .482 in. Ball, 3/4 in.-16 RH Threaded Shank, Externally Greased
SKU: CE-9112SP-11

66.00 66.0 USD 66.00

66.00

Not Available For Sale

  • Brand

Select Color to see price and add to cart.

Lifetime warranty Made in USA

Made in USA Orem, Utah
Lifetime Guarantee Unconditional
10 Colors In-house powder coat
Fully Adjustable 0-6" of lift
3 X-Series Options Only Core 4x4

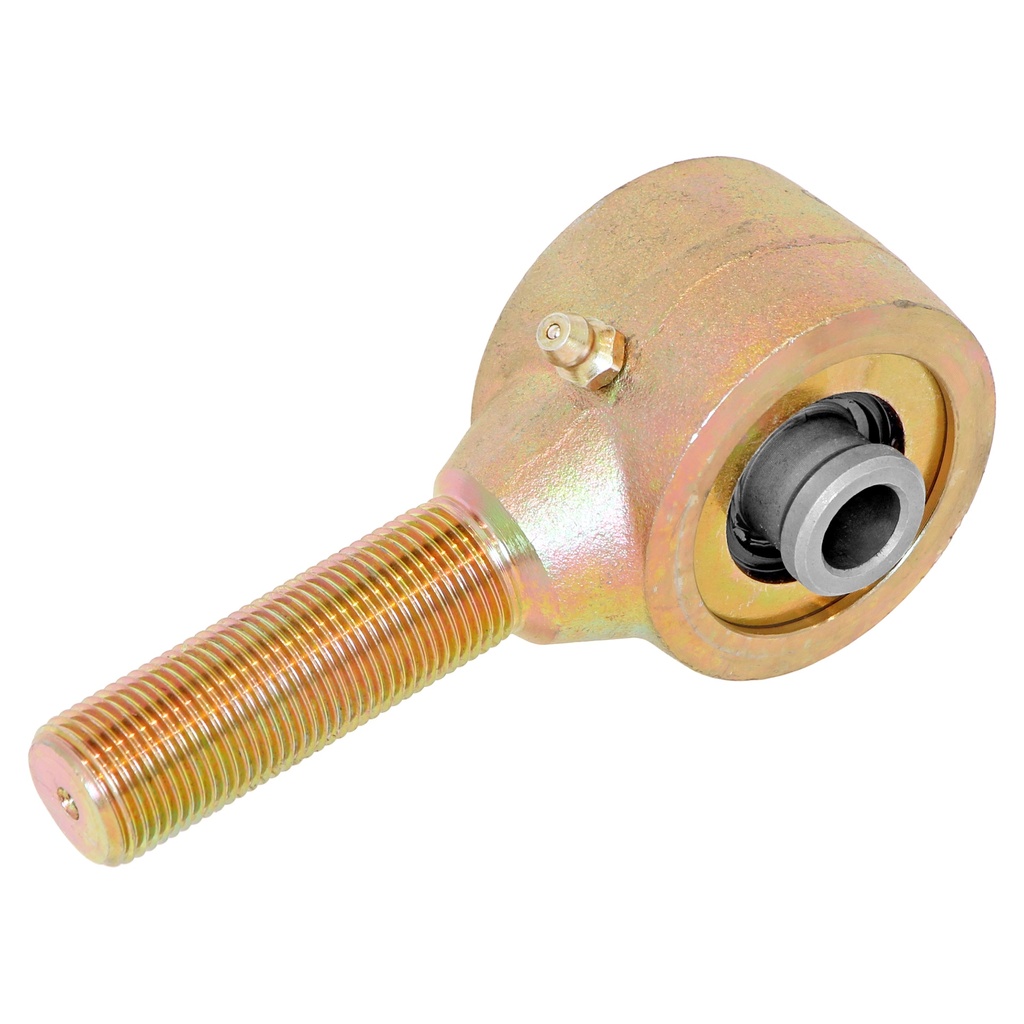

RockJock's forged Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 in. diameter, fitted with a zerk fitting for greasing, 2 1/4 in. of 3/4 in.-16 right hand threads on the shank, and a 2.190 in. mounting width ball with a .482 in. thru bolt hole. Finished in gold zinc plating.

Brand RockJock
