Johnny Joint Rod Ends
Johnny Joint Rod End, 2 in., Narrow Forged, 1.600 in. X .510 in. Ball, 3/4 in.-16 RH Threaded Shank, Externally Greased

70.00 70.0 USD 70.00

70.00

Not Available For Sale

See financing options →

Fitment guarantee Ships from Orem, UT 4–8 hr install
ADD TO CART →
https://dev.core4x4.com/web/image/product.template/24220/image_1920?unique=09d00f0

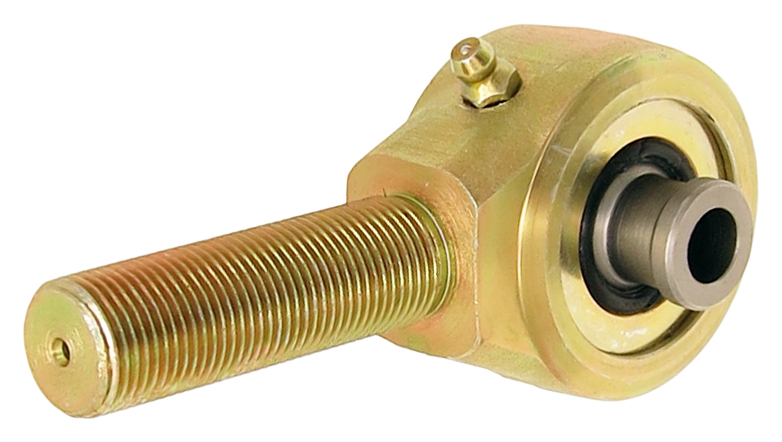

Johnny Joint Rod End, 2 in., Narrow Forged, 1.600 in. X .510 in. Ball, 3/4 in.-16 RH Threaded Shank, Externally Greased

Johnny Joint Rod End, 2 in., Narrow Forged, 1.600 in. X .510 in. Ball, 3/4 in.-16 RH Threaded Shank, Externally Greased
SKU: CE-9112N75-17

70.00 70.0 USD 70.00

70.00

Not Available For Sale

  • Brand

Select Color to see price and add to cart.

Lifetime warranty Made in USA

Made in USA Orem, Utah
Lifetime Guarantee Unconditional
10 Colors In-house powder coat
Fully Adjustable 0-6" of lift
3 X-Series Options Only Core 4x4

RockJock's narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 in. diameter, fitted with a zerk fitting for greasing, 2 1/4 in. of 3/4 in.-16 right hand threads on the shank, and a 1.600 in. mounting width ball with a .510 in. thru bolt hole. Finished in gold zinc plating.

Brand RockJock
Google

Reviews of Core 4x4

See all on Google
5.0
132 reviews
5
97%
4
2%
3
0%
2
1%
1
0%
C
Chris Oct 24, 2025
Google
Great product for a good price. Customer service is top notch, I had an issue which was self cause and Core 4x4 helped me out even though it was my own fault. Would definitely recommend and use them again.
ZA
Zen Asher Mar 23, 2025
Google
The quality and durability of the arms are the best. They are super heavy duty. And lifetime warranty is crazy
SG
Sal Giordano Sep 24, 2025
Google
I want to take the time to share my experience with Core 4x4. I have a 2004 Jeep Wrangler and was looking to upgrade some suspension parts. I went with Core 4x4 upper & lower adjustable control arms and a front adjustable track bar. Everything arrived quickly, and right out of the box I was impressed with the quality and craftsmanship. I had a few questions during installation (measurements and torque specs), and I spoke with Korby on a couple of occasions. Not only did he send me detailed instructions, but he also shared an installation video specific to the part and vehicle I was working on, something you don’t get from many companies. The control arms fit perfectly, look great, and perform exactly as I hoped. I did run into an issue with the front track bar touching the front diff. When I reached out, Korby had me send pictures and then immediately offered two solutions: his bar guy could make a different bend and send it out to me, or I could get a full refund. His response honestly blew me away. As much as I wanted to run the Core 4x4 track bar, I chose the refund. Korby sent me a prepaid shipping label right away, no hassle. My experience with Core 4x4 has been excellent. Korby was extremely understanding, communicative, and helpful every step of the way. The parts I received were high quality, and the customer service was second to none. I would absolutely recommend Core 4x4 10 out of 10 times and will be using them again. Just a great American company with awesome people who truly care about their customers. Thank you Korby, and thank you Core 4x4!
DD
DANIEL DUSSAULT Nov 23, 2025
Google
Very beefy items for a very reasonable price.  Personally have CORE rear track bar and all upper control arms for my 04 Jeep TJ.  Had a slight issue with control arm length and they went above and beyond to swap jam nuts to get me where I needed to be.  Really have to appreciate a company like this.
JJ
Jason Jukich Jul 26, 2025
Google
Fast shipping, excellent communication, and awesome products
JL
John Luna Nov 23, 2025
Google
Great team, and help to support my jeep and provide best stuffs
NP
Norb Pranger Oct 24, 2025
Google
Not sure where to start, Products or Service or Warranty. Products: I found Core4x4 through a very respected YouTuber in the Jeeping community. I purchased an entire set of Core4x4 Control Arms three years ago and have beat the daylights out of them and they are still in great condition. Now, I purchased another Jeep, this time for my daughter and bought yet another set of Control Arms because I know that these things can take a beating and stand up to it. I plan on replacing more parts on this TJ and my JL and will continue to buy from Core4x4. Service: This isn't some huge name conglomerate that treats you like you're just another customer. They are quick with responses and will always make things right should something be a problem. Oh and the quickness in which they ship their products is unmatched. I bought these CAs for my TJ on Thursday, I received them on Monday. Most other manufacturers will tell you weeks, they had them to me in 2 shipping days. Warranty: Seriously, a lifetime warranty? Yes please. Nothing more to say. I can't say enough about how great of a company this is. I've even spoken to the owner through email a few years back on some questions that I had. Support small American built businesses. P.S. Core 4x4, feel free to make me an ambassador and send me some swag :) .
ST
Sal Torres May 27, 2025
Google
upper control arms look great and went on easy.. only reason I gave 4 stars and not 5 is because of a shipping issue which put my build a week behind. The issue was resolved quickly and painlessly, great customer service. Only time will tell how control arms perform but they look great and like they will go above and beyond control arm demand.
JC
John Cutler Oct 24, 2025
Google
In September 2025, we visited CORE 4x4 in Orem, Utah. CORE 4x4 makes control arms and other similar parts that stiffen the suspension of an off-road 4x4 vehicles, so that the off-road vehicles can travel on more rugged terrain. CORE 4x4 used to share this building with another business, and since this other business has moved elsewhere, CORE 4x4 will continue to expand and grow their business. Good for CORE 4x4 to be a growing company and to expand into the vacant part of the building.
Review photo 1 Review photo 2 Review photo 3 Review photo 4
MT
Marcus Torres Jan 15, 2026
Google
Best control arms I have installed on any of my builds. After running every major manufacturer, Core 4x4 is on par or better than all the high-end companies at a fraction of the cost. Lifetime warranty is the cherry on top.

Specifications

Brand RockJock
