Forged Johnny Joint Rod Ends

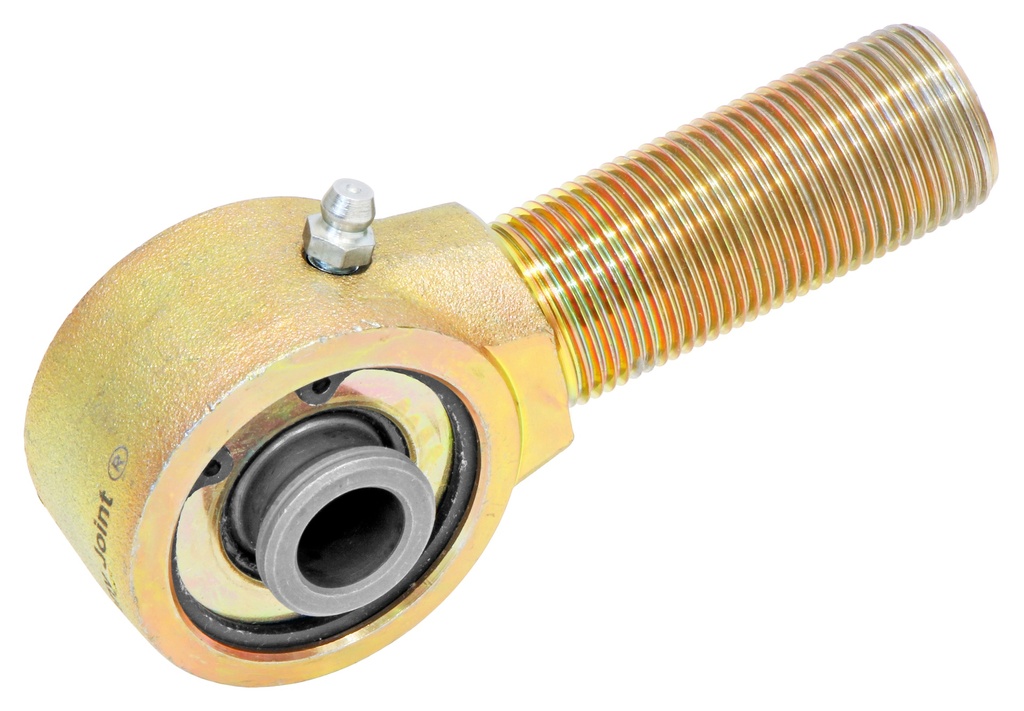

Johnny Joint Rod End, 2 in., Narrow Forged, 1.600 in. X .480 in. Ball, 1 in.-14 RH Threaded Shank, Externally Greased

70.00 70.0 USD 70.00

70.00

Not Available For Sale

See financing options →

Fitment guarantee Ships from Orem, UT 4–8 hr install
ADD TO CART →
https://dev.core4x4.com/web/image/product.template/24211/image_1920?unique=de245c6

Johnny Joint Rod End, 2 in., Narrow Forged, 1.600 in. X .480 in. Ball, 1 in.-14 RH Threaded Shank, Externally Greased

Johnny Joint Rod End, 2 in., Narrow Forged, 1.600 in. X .480 in. Ball, 1 in.-14 RH Threaded Shank, Externally Greased
SKU: CE-9112N-15

70.00 70.0 USD 70.00

70.00

Not Available For Sale

  • Brand

Select Color to see price and add to cart.

Lifetime warranty Made in USA

Made in USA Orem, Utah
Lifetime Guarantee Unconditional
10 Colors In-house powder coat
Fully Adjustable 0-6" of lift
3 X-Series Options Only Core 4x4

RockJock's narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 in. diameter, fitted with a zerk fitting for greasing, 2 1/4 in. of 1 in.-14 right hand threads on the shank, and a 1.600 in. mounting width ball with a .480 in. thru bolt hole. Finished in gold zinc plating.

Brand RockJock
