Weld-On Johnny Joint Rod Ends
Johnny Joint Rod End, 2 1/2 in., Weld-On, 2.440 in. x .570 in. Ball, Externally Greased

67.00 67.0 USD 67.00

67.00

Not Available For Sale

See financing options →

Fitment guarantee Ships from Orem, UT 4–8 hr install
ADD TO CART →
https://dev.core4x4.com/web/image/product.template/24197/image_1920?unique=09d00f0

Johnny Joint Rod End, 2 1/2 in., Weld-On, 2.440 in. x .570 in. Ball, Externally Greased

Johnny Joint Rod End, 2 1/2 in., Weld-On, 2.440 in. x .570 in. Ball, Externally Greased
SKU: CE-9110P-16

67.00 67.0 USD 67.00

67.00

Not Available For Sale

  • Brand

Select Color to see price and add to cart.

Lifetime warranty Made in USA

Made in USA Orem, Utah
Lifetime Guarantee Unconditional
10 Colors In-house powder coat
Fully Adjustable 0-6" of lift
3 X-Series Options Only Core 4x4

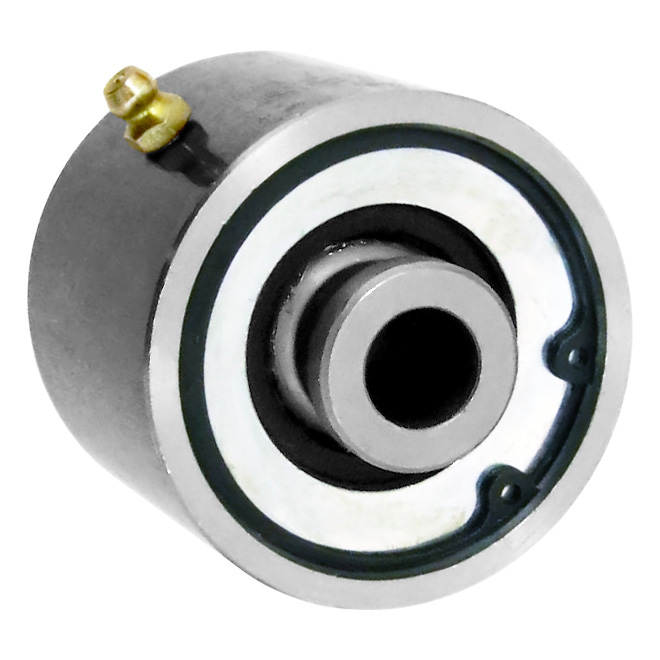

RockJock's weld-on Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. The outer shell is weldable .180 in. wall machined DOM tubing that is fitted with a zerk fitting for greasing. This specific joint is a 2 1/2 in. o.d. and features a 2.440 in. mounting width and a .570 in. thru bolt hole.

Brand RockJock
