SKU: CE-9110P-12

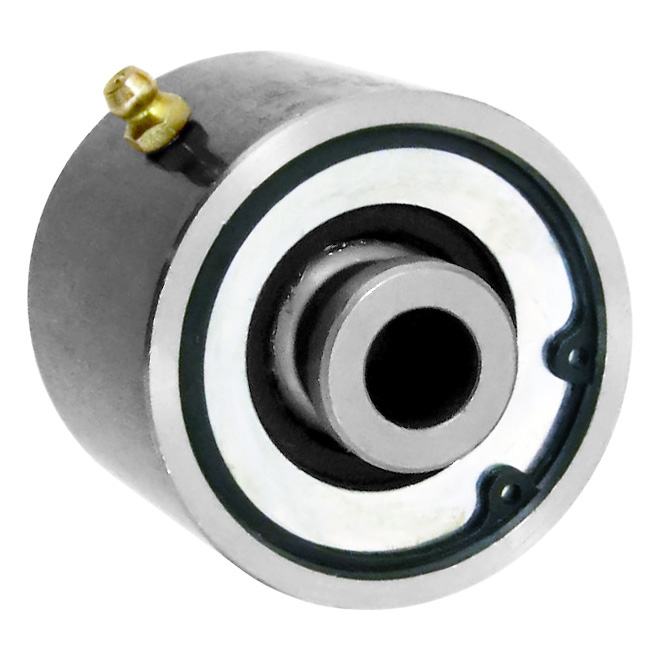

Johnny Joint Rod End, 2 1/2 in., Weld-On, 2.440 in. X .515 in. Ball, Externally Greased

Johnny Joint Rod End, 2 1/2 in., Weld-On, 2.440 in. X .515 in. Ball, Externally Greased
$67.00

$ 67.00 67.0 USD $ 67.00

$ 67.00

Not Available For Sale

100% bolt-on, no welding Made in USA · Orem, Utah
Talk to an Expert: 385-375-2104 ADD TO CART →
https://dev.core4x4.com/web/image/product.template/24194/image_1920?unique=04d29e5

Johnny Joint Rod End, 2 1/2 in., Weld-On, 2.440 in. X .515 in. Ball, Externally Greased

Johnny Joint Rod End, 2 1/2 in., Weld-On, 2.440 in. X .515 in. Ball, Externally Greased
SKU: CE-9110P-12

  • Brand

$ 67.00 67.0 USD $ 67.00

$ 67.00

Not Available For Sale

Select Color to see price and add to cart.

100% bolt-on, no welding Made in USA · Orem, Utah
Talk to an Expert: 385-375-2104

You break it, we replace it. Made in USA

Made in USA Orem, Utah
You break it, we replace it Warranty on non-wear items
10 Colors In-house powder coat
Fully Adjustable 0-6" of lift
3 X-Series Options Only Core 4x4

Product Details

Brand RockJock

RockJock's weld-on Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. The outer shell is weldable .180 in. wall machined DOM tubing that is fitted with a zerk fitting for greasing. This specific joint is a 2 1/2 in. o.d. and features a 2.440 in. mounting width and a .515 in. thru bolt hole.
