Made in USA
Orem, Utah
Lifetime Guarantee
Unconditional
10 Colors
In-house powder coat
Fully Adjustable
0-6" of lift
3 X-Series Options
Only Core 4x4
The Special Sauce:

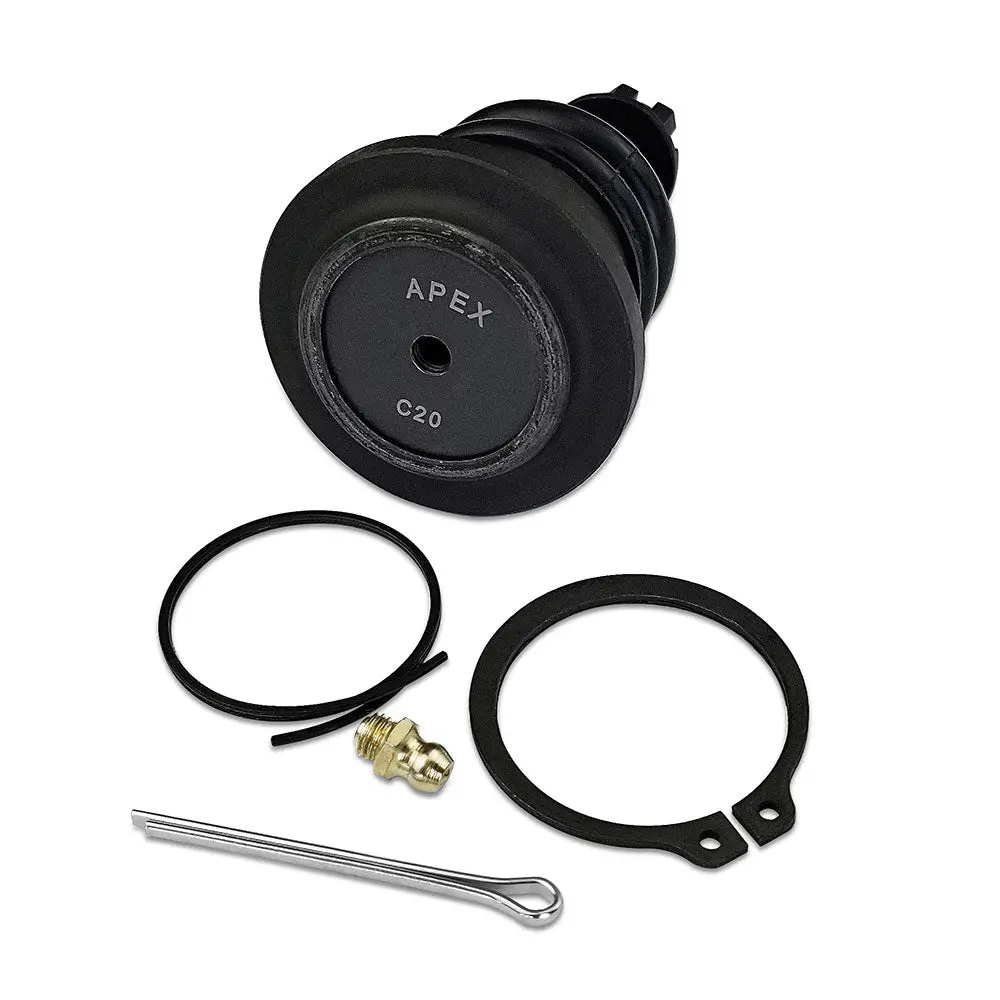

HOUSING
- SAE 1045 Solid Steel Forged Housing: This is unequivocally the best carbon alloy steel for this application.
- Knurled Housings: The preferred design for aftermarket installations.
- CNC Machined Housing: Make our parts and bearings dimensionally perfect, eliminating any die wear issues.
BALL STUDS
- SAE 4140 hot forged Chromoly Ball Studs: for strongest possible metallurgy.
- Plunger Design Stud: Unique to Jeep and Dodge, allows up and down movement with no side-to-side movement.
- Induction Heat Treated Ball Studs: provides a very precise heat treatment to the exact depth and location we want it.
- Rolled Threads: are made by pressing the shape of the threads into the ball stud instead of cutting. This strengthens the threads instead of weakening them and allows for easy movement of hardware. This ain't no Ikea furniture!
- Step Threads :allows for very easy movement of hardware on install and superior holding when torqued (installer choice).
BEARING DESIGN
- Carbon Bearing Design: Used mainly in Jeep and Dodge upper ball joints is the solver of all things wobbly. Like all of our product.
BOOTS
- CR Rubber Boots: The most durable material for undercar applications.
- Pancake Boot
HARDWARE
- Grade 8 - Class 10.9 Hardware: Superior tensile strength.
- Castle Nut: Industry standard where high vibration loads occur.
LUBRICATION
- Pre-threaded Zerk Housing: If you have ever installed a MOOG ball joint without a pre-threaded zerk fitting you will understand what a simple but great feature this is. Another installer fav.
- Greaseable: Because it should be.
- Pre-Greased: Just in case you forget, we have you covered.
- Gull Winged Grease Grooves: Allows for improved lubrication disbursement.
- Zerk Fittings: Included for every application.
SPECIAL FEATURES
- Custom Features: Custom bearing design to eliminate 'Death Wobble'.
Where It Fits:
Moog Interchange:
K80811
Vehicle Position: Front Upper
| Make | Model | Submodel | Years |
|---|---|---|---|
| Toyota | Tacoma | 2005 - 2023 | |
| Toyota | Tacoma | 2024 - Present |
| Brand | Apex Chassis |
Reviews of Core 4x4
5.0
★
★
★
★
★
132 reviews
DD
Dmitriy D
May 27, 2025
★
★
★
★
★
Installed rear and upper control arms and track bar on my 3rd Gen 4RUNNER to align rear axle and restore factory wheel base after 3.5" lift. Car drives better than New! Improved handling cornering and overall driving. Very solid and high quality made product. Support is outstanding. Shipping extremely fast.
Thank you so much. I wish you will have something new for my car.
P
Paul
Mar 24, 2023
★
★
★
★
★
I've been having trouble with the track bar (on my 2nd gen Dodge) since I installed the 3rd gen Synergy adapter bracket and a 3rd gen stock bar.. oddly, they call it a '3rd gen bracket' and the stock 3rd gen bar doesn't quite fit, making contact with the bracket. I had attempted to clearance the bracket but it was still making contact and I could feel it over large bumps.
I reached out to a lot of companies, but Core 4x4 offered to make a custom bar for the application with adjustability and dual Johnny joints. The first pass on it didn't work but they sent me out another passenger side end that made it fit incredibly well.
This was all done solely over email/descriptions/pictures/measurements.
Bar is super high quality and heavy duty, made in the US by a family owned company and carries a lifetime warranty. The customer service was responsive and superb, and the price was a lot less than I expected.
MM
Mike Martinez
Aug 25, 2025
★
★
★
★
★
Phenomenal company - very rare to come by in the automotive industry. Also very impressing. Let me start here. I got a set of yellow sway bar end links for my 19 ram DT (new body style) and let me tell you, I’m hooked. For numerous reasons. One the craftsmanship behind the product is unmatched for sure for without breaking the bank. 2ndly, they stand behind their product. Had a very minor issue and it was resolved in a blink of an eye!!! Insane. Just because of what i listed above i will forever spend my money with core 4x4! And i think you should too! I have no affiliation at all with this company besides being a consumer. I will be ordering my yellow UCAs and the rest of my rear suspension from them here shortly!
Korby on the other hand. The representative that helped me went above and beyond FAST. I hung up the phone with him, and with in no lie 3 minutes he was calling back with an answer. GREAT GREAT GREAT customer service, Korby you and core 4x4 are what give us hope in the car community! With much love and great health to you all!!
CL
Colten Lockwood
Mar 25, 2019
★
★
★
★
★
Recieved warrenty exchanges for my control arms last night couldnt be happier!!! Lets talk about the arms tho! Great quality arms in multiple styles and colors!!! I purchased the teir 3 short arns for my 98 xj. I can say that they setoff nicely so my 35 inch tires do not rub! As long as you can get a photo or video of broken hardware core will take care of you. The body of the arm is bulletproof. However make sure to maintain and grease the joints regularly as with any greaseable joint and they shouldkast forever. I had a few problems arise a year after purchase and after some troubleshooting spence was able to help get me the correct parts to get back on the road. I recommend this setup to any and all jeepers looking to get away from the stock arm setup. Alltogether i am Very happy with the performace of my control arms!!!! Mechanic and bodyman of 12 years and my first choice for quality control arms!!
SH
Shawn Hooten
Apr 27, 2025
★
★
★
★
★
Great products, shipped the next day during a big sale event. Core 4x4 gets it right and gets it done! Thank you all.
RH
R and H H
Oct 24, 2025
★
★
★
★
★
Top notch company. Mechanic lost bolts that clamp upper control arms. Korby sent out spare bolts no charge. Best customer service I’ve come across in a long time. Only suspension brand I’ll ever use.
AL
Aaron Lake
Apr 27, 2025
★
★
★
★
★
Korby was a great help with getting me a set of leaf springs for my Cherokee. Great customer service and an awesome product all made in the USA. Proud to support and rock their parts on my vehicle. 👍 …
N
niceguyr1
Mar 24, 2023
★
★
★
★
★
I purchased upper and lower adjustable arms for my WJ and lowers were missing the spacers. I didn't know until 3 months later when I was installing them. With absolutely zero hassles they quickly sent me the missing spacers. Fantastic product and service! Huge thank you guys for the awesome service and parts!!! Customer service is quickly becoming a lost commodity and you guys gave me hope that it's still alive and well, you just have to buy from the right people... Thanks again for going above and beyond! 👍👍
GN
Glenn Nowosad
Jan 22, 2026
★
★
★
★
★
I just finished installing the Peak 2.0 Front Suspension system with the Core 4x4 Blue Tacoma Rear Suspension system on my 2024 TRD Offroad Premium Tacoma. The two upgraded suspension systems really made a difference in how the ride feels, whether we’re off-road or on the road. A big thank you to Korby and the team at Core 4x4 for their support and for getting the shipping sorted out so quickly!
TG
Travis Grimm
Mar 23, 2024
★
★
★
★
★
To start off if you're looking to upgrade your control arms definitely hit this company up. Great product, easy install of the product, with three different tiers everything is priced pretty good, I'm a sticker guy and they sent a sticker for each arm each track bar and also three extra ones so the extra are on the Jeep the advertise them for sure. If you're reading this review I highly recommend you to check their website out.
