Made in USA
Orem, Utah
You break it, we replace it
Warranty on non-wear items
10 Colors
In-house powder coat
Fully Adjustable
0-6" of lift
3 X-Series Options
Only Core 4x4
Product Details
| Make | Model | Submodel | Years |
|---|---|---|---|
| Jeep | Cherokee | 1984–2001 |

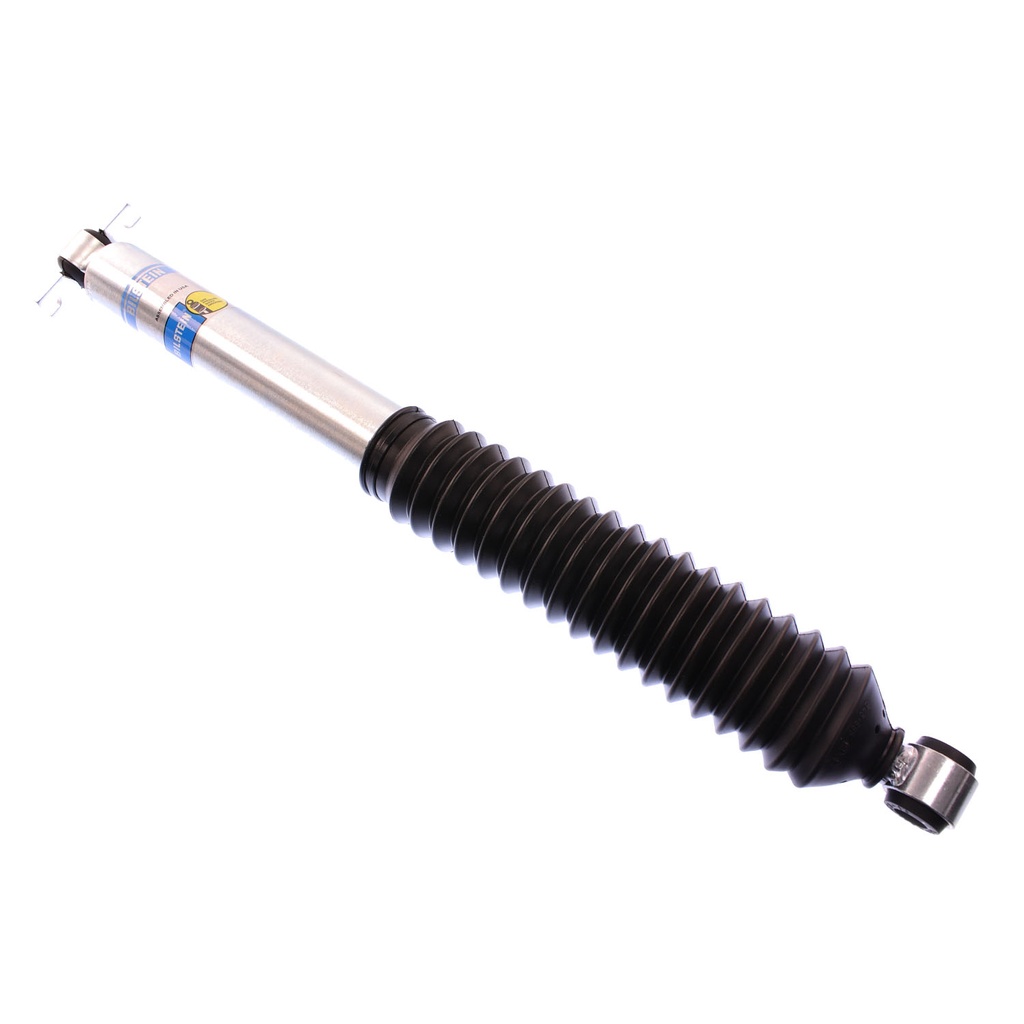

| Vehicle | Jeep Cherokee XJ (84–01) |
| Brand | Bilstein |
| Placement on Vehicle | Rear |
| Mounting Style | Bolt-On |
Collapsed Length (in): 15.91
Extended Length (in): 25.93
Stroke/travel Length (in): 10.02
Lower Mount Type: Eye 16mm
Upper Mount Type: Bar Pin
Internal Design: Monotube
Finish: Zinc Plated
Reservoir: No
Body Design: Smooth Body (Non-Coilover)
Body Diameter (od): 2.0 in.
Piston Diameter: 46mm
Boot Included: Black Bellows
Spring Seat Included: No
Shaft Diameter: 14mm
Adjustable Damping: Non-Adjustable
