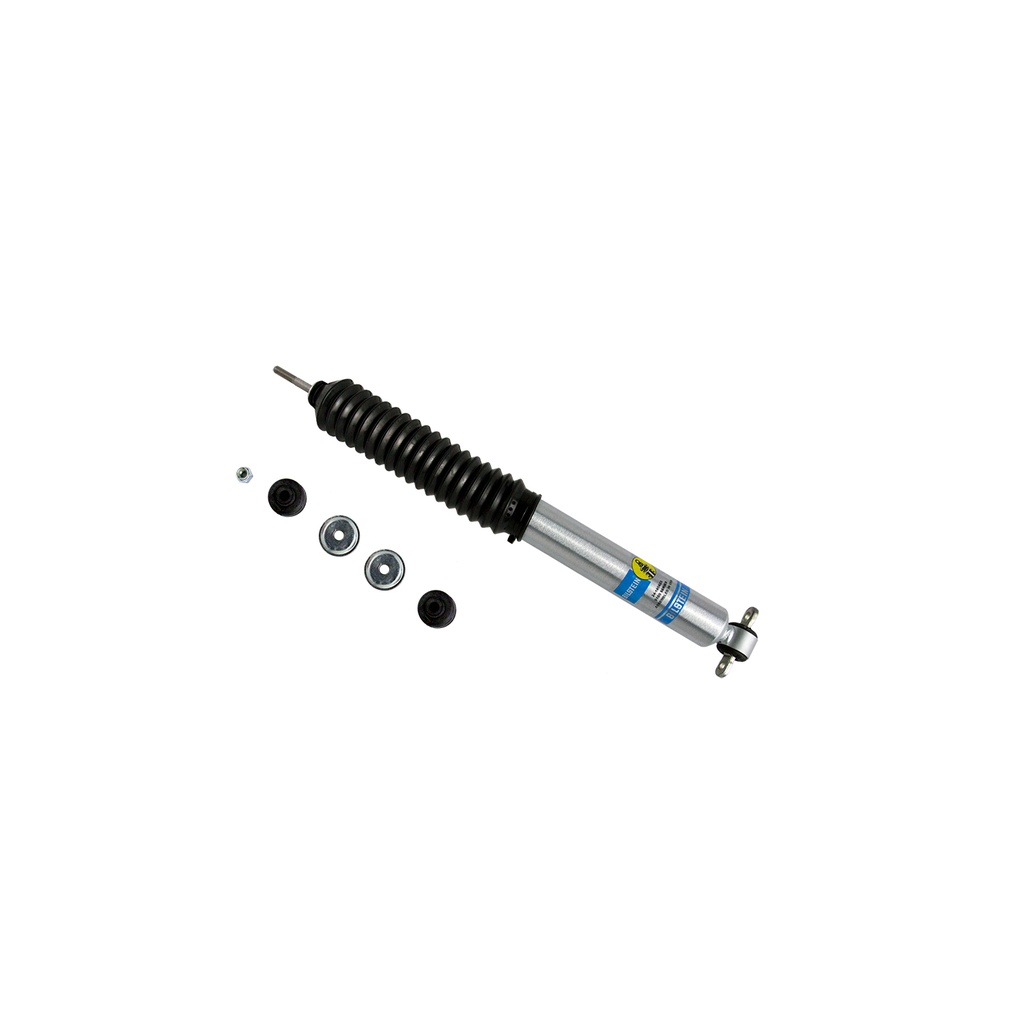

XJ/MJ/ZJ/WJ Front Bilstein 5100 3.5-4" Lift Shock

XJ/MJ/ZJ/WJ Front Bilstein 5100 3.5-4" Lift Shock
Pick your vehicle to confirm fit

118.00 118.0 USD 118.00

118.00

See financing options →

Fitment guarantee Ships from Orem, UT 4–8 hr install
ADD TO CART →
https://dev.core4x4.com/web/image/product.template/30141/image_1920?unique=b18cd53

XJ/MJ/ZJ/WJ Front Bilstein 5100 3.5-4" Lift Shock

XJ/MJ/ZJ/WJ Front Bilstein 5100 3.5-4" Lift Shock
SKU: BIL-24-188197
Pick your vehicle to confirm fit

118.00 118.0 USD 118.00

118.00

  • Vehicle
    Confirm this matches your vehicle. Use Shop by Vehicle to filter correctly.
  • Brand

Select Color to see price and add to cart.

Lifetime warranty Made in USA

Made in USA Orem, Utah
Lifetime Guarantee Unconditional
10 Colors In-house powder coat
Fully Adjustable 0-6" of lift
3 X-Series Options Only Core 4x4

Collapsed Length (in): 14.98

Extended Length (in): 24.63

Stroke/travel Length (in): 9.63

Lower Mount Type: Bar Pin

Upper Mount Type: Stem

Internal Design: Monotube

Finish: Zinc Plated

Reservoir: No

Body Design: Smooth Body (Non-Coilover)

Body Diameter (od): 2.0 in.

Piston Diameter: 46mm

Boot Included: Black Bellows

Replacement Mounting Kit: B4-KT1-Z097A00

Spring Seat Included: No

Shaft Diameter: 14mm

Adjustable Damping: Non-Adjustable


Make Model Submodel Years
Jeep Cherokee 1984 - 2001
Jeep Comanche 1986 - 1992
Jeep Grand Cherokee 1993 - 1998
Jeep Grand Cherokee 1999 - 2004

Vehicle Jeep Cherokee XJ (84–01) or Jeep Comanche MJ (86–92) or Jeep Grand Cherokee ZJ (93–98) or Jeep Grand Cherokee WJ (99–04)
Brand Bilstein
Placement on Vehicle Front
Mounting Style Bolt-On
