SKU: BIL-24-185943

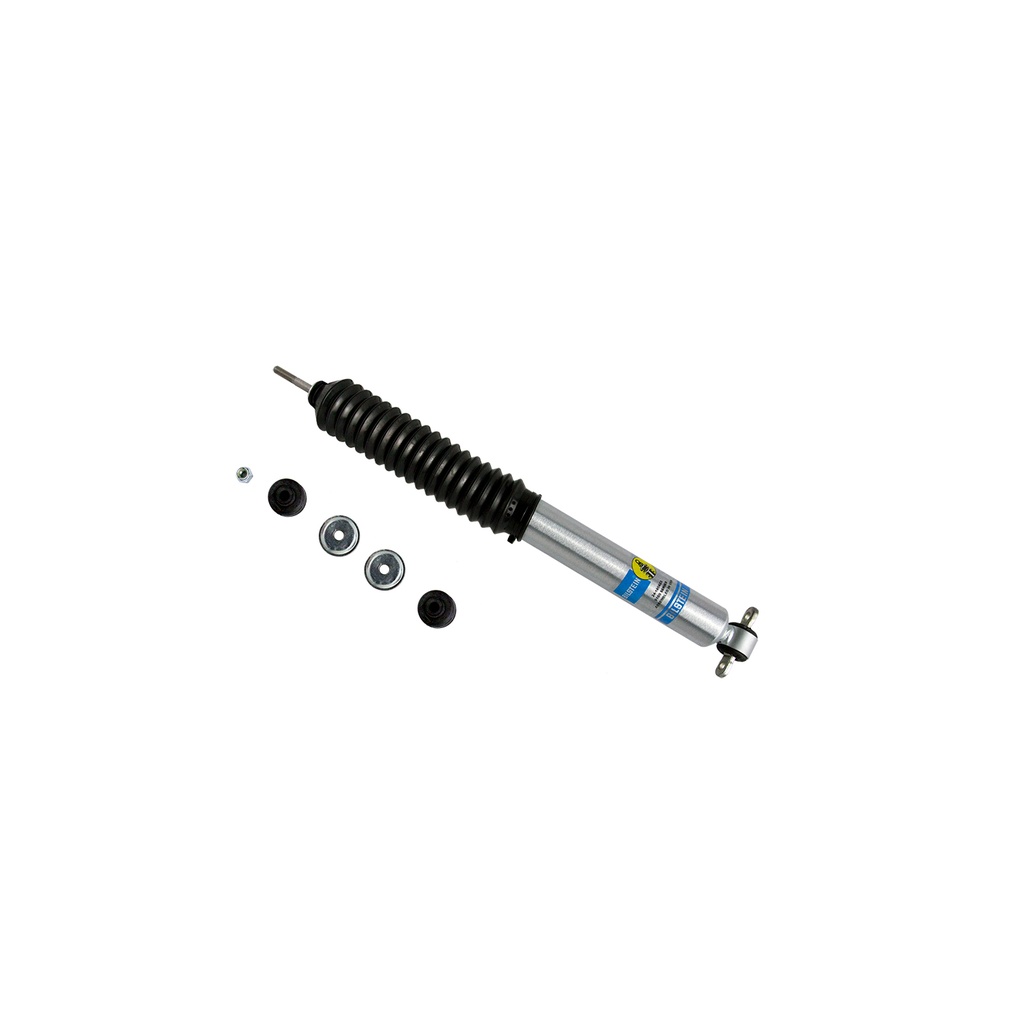

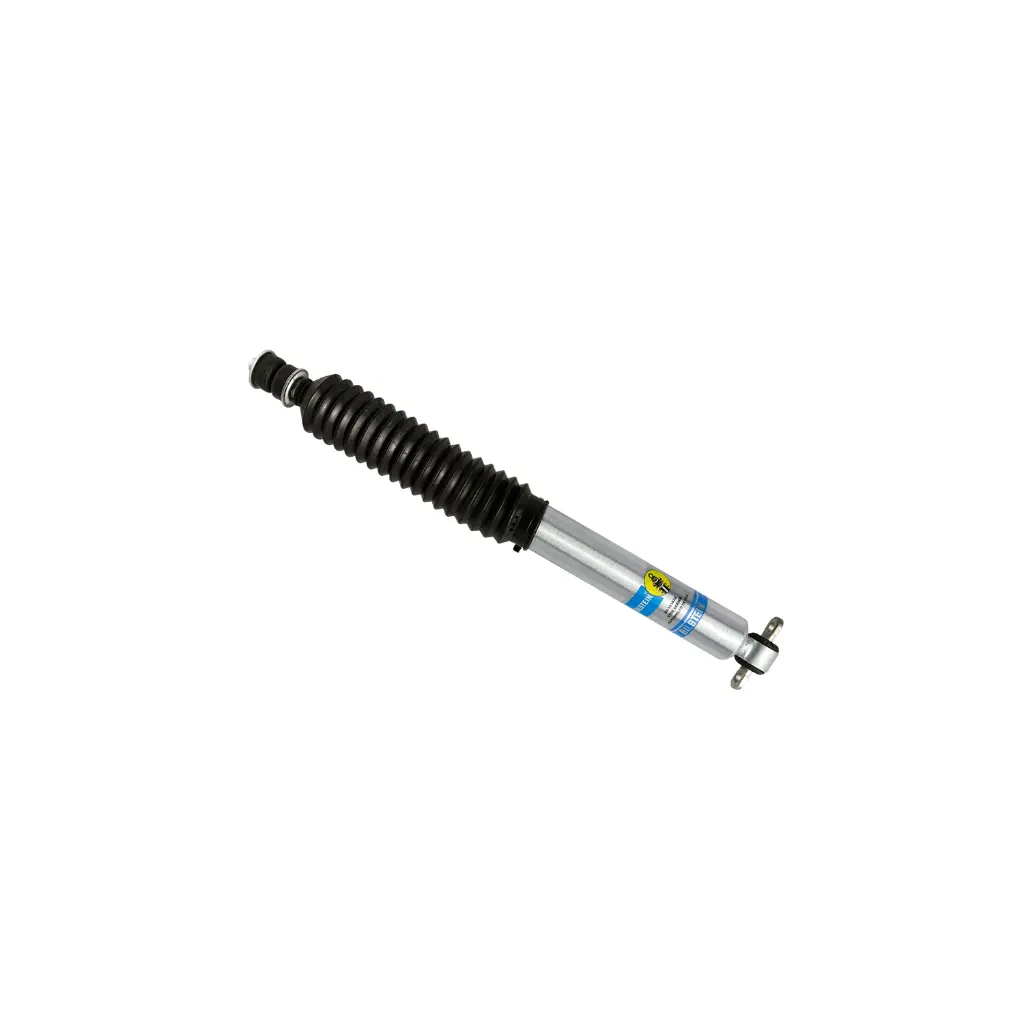

XJ/MJ/ZJ/WJ Front Bilstein 5100 5-6" Lift Shock

XJ/MJ/ZJ/WJ Front Bilstein 5100 5-6" Lift Shock
$118.00

$ 118.00 118.0 USD $ 118.00

$ 118.00

100% bolt-on, no welding Made in USA · Orem, Utah
Talk to an Expert: 385-375-2104 ADD TO CART →
https://dev.core4x4.com/web/image/product.template/30142/image_1920?unique=1ea7b56

XJ/MJ/ZJ/WJ Front Bilstein 5100 5-6" Lift Shock

XJ/MJ/ZJ/WJ Front Bilstein 5100 5-6" Lift Shock
SKU: BIL-24-185943
Does not fit your Ford Bronco Shop parts that fit ›

  • Vehicle
  • Brand

$ 118.00 118.0 USD $ 118.00

$ 118.00

Select Color to see price and add to cart.

100% bolt-on, no welding Made in USA · Orem, Utah
Talk to an Expert: 385-375-2104

You break it, we replace it. Made in USA

Made in USA Orem, Utah
You break it, we replace it Warranty on non-wear items
10 Colors In-house powder coat
Fully Adjustable 0-6" of lift
3 X-Series Options Only Core 4x4

Product Details

Make Model Submodel Years
Jeep Cherokee 1984–2001
Jeep Comanche 1986–1992
Jeep Grand Cherokee 1993–1998
Jeep Grand Cherokee 1999–2004

Vehicle Jeep Cherokee XJ (84–01) or Jeep Comanche MJ (86–92) or Jeep Grand Cherokee ZJ (93–98) or Jeep Grand Cherokee WJ (99–04)
Brand Bilstein
Placement on Vehicle Front
Mounting Style Bolt-On

Collapsed Length (in): 16.97

Extended Length (in): 28.44

Stroke/travel Length (in): 11.47

Lower Mount Type: Bar Pin

Upper Mount Type: Stem

Internal Design: Monotube

Finish: Zinc Plated

Reservoir: No

Body Design: Smooth Body (Non-Coilover)

Body Diameter (od): 2.0 in.

Piston Diameter: 46mm

Boot Included: Black Bellows

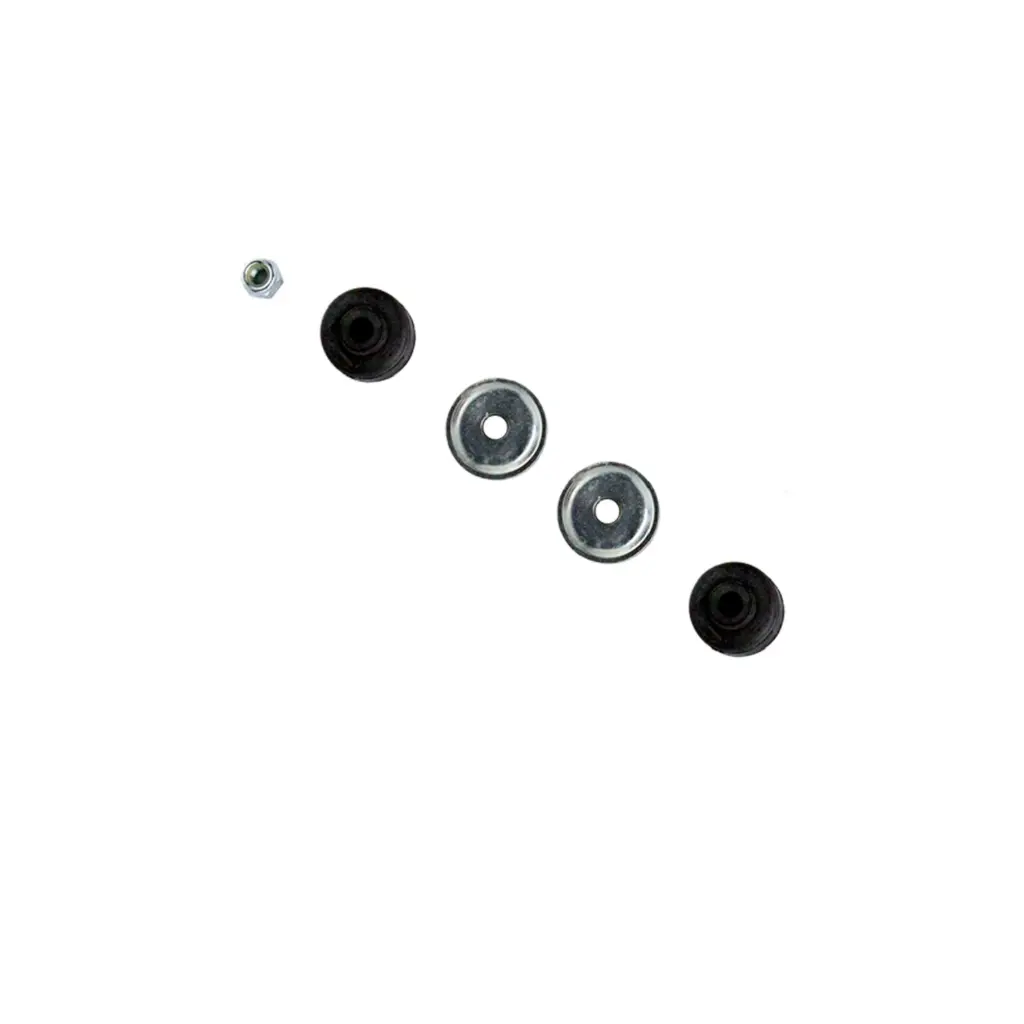

Replacement Mounting Kit: B4-KT1-Z097A00

Spring Seat Included: No

Shaft Diameter: 14mm

Adjustable Damping: Non-Adjustable
