Exact fit for Jeep Cherokee XJ
SKU: BIL-24-185639

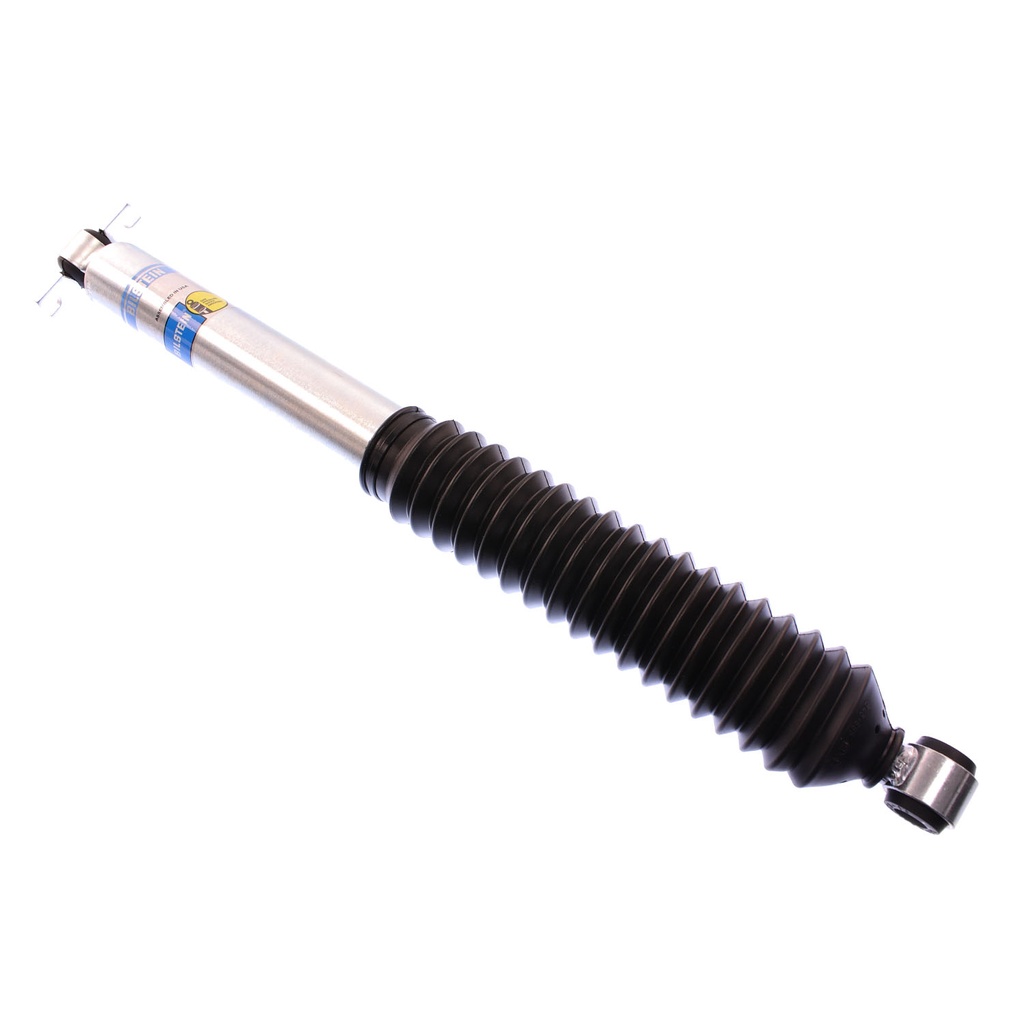

XJ Bilstein 5100 Rear 2-3" Shock

XJ Bilstein 5100 Rear 2-3" Shock
$118.00

$ 118.00 118.0 USD $ 118.00

$ 118.00

Not Available For Sale

100% bolt-on, no welding Made in USA · Orem, Utah
Talk to an Expert: 385-375-2104 ADD TO CART →
https://dev.core4x4.com/web/image/product.template/30143/image_1920?unique=04d29e5

XJ Bilstein 5100 Rear 2-3" Shock

XJ Bilstein 5100 Rear 2-3" Shock
SKU: BIL-24-185639
Exact fit for Jeep Cherokee XJ

  • Vehicle
  • Brand

$ 118.00 118.0 USD $ 118.00

$ 118.00

Not Available For Sale

Select Color to see price and add to cart.

100% bolt-on, no welding Made in USA · Orem, Utah
Talk to an Expert: 385-375-2104

You break it, we replace it. Made in USA

Made in USA Orem, Utah
You break it, we replace it Warranty on non-wear items
10 Colors In-house powder coat
Fully Adjustable 0-6" of lift
3 X-Series Options Only Core 4x4

Product Details

Make Model Submodel Years
Jeep Cherokee 1984–2001

Vehicle Jeep Cherokee XJ (84–01)
Brand Bilstein
Placement on Vehicle Rear
Mounting Style Bolt-On

Collapsed Length (in): 13.68

Extended Length (in): 21.88

Stroke/travel Length (in): 8.17

Lower Mount Type: Eye 16mm

Upper Mount Type: Bar Pin

Internal Design: Monotube

Finish: Zinc Plated

Reservoir: No

Body Design: Smooth Body (Non-Coilover)

Body Diameter (od): 2.0 in.

Piston Diameter: 46mm

Boot Included: Black Bellows

Spring Seat Included: No

Shaft Diameter: 14mm

Adjustable Damping: Non-Adjustable
