Product Details
| Make | Model | Submodel | Years |
|---|---|---|---|
| Toyota | Tacoma | 2005–2023 | |
| Toyota | Tacoma | 2024–Present |
Vehicle Fitment: Toyota Tacoma 24+ – Precision-engineered for all trims to enhance stability, handling, and off-road control.
CORE Advantage: Eliminates axle wrap, improves traction, and maximizes suspension articulation, giving you superior handling and durability on any terrain.
Adjustability: Fully adjustable while installed, accommodating stock height up to 8” lifts for precise axle centering, pinion angles, and suspension tuning.
Construction: Made from high-strength 7075 aluminum with Johnny Joints at both ends, providing extreme durability, articulation, and vibration dampening.
Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.
Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.
Built With
Rear Lower Control Arms Built With 2” 7075 Aluminum. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Rear Upper Control Arms Built With 2” 7075 Aluminum. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Rear Track Bar Built With 1.5” 7075 Aluminum. Forged Johnny Joints on both adjustable ends with 1” x 14 TPI - 2.32” long threads.

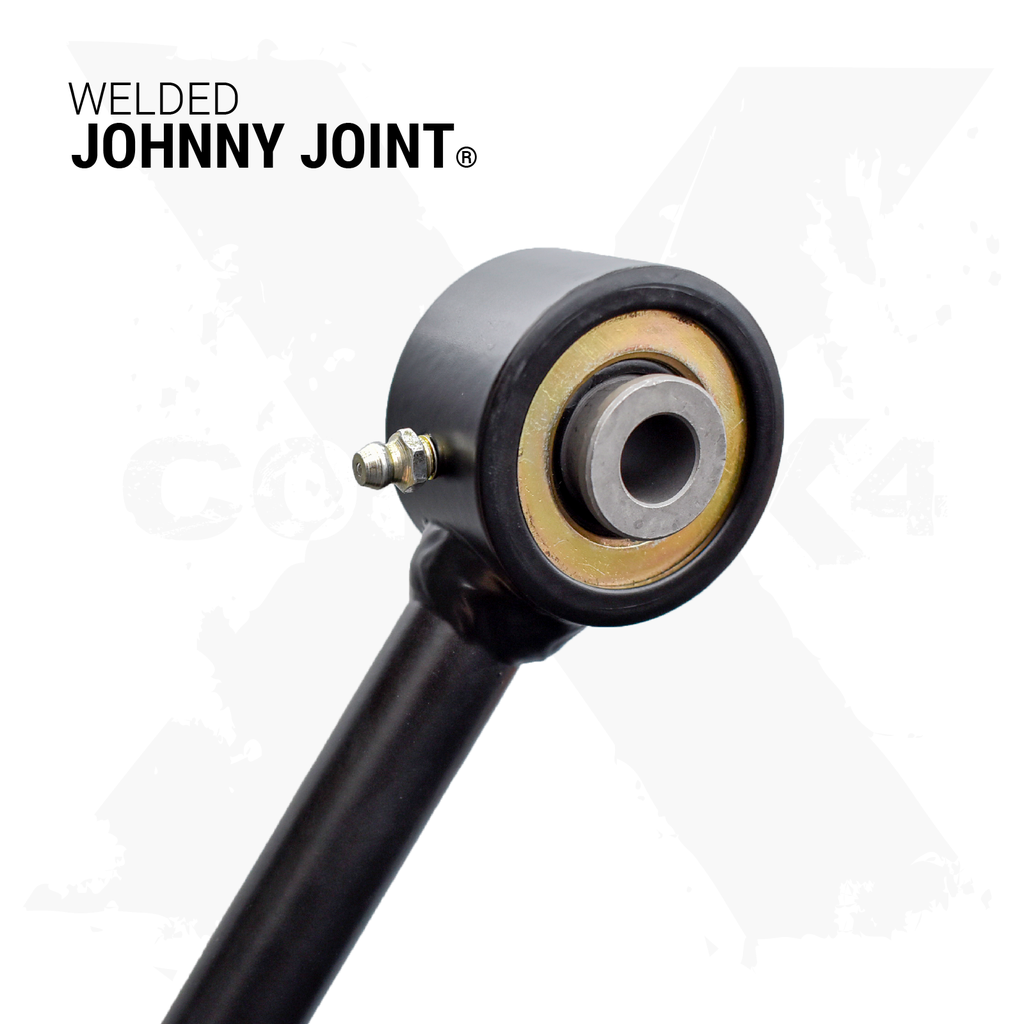

Rear End Links Built With .75” Cold Rolled Steel. Welded Johnny Joints on both fixed ends.
Construction & Materials
Rear Lower Control Arms Built With 2” 7075 Aluminum. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Rear Upper Control Arms Built With 2” 7075 Aluminum. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Rear Track Bar Built With 1.5” 7075 Aluminum. Forged Johnny Joints on both adjustable ends with 1” x 14 TPI - 2.32” long threads.
Rear End Links Built With .75” Cold Rolled Steel. Welded Johnny Joints on both fixed ends.
| Brand | CORE 4X4 |
| Color | Black or Blue or Charcoal or Green or Light Green or Orange or Purple or Red or White or Yellow or Raw Aluminum or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed. |
| Lift Size | Stock Height or Lifted 1" or Lifted 2" or Lifted 3" or Lifted 4" or Lifted 5" or Lifted 6" or Lifted 7" or Lifted 8" or Custom length or 1/2 sizes (put desired length in the Order Notes) |
| Hardware | No Hardware or Complete Kit |
| Vehicle | Toyota Tacoma (05–23) |
| Placement on Vehicle | Rear Upper, Rear Lower, Rear |
| Mounting Style | Bolt-On |
Unlock the Full Potential of Your Vehicle

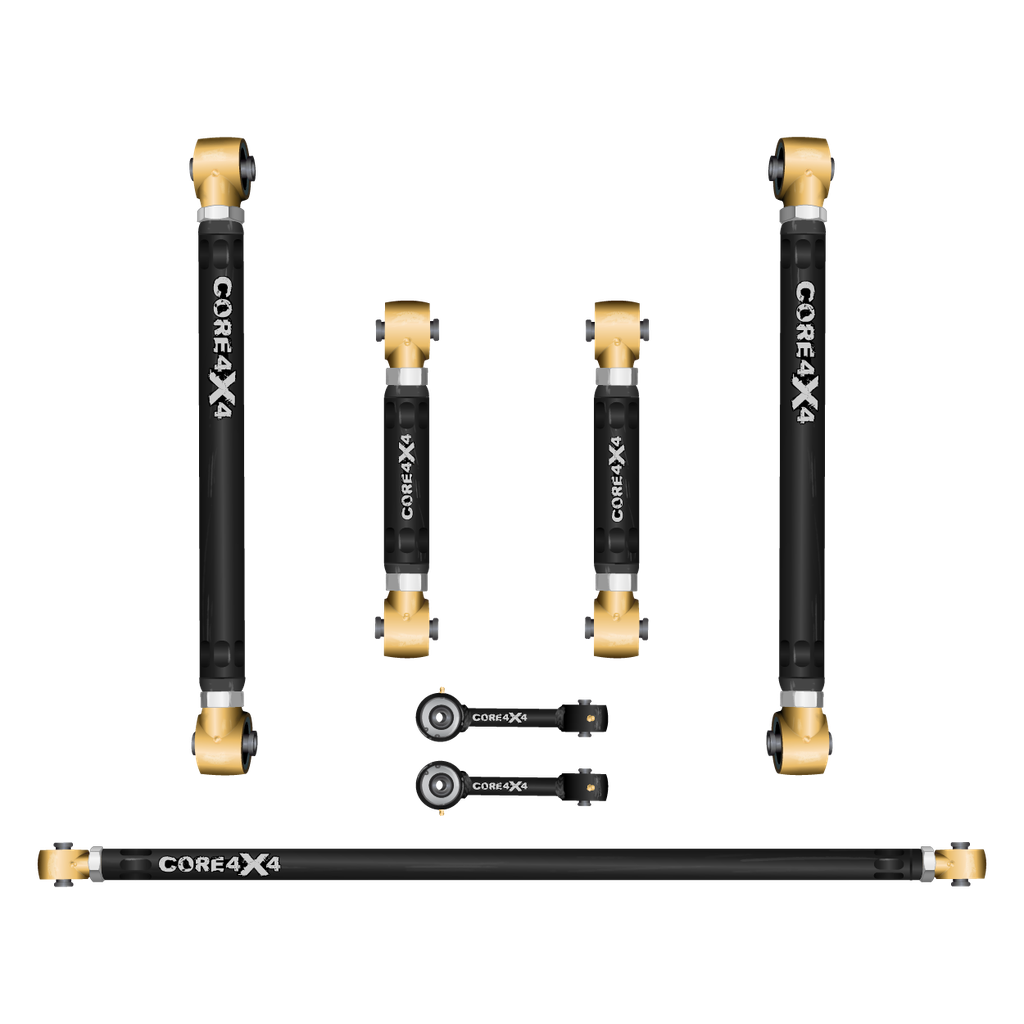

Take your Toyota Tacoma (2024-Present) to the next level with our Complete Rear Aluminum Suspension Kit, engineered for unmatched stability, handling, and adaptability. Whether you're navigating rugged trails, tearing up the track, or daily driving, this comprehensive suspension solution provides unrivaled durability, articulation, and control to optimize your vehicle’s performance.
Key Features Benefits
- Unmatched strength lightweight performance – Constructed from premium 7075 Aluminum, these control arms and track bar provide superior strength without added weight, improving responsiveness and efficiency. The cold-rolled steel sway bar end links offer added durability and precision handling.
- Extreme off-road flexibility – Featuring RockJock Johnny Joints at both ends, these components deliver maximum articulation, vibration dampening, and off-road maneuverability, far surpassing stock bushings and other aftermarket options.
- Precision alignment axle control – Fully adjustable to fine-tune your axle alignment, optimize pinion angles, and re-center your rear suspension, ensuring maximum performance across all lift heights.
- Enhanced stability sway control – The included rear sway bar end links are custom-length to match your truck’s lift height, reducing body roll, improving traction, and enhancing overall handling in aggressive cornering and rough terrain driving.
- Elimination of wheel hop – This kit reduces axle wrap and suspension deflection, minimizing wheel hop during acceleration and improving overall suspension efficiency.
Total Control with High Adjustability
Designed to accommodate lift heights from stock to 8 inches, this kit ensures your Tacoma remains stable, properly aligned, and ready for any terrain. For lifts beyond 8 inches, contact us for custom solutions to maintain optimal performance.
Distinctive Finish Options
Our 7075 Aluminum components are available in two premium finishes. The two-stage powder coating process includes a zinc primer base coat for rust protection, followed by a durable color top coat in one of 10 available options for a personalized look. Alternatively, you can opt for a raw aluminum finish, which showcases the natural beauty and strength of 7075 Aluminum with a clean, rugged aesthetic.
Proudly Made in the USA
Manufactured in Orem, UT, we oversee every step of production to ensure exceptional craftsmanship, strict quality control, and premium performance. When you choose our Aluminum Series, you're investing in American engineering and industry-leading suspension technology.
Optional Hardware Upgrade
This kit installs using factory hardware, but for those dealing with rusted or stubborn bolts, we offer optional Grade 8 hardware kits separately to ensure a seamless installation.
Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.
Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.
You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
